Check for deformation, fatigue or damage. If necessary, replace front brake hub.

TM-282

< UNIT DISASSEMBLY AND ASSEMBLY >

[7AT: RE7R01B]

FRONT CARRIER, INPUT CLUTCH, REAR INTERNAL GEAR

FRONT CARRIER, INPUT CLUTCH, REAR INTERNAL GEAR

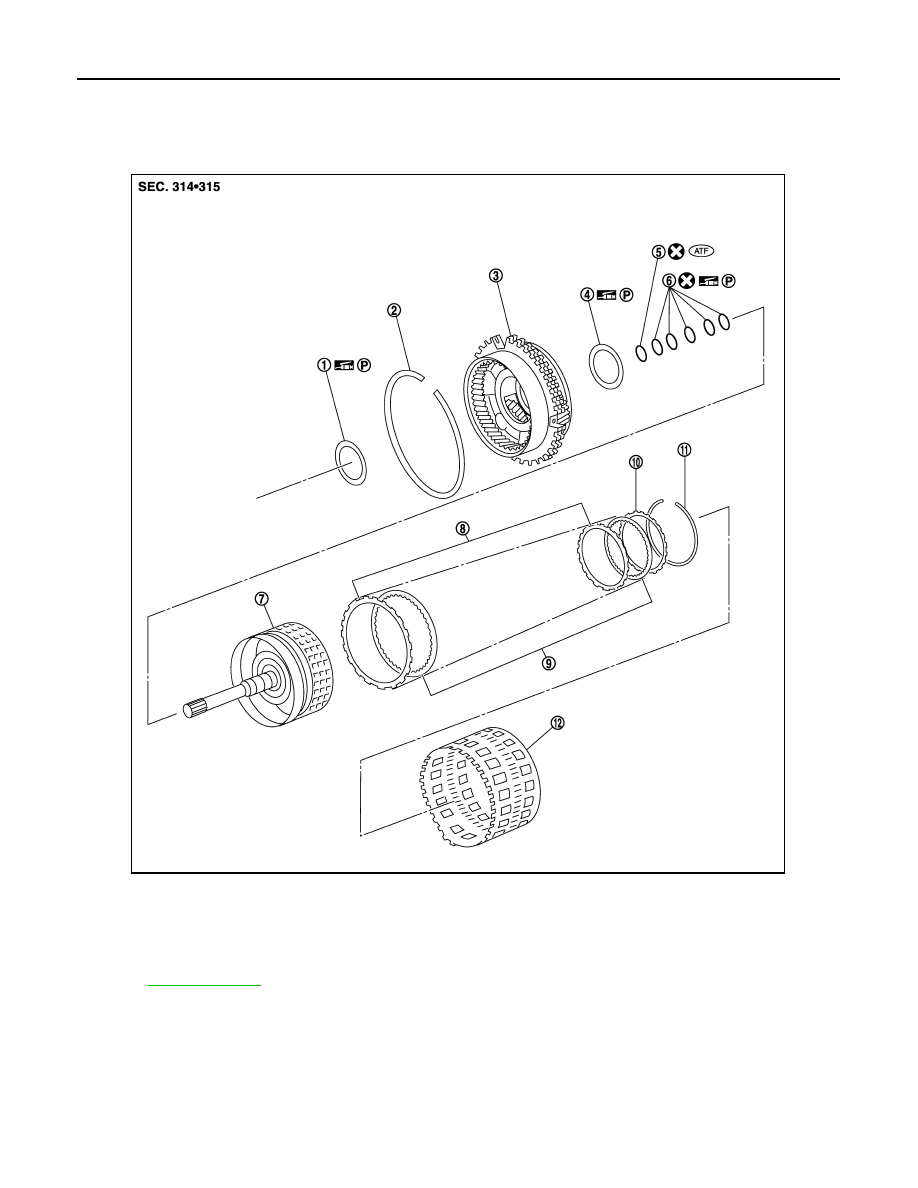

Exploded View

INFOID:0000000006226928

1.

Needle bearing

2.

Snap ring

3.

Front carrier assembly

4.

Needle bearing

5.

O-ring

6.

Seal ring

7.

Input clutch drum

8.

Input clutch driven plate

9.

Input clutch drive plate

10.

Input clutch retaining plate

11.

Snap ring

12. Rear internal gear

Refer to

GI-4, "Components"

 for symbols in the figure.

JPDIA1122GB

FRONT CARRIER, INPUT CLUTCH, REAR INTERNAL GEAR

TM-283

< UNIT DISASSEMBLY AND ASSEMBLY >

[7AT: RE7R01B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Disassembly

INFOID:0000000006226929

1.

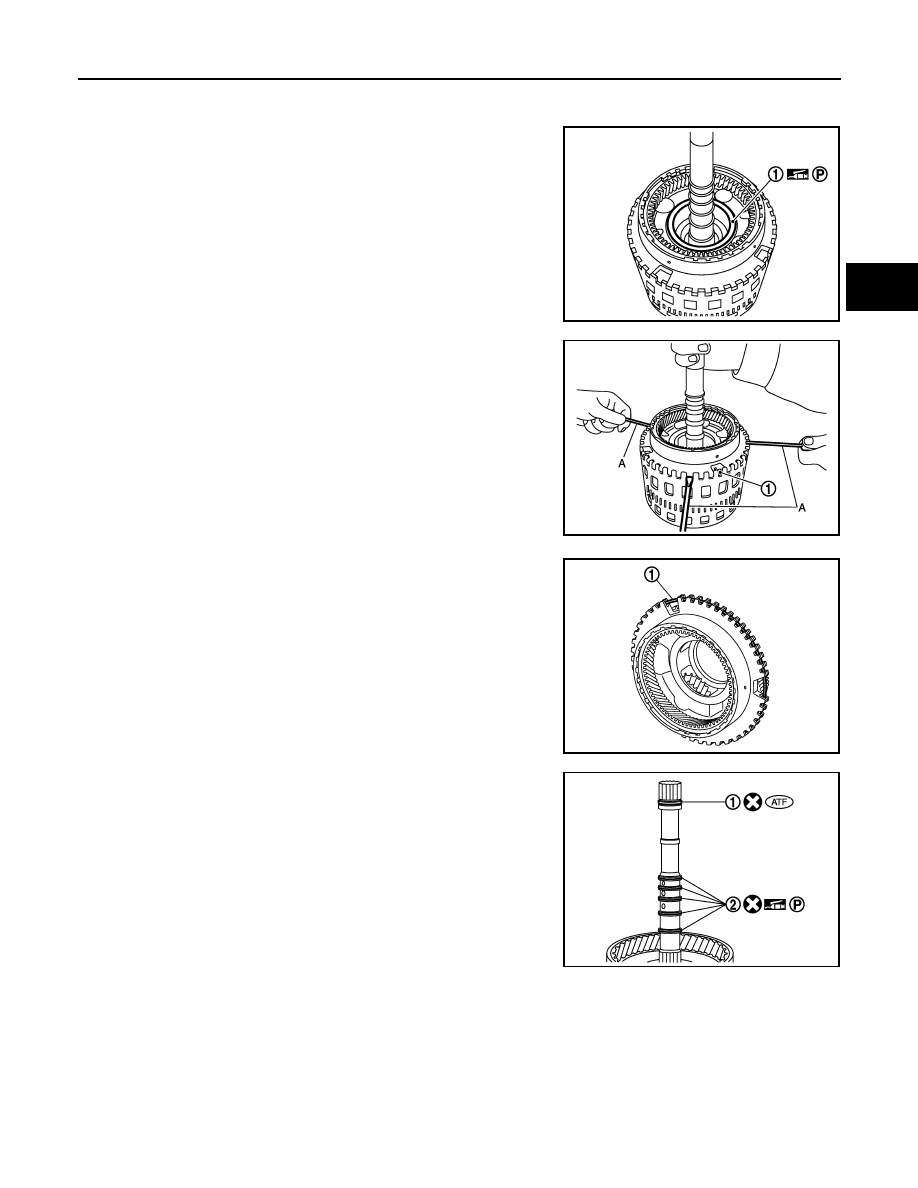

Remove needle bearing (1) from front carrier assembly.

2.

Compress snap ring (1) using flat-bladed screwdrivers (A).

CAUTION:

• Be careful not to scratch rear internal gear.
• Be careful not to damage snap ring.

3.

Remove front carrier assembly and input clutch assembly from
rear internal gear.

4.

Remove front carrier assembly from input clutch assembly.

5.

6.

Remove snap ring (1) from front carrier assembly.

CAUTION:

Be careful not to expand snap ring excessively.

7.

Remove O-ring (1) and seal rings (2) from input clutch assem-
bly.

JPDIA1120ZZ

JPDIA1123ZZ

JPDIA1159ZZ

JPDIA1124ZZ

TM-284

< UNIT DISASSEMBLY AND ASSEMBLY >

[7AT: RE7R01B]

FRONT CARRIER, INPUT CLUTCH, REAR INTERNAL GEAR

8.

Remove needle bearing from input clutch assembly.

9.

Remove snap ring from input clutch drum using a flat-bladed
screwdriver.

CAUTION:

• Be careful not to scratch rear input clutch drum and input

clutch retaining plate.

• Be careful not to damage snap ring.

10. Remove input clutch drive plates, input clutch driven plates, and

input clutch retaining plate from input clutch drum.

Assembly

INFOID:0000000006226930

1.

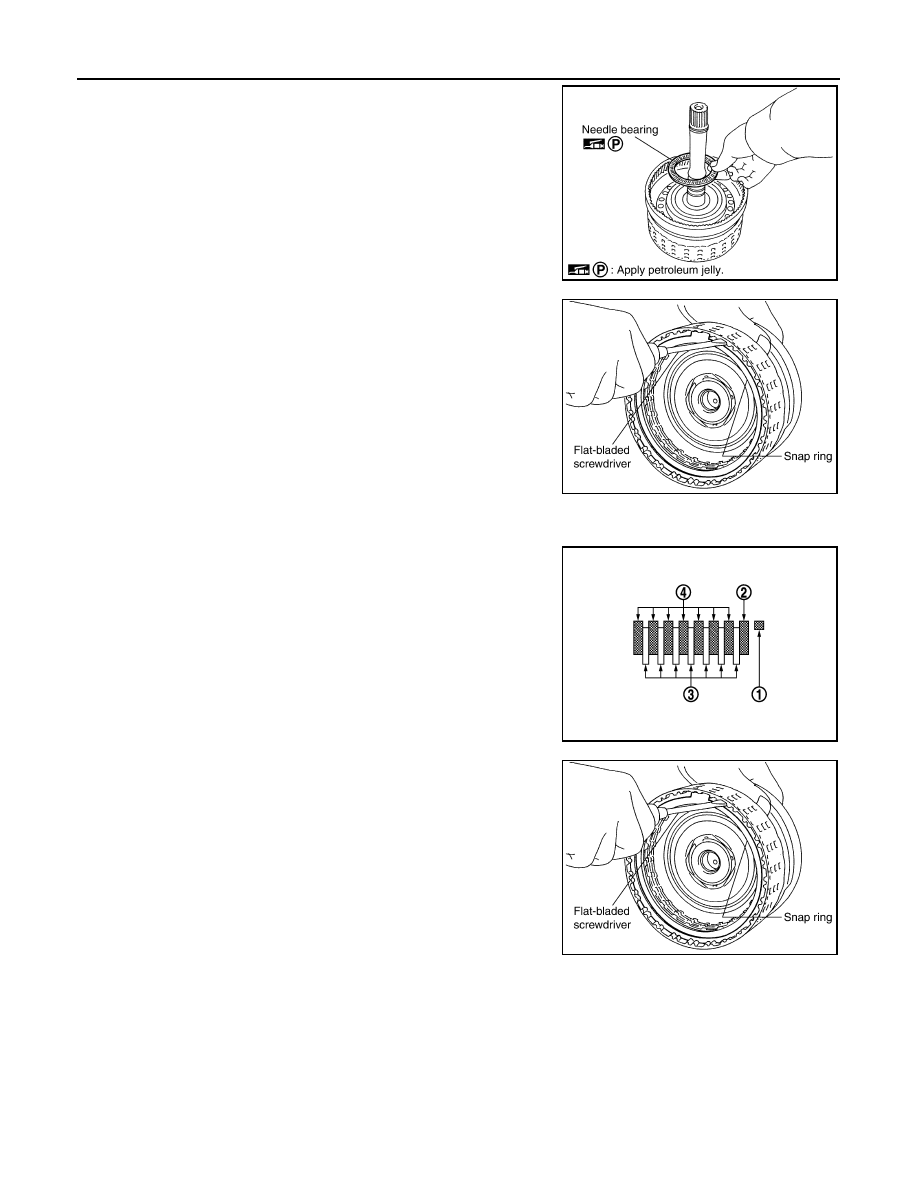

Install input clutch drive plates, input clutch driven plates, and
input clutch retaining plate in input clutch drum.

CAUTION:

Check order of plates.

2.

Install snap ring in input clutch drum using a flat-bladed screw-
driver.

CAUTION:

• Be careful not to scratch input clutch drum and input

clutch retaining plate.

• Be careful not to damage snap ring.

SCIA2853E

SCIA2864E

1

:  Snap  ring

2

: Retaining plate

3

: Drive plate (seven pieces)

4

: Driven plate (seven pieces)

JPDIA1125ZZ

SCIA2864E
