TRANSMISSION ASSEMBLY

TM-265

< UNIT DISASSEMBLY AND ASSEMBLY >

[7AT: RE7R01B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

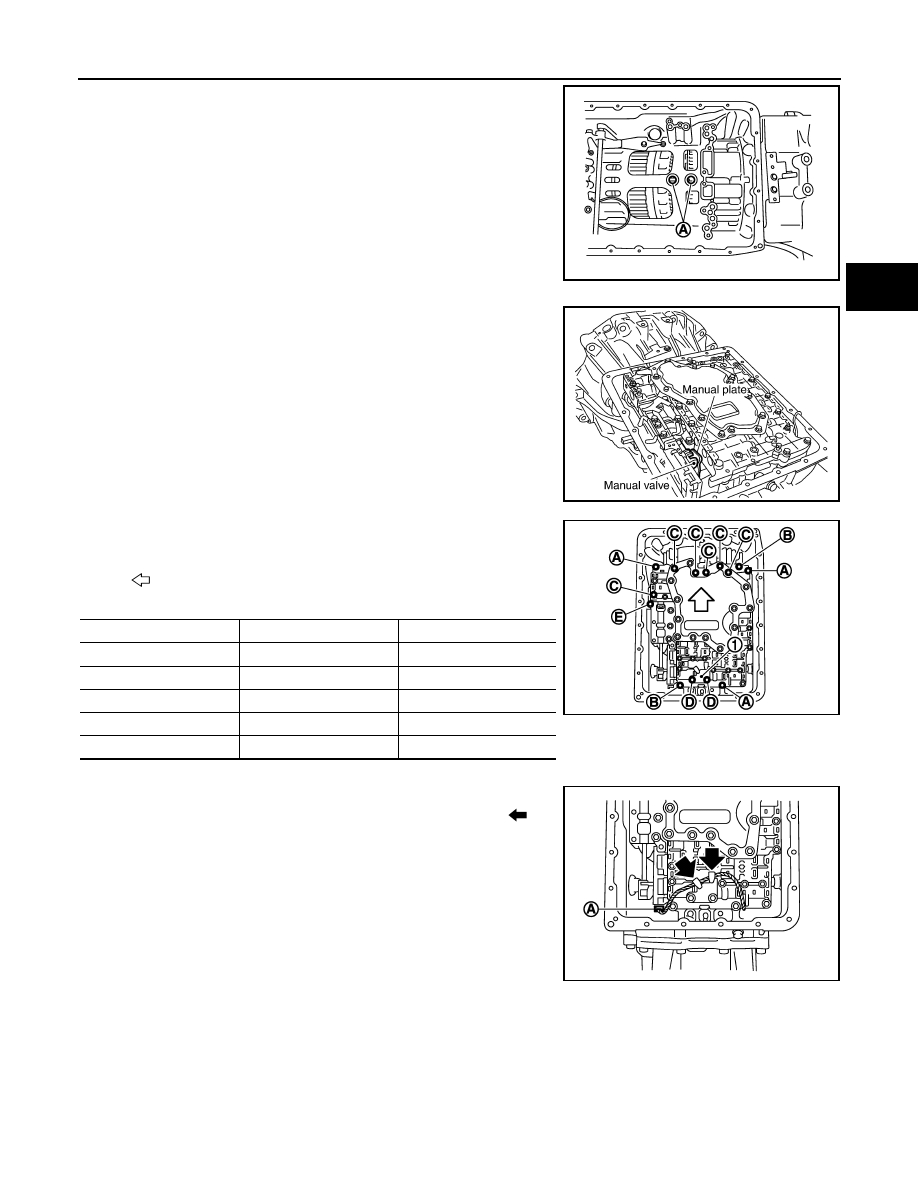

• Make sure that input speed sensor securely installs input

speed sensor holes (A).

• Hang down output speed sensor harness toward outside

so as not to disturb installation of the control valve &
TCM.

• Adjust A/T assembly harness connector of the control

valve & TCM to terminal hole of transmission case.

• Assemble it so that manual valve cutout is engaged with

manual plate projection.

64. Install bolts and clip (1) to the control valve & TCM. Tighten bolt

(E) to the specified torque before tightening the other than bolts.

*: Reamer bolt

65. Connect output speed sensor connector (A).
66. Engage output speed sensor harness with terminal clips (

).

JPDIA1106ZZ

SCIA5035E

: Front

Bolt symbol

Length mm (in)

Number of bolts

A

43 (1.69)

3

B

40 (1.57)

2

C

54 (2.13)

6

D

50 (1.97)

2

E*

50 (1.97)

1

JPDIA1105ZZ

JPDIA1104ZZ

TM-266

< UNIT DISASSEMBLY AND ASSEMBLY >

[7AT: RE7R01B]

TRANSMISSION ASSEMBLY

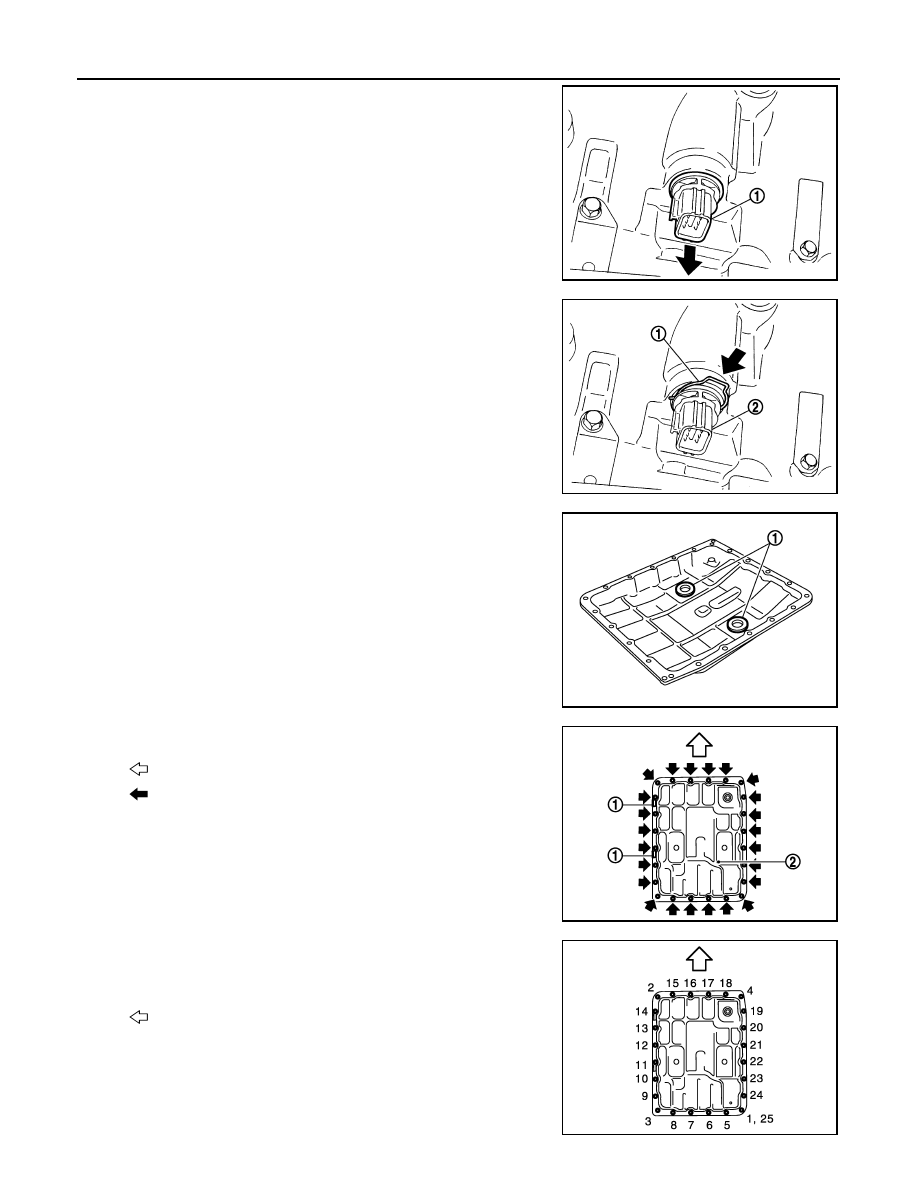

67. Pull down joint connector (1).

CAUTION:

Be careful not to damage connector.

68. Install snap ring (1) to joint connector (2).

69. Install magnets (1) in oil pan.

70. Install oil pan gasket to transmission case.

CAUTION:

• Never reuse oil pan gasket.
• Install it in the direction to align hole positions.
• Completely remove all moisture, oil and old gasket, etc.

from oil pan gasket mounting surface.

71. Install oil pan (2) and clips (1) to transmission case.

CAUTION:

• Be careful not to pinch harnesses.
• Completely remove all moisture, oil and old gasket, etc.

from oil pan mounting surface.

72. Tighten oil pan mounting bolts to the specified torque in numeri-

cal order shown in the figure after temporarily tightening them.
Tighten oil pan mounting bolts to the specified torque.

CAUTION:

Never reuse oil pan mounting bolts.

73. Install drain plug to oil pan. Tighten drain plug to the specified

torque.

CAUTION:

Never reuse drain plug gasket.

JSDIA1764ZZ

JSDIA1765ZZ

JPDIA0009ZZ

: Front

: Oil pan mounting bolt

JSDIA1591ZZ

: Front

JSDIA1592GB

TRANSMISSION ASSEMBLY

TM-267

< UNIT DISASSEMBLY AND ASSEMBLY >

[7AT: RE7R01B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

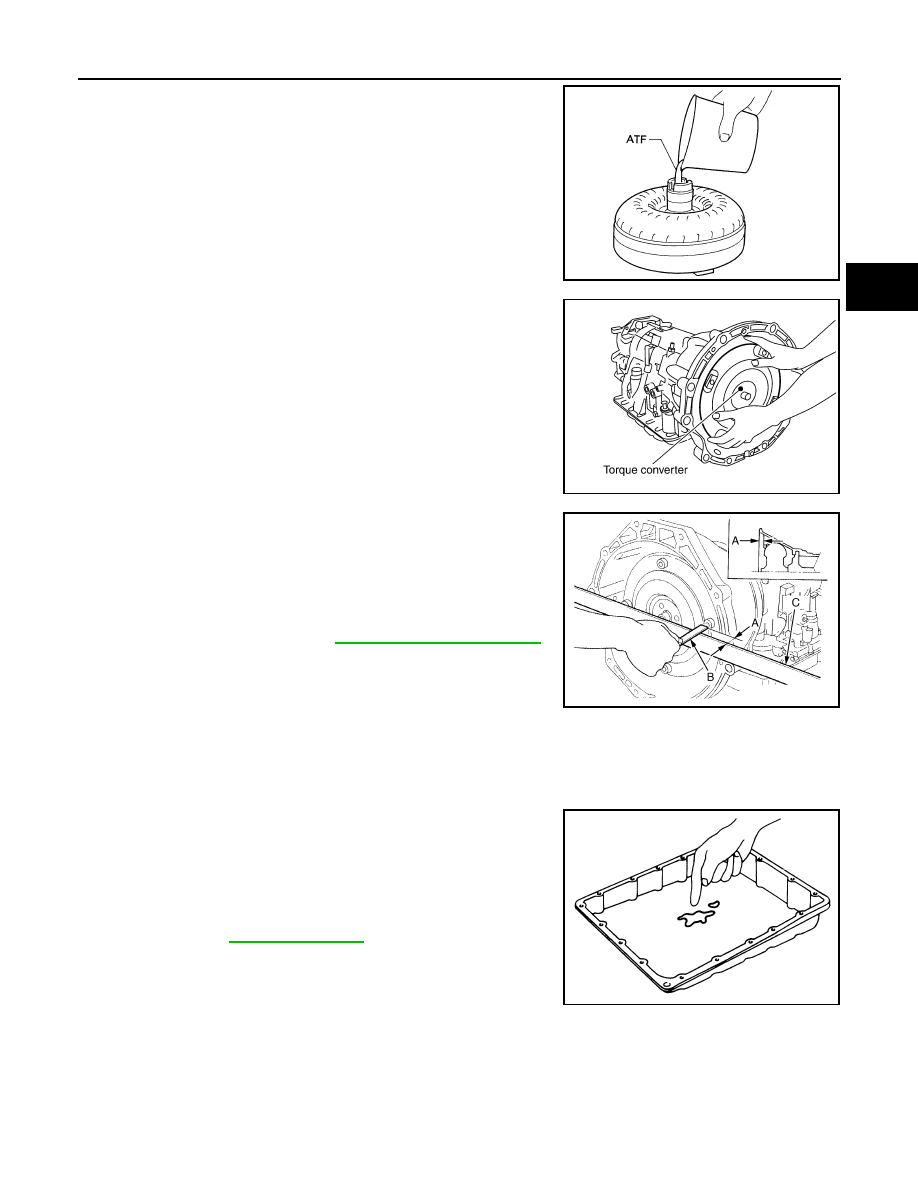

74. Pour ATF into torque converter.

• Approximately 2 liter (2-1/8 US qt, 1-3/4 Imp qt) of ATF is

required for a new torque converter.

• When reusing old torque converter, add the same amount

of ATF as was drained.

75. Install torque converter while aligning notches of torque con-

verter with notches of oil pump.

CAUTION:

Install torque converter while rotating it.

76. Measure dimension “A” to make sure that torque converter is in

proper position.

Inspection

INFOID:0000000006226919

INSPECTION AFTER REMOVAL

Oil Pan

Check foreign materials in oil pan to help determine causes of mal-
function. If the ATF is very dark, smells burned, or contains foreign
particles, the frictional material (clutches, band) may need replace-
ment. A tacky film that will not wipe clean indicates varnish build up.
Varnish can cause valves, servo, and clutches to stick and can
inhibit pump pressure.
• If frictional material is detected, perform A/T fluid cooler

cleaning. Refer to

TM-97, "Cleaning"

.

Torque Converter

SAT428DA

SCIA5010E

B

:  Scale

C

: Straightedge

Dimension “A”

: Refer to

TM-297, "Torque Converter"

.

JPDIA0042ZZ

SCIA5199E

TM-268

< UNIT DISASSEMBLY AND ASSEMBLY >

[7AT: RE7R01B]

TRANSMISSION ASSEMBLY

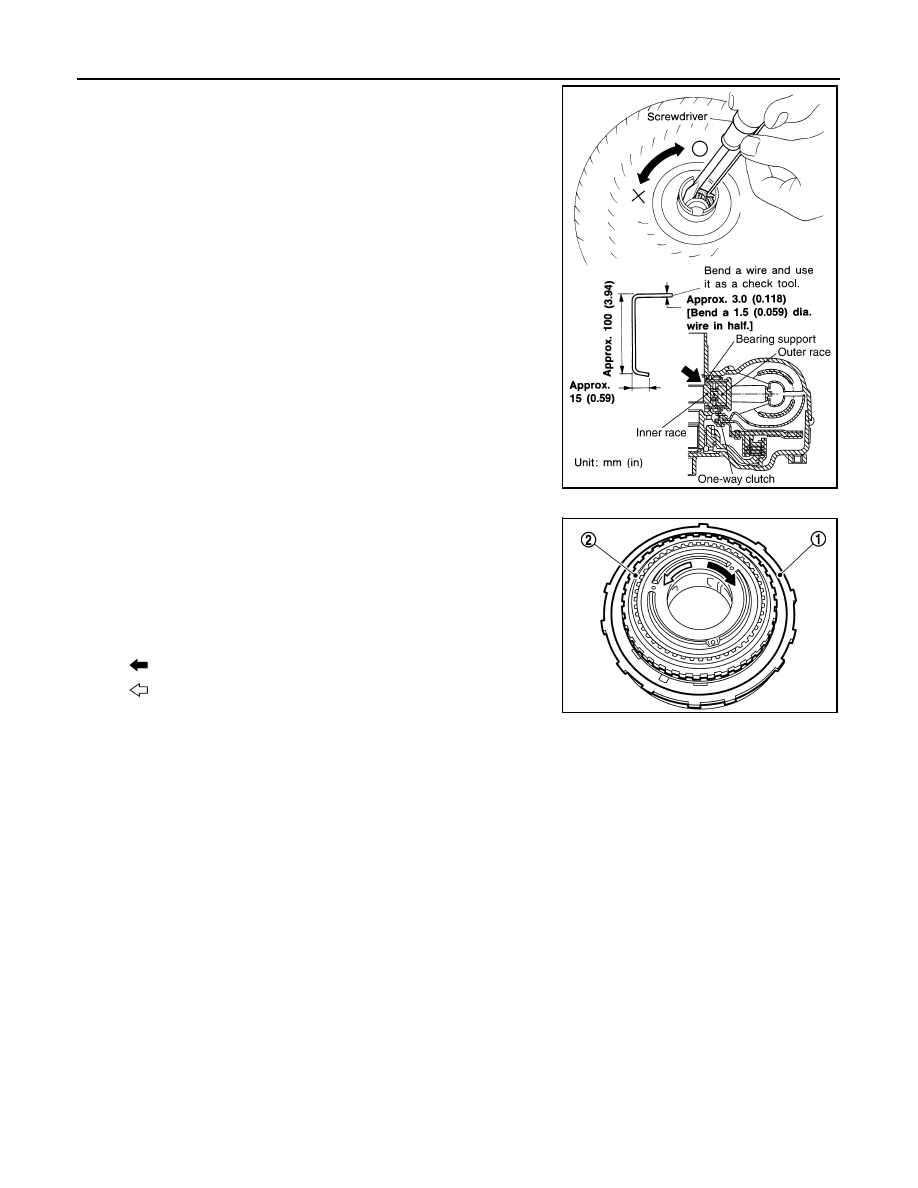

Check torque converter one-way clutch using a check tool as shown
at figure.
1.

Insert a check tool into the groove of bearing support built into
one-way clutch outer race.

2.

When fixing bearing support with a check tool, rotate one-way
clutch spline using a screwdriver.

3.

Make sure that inner race rotates clockwise only. If not, replace
torque converter assembly.

1st One-way Clutch

Check operation of 1st one-way clutch.

1.

Install 1st one-way clutch (1) to front brake hub (with under drive
carrier).

2.

Hold 1st one-way clutch.

3.

Check front brake hub for correct locking and unlocking direc-
tions. If necessary, replace 1st one-way clutch.

Under Drive Sun Gear

Check for deformation, fatigue or damage. If necessary, replace the under drive sun gear.

Mid Carrier Assembly

Check for deformation, fatigue or damage. If necessary, replace the mid carrier assembly.

Rear Carrier Assembly

Check for deformation, fatigue or damage. If necessary, replace the rear carrier assembly.

Reverse Brake Drive Plates

Check facing for burns, cracks or damage. If necessary, replace the plate.

Reverse Brake Retaining Plate, Driven Plates and Dish Plates

Check facing for burns, cracks or damage. If necessary, replace the plate.

Each Snap Ring

Check for deformation, fatigue or damage. If necessary, replace the snap ring.

Parking Actuator Support and Parking Pawl

SCIA3171E

: Unlocked

: Locked

JSDIA1713ZZ
