TRANSMISSION ASSEMBLY

TM-257

< UNIT DISASSEMBLY AND ASSEMBLY >

[7AT: RE7R01B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

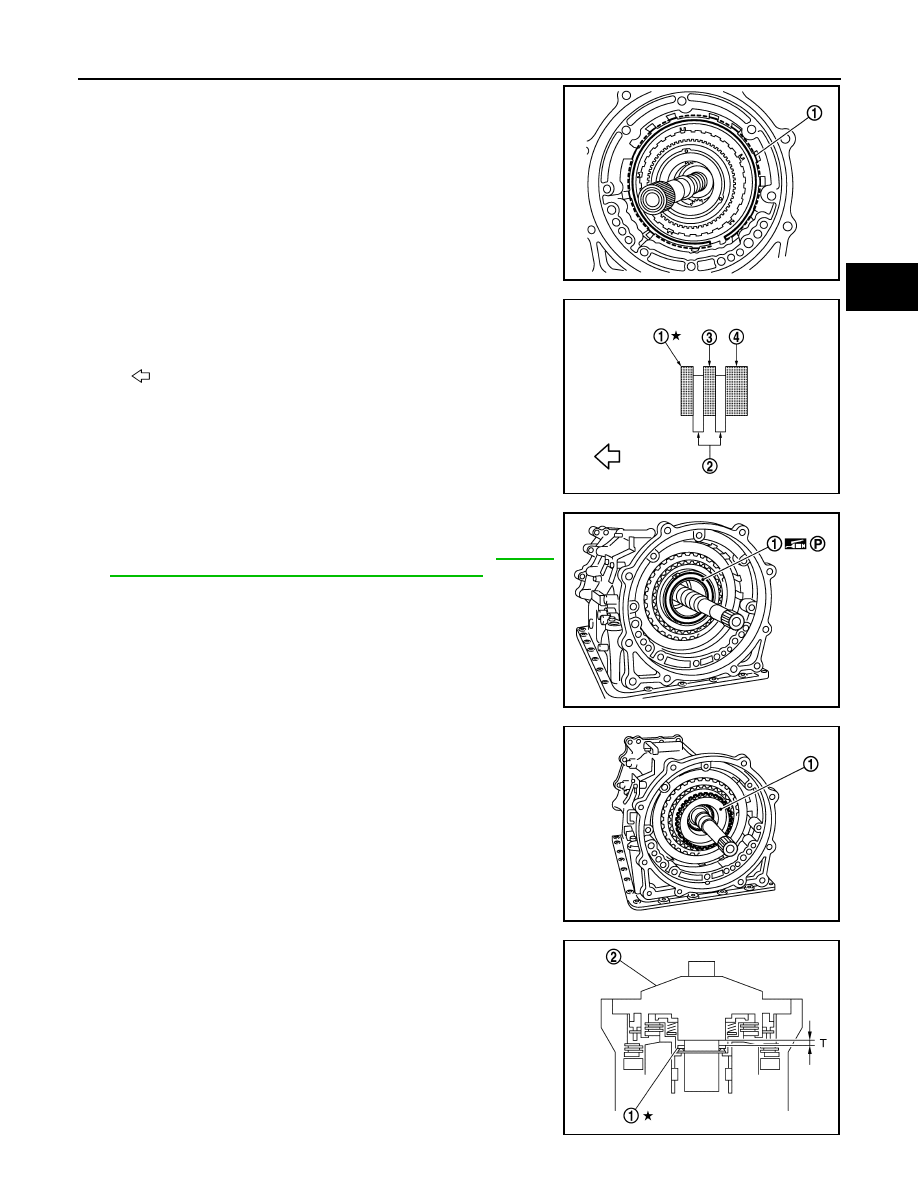

44. Install snap ring (1) to transmission case.

CAUTION:

Be careful not to damage snap ring.

45. Install front brake retaining plate (thin) (1), front brake drive

plates (2), front brake driven plate (3), and front brake retaining
plate (thick) (4) to transmission case.

CAUTION:

Check order of plates.

46. Install needle bearing (1) to under drive carrier assembly.

CAUTION:

Check the direction of needle bearing. Refer to

TM-222,

"Location of Needle Bearings and Bearing Races"

.

47. Install under drive sun gear (1) to under drive carrier assembly.

48. Adjustment of total end play “T”.

• Measure clearance between bearing race (1) and oil pump

cover (2).

• Select proper thickness of bearing race so that end play is

within specifications.

JPDIA1116ZZ

: Front

JPDIA1154ZZ

JPDIA1114ZZ

JPDIA1112ZZ

JSDIA1696ZZ

TM-258

< UNIT DISASSEMBLY AND ASSEMBLY >

[7AT: RE7R01B]

TRANSMISSION ASSEMBLY

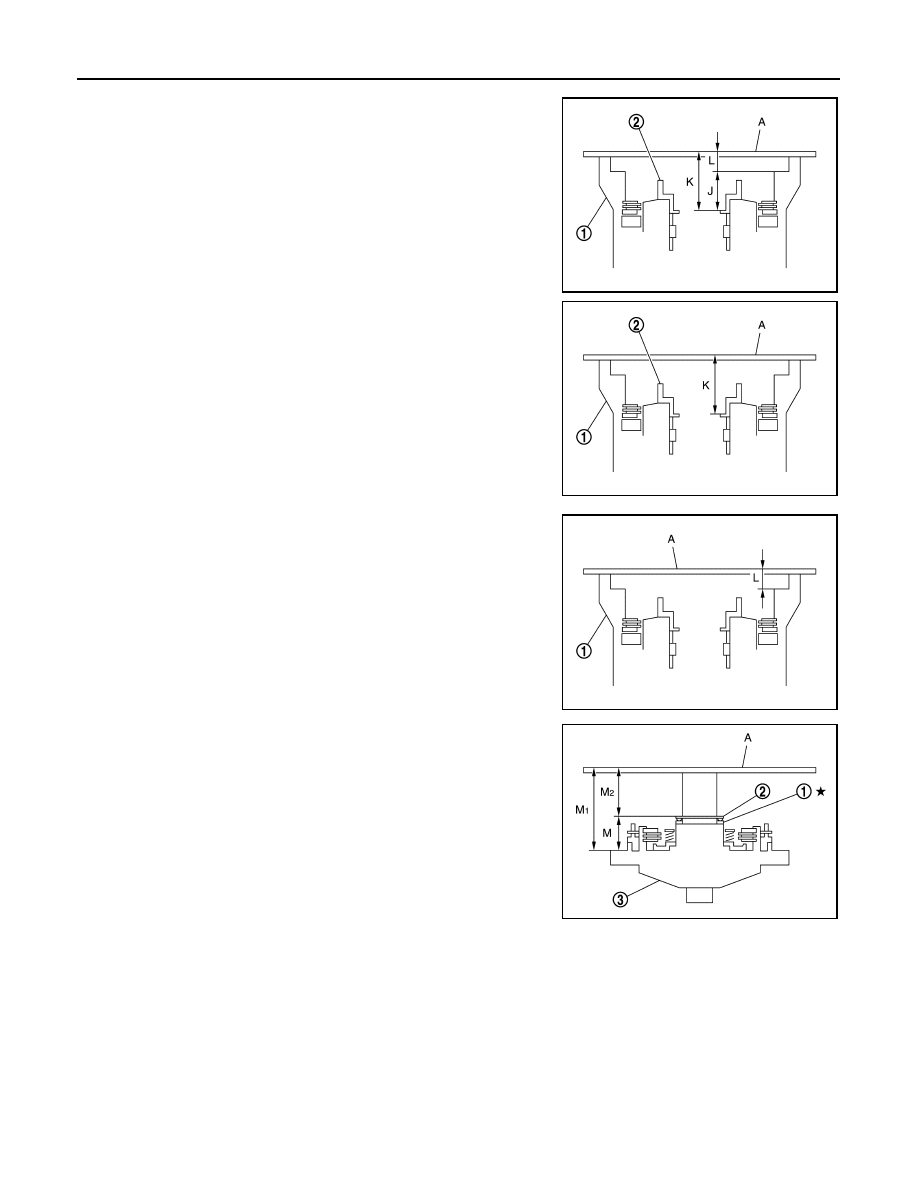

a.

Measure dimensions “K” and “L”, and calculate dimension “J”.

i.

Measure dimension “K” between the converter housing fitting
surface of transmission case and the needle bearing mating sur-
face of under drive sun gear.

CAUTION:

Never change the straight edge installation position before
the completion of “L” measurement.

ii.

Measure dimension “L” between the converter housing fitting
surface of transmission case and the oil pump fitting surface of
transmission case.

iii.

Measure dimension “K” and “L” in at least three places, and take
the average.

iv.

Calculate dimension “J”.

b.

Measure dimensions “M

1

” and “M

2

”, and calculate dimension

“M”.

1

: Transmission case

2

: Under drive sun gear

A

: Straightedge

“J”

: Distance between the oil pump fitting surface
of transmission case and the needle bearing
mating surface of under drive sun gear.

J = K – L

JSDIA1697ZZ

JSDIA1698ZZ

J = K – L

JSDIA1699ZZ

1

: Bearing race

2

: Needle bearing

3

: Oil pump assembly

A

: Straightedge

“M”

: Distance between the transmission case fit-
ting surface of oil pump and the needle bearing
on oil pump.

M = M

1

– M

2

JSDIA1700ZZ

TRANSMISSION ASSEMBLY

TM-259

< UNIT DISASSEMBLY AND ASSEMBLY >

[7AT: RE7R01B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

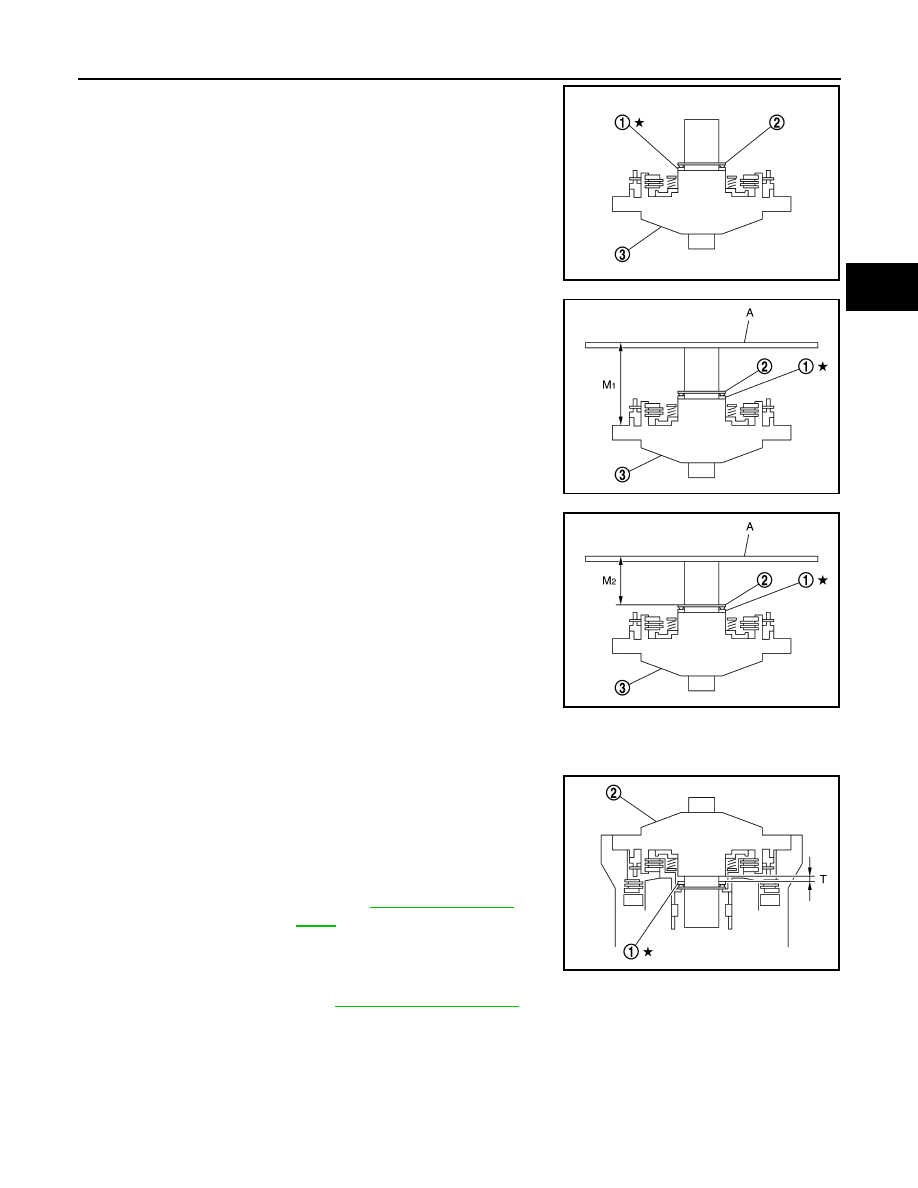

i.

Place bearing race (1) and needle bearing (2) on oil pump
assembly (3).

ii.

Measure dimension “M

1

” between the transmission case fitting

surface of oil pump and the end of oil pump.

CAUTION:

Measure dimension “M

1

” in at least three places, and take

the average.

iii.

Measure dimension “M

2

” between the needle bearing on oil

pump and the end of oil pump.

CAUTION:

Measure dimension “M

2

” in at least three places, and take

the average.

iv.

Calculate dimension “M”.

c.

Adjust total end play “T”.

• Select proper thickness of bearing race so that total end play

is within specifications.

JSDIA1701ZZ

1

: Bearing race

2

: Needle bearing

3

: Oil pump assembly

A

: Straightedge

JSDIA1702ZZ

1

: Bearing race

2

: Needle bearing

3

: Oil pump assembly

A

: Straightedge

M = M

1

– M

2

JSDIA1703ZZ

1

: Bearing race

2

: Oil pump assembly

T = J – M

Total end play “T”

: Refer to

TM-298, "Total End

Play"

.

Bearing races

: Refer to

TM-298, "Total End Play"

.

JSDIA1696ZZ

TM-260

< UNIT DISASSEMBLY AND ASSEMBLY >

[7AT: RE7R01B]

TRANSMISSION ASSEMBLY

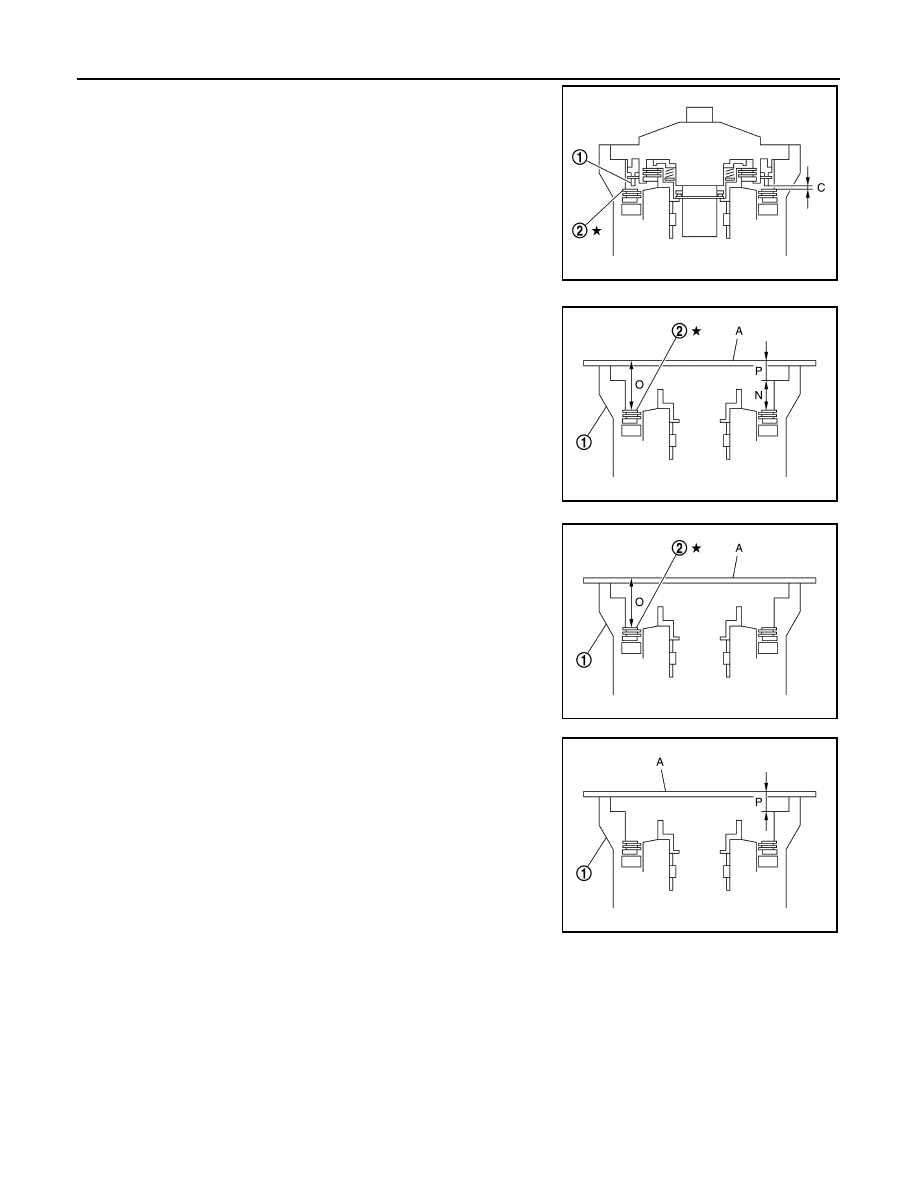

49. Adjustment of front brake clearance “C”.

• Measure clearance between front brake piston (1) and front

brake retaining plate (2).

• Select proper thickness of front brake retaining plat so that

clearance is within specifications.

a.

Measure dimensions “O” and “P”, and calculate dimension “N”.

i.

Measure dimension “O” between the converter housing fitting
surface of transmission case and the front brake retaining plate.

CAUTION:

Never change the straight edge installation position before
the completion of “P” measurement.

ii.

Measure dimension “P” between the converter housing fitting
surface of transmission case and the oil pump fitting surface of
transmission case.

iii.

Measure dimension “O” and “P” in at least three places, and
take the average.

iv.

Calculate dimension “N”.

JSDIA1704ZZ

1

: Transmission case

2

: Front brake retaining plate

A

: Straightedge

“N”

: Distance between the oil pump fitting surface
of transmission case and the front brake retain-
ing plate.

N = O – P

JSDIA1705ZZ

1

: Transmission case

2

: Front brake retaining plate

A

: Straightedge

JSDIA1706ZZ

1

: Transmission case

A

: Straightedge

N = O – P

JSDIA1707ZZ
