TRANSMISSION ASSEMBLY

TM-253

< UNIT DISASSEMBLY AND ASSEMBLY >

[7AT: RE7R01B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

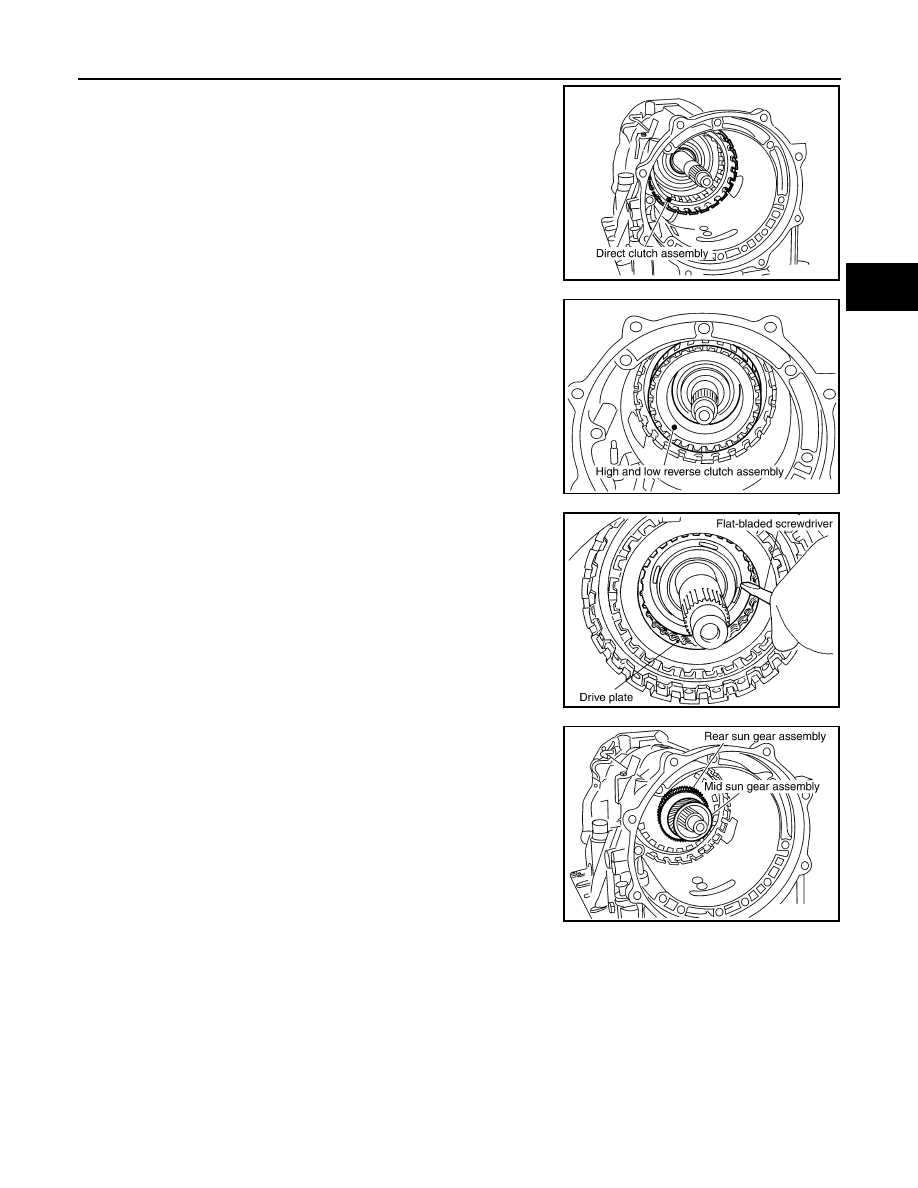

28. Install direct clutch assembly in reverse brake.

CAUTION:

Make sure that drum support edge surface and direct clutch
inner boss edge surface come to almost same place.

29. Install high and low reverse clutch assembly in direct clutch.

30. Align the drive plate using a flat-bladed screwdriver.

31. Install high and low reverse clutch hub, mid sun gear assembly,

and rear sun gear assembly as a unit.

CAUTION:

SCIA5019E

SCIA2306E

SCIA3169E

SCIA5018E

TM-254

< UNIT DISASSEMBLY AND ASSEMBLY >

[7AT: RE7R01B]

TRANSMISSION ASSEMBLY

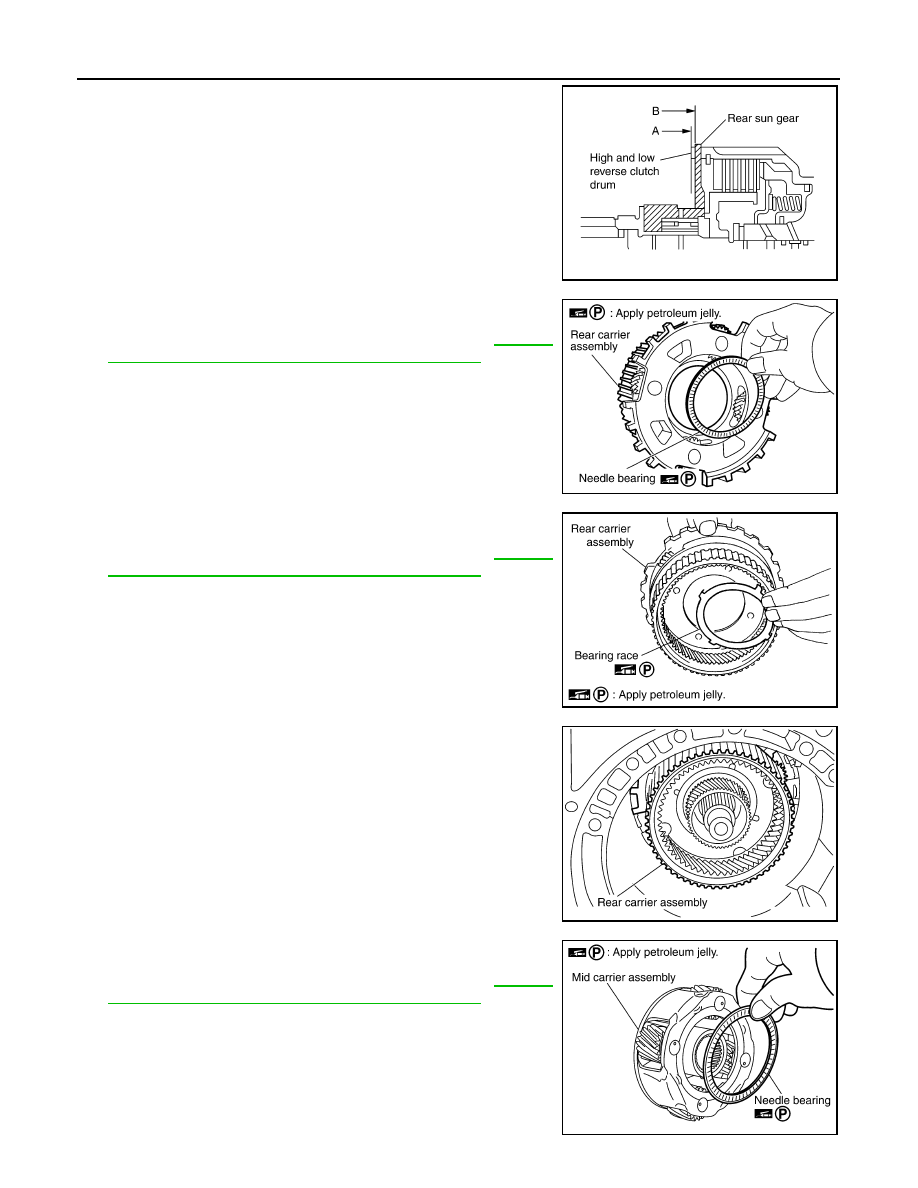

Make sure that portion “A” of high and low reverse clutch
drum protrudes approximately 2 mm (0.08 in) beyond por-
tion “B” of rear sun gear.

32. Install needle bearing in rear carrier assembly.

CAUTION:

Check the direction of needle bearing. Refer to

TM-222,

"Location of Needle Bearings and Bearing Races"

.

33. Install bearing race in rear carrier assembly.

CAUTION:

Check the direction of needle bearing. Refer to

TM-222,

"Location of Needle Bearings and Bearing Races"

.

34. Install rear carrier assembly in direct clutch drum.

35. Install needle bearing (rear side) to mid carrier assembly.

CAUTION:

Check the direction of needle bearing. Refer to

TM-222,

"Location of Needle Bearings and Bearing Races"

.

SCIA3130E

SCIA2803E

SCIA5175E

SCIA2462E

SCIA2804E

TRANSMISSION ASSEMBLY

TM-255

< UNIT DISASSEMBLY AND ASSEMBLY >

[7AT: RE7R01B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

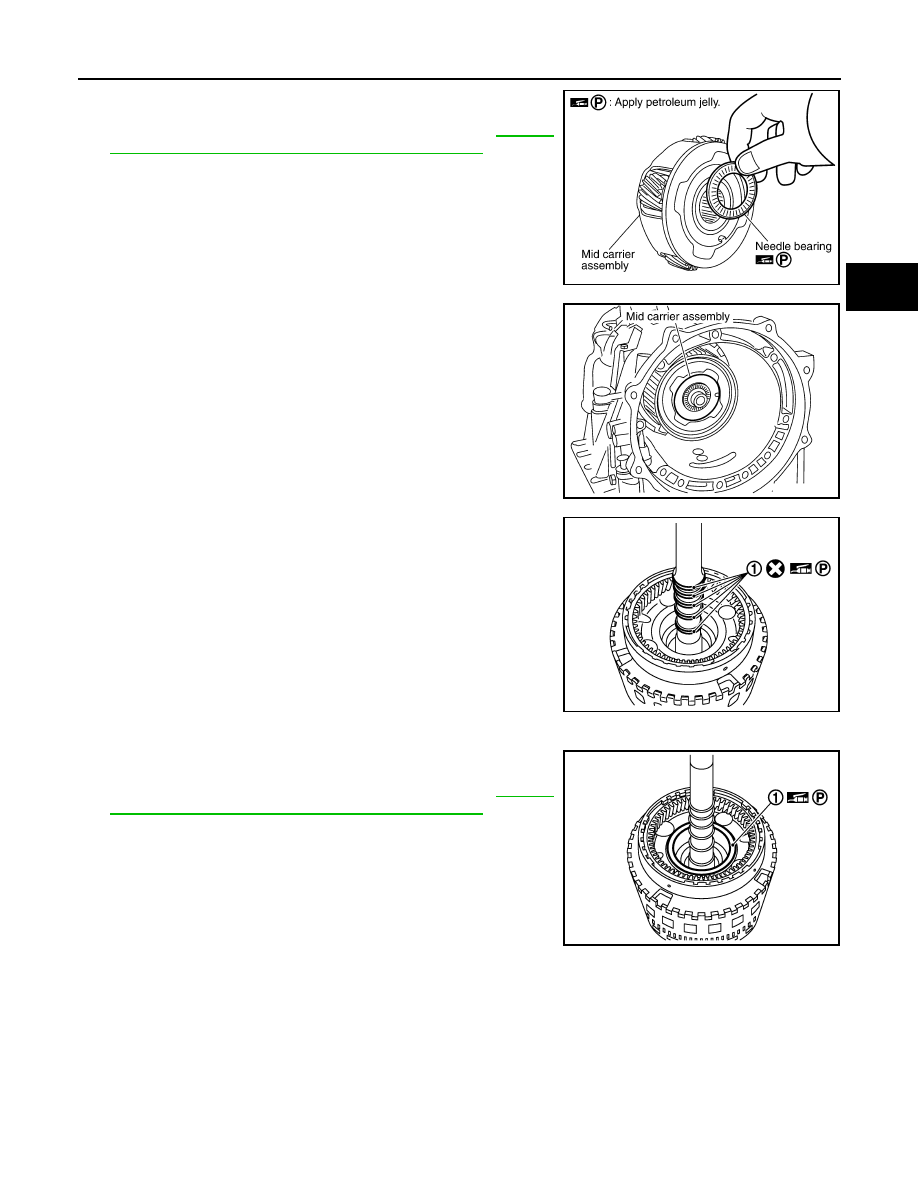

36. Install needle bearing (front side) to mid carrier assembly.

CAUTION:

Check the direction of needle bearing. Refer to

TM-222,

"Location of Needle Bearings and Bearing Races"

.

37. Install mid carrier assembly in rear carrier assembly.

38. Install seal rings (1) to input clutch assembly.

39. Install needle bearing (1) to front carrier assembly.

CAUTION:

Check the direction of needle bearing. Refer to

TM-222,

"Location of Needle Bearings and Bearing Races"

.

SCIA2805E

SCIA5017E

JPDIA1121ZZ

JPDIA1120ZZ

TM-256

< UNIT DISASSEMBLY AND ASSEMBLY >

[7AT: RE7R01B]

TRANSMISSION ASSEMBLY

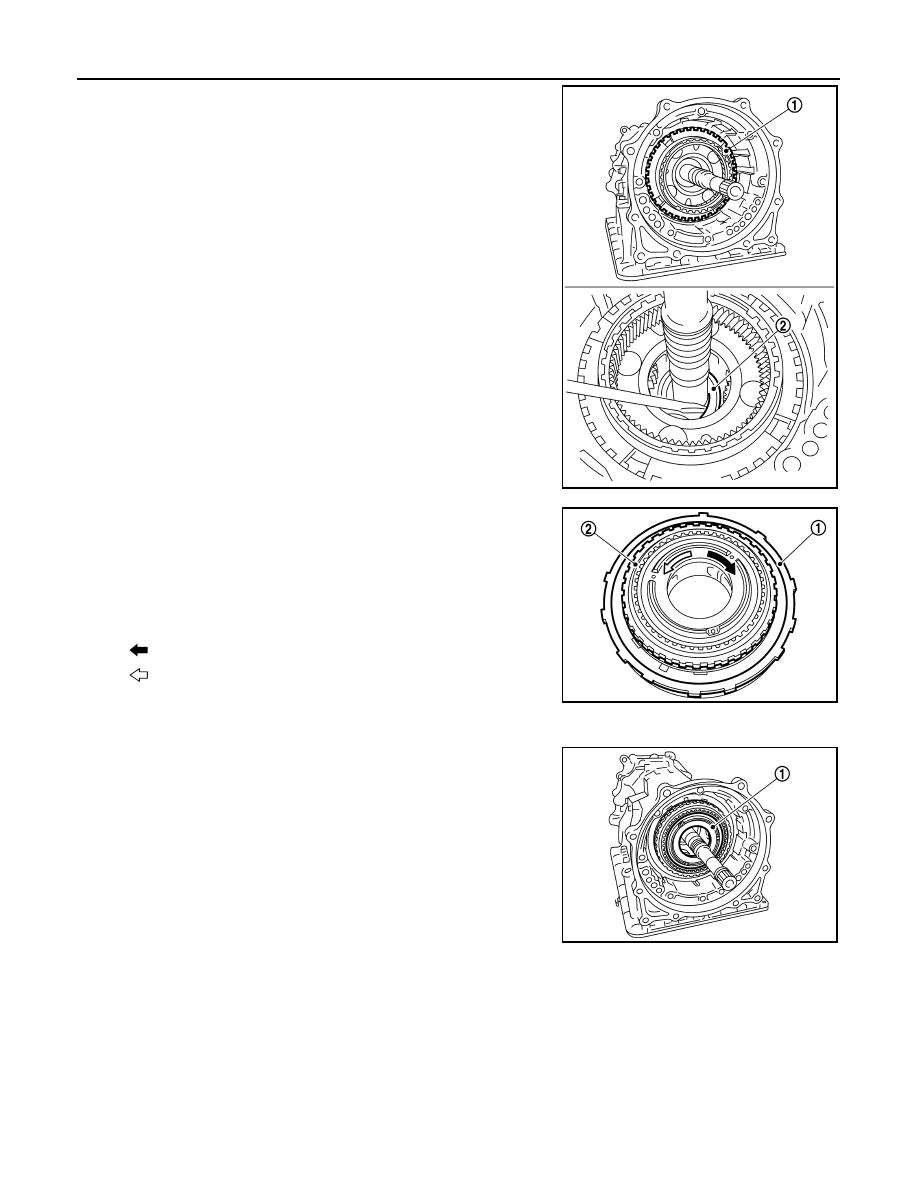

40. Install input clutch assembly (with front carrier assembly and

rear internal gear) (1) to transmission case.

CAUTION:

Check that the needle bearing (2) is securely positioned. If
the needle bearing position is misaligned, adjust it to the
specified position.

41. Install 1st one-way clutch (1) to front brake hub (with under drive

carrier) (2).

42. Check operation of 1st one-way clutch.

a.

Hold 1st one-way clutch.

b.

Check front brake hub for correct locking and unlocking direc-
tions.

CAUTION:

If not shown in figure, check installation direction of 1st one-way clutch.

43. Install under drive carrier (with 1st one-way clutch) (1) to trans-

mission case.

JSDIA1714ZZ

: Unlocked

: Locked

JSDIA1713ZZ

JSDIA1715ZZ
