TRANSMISSION ASSEMBLY

TM-213

< UNIT DISASSEMBLY AND ASSEMBLY >

[7AT: RE7R01B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

1.

Needle bearing

2.

Snap ring

3.

Front carrier assembly

4.

Needle bearing

5.

O-ring

6.

Seal ring

7.

Input clutch assembly

8.

Rear internal gear

9.

Needle bearing

10.

Mid carrier assembly

11.

Needle bearing

12.

Bearing race

13.

Rear carrier assembly

14.

Needle bearing

15.

Mid sun gear

16.

Seal ring

17.

Rear sun gear

18.

2nd one-way clutch

19.

Snap ring

20.

Needle bearing

21.

High and low reverse clutch hub

22.

Snap ring

23.

Bearing race

24.

Bearing race

25.

Needle bearing

Refer to

GI-4, "Components"

 for symbols not described on the above.

TM-214

< UNIT DISASSEMBLY AND ASSEMBLY >

[7AT: RE7R01B]

TRANSMISSION ASSEMBLY

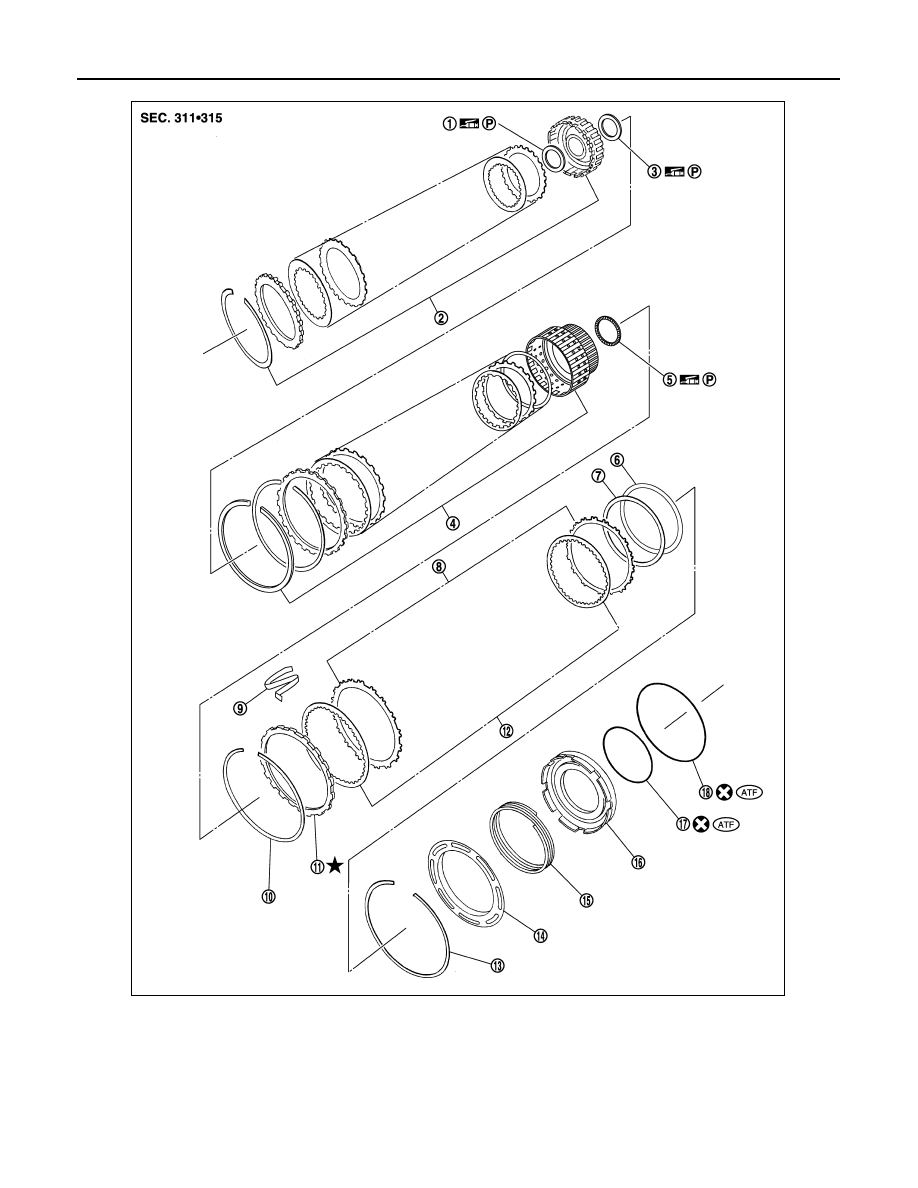

1.

Bearing race

2.

High and low reverse clutch as-
sembly

3.

Needle bearing

4.

Direct clutch assembly

5.

Needle bearing

6.

Reverse brake dish plate

7.

Reverse brake dish plate

8.

Reverse brake driven plate

9.

N-spring

10. Snap ring

11.

Reverse brake retaining plate

12. Reverse brake drive plate

13. Snap ring

14. Reverse brake spring retainer

15. Reverse brake return spring

JSDIA1895ZZ

TRANSMISSION ASSEMBLY

TM-215

< UNIT DISASSEMBLY AND ASSEMBLY >

[7AT: RE7R01B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

16. Reverse brake piston

17. D-ring

18. D-ring

Refer to

GI-4, "Components"

 for symbols in the figure.

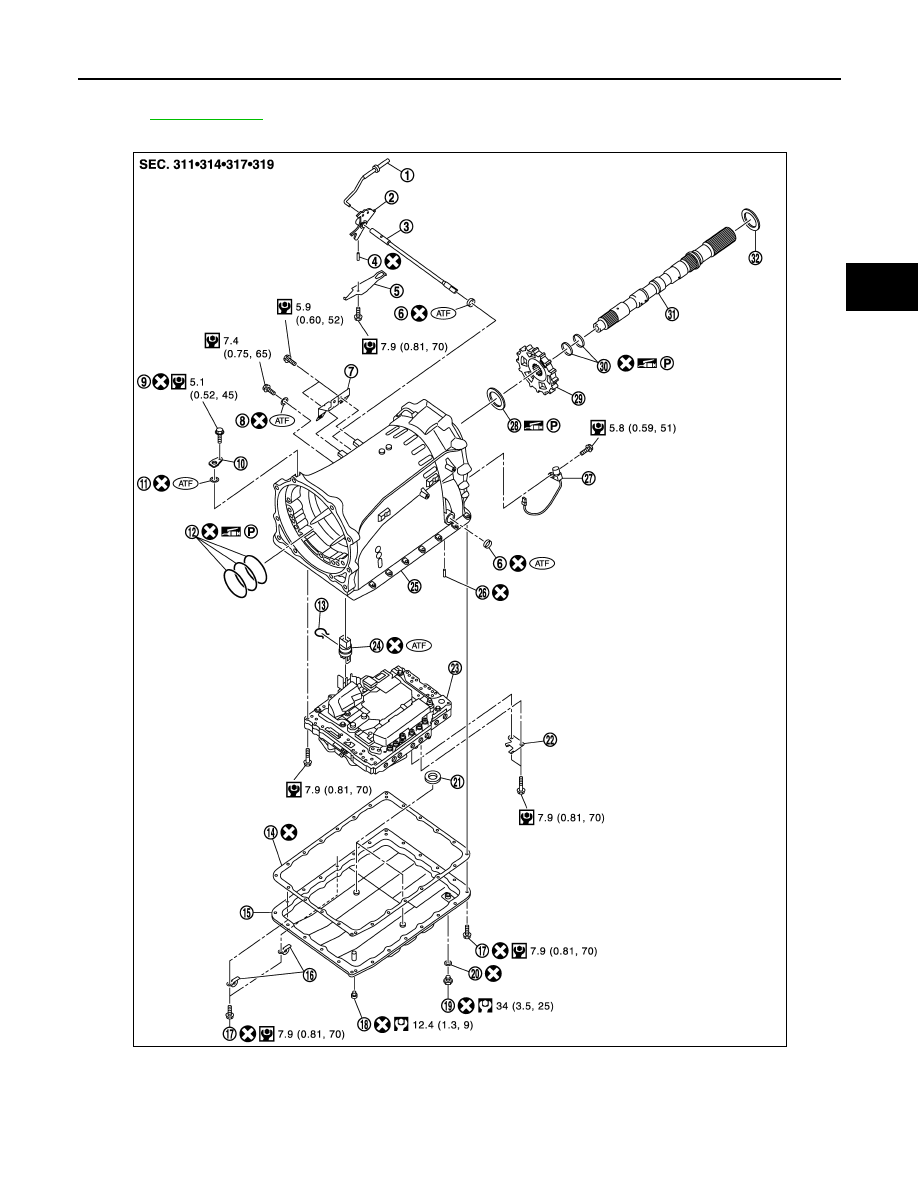

1.

Parking rod

2.

Manual plate

3.

Manual shaft

4.

Retaining pin

5.

Detent spring

6.

Oil seal

7.

Bracket

8.

O-ring

9.

Self-sealing bolt

10.

Baffle plate

11.

O-ring

12. Seal ring

JSDIA1842GB

TM-216

< UNIT DISASSEMBLY AND ASSEMBLY >

[7AT: RE7R01B]

TRANSMISSION ASSEMBLY

4WD MODELS

13.

Snap ring

14. Oil pan gasket

15. Oil pan

16.

Clip

17. Oil pan mounting bolt

18. Overflow plug

19.

Drain plug

20. Drain plug gasket

21. Magnet

22.

Clip

23. Control valve & TCM

24. Joint connector

25.

Transmission case

26. Retaining pin

27. Output speed sensor

28.

Needle bearing

29. Parking gear

30. Seal ring

31.

Output shaft

32. Bearing race

Refer to

GI-4, "Components"

 for symbols in the figure.

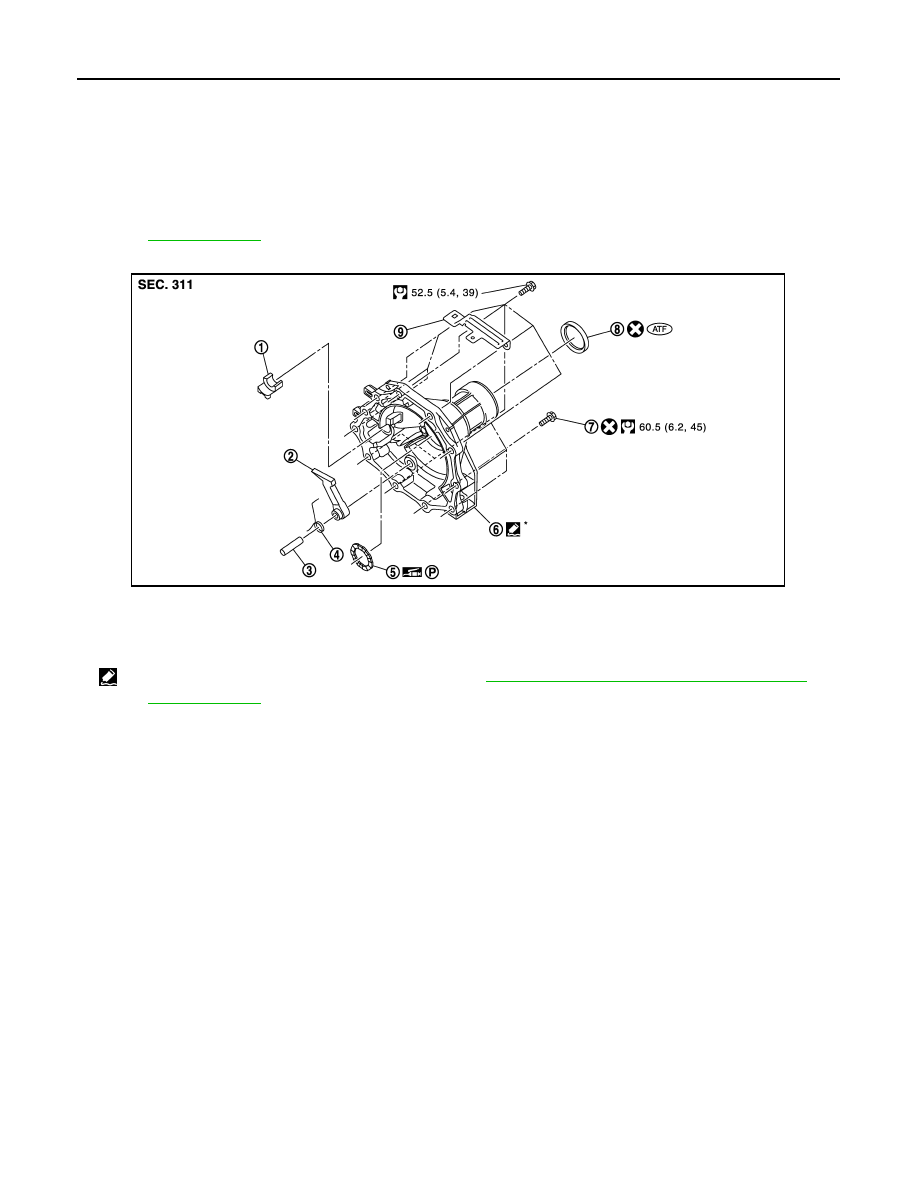

1.

Parking actuator support

2.

Parking pawl

3.

Pawl shaft

4.

Return spring

5.

Needle bearing

6.

Rear extension

7.

Self-sealing bolt

8.

Rear oil seal

9.

Bracket

*: Apply Genuine Anaerobic Liquid Gasket or equivalent. Refer to

GI-22, "Recommended Chemical Products and Sealants"

.

Refer to

GI-4, "Components"

 for symbols in the figure.

JSDIA1841GB
