TOW MODE SWITCH

Removal and Installation

INFOID:0000000006226898

NOTE:
Tow mode switch is integrated in to SNOW MODE/TOW MODE/VDC OFF switch assembly (2WD models) or
4WD switch assembly (4WD models).

REMOVAL

1.

Remove console finisher assembly from center console assembly. Refer to

IP-25, "Removal and Installa-

tion"

.

2.

Disconnect SNOW MODE/TOW MODE/VDC OFF switch assembly (2WD models) or  4WD switch
assembly (4WD models) harness connector.

3.

Press SNOW MODE/TOW MODE/VDC OFF switch assembly (2WD models) or  4WD switch assembly
(4WD models) fixing pawls, and remove SNOW MODE/TOW MODE/VDC OFF switch assembly (2WD
models) or  4WD switch assembly (4WD models) from console finisher assembly.

INSTALLATION

Install in the reverse order of removal.

TM-182

< REMOVAL AND INSTALLATION >

[7AT: RE7R01B]

CONTROL VALVE & TCM

CONTROL VALVE & TCM

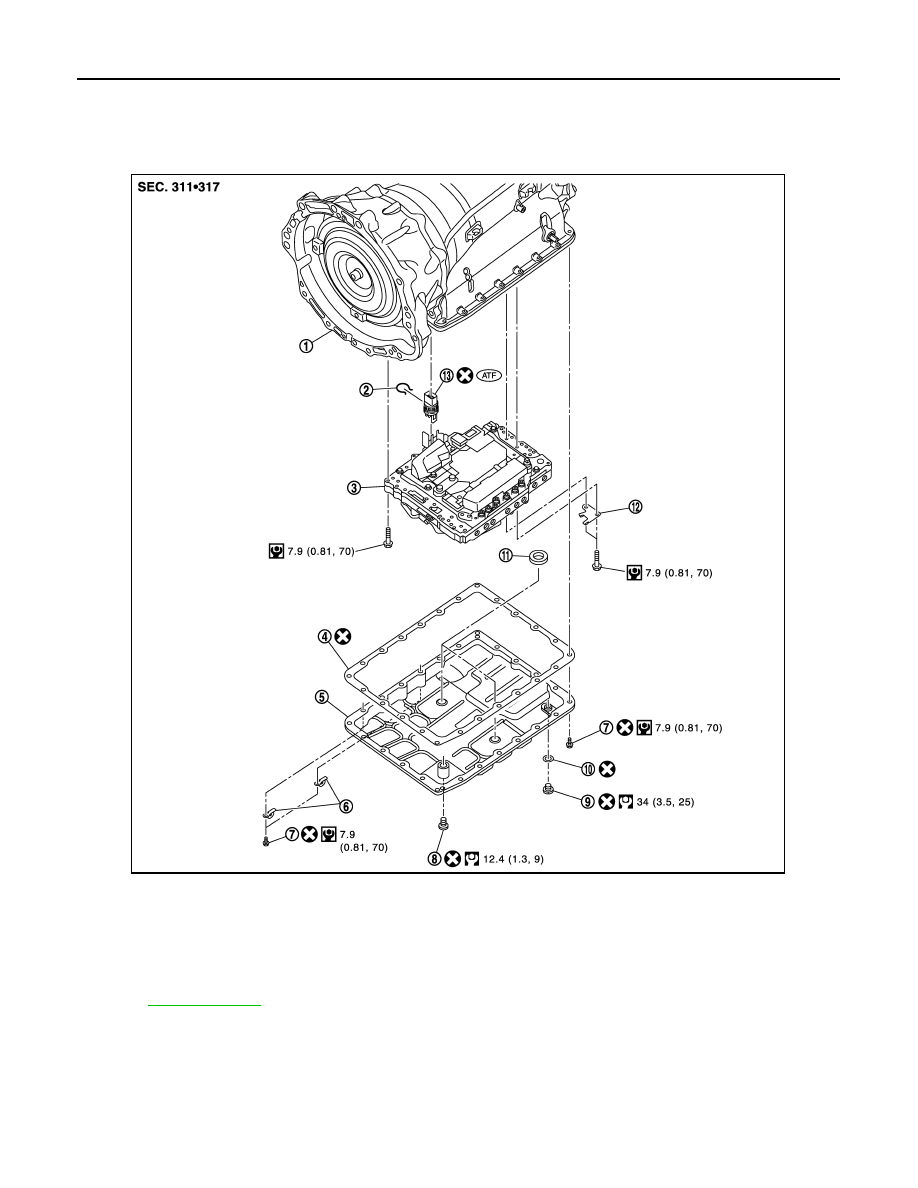

Exploded View

INFOID:0000000006226899

Removal and Installation

INFOID:0000000006226900

REMOVAL

1.

Drain ATF through drain plug.

1.

A/T

2.

Snap ring

3.

Control valve & TCM

4.

Oil pan gasket

5.

Oil pan

6.

Clip

7.

Oil pan mounting bolt

8.

Overflow plug

9.

Drain plug

10. Drain plug gasket

11.

Magnet

12. Clip

13. Joint connector

Refer to

GI-4, "Components"

 for symbols in the figure.

JSDIA1755GB

CONTROL VALVE & TCM

TM-183

< REMOVAL AND INSTALLATION >

[7AT: RE7R01B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

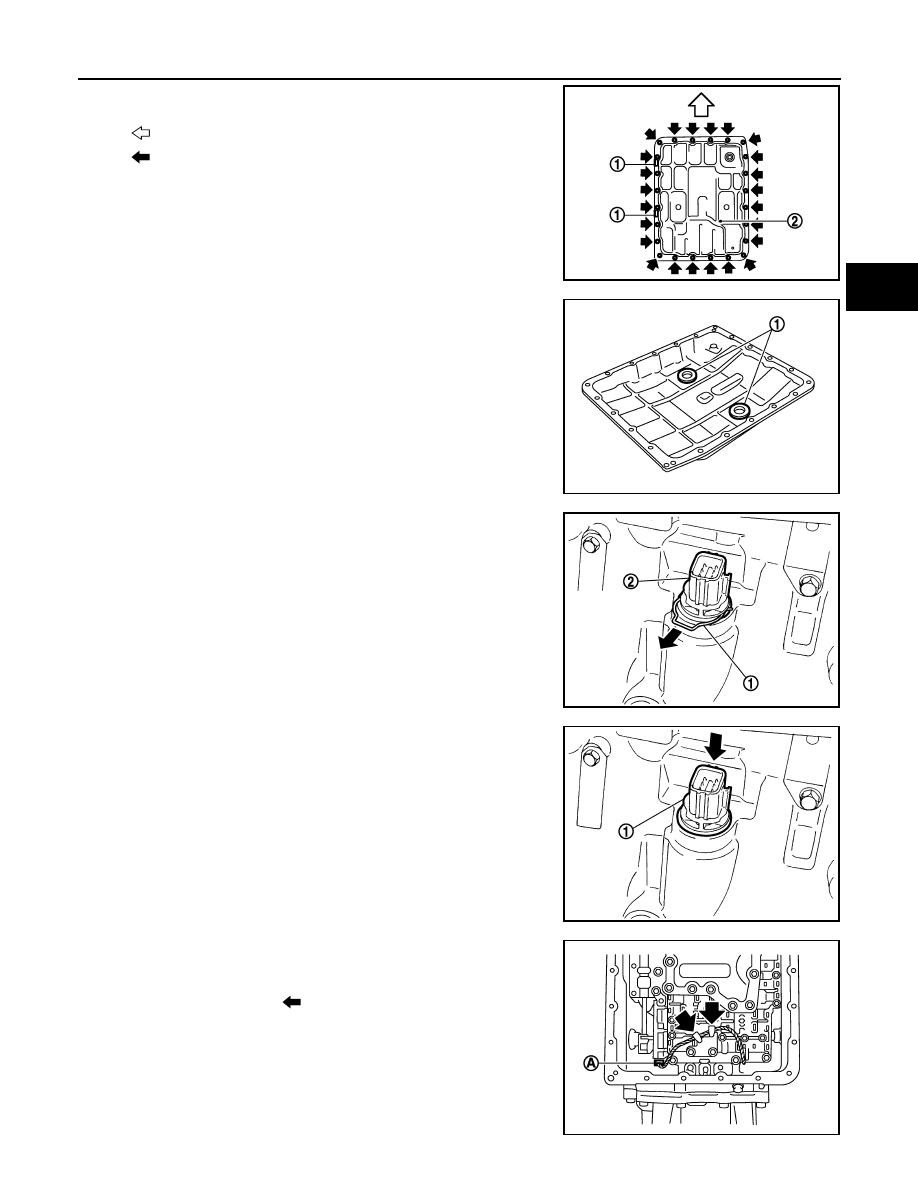

2.

Remove clips (1).

3.

Remove oil pan (2) and oil pan gasket.

4.

Remove magnets (1) from oil pan.

5.

Remove snap ring (1) from joint connector (2).

6.

Push joint connector (1).

7.

Disconnect output speed sensor connector (A).

CAUTION:

Be careful not to damage connector.

8.

Disengage terminal clip (

).

: Vehicle front

: Oil pan mounting bolt

JSDIA1591ZZ

JPDIA0009ZZ

JSDIA1756ZZ

JSDIA1757ZZ

JPDIA1104ZZ

TM-184

< REMOVAL AND INSTALLATION >

[7AT: RE7R01B]

CONTROL VALVE & TCM

9.

Remove bolts and clip (1) from the control valve & TCM.

*: Reamer bolt

10. Remove the control valve & TCM from transmission case.

CAUTION:

When removing, be careful with the manual valve (1) notch
and manual plate (2) height. Remove it vertically.

11. Remove joint connector (1) from the control valve & TCM using

a flat-bladed screwdriver (A).

12. Disconnect TCM connector (A).

CAUTION:

Be careful not to damage connector.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• Be careful not to damage connector when installing any connector.
• Never reuse joint connector.
• Apply ATF to O-ring of joint connector.
• Never reuse drain plug and drain plug gasket. In addition, install new drain plug and drain plug gas-

ket after adjustment of A/T fluid filling.

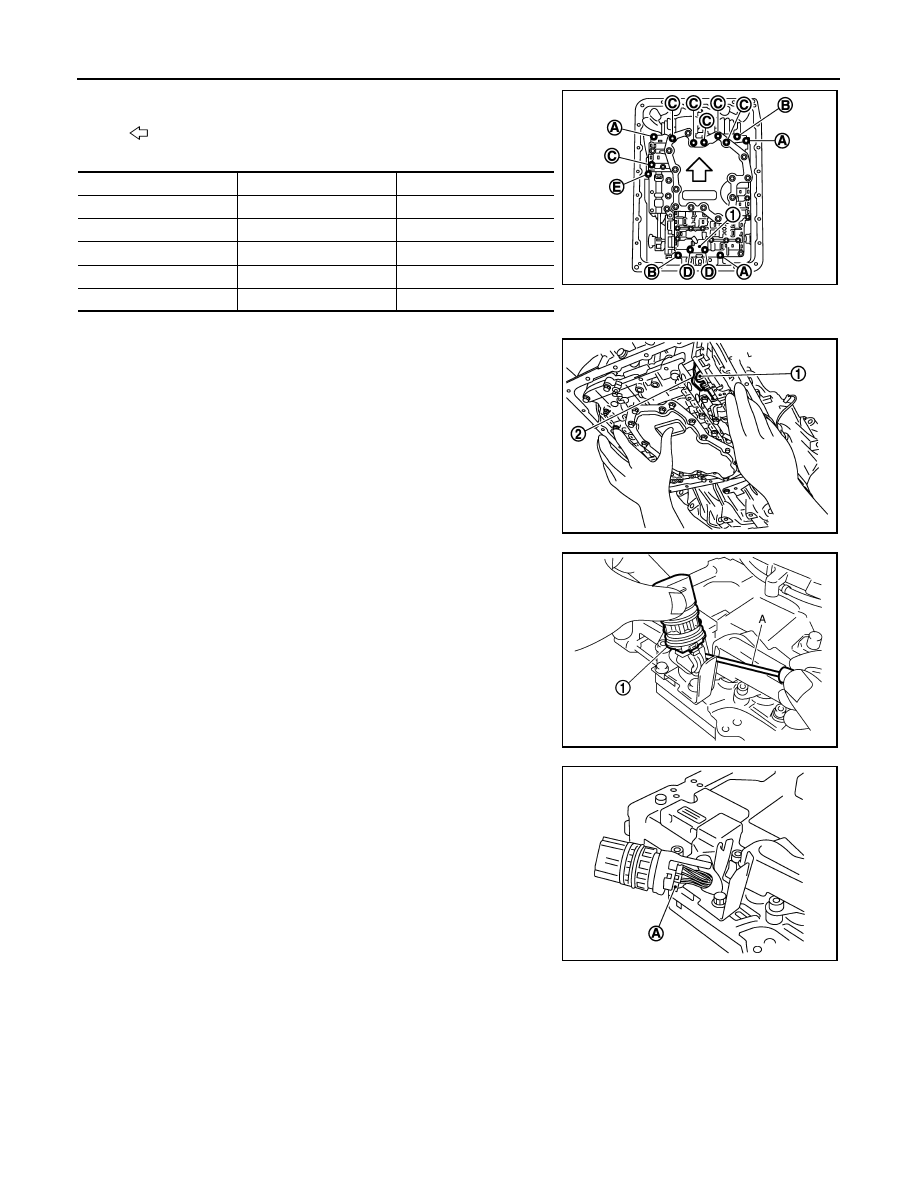

• Refer to the following when installing the control valve & TCM to transmission case.

: Vehicle front

Bolt symbol

Length mm (in)

Number of bolts

A

43 (1.69)

3

B

40 (1.57)

2

C

54 (2.13)

6

D

50 (1.97)

2

E*

50 (1.97)

1

JPDIA1105ZZ

JPDIA0012ZZ

JSDIA1718ZZ

JSDIA1813ZZ
