FRONT PASSENGER AIR BAG MODULE

3.

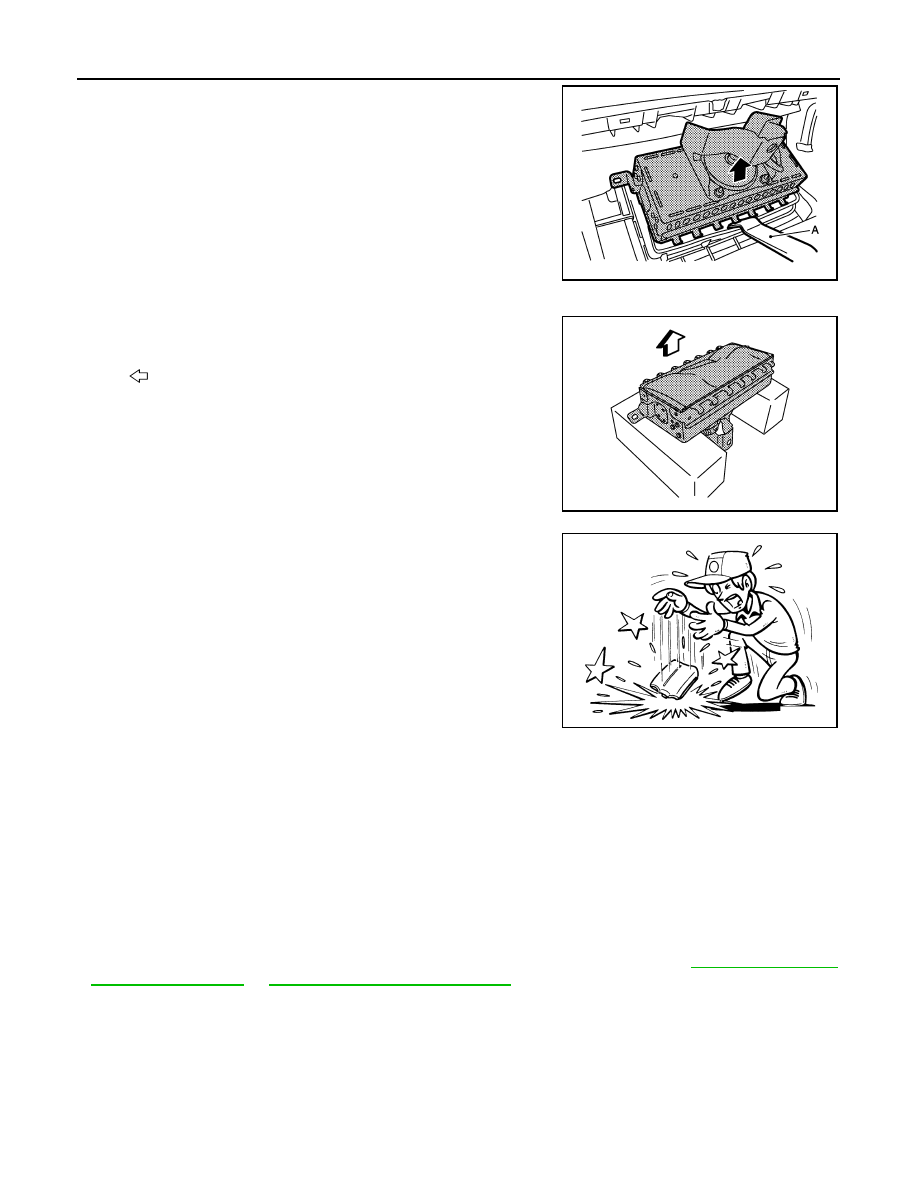

Disconnect the front passenger air bag module fixing pawls with
remover tool (A).

4.

Lift up front passenger air bag module, and then remove front
passenger air bag module.

CAUTION:

• Always place the front passenger air bag module with pad

side facing upward.

• Never impact the front passenger air bag module.
• Replace the front passenger air bag module if it has been

dropped or sustained an impact.

• Never insert any foreign objects (screwdriver, etc.) into the front passenger air bag module.
• Never disassemble the front passenger air bag module.
• Never expose the front passenger air bag module to temperatures exceeding 90

°

C (194

°

F).

• Never allow oil, grease, detergent, or water to come in contact with the front passenger air bag mod-

ule.

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

• Never use the old fixing bolts after removal, replace with the new bolts.
• Never damage the harness while installing.
• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT-III. Refer to

SRC-14, "On Board

Diagnosis Function"

 or

SRC-19, "CONSULT-III Function"

.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.

JMHIA1488ZZ

: Upward

JMHIA0661ZZ

JMHIA0009ZZ

SIDE CURTAIN AIR BAG MODULE

SR-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

SIDE CURTAIN AIR BAG MODULE

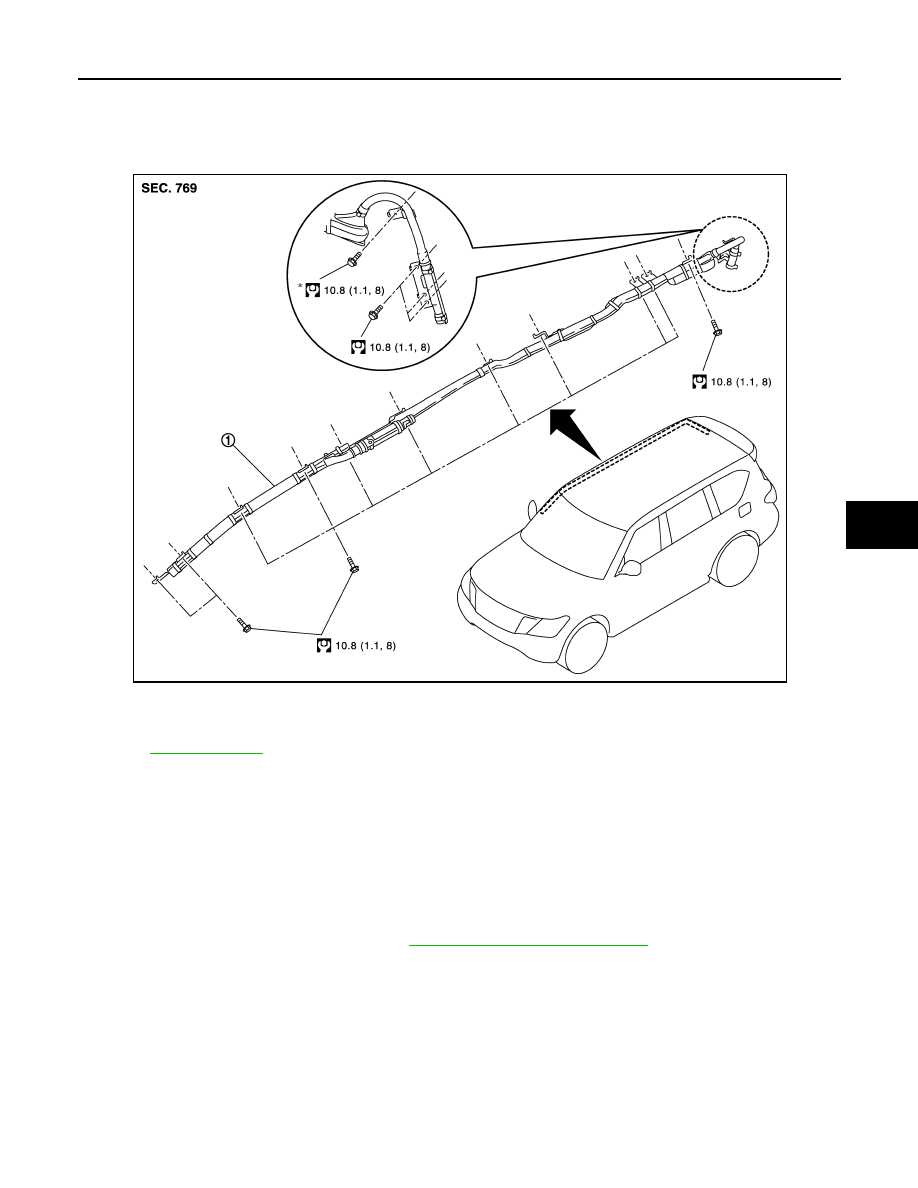

Exploded View

INFOID:0000000006113059

Removal and Installation

INFOID:0000000006113060

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes

or more.

• Always work from the side of air bag module. Never work in front of it.
• Never use the air tools or electric tools for servicing.

REMOVAL

1.

Remove the headlining assembly. Refer to

INT-29, "Removal and Installation"

.

2.

Remove the side curtain air bag module harness connector.

CAUTION:

1.

Side curtain air bag

*: Side curtain air bag RH side only

Refer to

GI-4, "Components"

 for symbols in the figure.

JMHIA1474GB

SR-20

< REMOVAL AND INSTALLATION >

SIDE CURTAIN AIR BAG MODULE

• For installing/removing the side curtain air bag module

harness connector, insert thin screwdriver wrapped in
tape into notch, lift lock and remove the connector.

• Install the connector with lock raised, and push lock into

the connector.

• After installing the connector, check that the lock is

pushed securely into it.

3.

Remove the side curtain air bag module fixing bolts, and then remove the side curtain air bag module.

CAUTION:

• Never impact the side curtain air bag module.
• Replace the side curtain air bag module if it has been dropped

or sustained an impact.

• Never insert any foreign objects (screwdriver, etc.) into the side curtain air bag module.
• Never disassemble the side curtain air bag module.
• Never expose the side curtain air bag module to temperatures exceeding 90

°

C (194

°

F).

• Never allow oil, grease, detergent, or water to come in contact with the side curtain air bag module.

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

• when installing, always be careful not to drop side curtain air bag module and install mounting bolts

according to the order as shown in the figure.

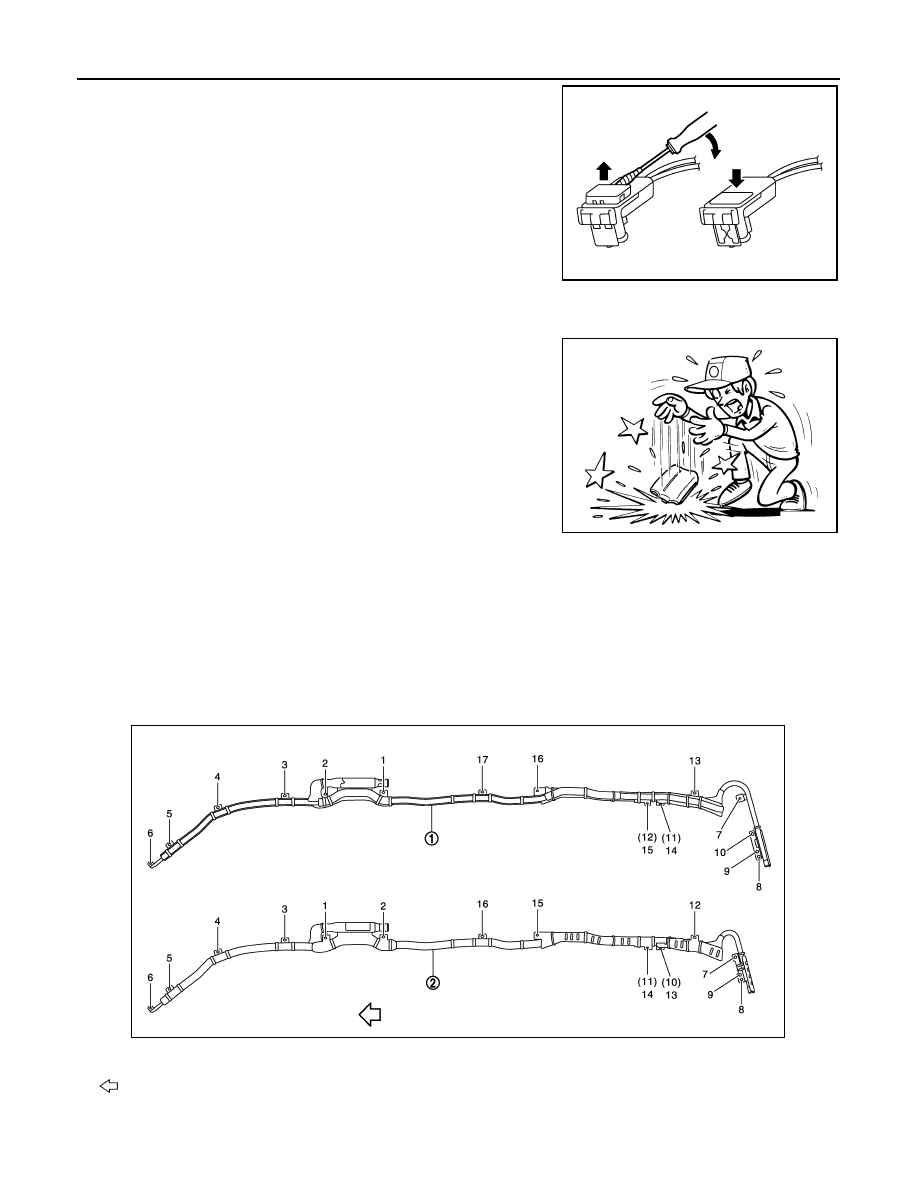

PHIA0953J

JMHIA0009ZZ

1.

Side curtain air bag module RH

2.

Side curtain air bag module LH

: Vehicle front

( ): Peel and stop of, temporary.

JMHIA1489ZZ

SIDE CURTAIN AIR BAG MODULE

SR-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

• Never damage the harness while installing.
• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT-III. Refer to

SRC-14, "On Board

Diagnosis Function"

 or

SRC-19, "CONSULT-III Function"

.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.
