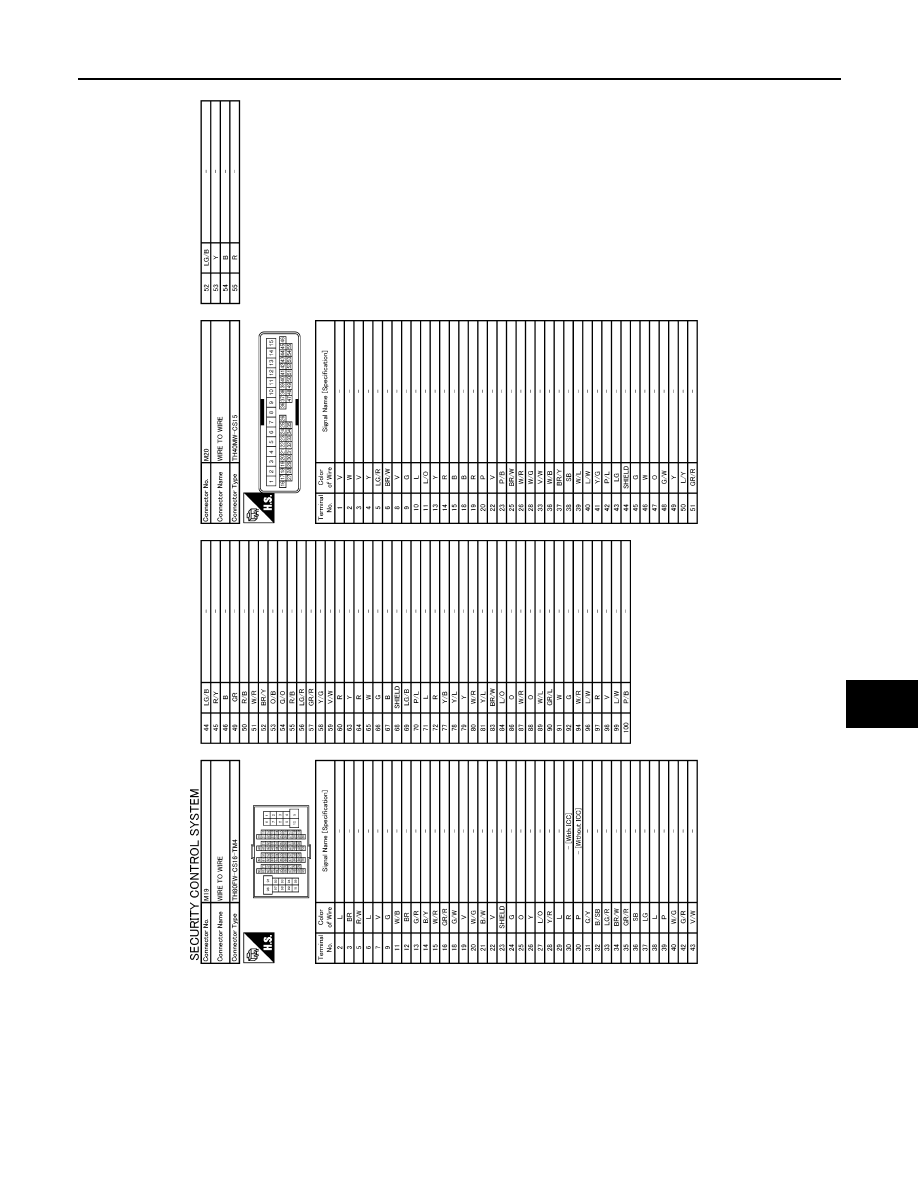

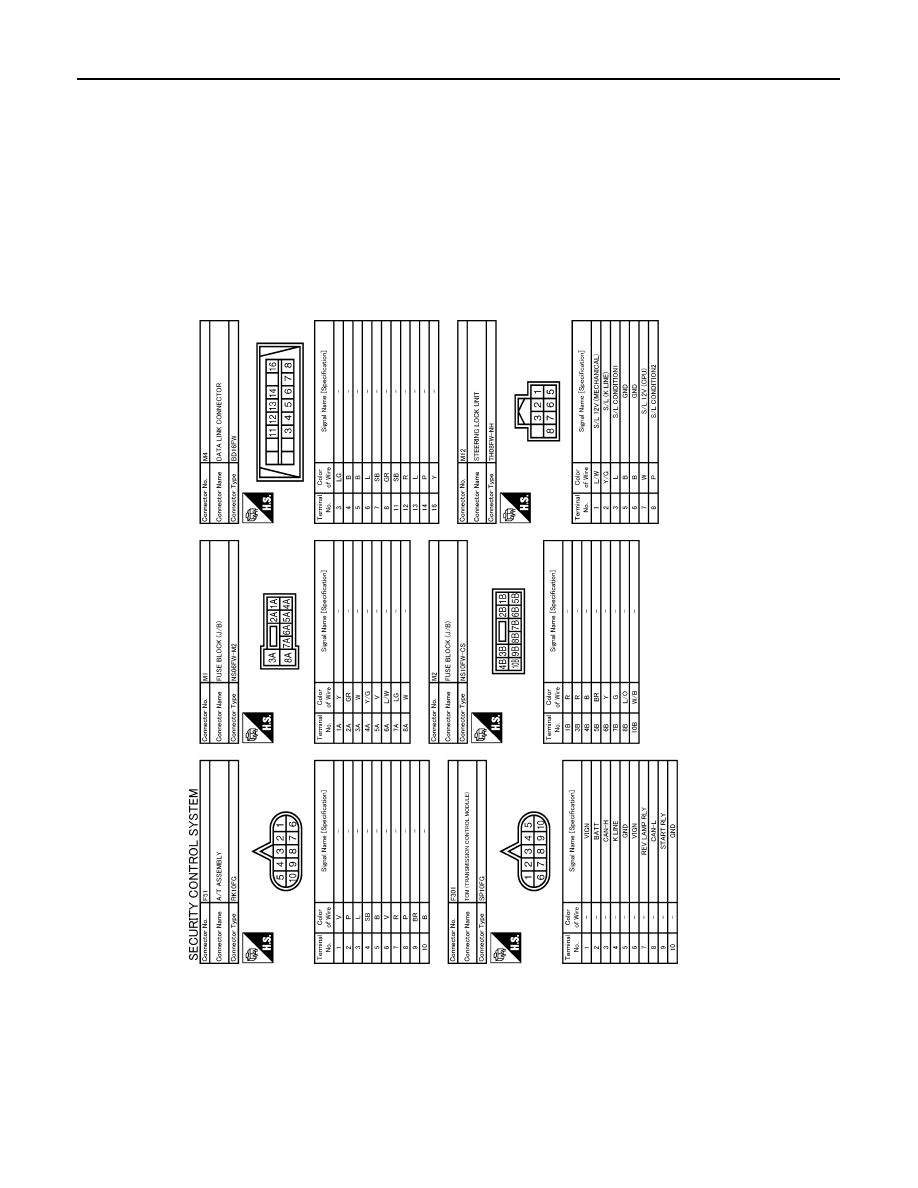

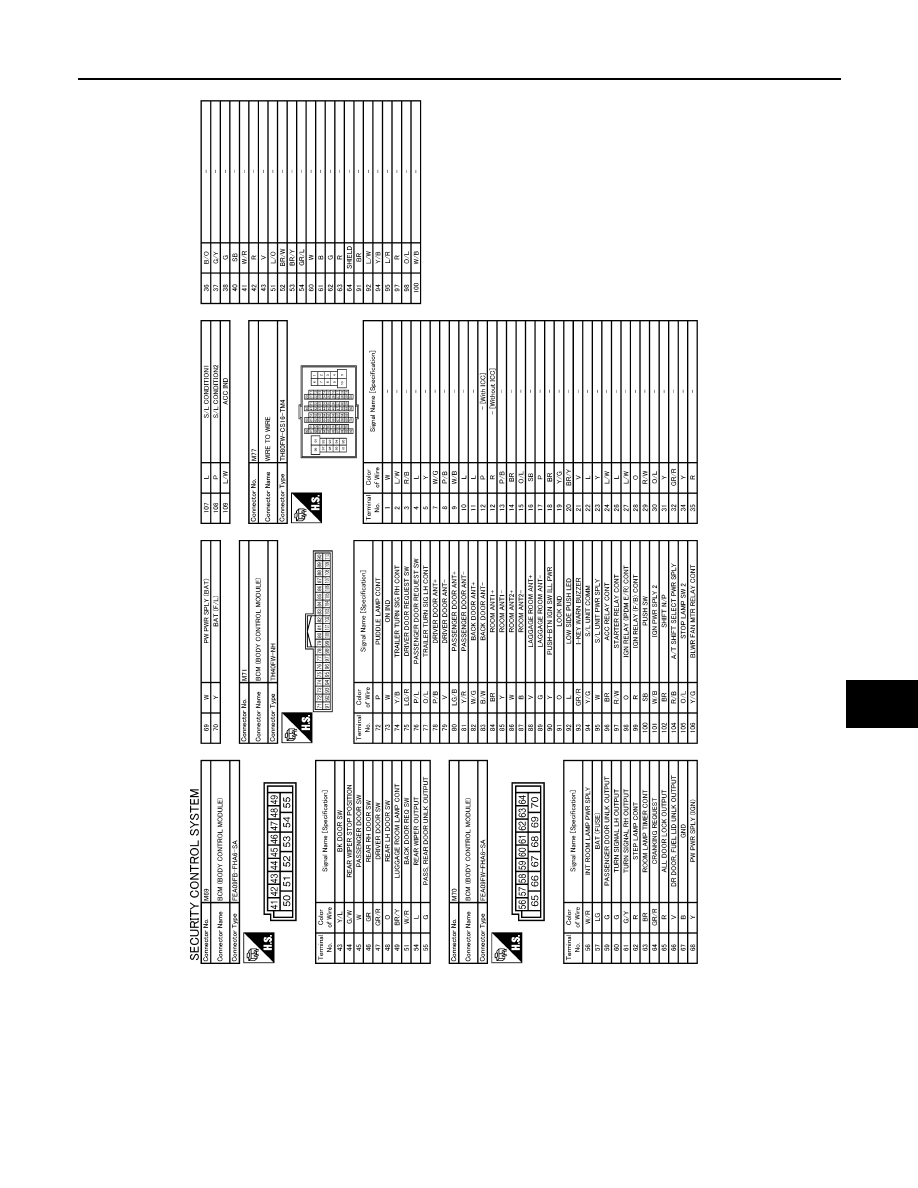

Infiniti QX56 (Z62). Manual - part 1163

SEC-42

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

SECURITY CONTROL SYSTEM

JCKWM4467GB

SECURITY CONTROL SYSTEM

SEC-43

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

JCKWM4468GB

SEC-44

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

SECURITY CONTROL SYSTEM

JCKWM4469GB

SECURITY CONTROL SYSTEM

SEC-45

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

JCKWM4470GB
