SE-134

< REMOVAL AND INSTALLATION >

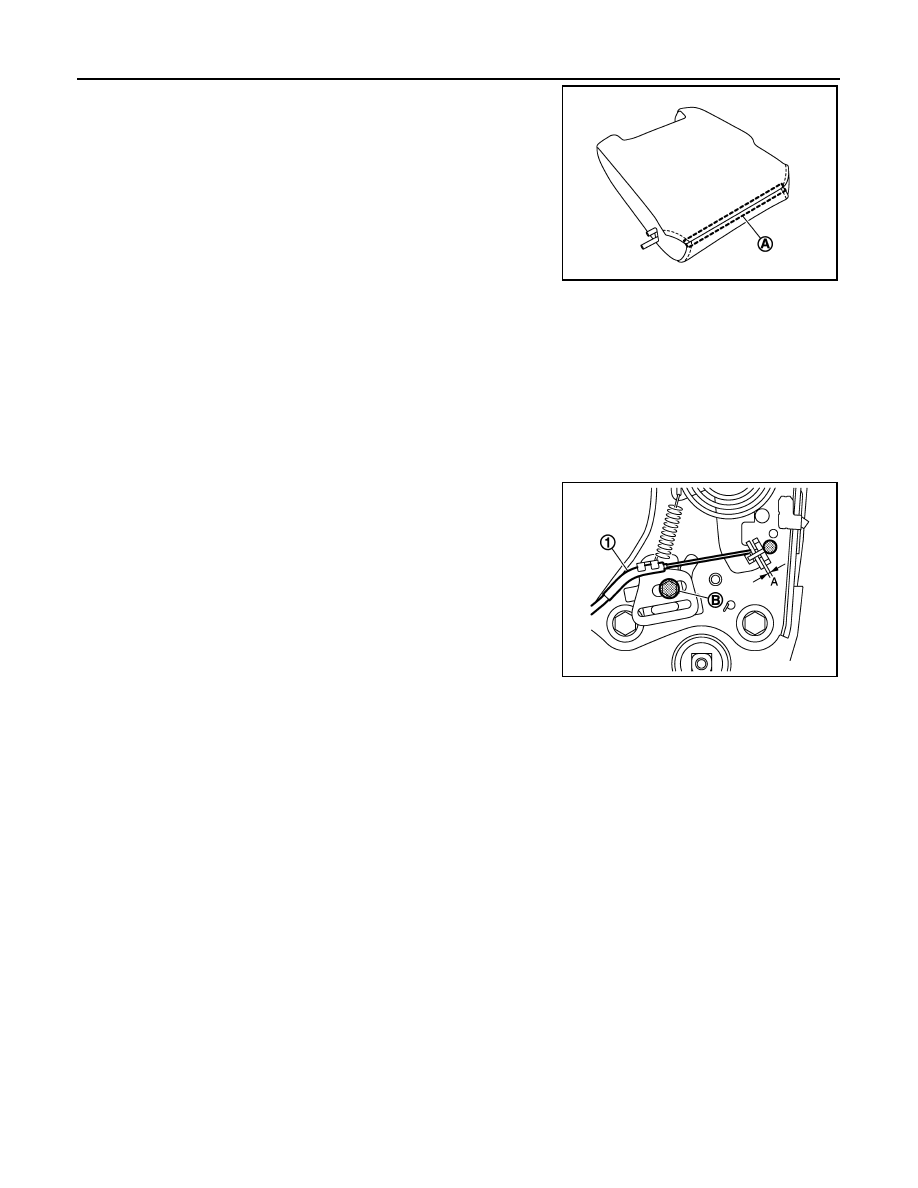

SECOND SEAT

3.

Remove the retainer (A) of the armrest trim. Remove the arm-
rest trim from the armrest pad and frame.

ASSEMBLY

Assemble in the reverse order of disassembly.

Adjustment

INFOID:0000000006217434

ADJUSTMENT

SEATBACK CONTROL WIRE

Adjust in accordance with the following procedures when installing the seatback control wire of the 2nd seat.
1.

Tilt the seatback forward and set the seatback to the 1st lock position.

2.

Install the seatback control wire (1) so that it is not slack.

3.

Set the clearance of portion (A) to 2 mm (0.079 in) and tighten
the bolt (B).

4.

Operate the rear seat lever assembly and fold the seat.

5.

Set the seat to the seating position and check that the seat locks.

SEAT CUSHION CONTROL WIRE

JMJIA4075ZZ

JMJIA4136ZZ

SECOND SEAT

SE-135

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

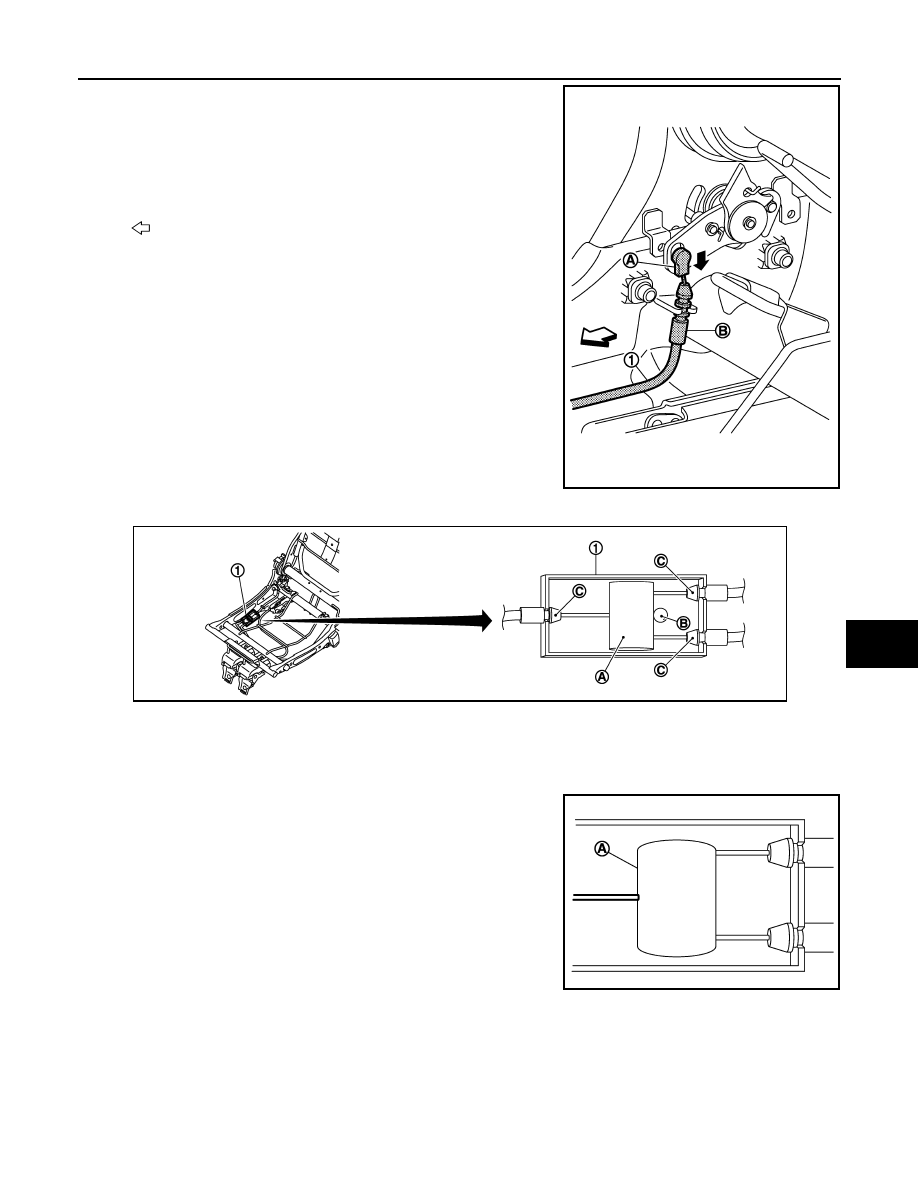

1.

Align to hole and insert top end (A) of seatback frame side of
seat cushion control wire (1).

2.

Fit 2nd groove from the top end (B) of adjusting plastic part of
seat cushion control wire (1) to the end of groove.

3.

Lower the top end (A) of seat cushion control wire (1) to the
lower end of hole.

4.

Check branch portion (1) of seat cushion control wire for the following items.

• Check that ball (B) of wire top end is only visible from sponge portion (A).
• Pull plastic portion (C) and check that seat cushion control wire is not disconnected.

CAUTION:

Adjust again for the following status A or B as shown in the figure.

Status A

• The ball is not visible from sponge (A) portion. Adjust in

accordance with the following procedures.

: Vehicle front

JMJIA4166ZZ

JMJIA4169ZZ

JMJIA4170ZZ

SE-136

< REMOVAL AND INSTALLATION >

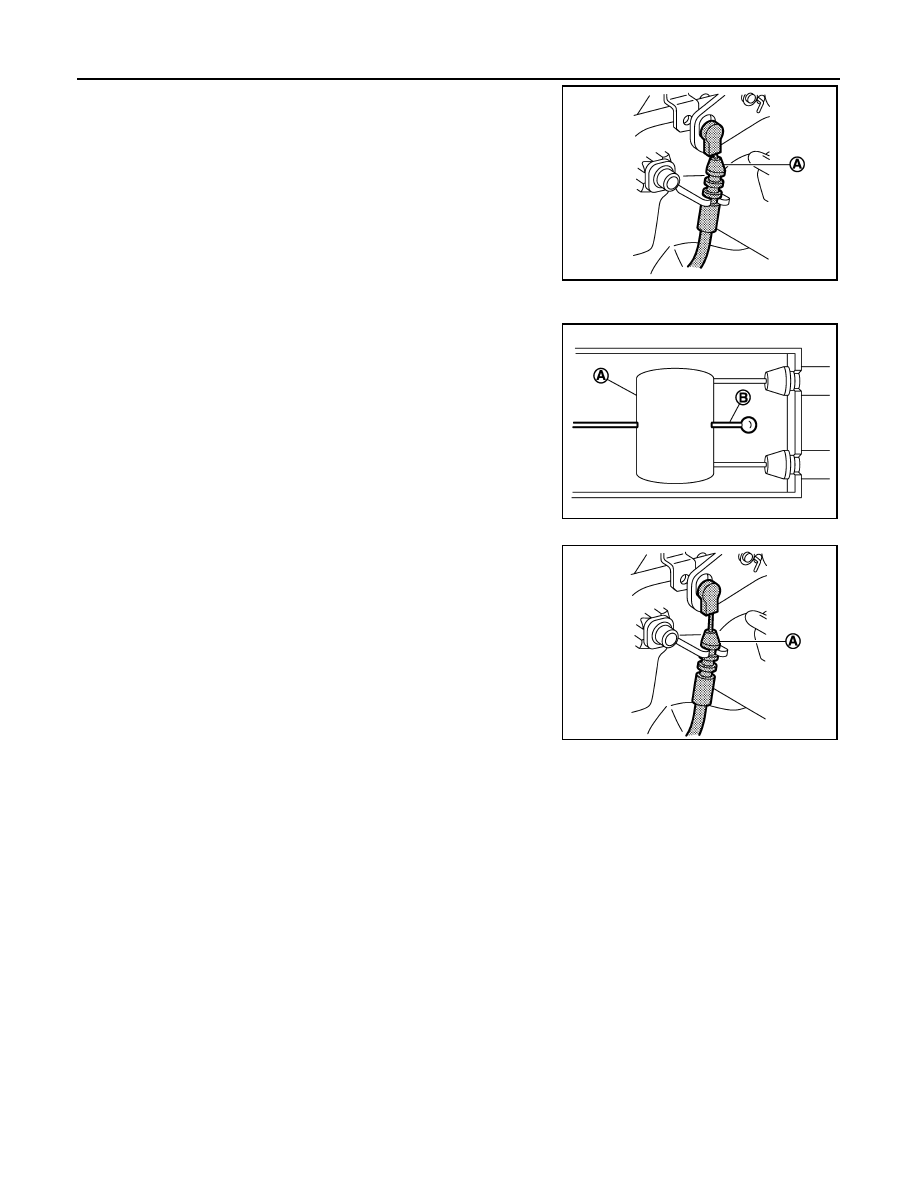

SECOND SEAT

- Fit 3rd groove from the top end of adjusting plastic portion (A)

to the end of groove.

- Check that ball of wire tor end is only visible from sponge por-

tion in branch portion of seat cushion control wire.

Status B

• The wire (B) is visible from sponge (A) portion. Adjust in

accordance with the following procedures.

- Fit 1st groove from the top end of adjusting portion (A) to the

end of groove.

- Check that wire is not visible from sponge portion in branch

portion of seat cushion control wire.

JMJIA4167ZZ

JMJIA4234ZZ

JMJIA4168ZZ

THIRD SEAT

SE-137

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

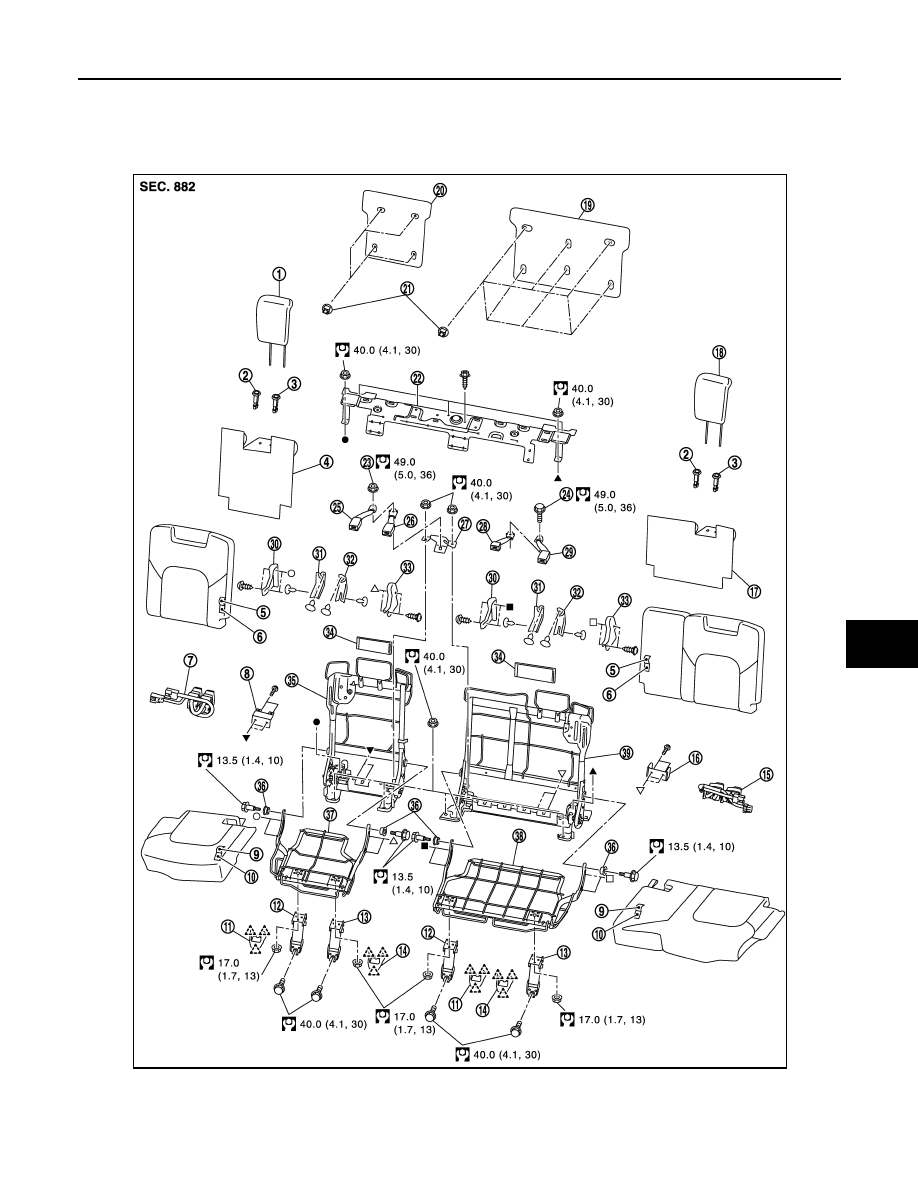

THIRD SEAT

Exploded View

INFOID:0000000006217435

1.

Headrest RH

2.

Headrest holder (free)

3.

Headrest holder (locked)

4.

Seatback silencer RH

5.

Seatback trim

6.

Seatback pad

7.

Seat harness RH

8.

Seat bracket assembly RH

9.

Seat cushion trim

JMJIA4258GB
