SECOND HEATED SEAT SYSTEM

SECOND HEATED SEAT SYSTEM

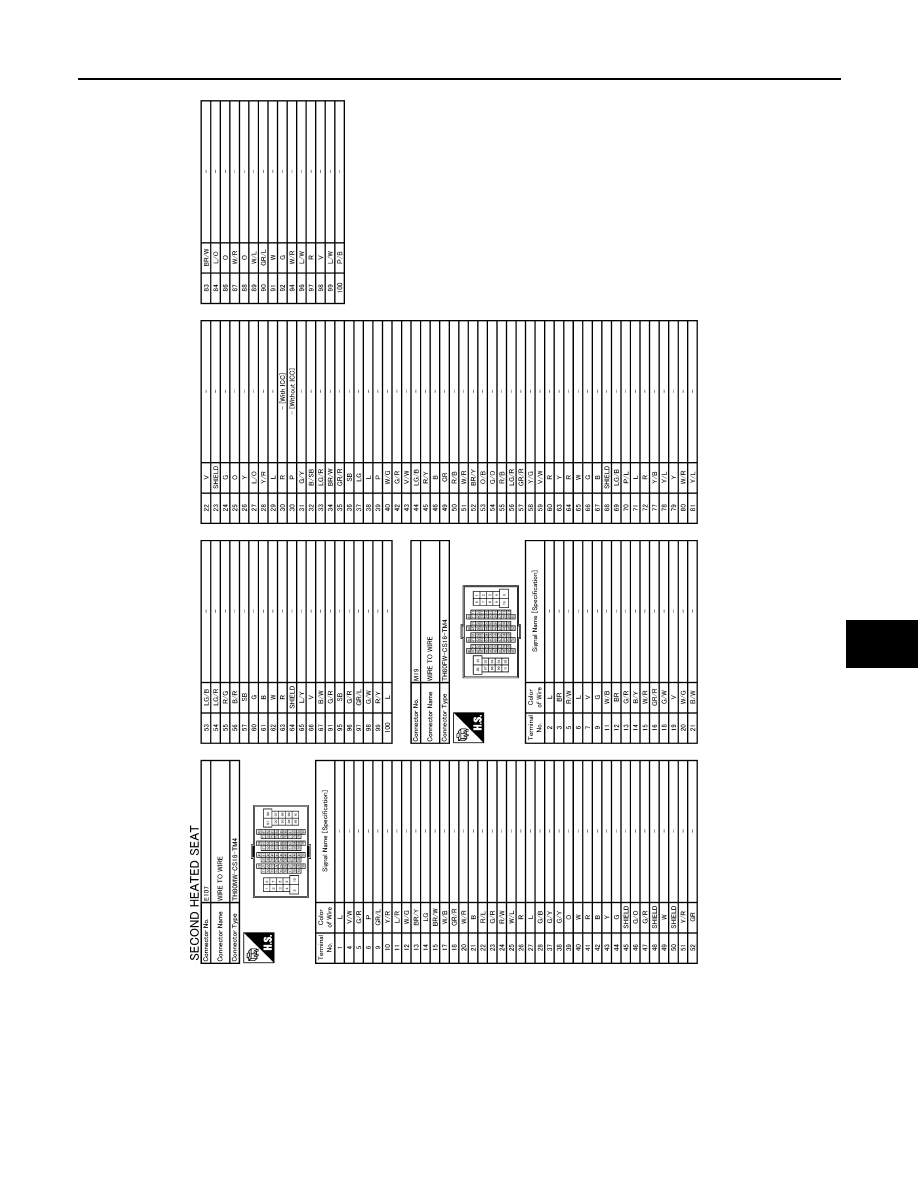

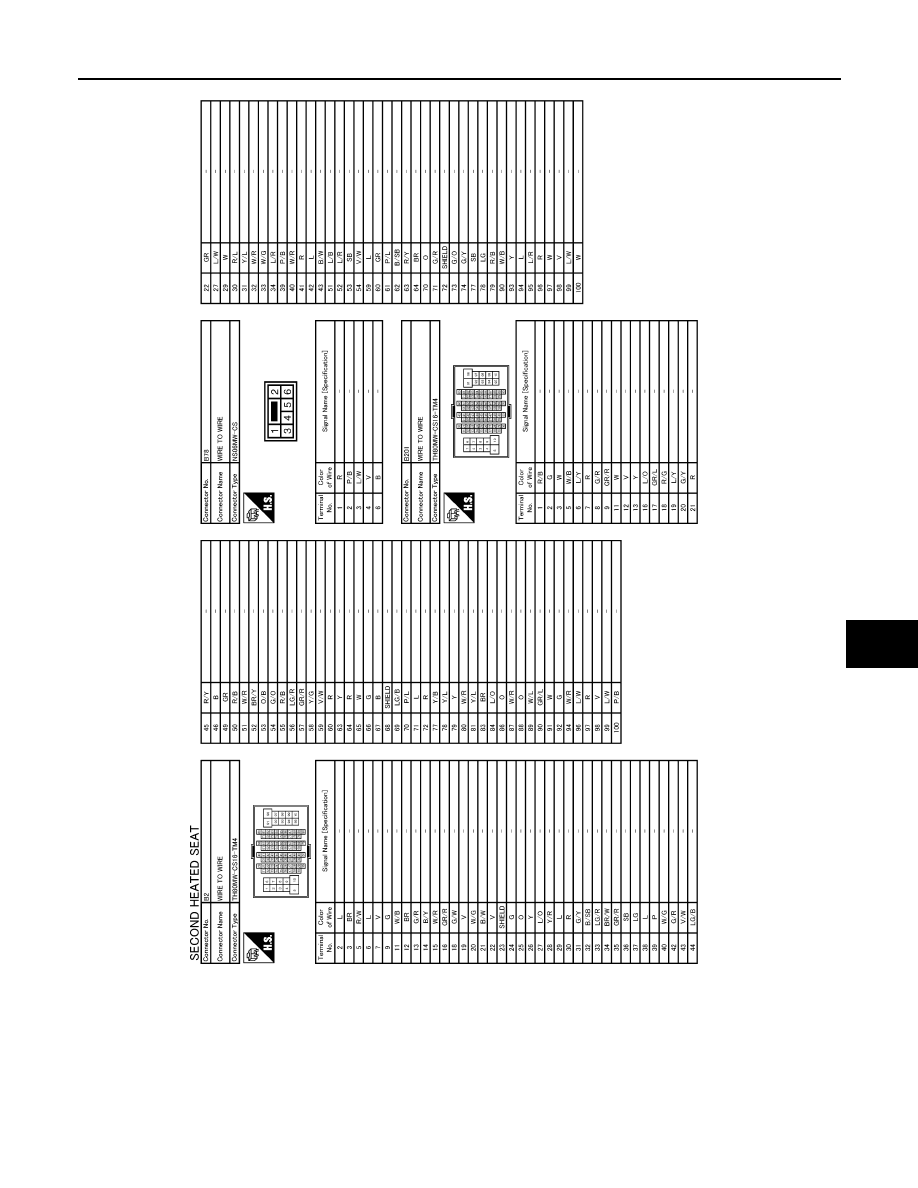

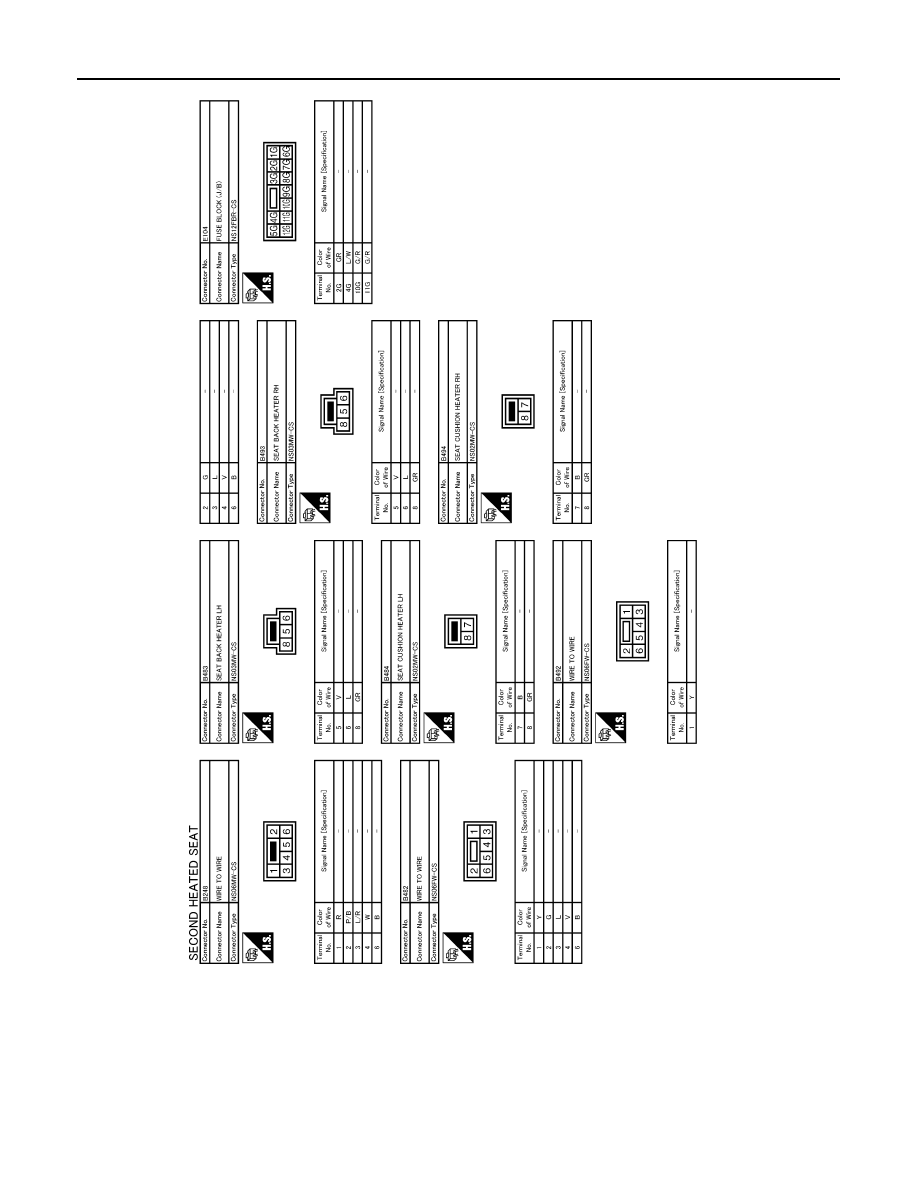

Wiring Diagram

INFOID:0000000006217386

JCJWM1471GB
