SE-10

< SYSTEM DESCRIPTION >

COMPONENT PARTS

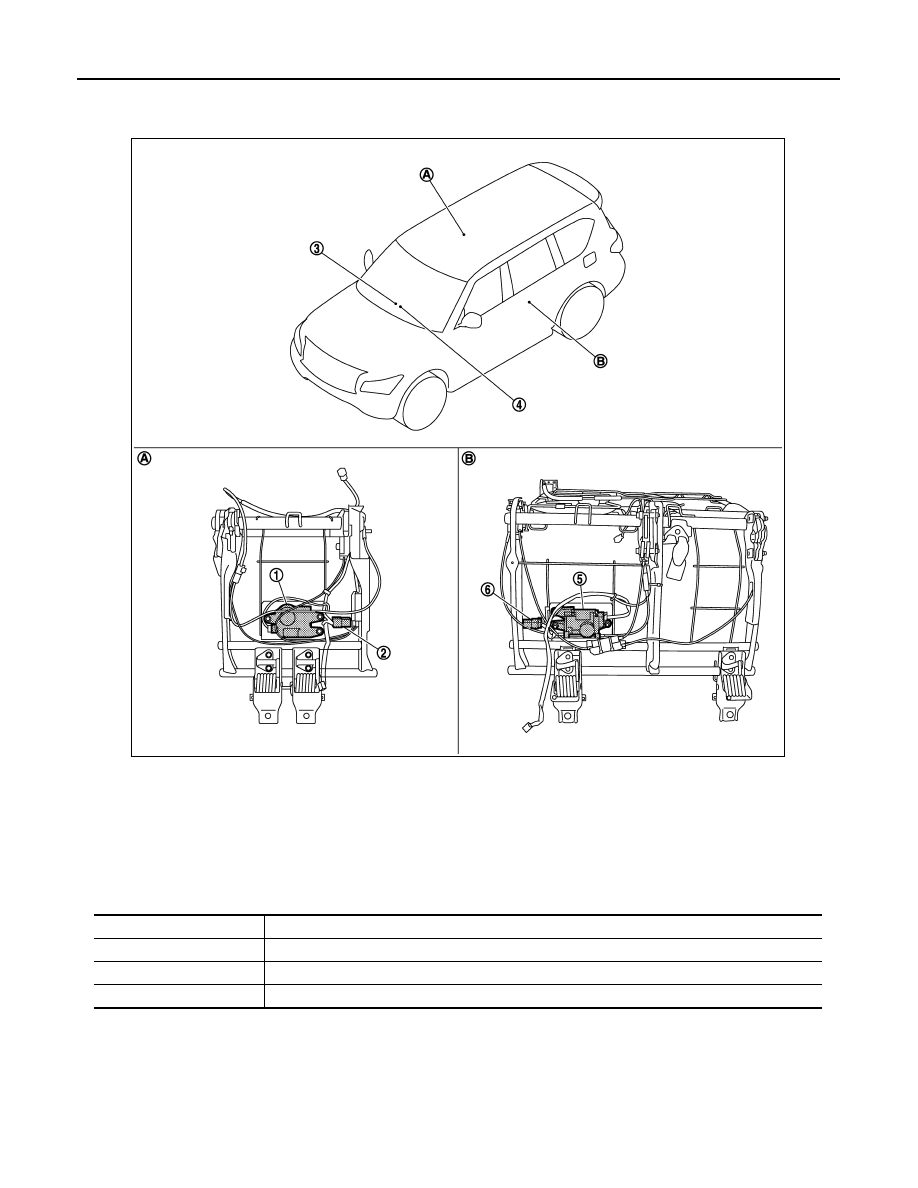

SECOND SEAT POWER UNLOCK SYSTEM : Component Parts Location

INFOID:0000000006217360

SECOND SEAT POWER UNLOCK SYSTEM : Component Description

INFOID:0000000006217361

THIRD SEAT SEATBACK POWER FOLDING SYSTEM

1.

Power unlock motor RH

2.

Power unlock relay RH

3.

Second seat power unlock switch RH

4.

Second seat power unlock switch LH 5.

Power unlock motor LH

6.

Power unlock relay LH

A.

View with seat cushion pad and seat
back pad removed.

B.

View with seat cushion pad and seat
back pad removed.

JMJIA4221ZZ

Item

Function

Second seat unlock switch

supplies power supply to power unlock relay and operates power unlock system.

Power unlock relay

Supplies battery power supply to motor when receiving power supply from power unlock switch.

Power unlock motor

Releases lock when receiving battery power supply from power unlock relay.

COMPONENT PARTS

SE-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

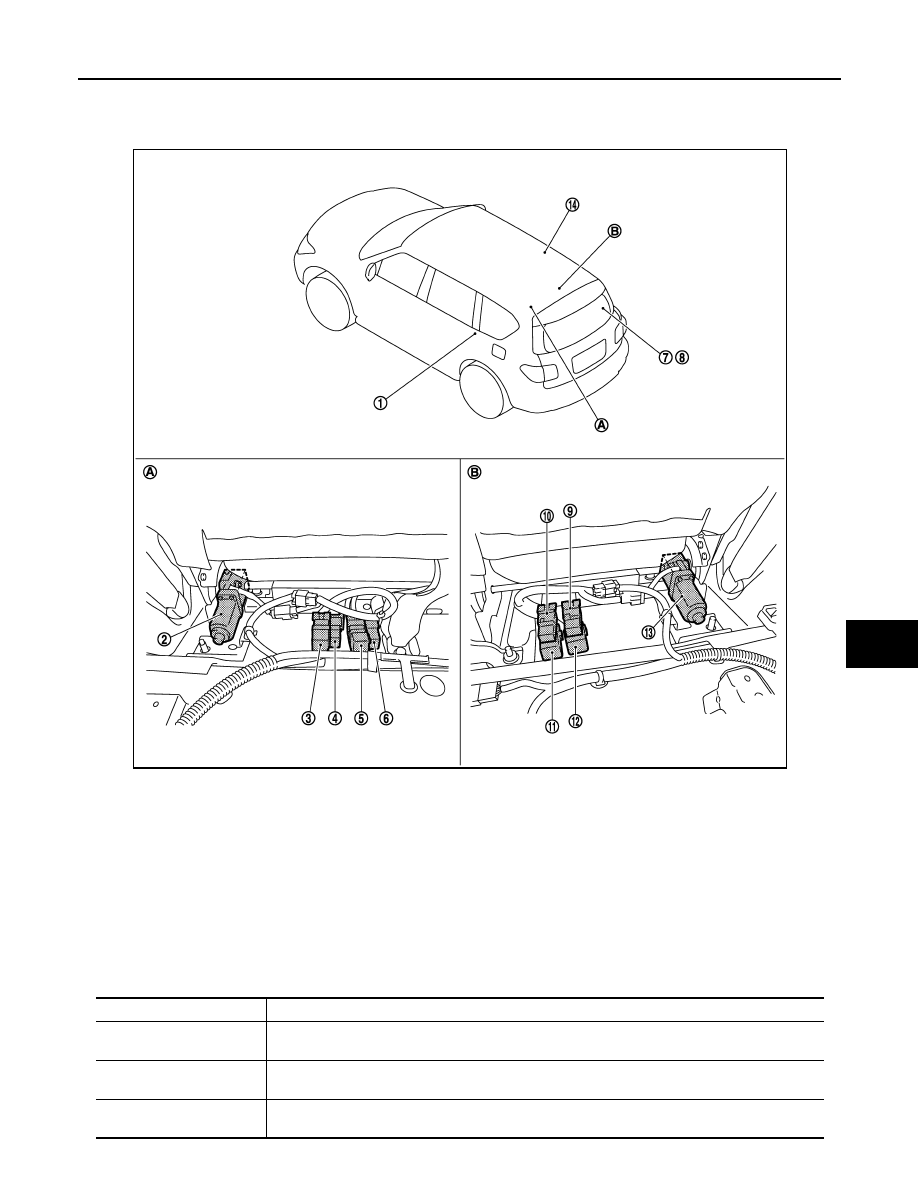

THIRD SEAT SEATBACK POWER FOLDING SYSTEM : Component Parts Location

INFOID:0000000006217362

THIRD SEAT SEATBACK POWER FOLDING SYSTEM : Component Description

INFOID:0000000006217363

1.

Leclining switch LH

2.

Folding motor LH

3.

Up relay 1 LH

4.

Up relay 2 LH

5.

Down relay 1 LH

6.

Down relay 2 LH

7.

Fold down switch RH

8.

Fold down switch LH

9.

Down relay 2 RH

10. Up relay 2 RH

11.

Up relay 1 RH

12. Down relay 1 RH

13. Folding motor RH

14. Leclining switch RH

A.

View with luggege lower board LH
removed.

B.

View with luggege lower board RH
removed.

JMJIA4222ZZ

Item

Function

Reclining switch

supplies power supply to up relay or down relay and operates reclining and folding function of third
seat.

Fall down switch

supplies power supply to up relay or down relay and operates reclining and folding function of third
seat.

Folding motor

Receives power supply from fold down switch and reclining switch, and operates seatback forward
and backward.

SE-12

< SYSTEM DESCRIPTION >

COMPONENT PARTS

FRONT HEATED SEAT SYSTEM

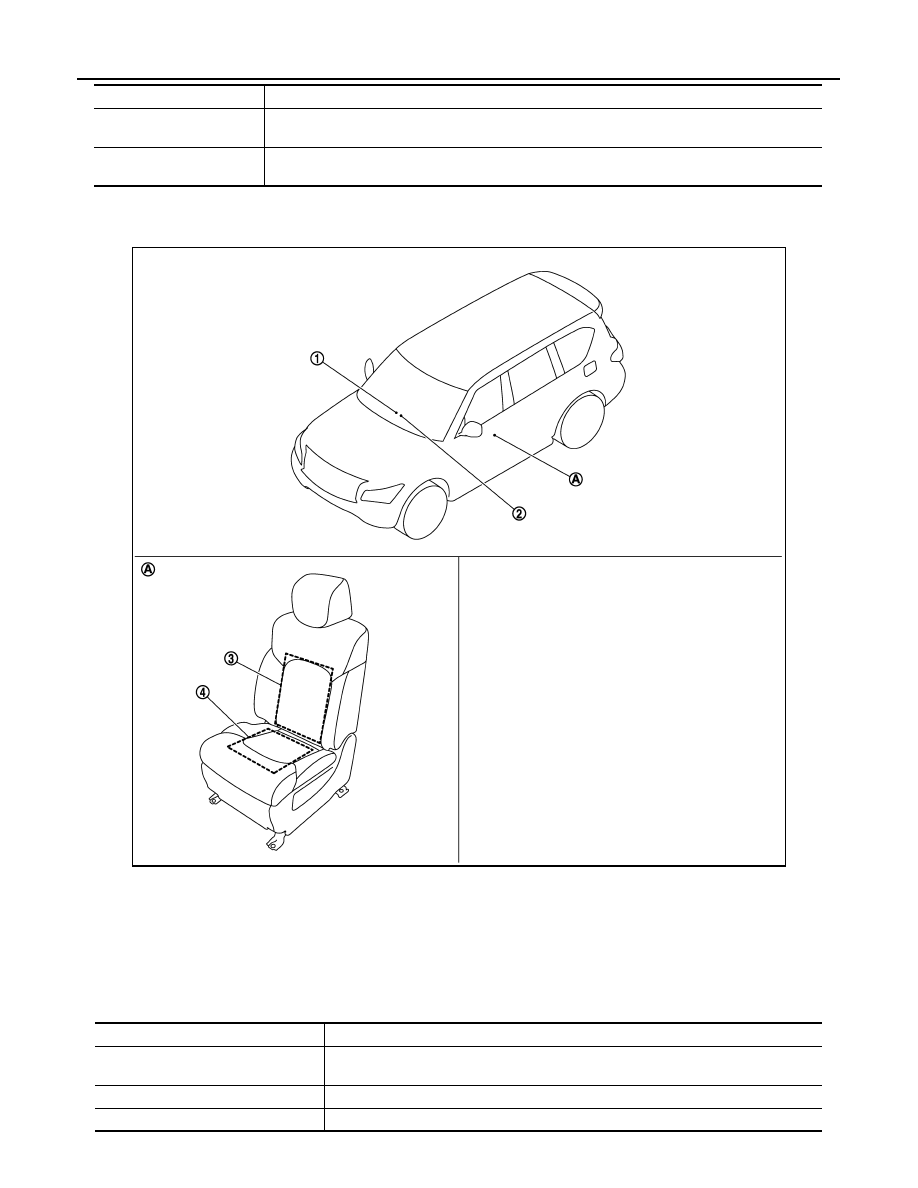

FRONT HEATED SEAT SYSTEM : Component Parts Location

INFOID:0000000006217364

FRONT HEATED SEAT SYSTEM : Component Description

INFOID:0000000006217365

Up relay 1/2

Supplies battery power supply to motor when receiving power supply from fold down switch or re-
clining switch.

Down relay 1/2

Supplies battery power supply to motor when receiving power supply from fold down switch or re-
clining switch.

Item

Function

JMJIA4223ZZ

1.

Front heated seat switch (driver
side)

2.

Front heated seat switch (passenger
side)

3.

Seat back heater

4.

Seat cushion heater

A.

Front seat

Item

Function

Front heated seat switch

Supplies power supply to each heated seat and operates switching of HI/LO of heated
seat and ON/OFF of the system.

Seat cushion heater

Built-in seat cushion, the heater operates with the power supplied by heater seat switch.

Seat back heater

Built-in seatback, the heater operates with the power supplied by heater seat switch.

COMPONENT PARTS

SE-13

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

SECOND HEATED SEAT SYSTEM

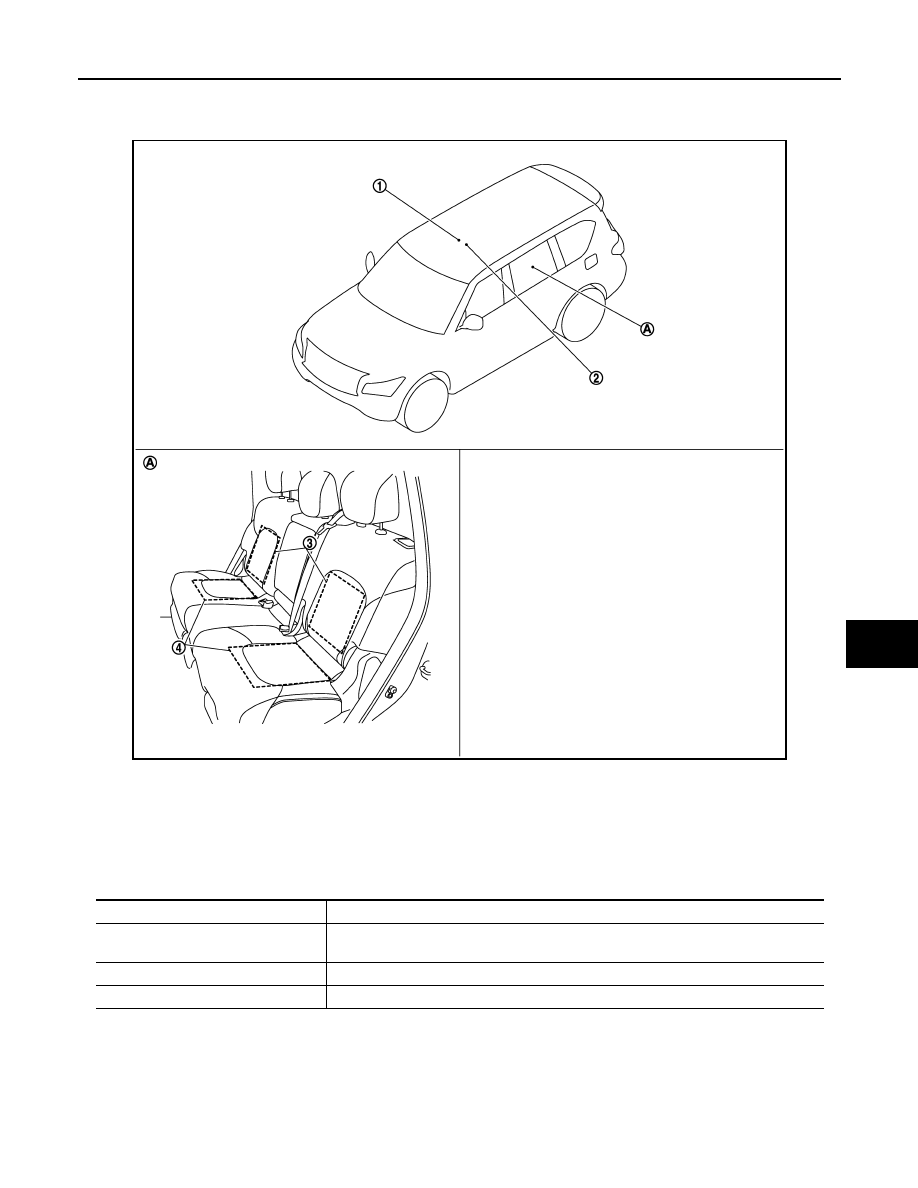

SECOND HEATED SEAT SYSTEM : Component Parts Location

INFOID:0000000006217366

SECOND HEATED SEAT SYSTEM : Component Description

INFOID:0000000006217367

CLIMATE CONTROLLED SEAT SYSTEM

JMJIA4224ZZ

1.

Heated seat switch LH

2.

Heated seat switch RH

3.

Seat back heater

4.

Seat cushion heater

A.

Rear seat

Item

Function

Heated seat switch

Supplies power supply to each heated seat and operates switching of HI/LO of heated
seat and ON/OFF of the system.

Seat cushion heater

Built-in seat cushion, the heater operates with the power supplied by heater seat switch.

Seat back heater

Built-in seatback, the heater operates with the power supplied by heater seat switch.
