Infiniti QX56 (Z62). Manual - part 1115

AIR COMPRESSOR/AIR TUBE

SCS-97

< REMOVAL AND INSTALLATION >

[AIR LEVELIZER CONTROL SYSTEM]

C

D

F

G

H

I

J

K

L

M

A

B

SCS

N

O

P

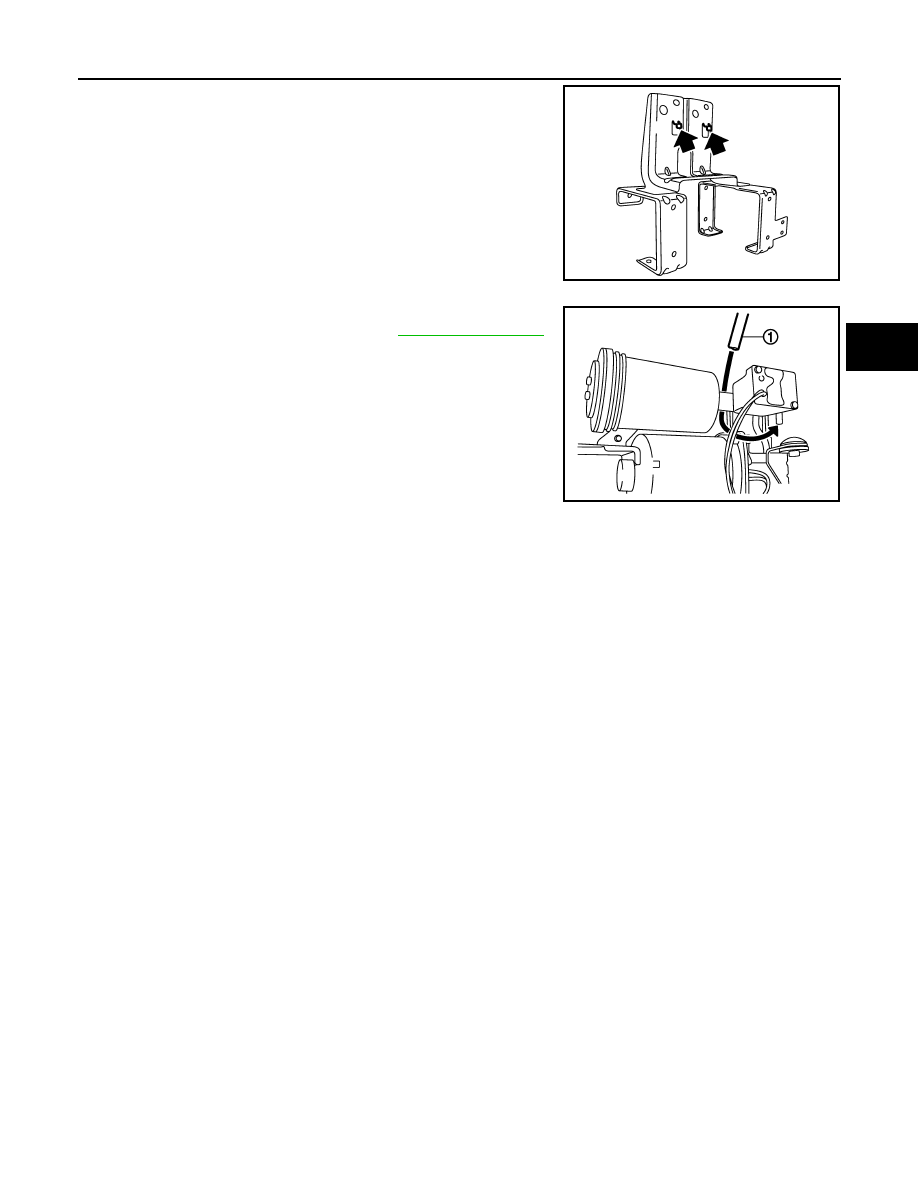

• Completely engage hooks on frame when installing bracket.

• Install exhaust tube (1) according to the figure.
• Perform inspection after installation. Rfer to

SCS-97, "Inspection"

.

Inspection

INFOID:0000000006256103

INSPECTION AFTER REMOVAL

Check area 8 mm (0.31 in) from front end of air tubes for damage and burrs.

INSPECTION AFTER INSTALLATION

• Lightly pull air tubes and check that it is locked.
• Apply some soapy water to each joint. Check that there is no leakage of air after the activation of the air

compressor during “Active Test” of CONSULT-III.

CAUTION:

Never allow soapy water to enter the inside of air compressor.

JSEIA0241ZZ

JSEIA0242ZZ

SCS-98

< REMOVAL AND INSTALLATION >

[AIR LEVELIZER CONTROL SYSTEM]

VEHICLE HEIGHT SENSOR

VEHICLE HEIGHT SENSOR

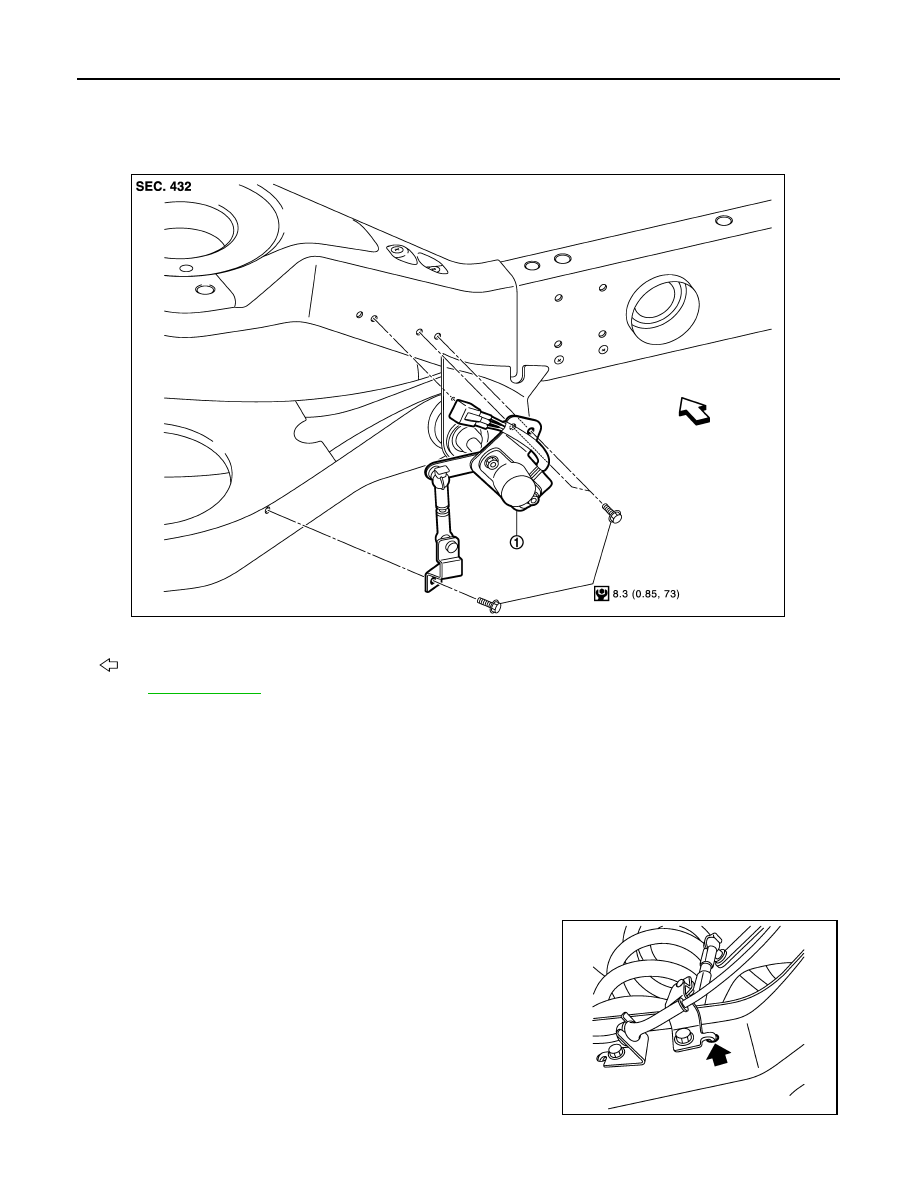

Exploded View

INFOID:0000000006256104

Removal and Installation

INFOID:0000000006256105

REMOVAL

CAUTION:

Never disassemble the vehicle height sensor.
1.

Lift up the vehicle.

2.

Disconnect the vehicle height sensor harness connector.

3.

Remove the vehicle height sensor.

INSTALLATION

Note the following, and install in the reverse order of the removal.
Completely engage hooks on frame when installing vehicle height
sensor.

1.

Vehicle height sensor

: Vehicle front

Refer to

GI-4, "Components"

 for symbols not described on the above.

JSEIA0226GB

JSEIA0243ZZ

VEHICLE HEIGHT SENSOR

SCS-99

< REMOVAL AND INSTALLATION >

[AIR LEVELIZER CONTROL SYSTEM]

C

D

F

G

H

I

J

K

L

M

A

B

SCS

N

O

P

Adjustment

INFOID:0000000006256106

After vehicle height sensor is replaced, removal or installation, perform “STANDARD VEHICLE HEIGHT SET-
TING”. Refer to

SCS-67, "Work Procedure"

.

SE-1

BODY INTERIOR

C

D

E

F

G

H

I

K

L

M

SECTION

SE

A

B

SE

N

O

P

CONTENTS

SEAT

PRECAUTION ...............................................

4

PRECAUTIONS ...................................................

4

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

4

Service Notice  ...........................................................

4

Precaution for Work  ..................................................

4

PREPARATION ............................................

6

PREPARATION ...................................................

6

Commercial Service Tool  ..........................................

6

CLIP LIST  ............................................................

7

Clip List  .....................................................................

7

SYSTEM DESCRIPTION  ..............................

8

COMPONENT PARTS  ........................................

8

POWER SEAT SYSTEM  .............................................

8

POWER SEAT SYSTEM : Component Parts Lo-
cation .........................................................................

8

POWER SEAT SYSTEM : Component Descrip-
tion ............................................................................

8

LUMBAR SUPPORT SYSTEM ....................................

8

LUMBAR SUPPORT SYSTEM : Component
Parts Location  ...........................................................

9

LUMBAR SUPPORT SYSTEM : Component De-
scription .....................................................................

9

SECOND SEAT POWER UNLOCK SYSTEM .............

9

SECOND SEAT POWER UNLOCK SYSTEM :
Component Parts Location ......................................

10

SECOND SEAT POWER UNLOCK SYSTEM :
Component Description ...........................................

10

THIRD SEAT SEATBACK POWER FOLDING
SYSTEM ....................................................................

10

THIRD SEAT SEATBACK POWER FOLDING
SYSTEM : Component Parts Location  ....................

11

THIRD SEAT SEATBACK POWER FOLDING
SYSTEM : Component Description  .........................

11

FRONT HEATED SEAT SYSTEM  .............................

12

FRONT HEATED SEAT SYSTEM : Component
Parts Location ..........................................................

12

FRONT HEATED SEAT SYSTEM : Component
Description ...............................................................

12

SECOND HEATED SEAT SYSTEM  ..........................

13

SECOND HEATED SEAT SYSTEM : Component
Parts Location ..........................................................

13

SECOND HEATED SEAT SYSTEM : Component
Description ...............................................................

13

CLIMATE CONTROLLED SEAT SYSTEM  ...............

13

CLIMATE CONTROLLED SEAT SYSTEM : Com-
ponent Parts Location ..............................................

14

CLIMATE CONTROLLED SEAT SYSTEM : Com-
ponent Description ...................................................

14

SYSTEM ............................................................

16

POWER SEAT SYSTEM ............................................

16

POWER SEAT SYSTEM : System Description .......

16

LUMBAR SUPPORT SYSTEM ..................................

16

LUMBAR SUPPORT SYSTEM : System Descrip-
tion ...........................................................................

16

SECOND SEAT POWER UNLOCK SYSTEM ...........

16

SECOND SEAT POWER UNLOCK SYSTEM :
System Description ..................................................

16

THIRD SEAT SEATBACK POWER FOLDING
SYSTEM .....................................................................

16

THIRD SEAT SEATBACK POWER FOLDING
SYSTEM : System Description ................................

16

FRONT HEATED SEAT SYSTEM  .............................

16

FRONT HEATED SEAT SYSTEM : System De-
scription ...................................................................

16

SECOND HEATED SEAT SYSTEM  ..........................

16
