CK SUSP INDICATOR LAMP DOES NOT TURN OFF

SCS-93

< SYMPTOM DIAGNOSIS >

[AIR LEVELIZER CONTROL SYSTEM]

C

D

F

G

H

I

J

K

L

M

A

B

SCS

N

O

P

CK SUSP INDICATOR LAMP DOES NOT TURN OFF

Description

INFOID:0000000006256096

• CK SUSP indicator lamp turns ON while driving the vehicle.
• CK SUSP indicator lamp does not turn ON after the completion of standard vehicle height setting.

Diagnosis Procedure

INFOID:0000000006256097

1.

STANDARD VEHICLE HEIGHT SETTING

Perform “STANDARD VEHICLE HEIGHT SETTING”. Refer to

SCS-67, "Work Procedure"

.

Does CK SUSP indicator lamp turn OFF?

YES

>> INSPECTION END

NO

>> Replace the air levelizer control module. Refer to

SCS-94, "Removal and Installation"

.

SCS-94

< REMOVAL AND INSTALLATION >

[AIR LEVELIZER CONTROL SYSTEM]

AIR LEVELIZER CONTROL MODULE

REMOVAL AND INSTALLATION

AIR LEVELIZER CONTROL MODULE

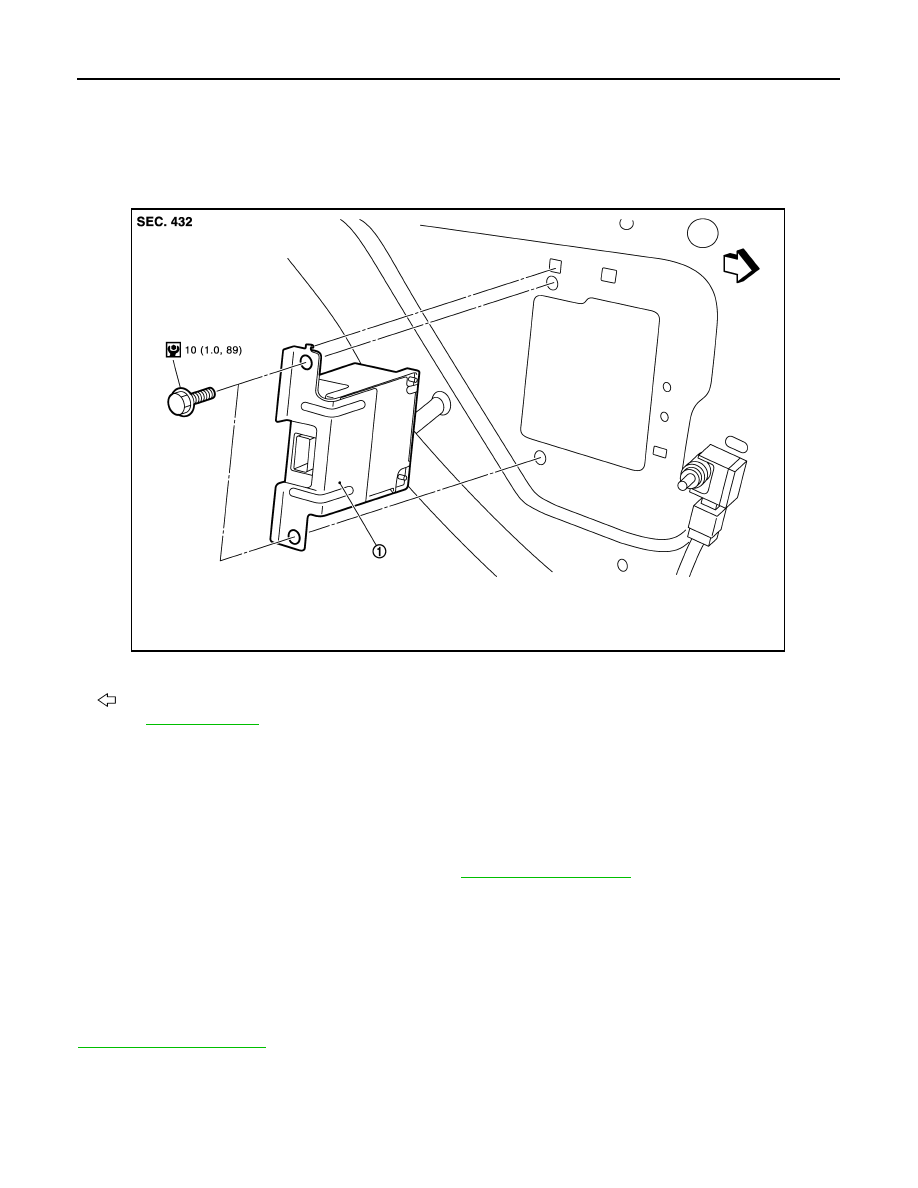

Exploded View

INFOID:0000000006256098

Removal and Installation

INFOID:0000000006256099

REMOVAL

CAUTION:

Never impact on air levelizer control module when removing or installing air levelizer control module.
1.

Disconnect battery cable from negative terminal.

2.

Remove luggage side lower finisher (LH). Refer to

INT-33, "Exploded View"

.

3.

Disconnect air levelizer control module harness connector.

4.

Remove the air levelizer control module.

INSTALLATION

Install in the reverse order of removal.

Adjustment

INFOID:0000000006256100

After air levelizer control module is replaced, perform “STANDARD VEHICLE HEIGHT SETTING”. Refer to

SCS-67, "Work Procedure"

.

1.

Air levelizer control module

: Vehicle front

Refer to

GI-4, "Components"

 for symbols not described on the above.

JSEIA0237GB

AIR COMPRESSOR/AIR TUBE

SCS-95

< REMOVAL AND INSTALLATION >

[AIR LEVELIZER CONTROL SYSTEM]

C

D

F

G

H

I

J

K

L

M

A

B

SCS

N

O

P

AIR COMPRESSOR/AIR TUBE

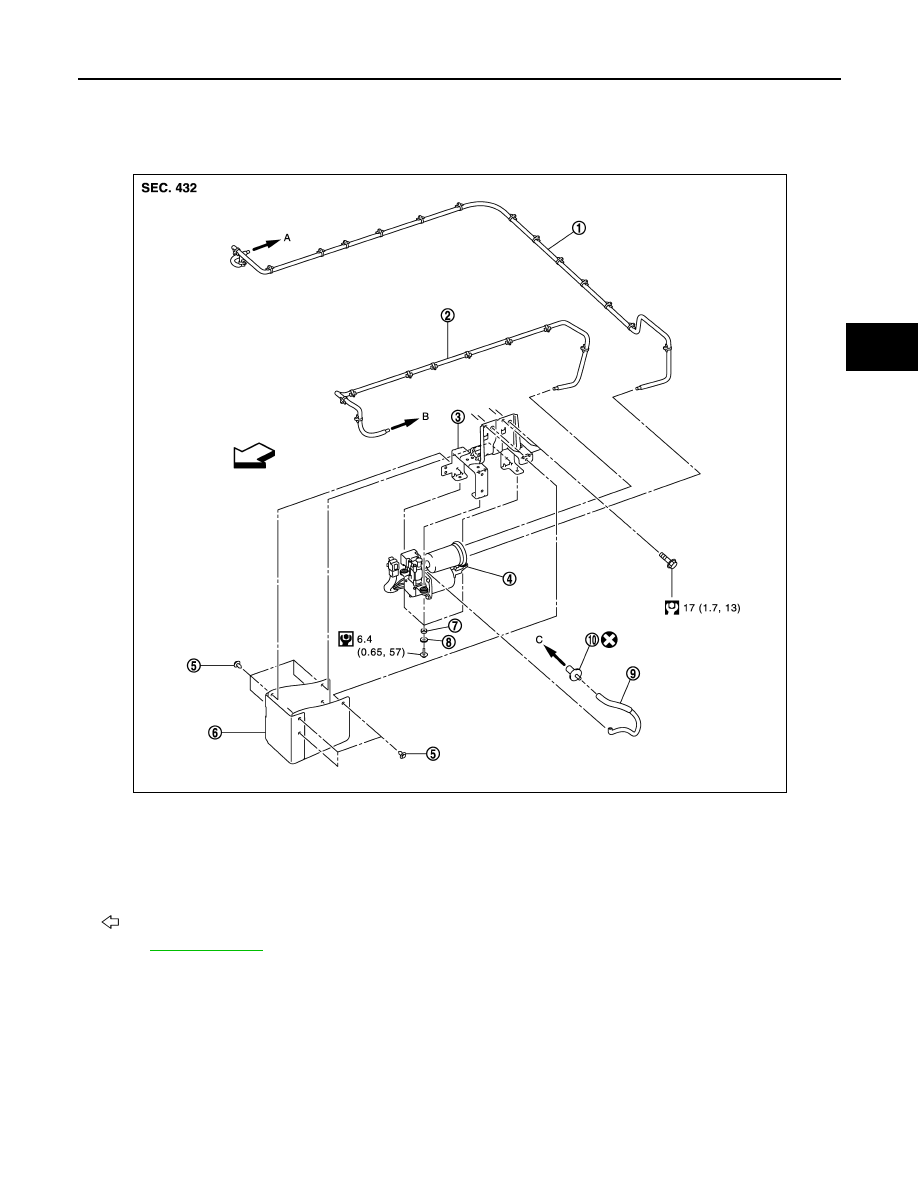

Exploded View

INFOID:0000000006256101

Removal and Installation

INFOID:0000000006256102

REMOVAL

CAUTION:

Seal the removed part using vinyl tape for preventing dirt from getting on or entering the removed
part.

1.

Lift up the vehicle.

2.

Remove the cover.

3.

Disconnect the air compressor harness connector.

1.

Air tube A

2.

Air tube B

3.

Bracket

4.

Air compressor

5.

Clip

6.

Cover

7.

Insulator

8.

Washer

9.

Exhaust tube

10.

Exhaust tube connector

A.

To rear shock absorber (RH)

B.

To rear shock absorber (LH)

C.

To frame

: Vehicle front

Refer to

GI-4, "Components"

 for symbols not described on the above.

JSEIA0227GB

SCS-96

< REMOVAL AND INSTALLATION >

[AIR LEVELIZER CONTROL SYSTEM]

AIR COMPRESSOR/AIR TUBE

4.

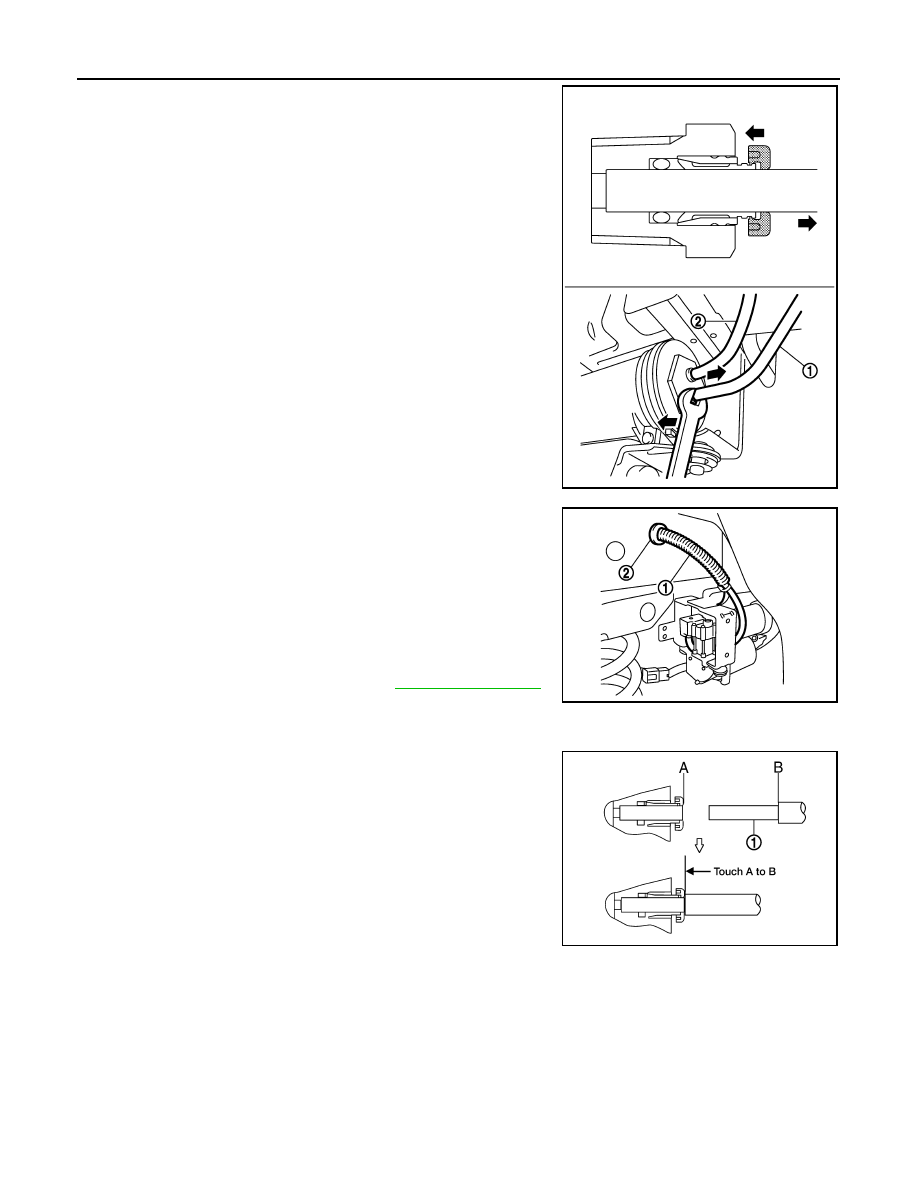

Using a small spanner, remove the air tube A (1) and B (2) from
air compressor.

CAUTION:

Be careful since air flows swiftly from air tube.

5.

Remove the exhaust tube (1) from exhaust tube connector (2).

6.

Remove the exhaust tube connector only when it is damaged.

7.

Remove the exhaust tube from air compressor.

8.

Remove the air compressor from bracket.

9.

Rmove the bracket from vehicle.

10. Remove the air tube A and B from rear shock absorbers RH and

LH, according to the procedure in step 4.

11. Remove the air tube A and B from vehicle.

12. Perform inspection after removal. Rfer to

SCS-97, "Inspection"

.

INSTALLATION

Note the following, and install in the reverse order of the removal.
• When installing air tube (1) to air compressor or shock absorber,

insert as shown in the figure.

• Dry each component thoroughly before installing, to prevent mois-

ture from entering air compressor.

JSEIA0238ZZ

JSEIA0239ZZ

JSEIA0240GB
