BCS-58

< ECU DIAGNOSIS INFORMATION >

BCM

CONSULT display

Fail-safe

Freeze Frame Data

•Vehicle Speed

•Odo/Trip Meter

•Vehicle Condition

Intelligent Key warn-

ing lamp ON

Reference

page

No DTC is detected.
further testing
may be required.

—

—

—

—

U1000: CAN COMM

—

—

—

BCS-70

U1010: CONTROL UNIT (CAN)

—

—

—

BCS-71

U0415: VEHICLE SPEED

×

—

×

BCS-72

B2013: ID DISCORD BCM-S/L

×

×

×

SEC-69

B2014: CHAIN OF S/L-BCM

×

×

×

SEC-70

B2192: ID DISCORD BCM-ECM

×

—

—

SEC-60

B2193: CHAIN OF BCM-ECM

×

—

—

SEC-61

B2195: ANTI-SCANNING

×

—

—

SEC-62

B2196: DONGLE NG

×

—

—

SEC-63

B2198: NATS ANTENNA AMP

×

—

—

SEC-65

B2555: STOP LAMP

—

×

×

SEC-73

B2556: PUSH-BTN IGN SW

—

×

×

SEC-76

B2557: VEHICLE SPEED

×

×

×

SEC-78

B2562: LOW VOLTAGE

—

×

—

BCS-73

B2601: SHIFT POSITION

×

×

×

SEC-79

B2602: SHIFT POSITION

×

×

×

SEC-82

B2603: SHIFT POSI STATUS

×

×

×

SEC-85

B2604: PNP/CLUTCH SW

×

×

×

SEC-89

B2605: PNP/CLUTCH SW

×

×

×

SEC-91

B2608: STARTER RELAY

×

×

×

SEC-93

B2609: S/L STATUS

×

×

×

SEC-95

B260B: STEERING LOCK UNIT

×

×

×

SEC-98

B260C: STEERING LOCK UNIT

—

×

×

SEC-99

B260D: STEERING LOCK UNIT

×

×

×

SEC-100

B260F: ENG STATE SIG LOST

×

×

×

SEC-101

B2612: S/L STATUS

×

×

×

SEC-102

B2614: BCM

—

×

×

PCS-56

B2615: BCM

—

×

×

PCS-59

B2616: BCM

—

×

×

PCS-61

B2618: BCM

—

×

×

PCS-63

B2619: BCM

×

×

×

SEC-105

B261A: PUSH-BTN IGN SW

—

×

×

PCS-64

B2621: INSIDE ANTENNA

—

×

—

DLK-104

B2622: INSIDE ANTENNA

—

×

—

DLK-106

B2623: INSIDE ANTENNA

—

×

—

DLK-108

B2626: OUTSIDE ANTENNA

—

×

—

DLK-110

B2627: OUTSIDE ANTENNA

—

×

—

DLK-112

B2628: OUTSIDE ANTENNA

—

×

—

DLK-114

B26E7: TPMS CAN COMM

—

—

—

BCS-74

BCS

BCM

BCS-59

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

B26E9: LOCK MALFUNCTION

—

×

×

 (Turn ON for 15 sec-

onds)

SEC-106

B26EF: STRG LCK RELAY OFF

×

×

×

SEC-107

B26F0: STRG LCK RELAY ON

×

×

×

SEC-109

B26F1: IGN RELAY OFF

×

×

×

PCS-66

B26F2: IGN RELAY ON

×

×

×

PCS-68

B26F3: START CONT RLY ON

×

×

×

SEC-111

B26F4: START CONT RLY OFF

×

×

×

SEC-112

B26F5: STRG LCK STS SW

—

×

×

SEC-113

B26F6: BCM

—

×

×

PCS-70

B26F7: BCM

×

×

×

SEC-116

B26F8: BCM

—

×

×

SEC-117

B26F9: CRANK REQ CIR SHORT

—

×

×

SEC-118

B26FA: CRANK REQ CIR OPEN

—

×

×

SEC-120

B26FC: KEY REGISTRATION

—

×

×

SEC-122

CONSULT display

Fail-safe

Freeze Frame Data

•Vehicle Speed

•Odo/Trip Meter

•Vehicle Condition

Intelligent Key warn-

ing lamp ON

Reference

page

BCS-60

< WIRING DIAGRAM >

BCM

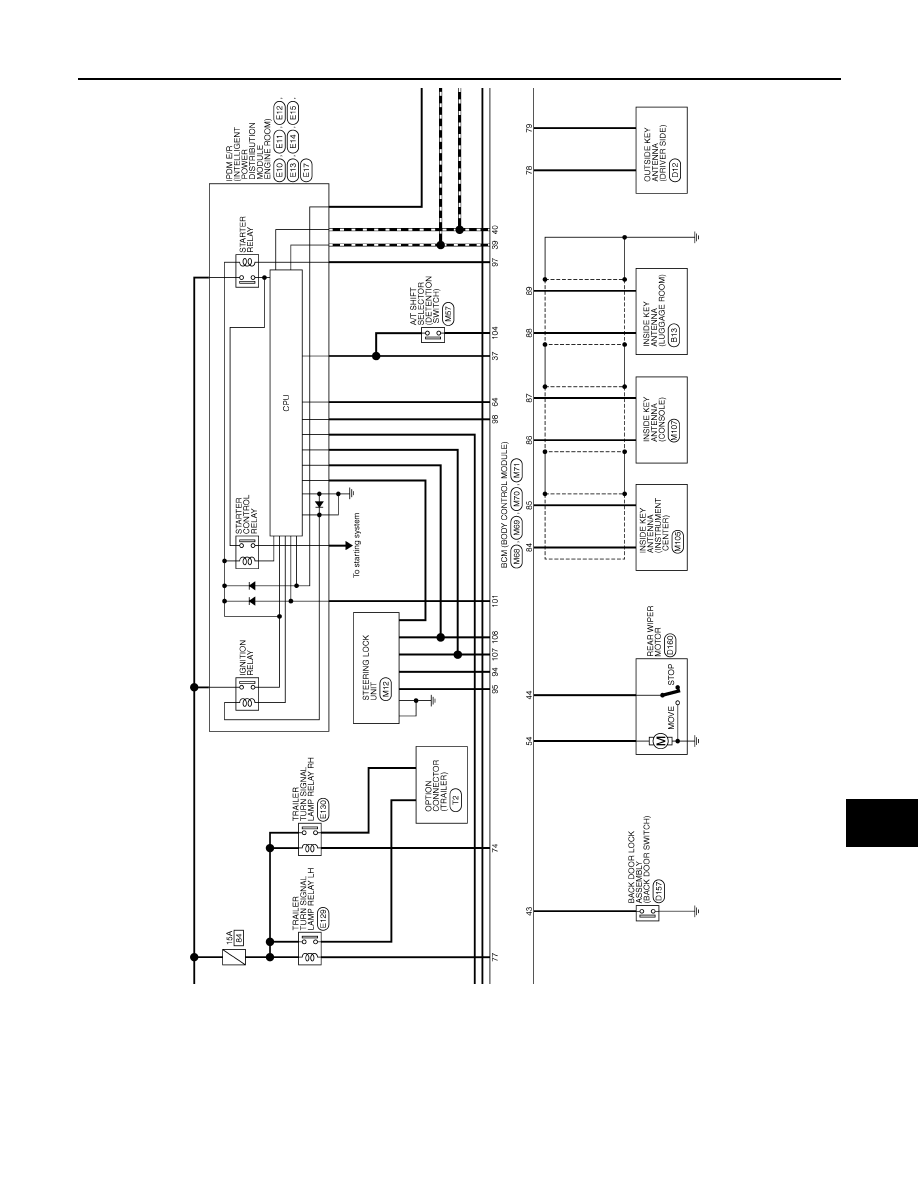

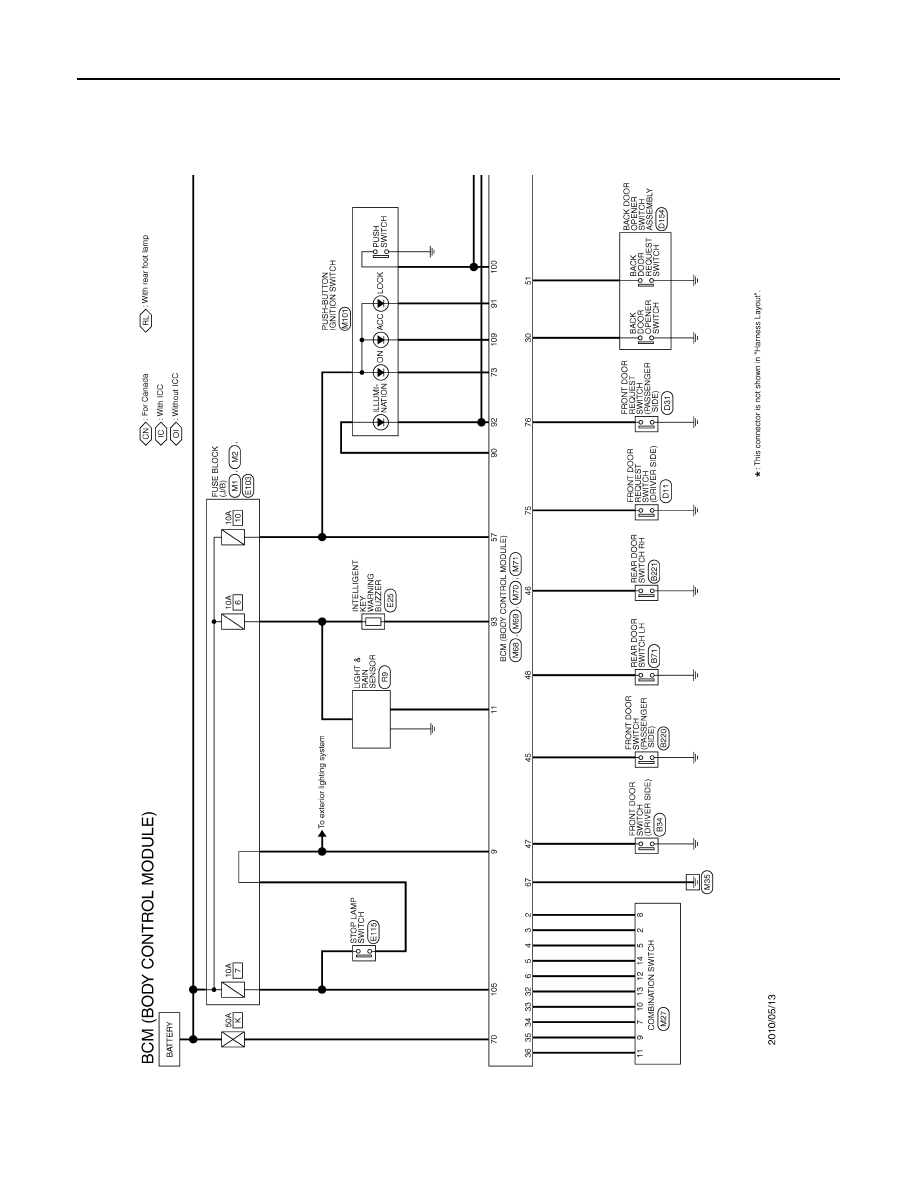

WIRING DIAGRAM

BCM

Wiring Diagram

INFOID:0000000006274823

JCMWM8293GB

BCS

BCM

BCS-61

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JCMWM8294GB
