SB-18

< REMOVAL AND INSTALLATION >

THIRD SEAT BELT

3.

Grasp the seat belt and try to pull out the retractor. The webbing must lock and not extend any further. If it
does not operate normally, replace the retractor assembly.

4.

Allow the entire length of the webbing to retract to cancel the automatic locking mode.

ELR Function Moving Check

WARNING:

Perform the following test in a safe, open area clear of other vehicles and obstructions (for example, a
large, empty parking lot). Road surface must be paved and dry. Never perform the following test on
wet or gravel roads or on public streets and highways. This could result in an accident and serious
personal injury. The driver and passenger must be prepared to brace themselves in the event that the
retractor does not lock.
1.

Fasten driver seat belt. Buckle a passenger into the seat for the belt that is to be tested.

2.

Proceed to the designated safe area.

3.

Drive the vehicle at approximately 16 km/h (10 MPH). Notify any passengers of a pending sudden stop
and the driver and passenger must be prepared to brace themselves in the event that the retractor does
not lock. Apply brakes firmly and make a very hard stop.

During stopping, seat belts should lock and not be extended. If the seat belt retractor assembly does not lock,
perform the retractor off-vehicle check.

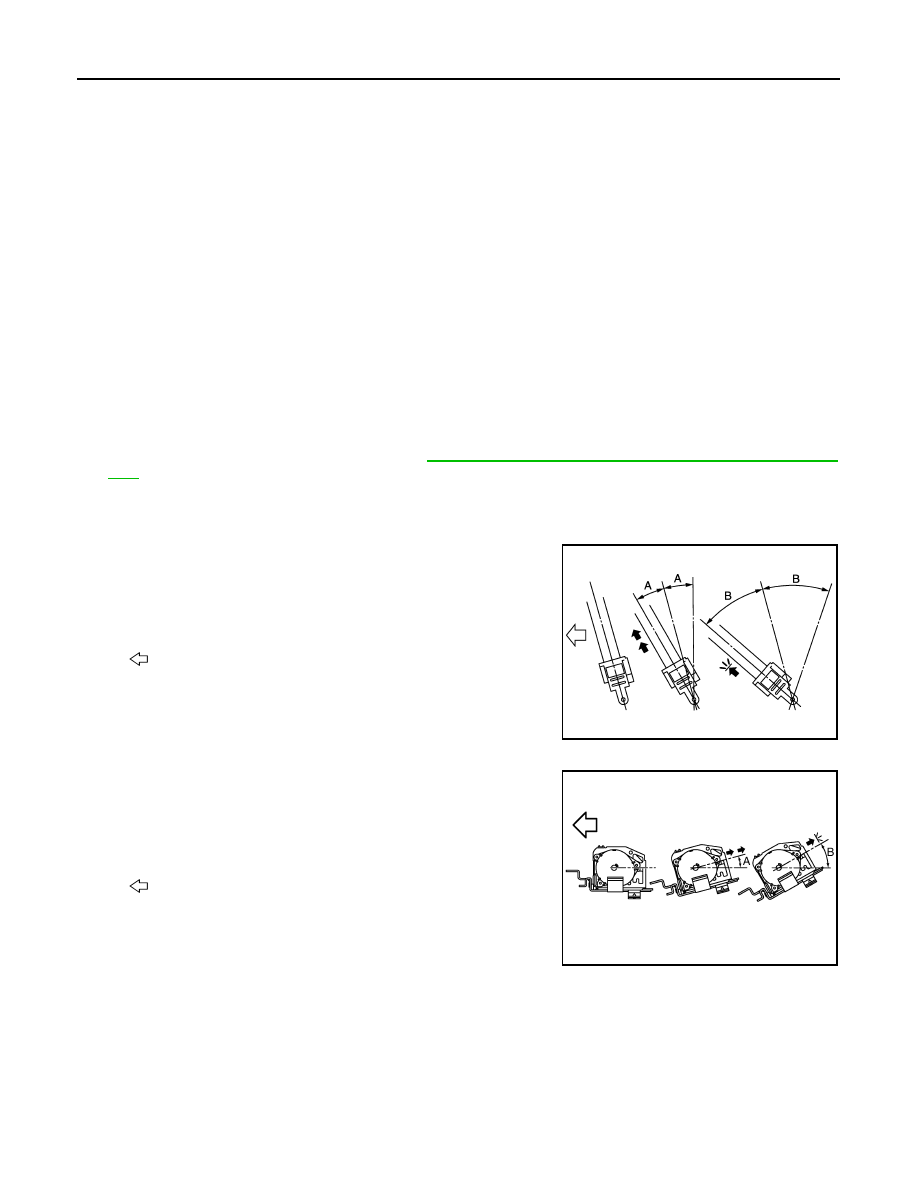

SEAT BELT RETRACTOR OFF-VEHICLE CHECK

1.

Remove the third seat belt retractor. Refer to

SB-19, "SEAT BELT RETRACTOR : Removal and Installa-

tion"

.

2.

Slowly pull out webbing while tilting the retractor assembly forward from the mounted position without
twisting the retractor assembly as shown in the figure.

a.

Outer seat belt retractor
• The webbing can be pulled out when the angle (A) is 15

degrees or less.

• The webbing cannot be pulled out when the angle (B) is 27

degrees or more.

b.

Center seat belt retractor
• The webbing can be pulled out when the angle (A) is 15

degrees or less.

• The webbing cannot be pulled out when the angle (B) is 27

degrees or more.

3.

Replace the seat belt assembly if it does not operate normally.

A and B

: Tilting angles

: Vehicle front

JMHIA1064ZZ

A and B

: Tilting angles

: Vehicle front

JMHIA0522ZZ

THIRD SEAT BELT

SB-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

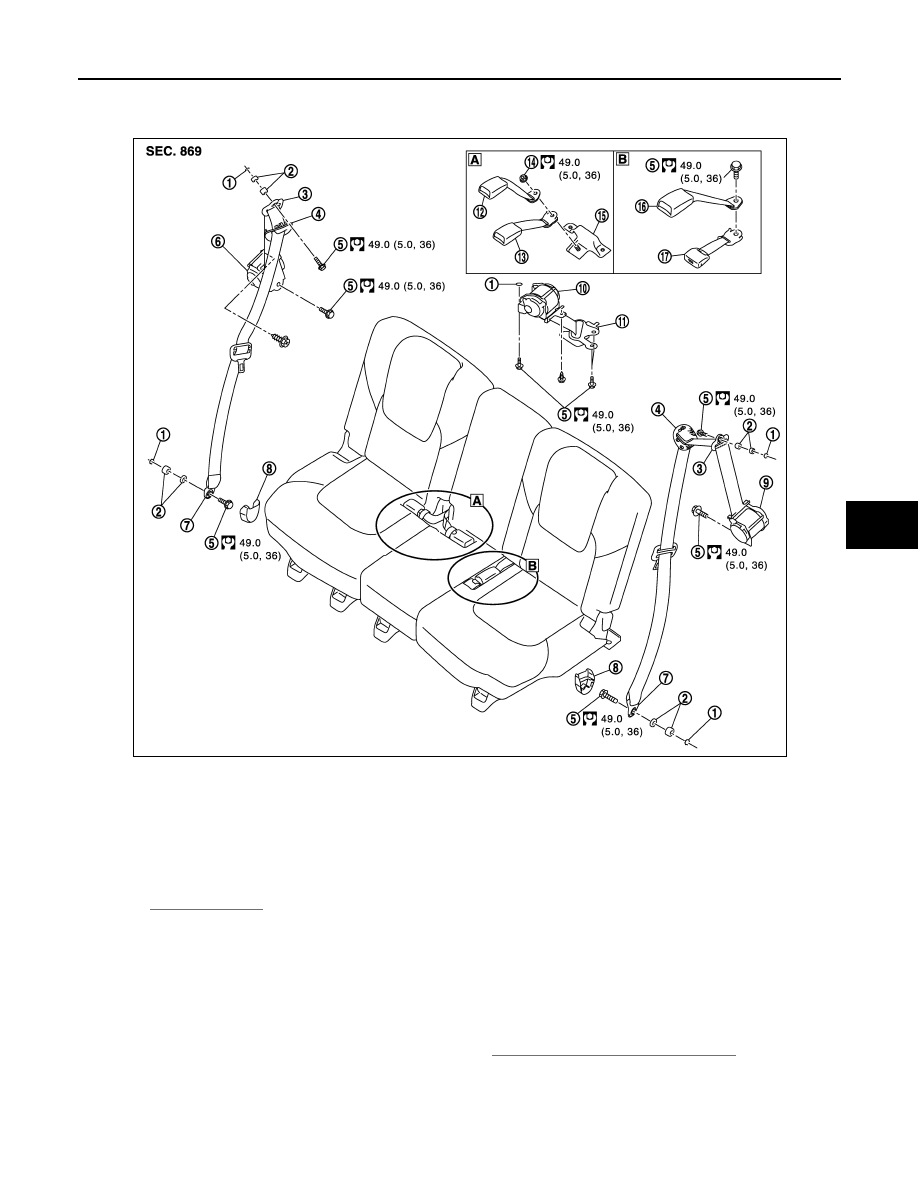

SEAT BELT RETRACTOR : Exploded View

INFOID:0000000006217628

SEAT BELT RETRACTOR : Removal and Installation

INFOID:0000000006217629

REMOVAL

THIRD SEAT BELT RETRACTOR

1.

Operate rear seat lever or reclining lever to release seat lock assembly lock and to fold seat forward.

2.

Remove the third seat assembly from vehicle. Refer to

SE-138, "Removal and Installation"

.

3.

Remove the outer anchor.
1.

Remove outer anchor cover.

2.

Remove the outer anchor mounting anchor bolt.

1.

Retaining washer

2.

Spacer

3.

Shoulder anchor

4.

Rear seat belt finisher

5.

Anchor bolt

6.

Seat belt retractor (RH side)

7.

Outer anchor

8.

Outer anchor cover

9.

Seat belt retractor (LH side)

10. Seat belt center retractor

11.

Seat belt guide plate

12. Seat belt buckle (RH side)

13. Seat belt center buckle

14. Anchor nut

15. Seat belt anchor plate

16. Seat belt buckle (LH side)

17. Connector buckle

Refer to

GI-4, "Components"

 for symbols in the figure.

JMHIA1567GB

SB-20

< REMOVAL AND INSTALLATION >

THIRD SEAT BELT

4.

Remove the rear kicking plate inner. Refer to

INT-20, "KICKING PLATE INNER : Removal and Installa-

tion"

.

5.

Remove the luggage side lower finisher (LH/RH). Refer to

INT-36, "LUGGAGE SIDE LOWER FINISHER :

Removal and Installation"

.

6.

Remove the roof garnish. Refer to

INT-29, "Removal and Installation"

.

7.

Remove the back pillar garnish (LH/RH). Refer to

INT-37, "BACK PILLAR GARNISH : Removal and

Installation"

.

8.

Remove the shoulder anchor mounting anchor bolt and then remove the shoulder anchor.

9.

Remove the seat belt retractor mounting anchor bolt and then remove the third seat belt retractor.

THIRD SEAT BELT CENTER RETRACTOR

1.

Remove the roof garnish. Refer to

INT-29, "Removal and Installation"

.

2.

Remove headlining assembly rear clips. Refer to

INT-29, "Removal and Installation"

.

3.

Slightly lower the headlining assembly rear and secure work space.

4.

Remove the seat belt guide plate anchor bolt.

5.

Remove the center seat belt retractor mounting anchor bolt and screw and then remove the center seat
belt retractor.

INSTALLATION

Install in the reverse order of removal.

SEAT BELT BUCKLE

SEAT BELT BUCKLE : Inspection

INFOID:0000000006217630

AFTER A COLLISION

WARNING:

Inspect all seat belt assemblies including retractors and attached hardware after any collision.
NISSAN/INFINITI recommends that all seat belt assemblies in use during a collision be replaced
unless the collision was minor and the belts show no damage and continue to operate properly. Fail-
ure to do so could result in serious personal injury in an accident. Seat belt assemblies not in use dur-
ing a collision should also be replaced if either damage or improper operation was noted. Seat belt
pre-tensioners should be replaced even if the seat belts were not in use during a frontal collision in
which the air bags were deployed.
Replace any seat belt assembly (including anchor bolts) if:
• The seat belt is in use at the time of a collision (except for minor collisions and the belts, retractors and buck-

les show no damage and continue to operate properly).

• The seat belt is damaged in an accident. (i.e. torn webbing, bent retractor or guide, etc.)
• The seat belt attaching point is damaged in an accident. Inspect the seat belt attaching area for damage or

distortion and repair if necessary before installing a new seat belt assembly.

• Anchor bolts are deformed or worn out.
• The seat belt pre-tensioner must be replaced even if the seat belts were not in use during the collision in

which the air bags are deployed.

PRELIMINARY CHECKS

1.

Check that the seat belt retractor, seat belt anchor and buckle bolts are tightened firmly.

2.

Repeat step above if necessary to check the other seat belts.

THIRD SEAT BELT

SB-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

SEAT BELT BUCKLE : Exploded View

INFOID:0000000006398358

SEAT BELT BUCKLE : Removal and Installation

INFOID:0000000006217632

REMOVAL

Remove the center and outer seat belt buckle.
• Place seatback (LH/RH) in the folded position.
• Remove the seat belt buckle mounting anchor bolt.

INSTALLATION

Install in the reverse order of removal.

1.

Retaining washer

2.

Spacer

3.

Shoulder anchor

4.

Rear seat belt finisher

5.

Anchor bolt

6.

Seat belt retractor (RH side)

7.

Outer anchor

8.

Outer anchor cover

9.

Seat belt retractor (LH side)

10. Seat belt center retractor

11.

Seat belt guide plate

12. Seat belt buckle (RH side)

13. Seat belt center buckle

14. Anchor nut

15. Seat belt anchor plate

16. Seat belt buckle (LH side)

17. Connector buckle

Refer to

GI-4, "Components"

 for symbols in the figure.

JMHIA1567GB
