SB-6

< REMOVAL AND INSTALLATION >

FRONT SEAT BELT

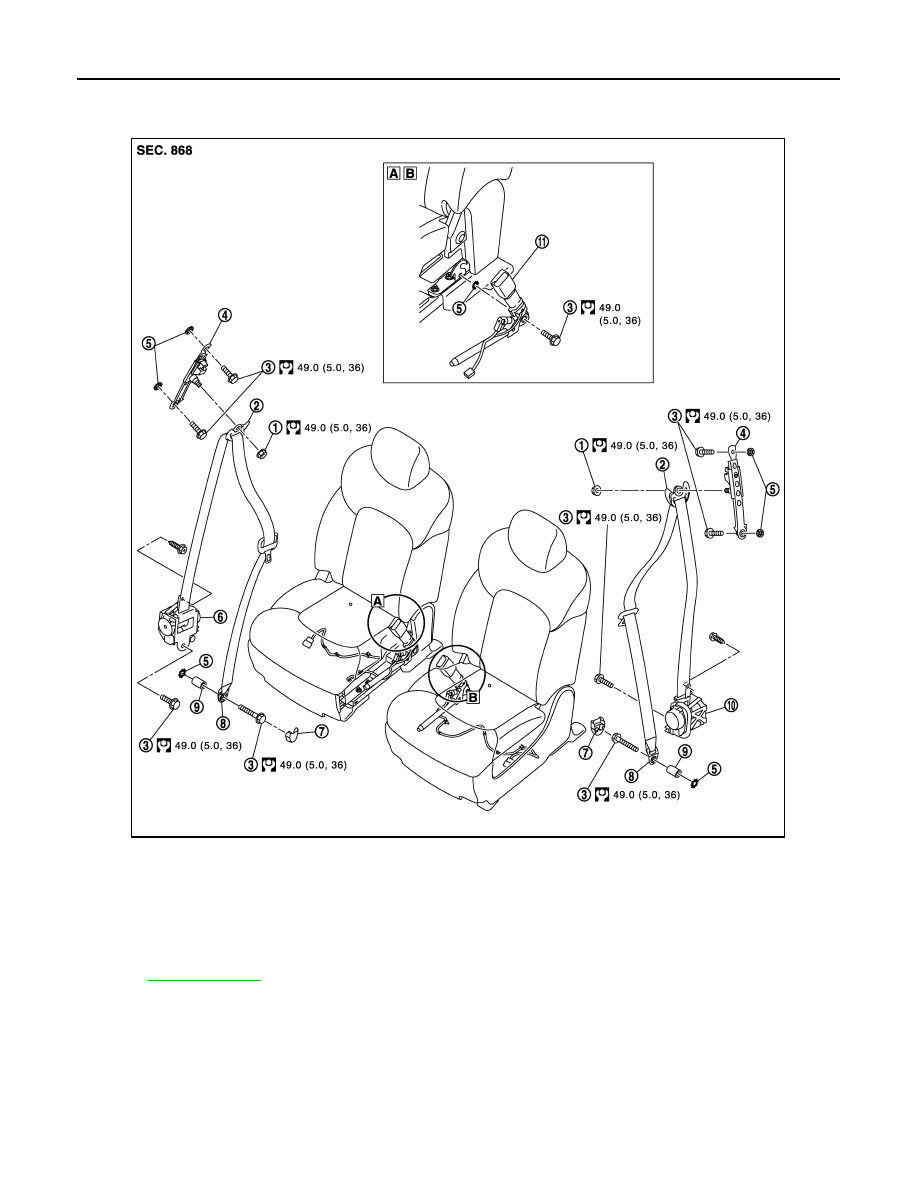

SEAT BELT RETRACTOR : Exploded View

INFOID:0000000006217616

SEAT BELT RETRACTOR : Removal and Installation

INFOID:0000000006217617

REMOVAL

CAUTION:

Before servicing SRS, turn the ignition switch OFF, disconnect battery negative terminal and wait 3
minutes or more.

1.

Remove the outer anchor.

1.

Anchor nut

2.

Shoulder anchor

3.

Anchor bolt

4.

Seat belt adjuster

5.

Retaining washer

6.

Seat belt pre-tensioner retractor (RH
side)

7.

Outer anchor cover

8.

Outer anchor

9.

Spacer

10. Seat belt pre-tensioner retractor (LH

side)

11.

Lap pre-tensioner

Refer to

GI-4, "Components"

 for symbols in the figure.

JMHIA1566GB

FRONT SEAT BELT

SB-7

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

1.

Remove the outer anchor cover.

2.

Remove the outer anchor mounting anchor bolt.

2.

Remove the front kicking plate inner and rear kicking plate inner. Refer to

INT-20, "KICKING PLATE

INNER : Removal and Installation"

.

3.

Remove the center pillar lower garnish. Refer to

INT-22, "CENTER PILLAR LOWER GARNISH : Removal

and Installation"

.

4.

Remove the center pillar upper garnish. Refer to

INT-22, "CENTER PILLAR UPPER GARNISH : Removal

and Installation"

.

5.

Remove the shoulder anchor mounting anchor nut and then remove the shoulder anchor.

6.

Remove seat belt pre-tensioner retractor.
1.

Disconnect the pre-crash seat belt connector.

2.

Disconnect the seat belt pre-tensioner connector.

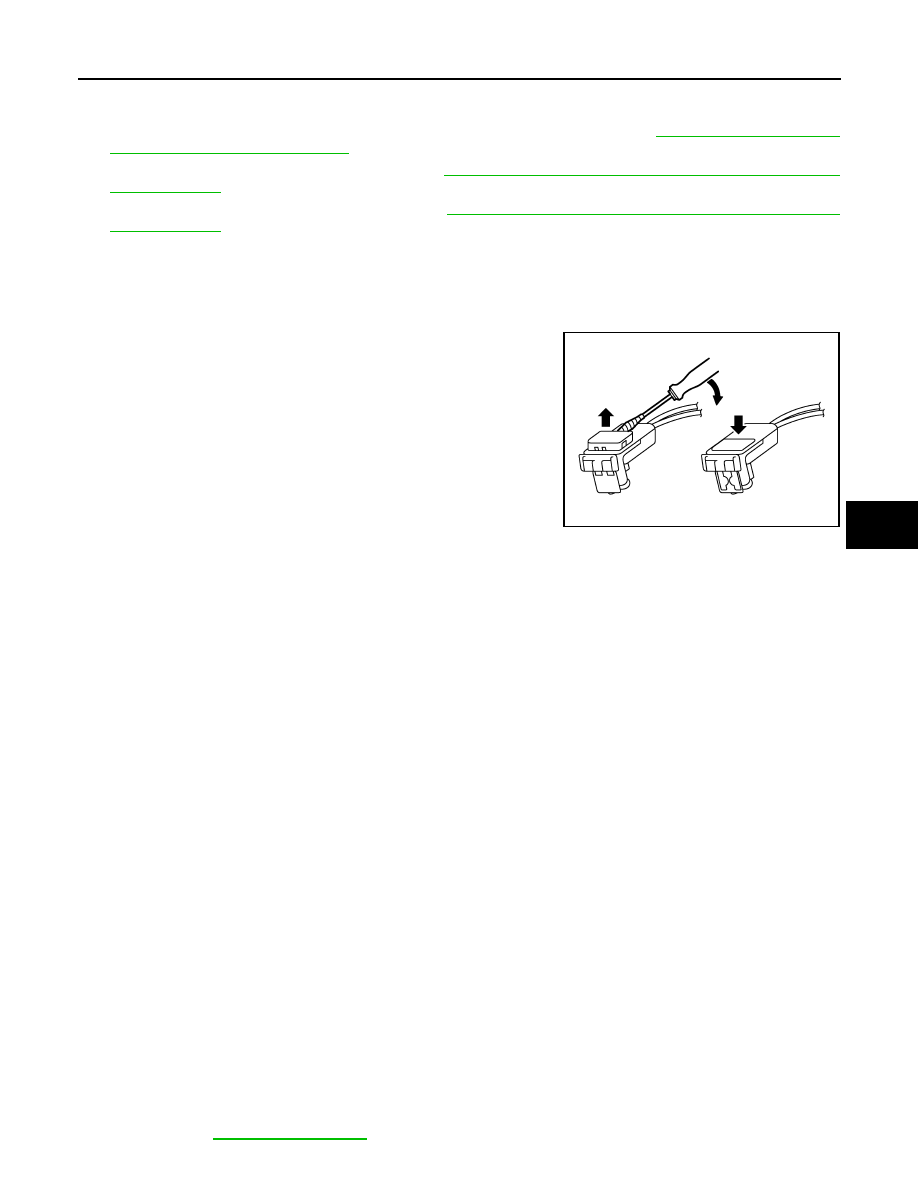

CAUTION:

• For installing/removing seat belt pre-tensioner con-

nector, insert thin screwdriver wrapped in tape into
notch, lift lock and remove connector.

• Install connector with lock raised, and push lock into

connector.

• After installing the connector, check that the lock is

pushed securely into it.

3.

Remove the seat belt pre-tensioner retractor mounting anchor bolt and screw.

INSTALLATION

Install in the reverse order of removal.

SEAT BELT BUCKLE

SEAT BELT BUCKLE : Inspection

INFOID:0000000006217618

AFTER A COLLISION

WARNING:

Inspect all seat belt assemblies including retractors and attached hardware after any collision.
NISSAN/INFINITI recommends that all seat belt assemblies in use during a collision be replaced
unless the collision was minor and the belts show no damage and continue to operate properly. Fail-
ure to do so could result in serious personal injury in an accident. Seat belt assemblies not in use dur-
ing a collision should also be replaced if either damage or improper operation was noted. Seat belt
pre-tensioners should be replaced even if the seat belts were not in use during a frontal collision in
which the air bags were deployed.
Replace any seat belt assembly (including anchor bolts) if:
• The seat belt is in use at the time of a collision (except for minor collisions and the belts, retractors and buck-

les show no damage and continue to operate properly).

• The seat belt is damaged in an accident (i.e. torn webbing, bent retractor or guide, etc.).
• The seat belt attaching point is damaged in an accident. Inspect the seat belt attaching area for damage or

distortion and repair if necessary before installing a new seat belt assembly.

• Anchor bolts are deformed or worn out.
• The seat belt pre-tensioner must be replaced even if the seat belts were not in use during the collision in

which the air bags were deployed.

PRELIMINARY CHECKS

1.

Check the seat belt warning lamp for proper operation as pen the following:

a.

Turn ignition switch ON. The seat belt warning lamp should illuminate.

b.

Fasten driver seat belt. The seat belt warning lamp should turn OFF.

2.

If the air bag warning lamp is blinking, perform self-diagnosis using CONSULT-III and air bag warning
lamp. Refer to

SRC-14, "Description"

.

PHIA0953J

SB-8

< REMOVAL AND INSTALLATION >

FRONT SEAT BELT

3.

Check that the seat belt retractor, seat belt anchor and buckle bolts are tightened firmly.

4.

Repeat steps above if necessary to check the other seat belts.

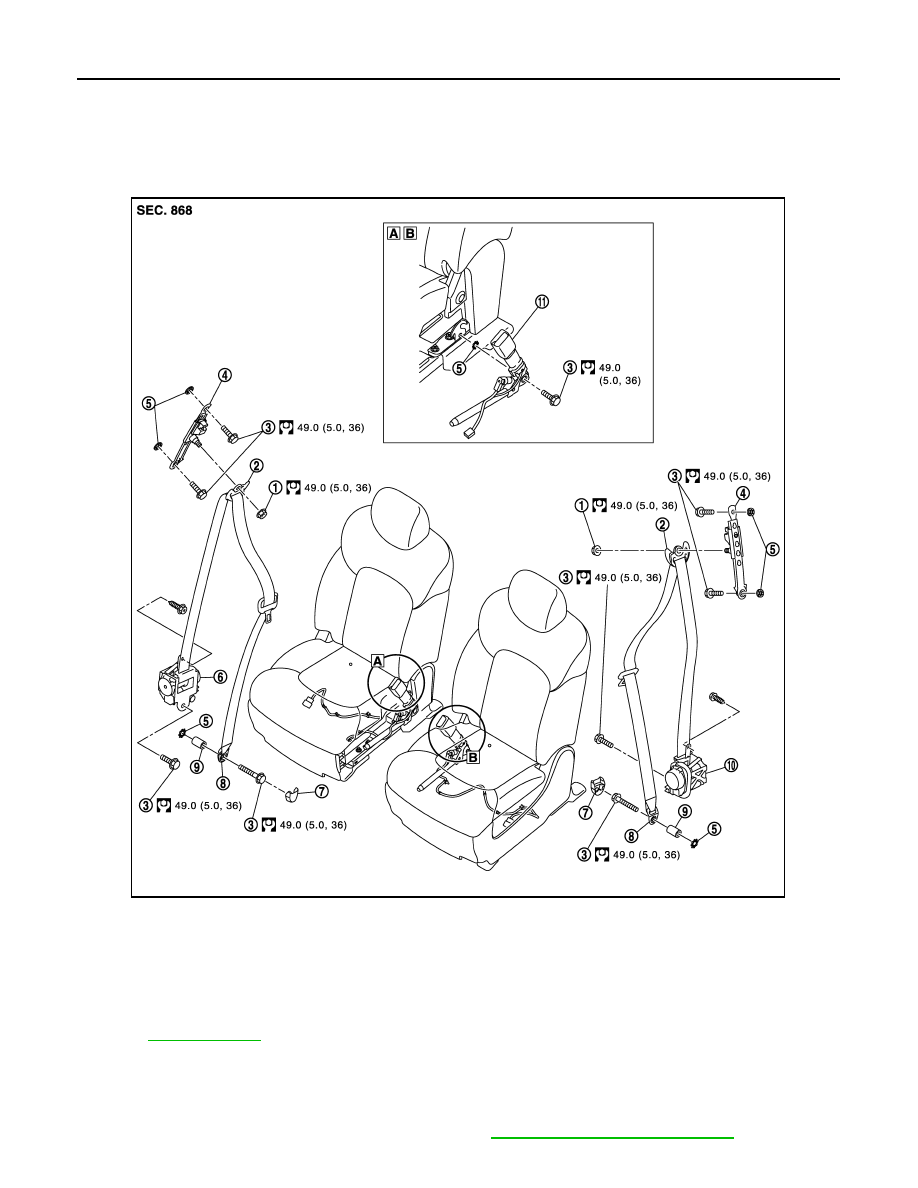

SEAT BELT BUCKLE : Exploded View

INFOID:0000000006368027

SEAT BELT BUCKLE : Removal and Installation

INFOID:0000000006217620

REMOVAL

1.

Remove the front seat assembly from vehicle. Refer to

SE-112, "Removal and Installation"

.

1.

Anchor nut

2.

Shoulder anchor

3.

Anchor bolt

4.

Seat belt adjuster

5.

Retaining washer

6.

Seat belt pre-tensioner retractor (RH
side)

7.

Outer anchor cover

8.

Outer anchor

9.

Spacer

10. Seat belt pre-tensioner retractor (LH

side)

11.

Lap pre-tensioner

Refer to

GI-4, "Components"

 for symbols in the figure.

JMHIA1566GB

FRONT SEAT BELT

SB-9

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

2.

Disconnect the Lap pre-tensioner harness connector.

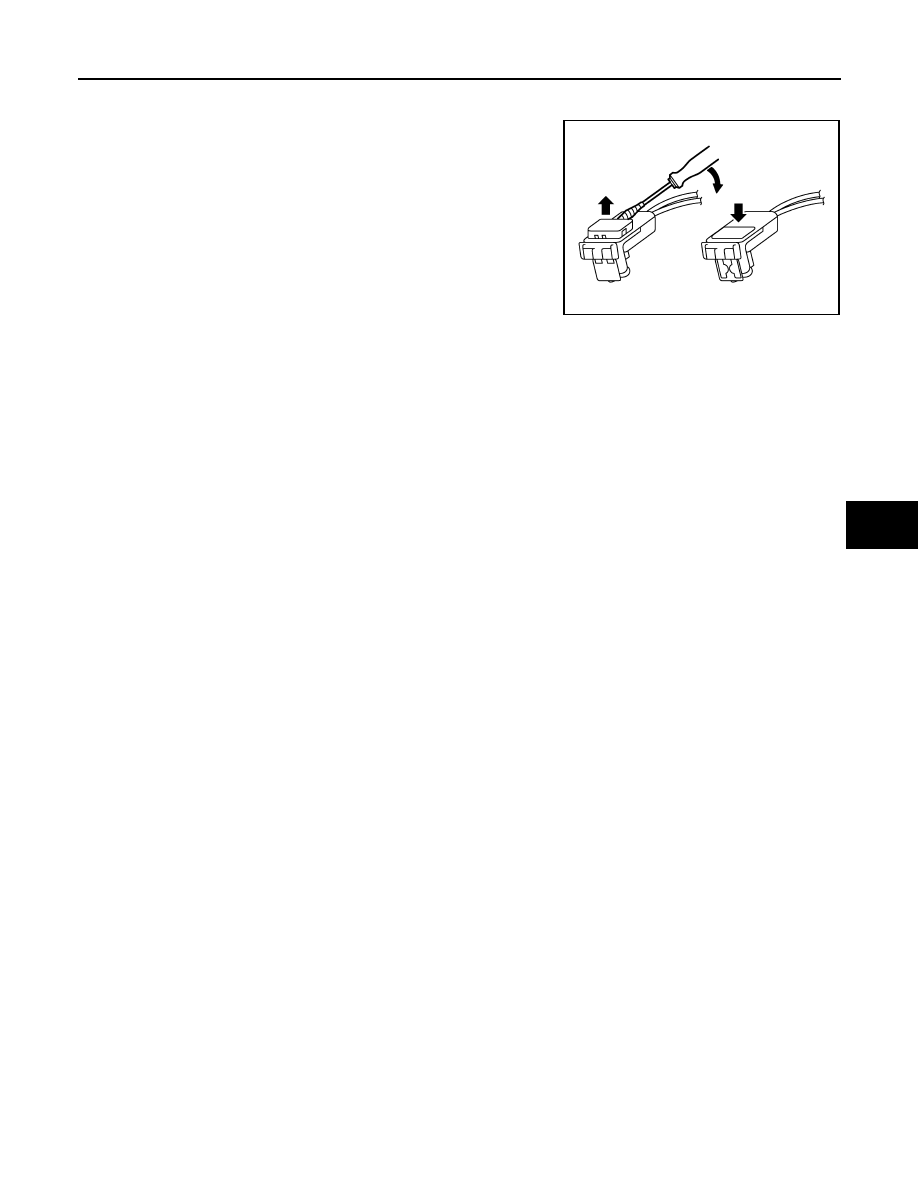

CAUTION:

• For installing/removing lap pre-tensioner connector,

insert thin screwdriver wrapped in tape into notch, lift lock
and remove connector.

• Install connector with lock raised, and push lock into con-

nector.

• After installing the connector, check that the lock is

pushed securely into it.

3.

Remove trim retainer from seat cushion side, and then remove lap pre-tensioner harness clamp.

4.

Remove the lap pre-tensioner harness connector and harness clamp located under the seat cushion.

5.

Remove the mounting anchor bolt of the lap pre-tensioner.

INSTALLATION

Install in the reverse order of removal.

PHIA0953J
