Infiniti QX56 (Z62). Manual - part 1044





PWO-14

< SYSTEM DESCRIPTION >

[AC 120 V OUTLET]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

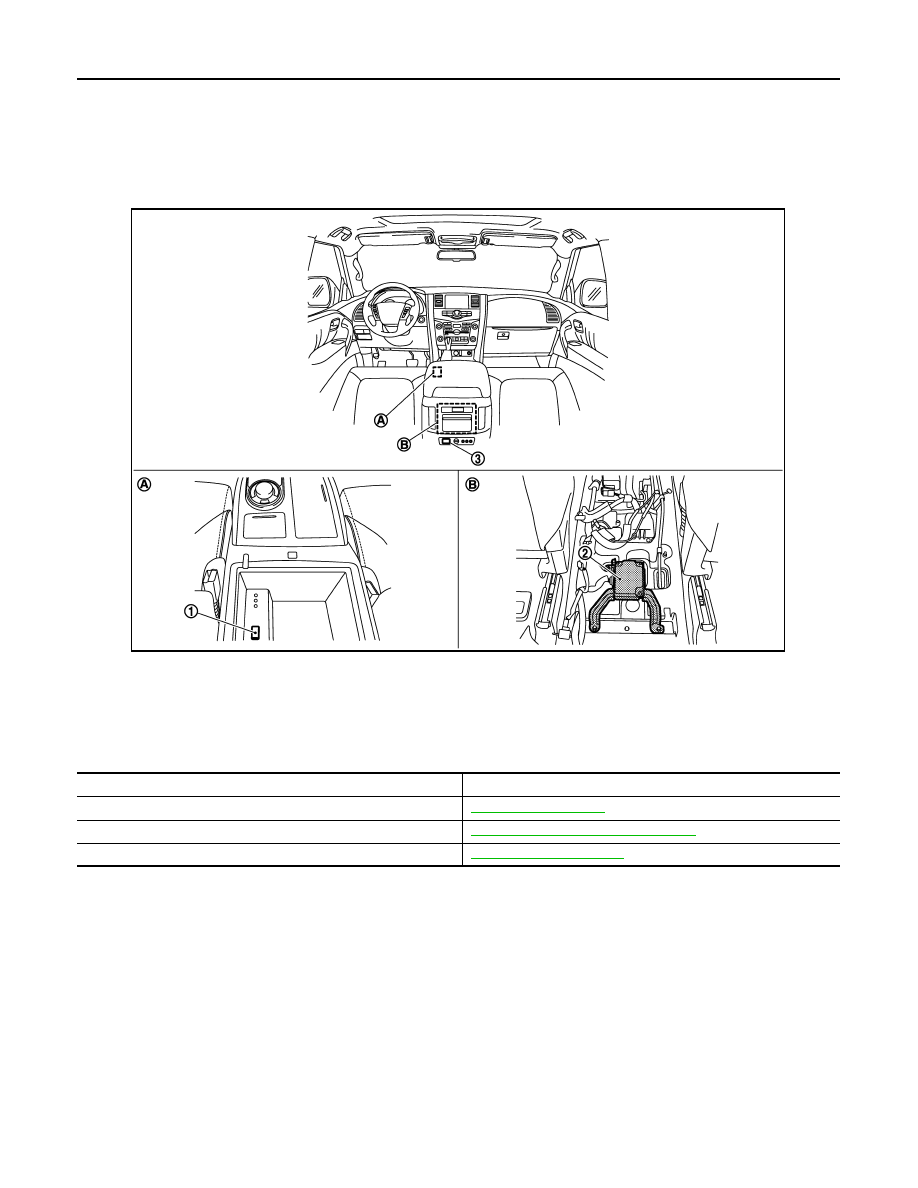

Component Parts Location

INFOID:0000000006257066

Component Description

INFOID:0000000006257067

Inverter Unit

INFOID:0000000006257068

The inverter unit converts an applied power supply voltage (approximately DC 12 V) to AC 120 V and outputs
the converted voltage.

AC120 V Outlet Main Switch

INFOID:0000000006257069

The operation of the switch enables the inverter unit to activate/inactivate and turn ON/OFF AC 120 V output.

AC120 V Outlet

INFOID:0000000006257070

The AC 120 V outlet allows using AC 120 V converted in the inverter unit as an outlet.

1.

AC 120 V outlet main switch

2.

Inverter unit

3.

AC 120 V outlet

A.

Inside of console box

B.

Center console remove condition

JSMIA0371ZZ

Component

Reference

Inverter unit

PWO-14, "Inverter Unit"

AC 120 V outlet main switch

PWO-14, "AC120 V Outlet Main Switch"

AC 120 V outlet

PWO-14, "AC120 V Outlet"

PWO

SYSTEM

PWO-15

< SYSTEM DESCRIPTION >

[AC 120 V OUTLET]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

SYSTEM

System Description

INFOID:0000000006257071

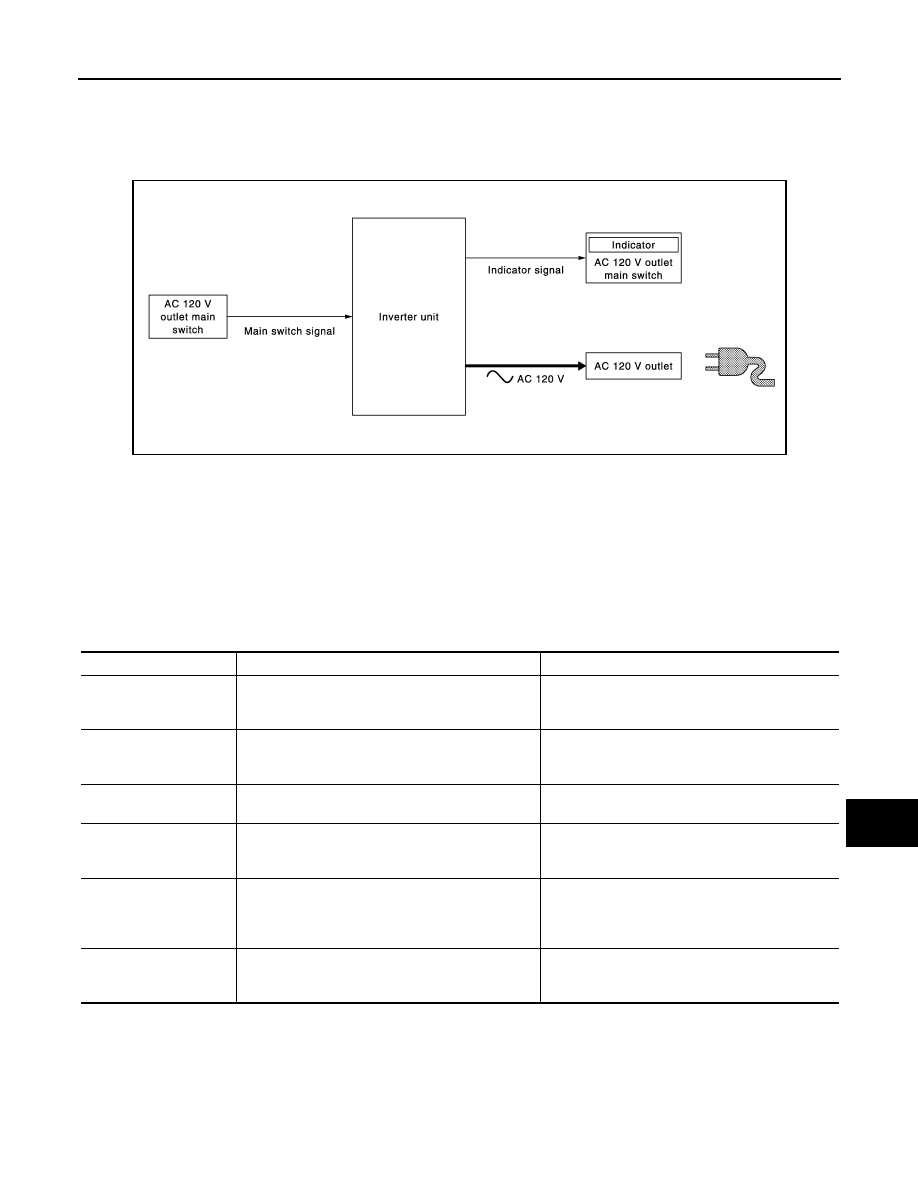

SYSTEM DIAGRAM

SYSTEM DESCRIPTION

• When turning ON the AC 120 V outlet main switch with the ignition switch ON, the indicator turns ON and the

inverter unit is activated.

• The inverter unit converts power supply voltage to AC 120 V and outputs the converted voltage to the AC

120 V outlet two seconds after the AC 120 V outlet main switch is turned ON.

Fail-safe

INFOID:0000000006257269

When a malfunction listed below occurs, the inverter unit turns OFF the AC 120 V outlet main switch indicator
and stops the output by operating the fail-safe.

JSMIA0295GB

Malfunction item

Fail-safe condition

Fail-safe cancellation condition

Inverter unit is overheat-
ed

When the inverter unit is overheated, the output
stops to protect the inverter unit.

After the inverter unit temperature is lowered, the
AC 120 V outlet main switch ON

 OFF

 ON op-

eration allows normal return.

Inverter unit power sup-
ply voltage is 11.5 V or
less

When inverter unit input voltage is lowered, the out-
put stops to protect the battery from running out.

Automatic normal return when inverter unit power
supply voltage reaches 11.5 V - 16 V.

Inverter unit power sup-
ply voltage is 16 V - 18 V

When inverter unit input voltage reaches 16 V - 18 V,
the output stops to protect the inverter unit.

Automatic normal return when inverter unit power
supply voltage reaches 11.5 V - 16 V.

Inverter unit power sup-
ply voltage is 18 V or
more

When inverter unit input voltage reaches 18 V or
more, the output stops to protect the inverter unit.

After the inverter unit power supply voltage reaches
11.5 V - 16 V, the AC 120 V outlet main switch ON

 OFF

 ON operation allows normal return.

Inverter unit output cur-
rent is 2.8 A or more

When inverter unit output current reaches 2.8 A or
more, the output stops to prevent over current. (e.g.
connecting an electric appliance exceeding rated
output)

Automatic normal return when inverter output cur-
rent reaches 2.8 A.

Inverter unit output signal
(AC 120 V output signal)
is shorted

When inverter unit output signal is shorted, the out-
put stops.

After recovering from inverter unit output signal
short, the AC 120 V outlet main switch ON

 OFF

 ON operation allows normal return.

PWO-16

< ECU DIAGNOSIS INFORMATION >

[AC 120 V OUTLET]

INVERTER UNIT

ECU DIAGNOSIS INFORMATION

INVERTER UNIT

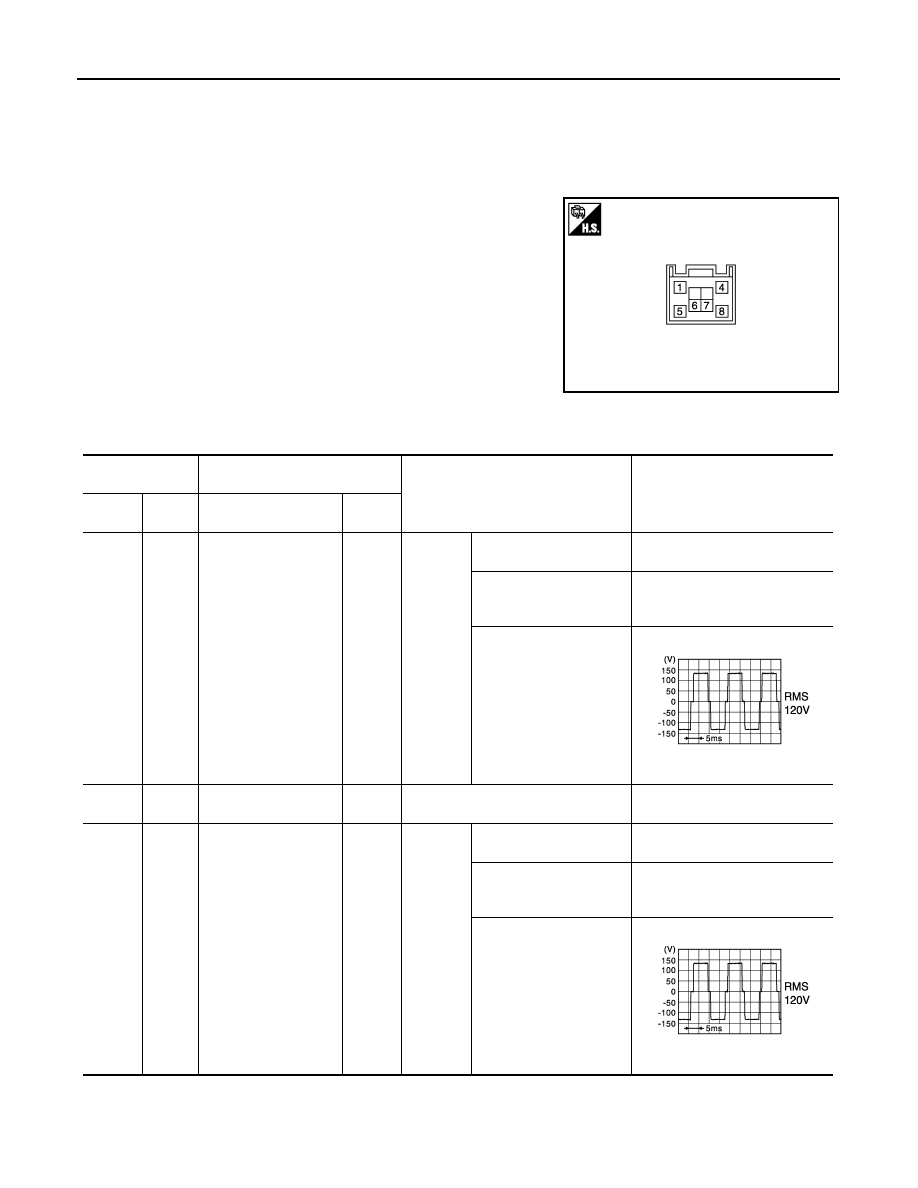

Reference Value

INFOID:0000000006257074

TERMINAL LAYOUT

PHYSICAL VALUES

JSMIA0395ZZ

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

Signal name

Input/

Output

1

(R)

5

(G)

AC 120 V output

Output

Ignition

switch

ON

When AC 120 V outlet
main switch OFF

0 V

When AC 120 V outlet
main switch ON
(When using circuit tester)

AC 120 V

When AC 120 V outlet
main switch ON
(When using oscilloscope)

Reference value

AC 120 V

4

(G/R)

Ground

Battery power supply

Input

Ignition switch OFF

Battery power supply

5

(G)

1

(R)

AC 120 V output

Output

Ignition

switch

ON

When AC 120 V outlet
main switch OFF

0 V

When AC 120 V outlet
main switch ON
(When using circuit tester)

AC 120 V

When AC 120 V outlet
main switch ON
(When using oscilloscope)

Reference value

AC 120 V

JSMIA0397GB

JSMIA0397GB

PWO

INVERTER UNIT

PWO-17

< ECU DIAGNOSIS INFORMATION >

[AC 120 V OUTLET]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

CAUTION:

• To measure AC 120 V output signal, always use the circuit tester or oscilloscope AC range.

Never allow the probes to contact each other.

• Because of modified sine wave output of the AC 120 V output signal, voltage cannot be measured

accurately without using a circuit tester that can measure true RMS (root mean square).

Fail-safe

INFOID:0000000006257075

When a malfunction listed below occurs, the inverter unit turns OFF the AC 120 V outlet main switch indicator
and stops the output by operating the fail-safe.

6

(W)

Ground

AC 120 V outlet main
switch

Input

Ignition

switch

ON

When AC 120 V outlet
main switch OFF

0 V

When AC 120 V outlet
main switch ON

12 V

7

(O)

AC 120 V outlet main
switch indicator

Output

Ignition

switch

ON

When AC 120 V outlet
main switch OFF

0 V

When AC 120 V outlet
main switch ON

5.2 V

8

(G/Y)

Ground

Ignition switch ON

0 V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

Signal name

Input/

Output

Malfunction item

Fail-safe condition

Fail-safe cancellation condition

Inverter unit is overheat-
ed

When the inverter unit is overheated, the output
stops to protect the inverter unit.

After the inverter unit temperature is lowered, the
AC 120 V outlet main switch ON

 OFF

 ON op-

eration allows normal return.

Inverter unit power sup-
ply voltage is 11.5 V or
less

When inverter unit input voltage is lowered, the out-
put stops to protect the battery from running out.

Automatic normal return when inverter unit power
supply voltage reaches 11.5 V - 16 V.

Inverter unit power sup-
ply voltage is 16 V - 18 V

When inverter unit input voltage reaches 16 V - 18 V,
the output stops to protect the inverter unit.

Automatic normal return when inverter unit power
supply voltage reaches 11.5 V - 16 V.

Inverter unit power sup-
ply voltage is 18 V or
more

When inverter unit input voltage reaches 18 V or
more, the output stops to protect the inverter unit.

After the inverter unit power supply voltage reaches
11.5 V - 16 V, the AC 120 V outlet main switch ON

 OFF

 ON operation allows normal return.

Inverter unit output cur-
rent is 2.8 A or more

When inverter unit output current reaches 2.8 A or
more, the output stops to prevent over current. (e.g.
connecting an electric appliance exceeding rated
output)

Automatic normal return when inverter output cur-
rent reaches 2.8 A.

Inverter unit output signal
(AC 120 V output signal)
is shorted

When inverter unit output signal is shorted, the out-
put stops.

After recovering from inverter unit output signal
short, the AC 120 V outlet main switch ON

 OFF

 ON operation allows normal return.
