PWC-20

< ECU DIAGNOSIS INFORMATION >

REAR POWER WINDOW SWITCH RH

REAR POWER WINDOW SWITCH RH

Reference Value

INFOID:0000000006217278

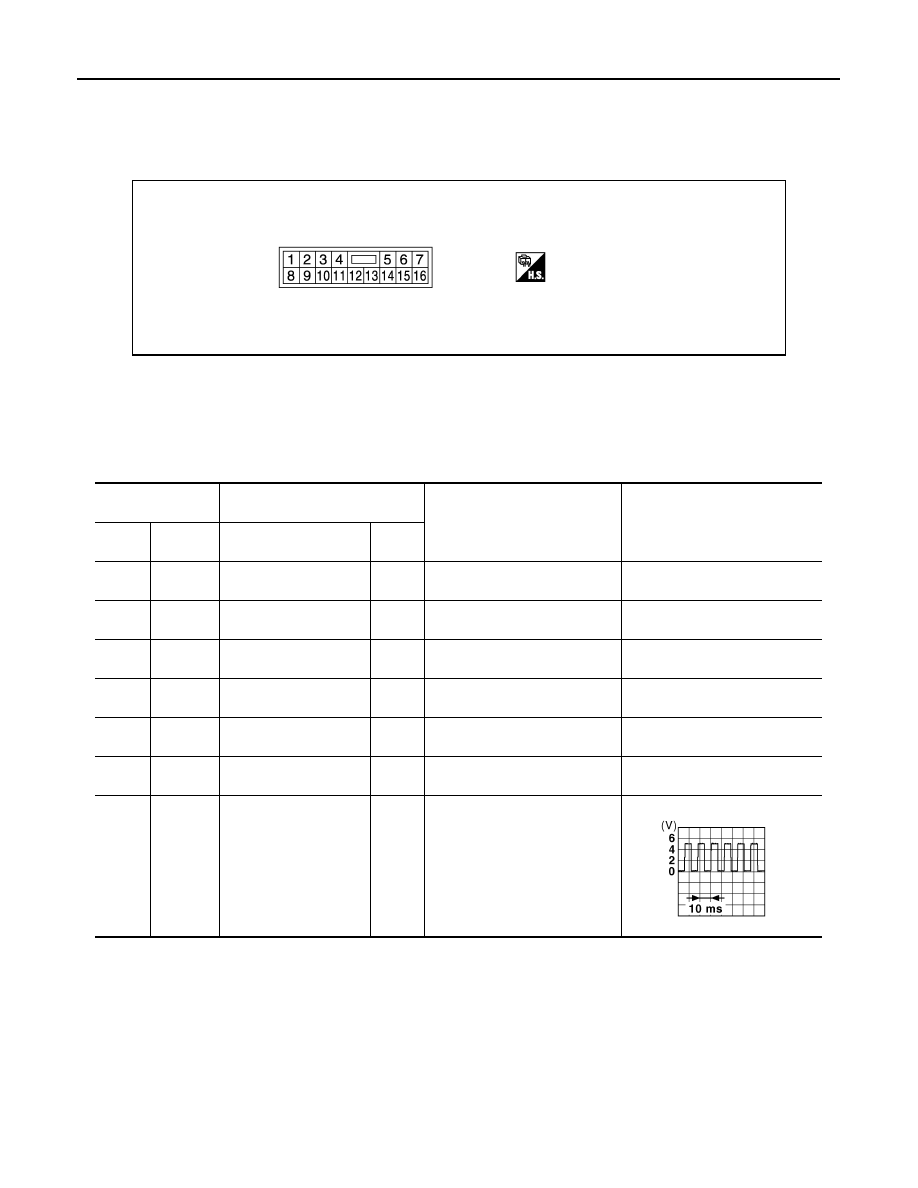

TERMINAL LAYOUT

PHYSICAL VALUES

REAR POWER WINDOW SWITCH

JMKIA3330ZZ

Terminal No.

(wire color)

Description

Condition

Voltage [V]

(Approx.)

+

-

Signal name

Input/

Output

3

(P)

Ground

Encoder ground

—

—

0

4

(Y)

Ground

Encoder power supply

Output

When ignition switch ON or pow-
er window timer operates

 12

8

(W/R)

Ground

Power window motor
UP signal

Output

When power window motor is
operated UP

 12

9

(R)

Ground

Power window motor
DOWN signal

Output

When power window motor is
operated DOWN

 12

10

(W)

Ground

Battery power supply

Input

—

 12

11

(B)

Ground

Ground

—

—

0

12

(O)

Ground

Encoder pulse signal 1

Input

When power window motor oper-
ates

JMKIA0070GB

REAR POWER WINDOW SWITCH RH

PWC-21

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

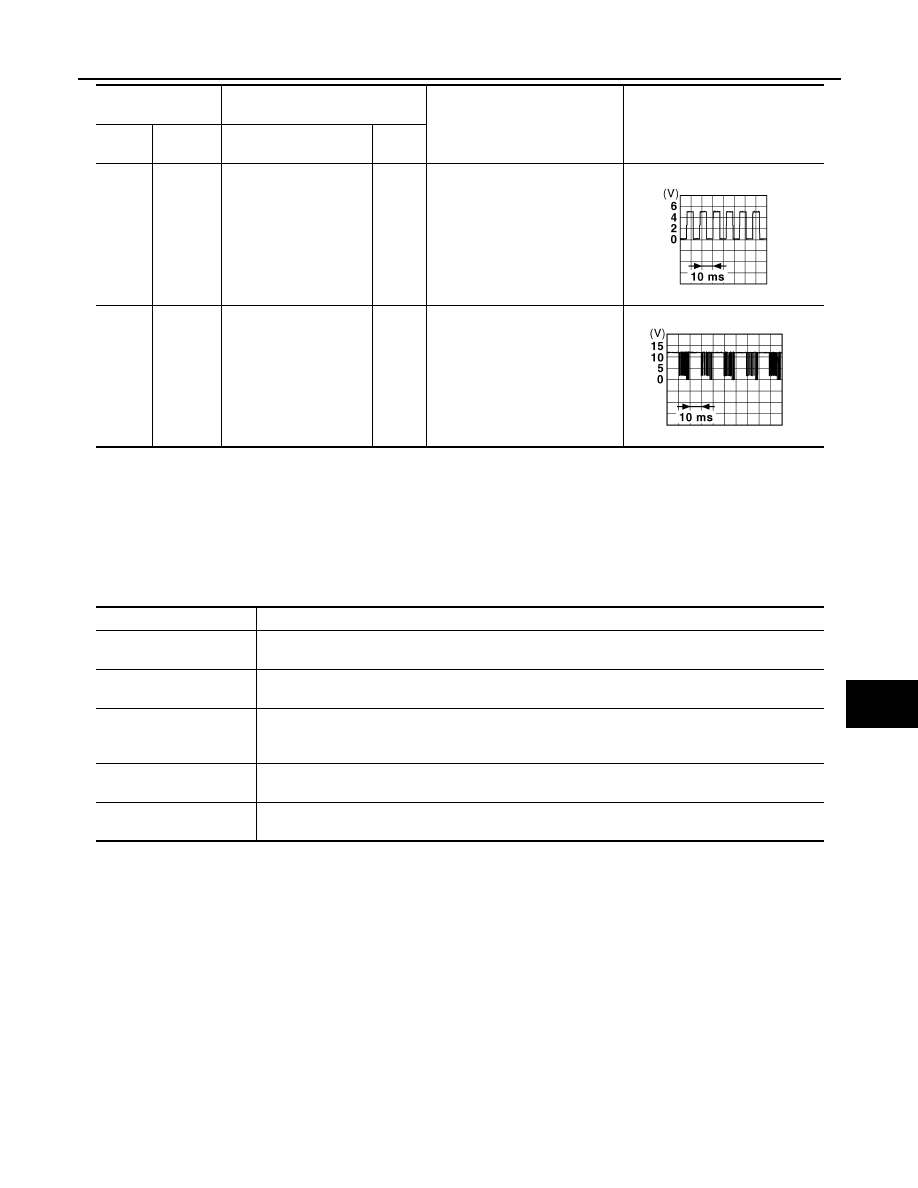

Fail-safe

INFOID:0000000006217279

FAIL-SAFE CONTROL

Switches to fail-safe control when malfunction is detected in encoder signal that detects up/down speed and
direction of door glass. Switches to fail-safe control when a signal that is out of the specified value is detected
between the fully closed position and the actual position of the glass.

If fail-safe control, the system changes to a non-initialized condition and the following function do not operate.
• Auto-up operation
• Anti-pinch function
• Retained power function

When fail-safe control is activated, perform initialization procedure to recover. If a malfunction is detected in
power window switch or more, fail-safe control is activated again.

15

(G)

Ground

Encoder pulse signal 2

Input

When power window motor oper-
ates.

16

(V)

Ground

Power window serial link

Input/

Output

When ignition switch ON or pow-
er window timer operates

Terminal No.

(wire color)

Description

Condition

Voltage [V]

(Approx.)

+

-

Signal name

Input/

Output

JMKIA0070GB

JPMIA0013GB

Malfunction

Malfunction condition

Pulse sensor malfunction

When one pulse signal that is the specified value or more is detected continuously for the specified
time or more, while door glass is being operated UP or DOWN.

Both pulse sensors mal-
function

When both pulse signals are not detected continuously for the specified time or more, while door
glass is being operated UP or DOWN.

Pulse direction malfunc-
tion

When a pulse signal indicating that window is moving in the opposite direction against the power win-
dow motor is detected for the specified value or more, while door glass is being operated UP or
DOWN.

Glass recognition position
malfunction 1

When the actual door glass position that is out of specified value is detected compared to the door
glass fully closed position memorized in module, while door glass is being operated UP or DOWN.

Glass recognition position
malfunction 2

When pulse count that is out of the door glass full stroke value or more is detected, while door glass
is being operated UP or DOWN.

PWC-22

< WIRING DIAGRAM >

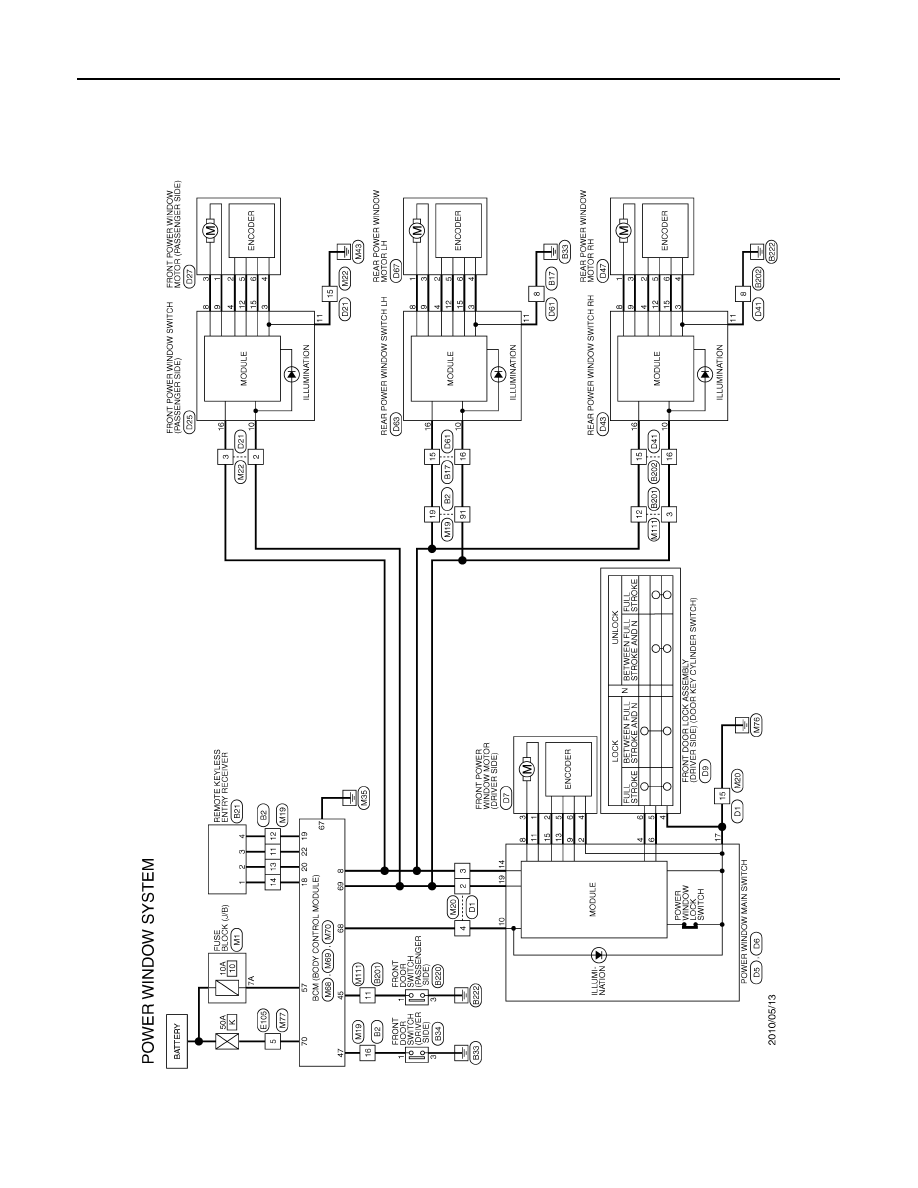

POWER WINDOW SYSTEM

WIRING DIAGRAM

POWER WINDOW SYSTEM

Wiring Diagram

INFOID:0000000006217280

JCKWM4473GB

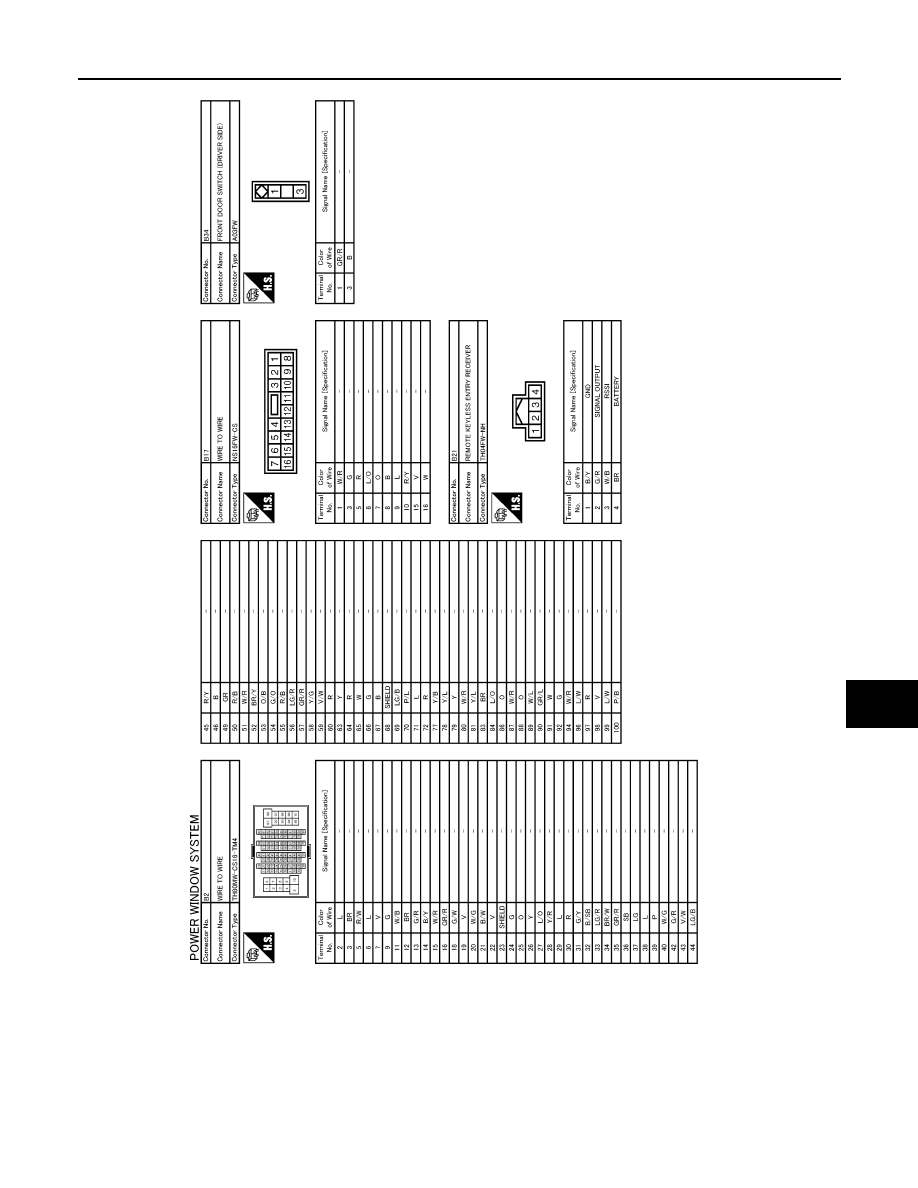

POWER WINDOW SYSTEM

PWC-23

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

JCKWM4474GB
