PG-162

< BASIC INSPECTION >

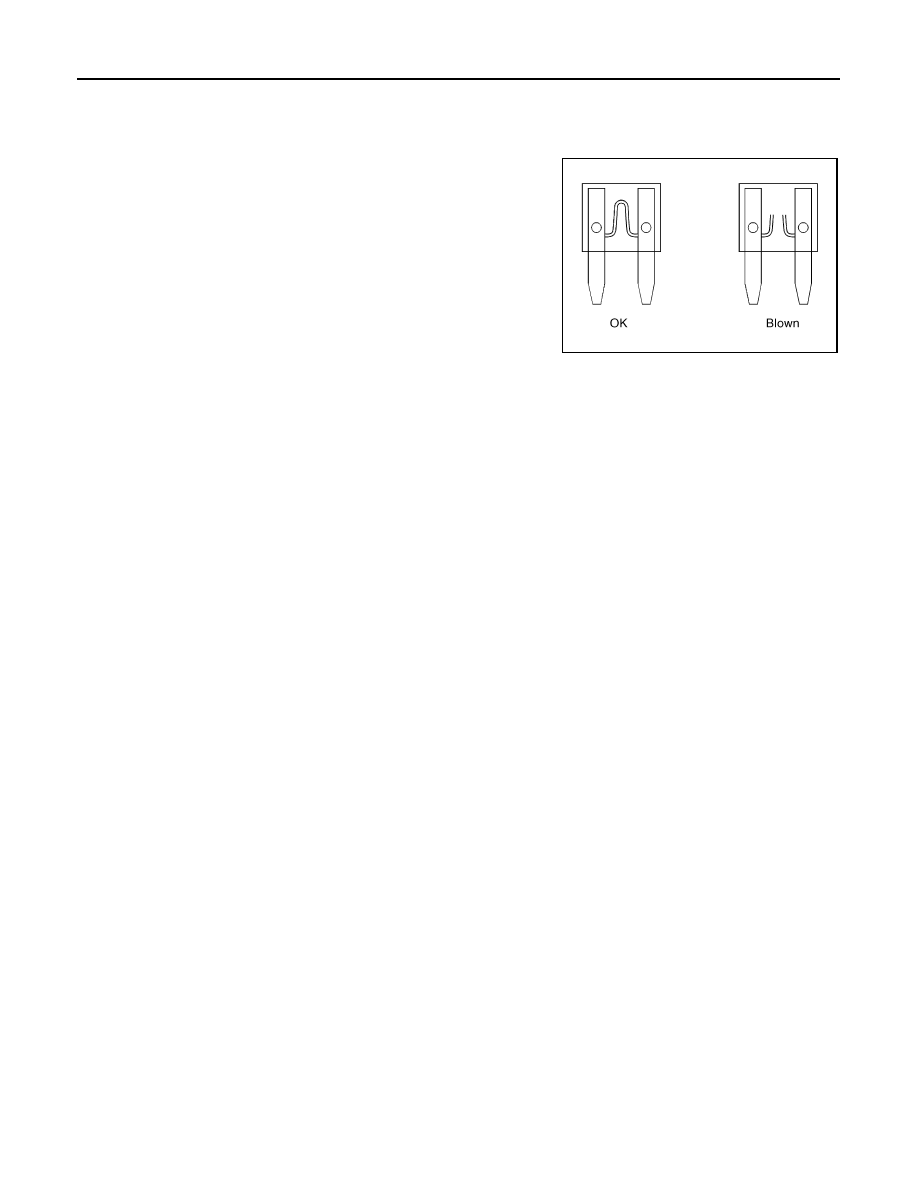

FUSE INSPECTION

FUSE INSPECTION

How To Check

INFOID:0000000006275774

• If fuse is blown, be sure to eliminate cause of malfunction before

installing new fuse.

• Use fuse of specified rating. Never use fuse of more than specified

rating.

• Do not partially install fuse; always insert it into fuse holder prop-

erly.

• Remove fuse for “ELECTRICAL PARTS (BAT)” if vehicle is not

used for a long period of time.

CEL083

PG

FUSIBLE LINK INSPECTION

PG-163

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

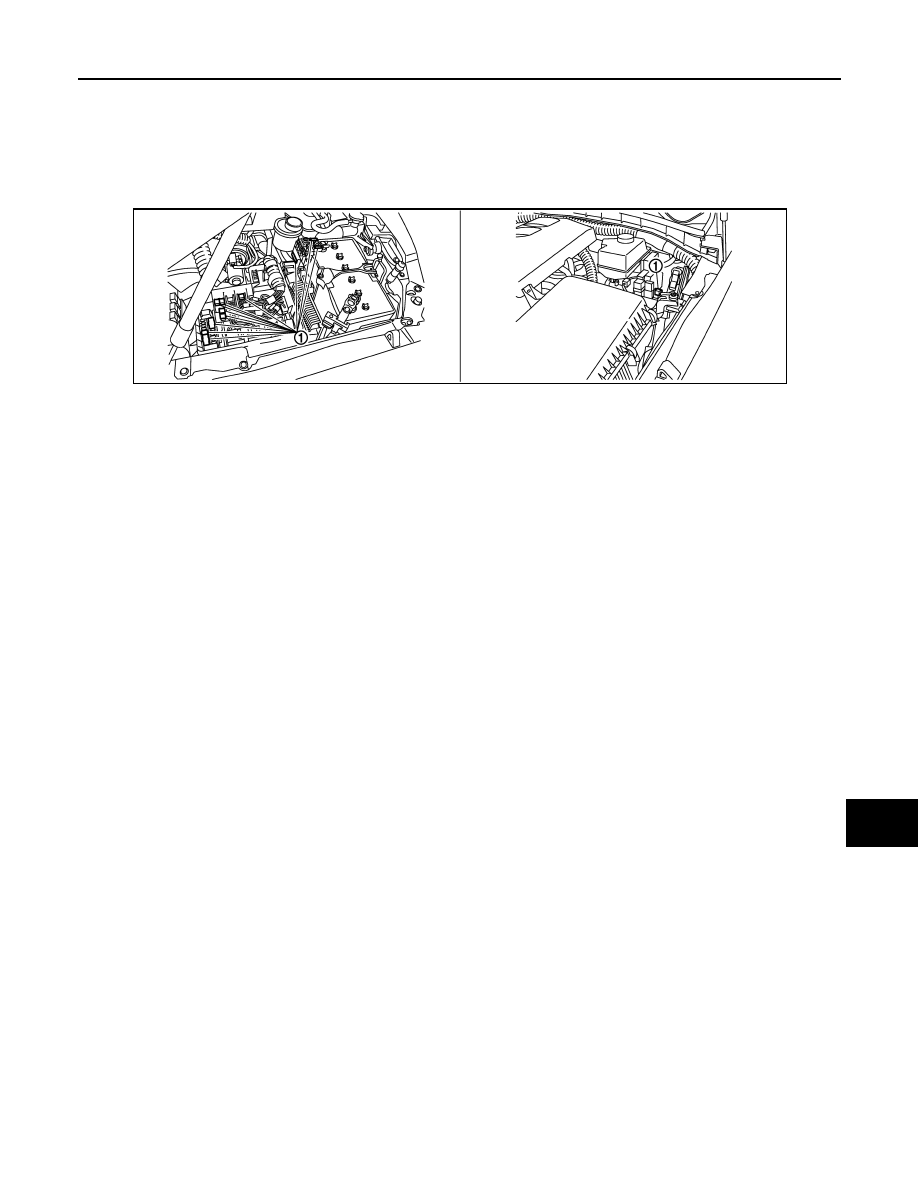

FUSIBLE LINK INSPECTION

How To Check

INFOID:0000000006275775

A melted fusible link can be detected either by visual inspection or by feeling with finger tip. If its condition is
questionable, use circuit tester or test lamp.

CAUTION:

• If fusible link should melt, it is possible that critical circuit (power supply or large current carrying

circuit) is shorted. In such a case, carefully check and eliminate cause of malfunction.

• Never wrap outside of fusible link with vinyl tape. Important: Never let fusible link touch any other

wiring harness, vinyl or rubber parts.

1.

Fusible link

JSMIA0237ZZ

PG-164

< REMOVAL AND INSTALLATION >

BATTERY

REMOVAL AND INSTALLATION

BATTERY

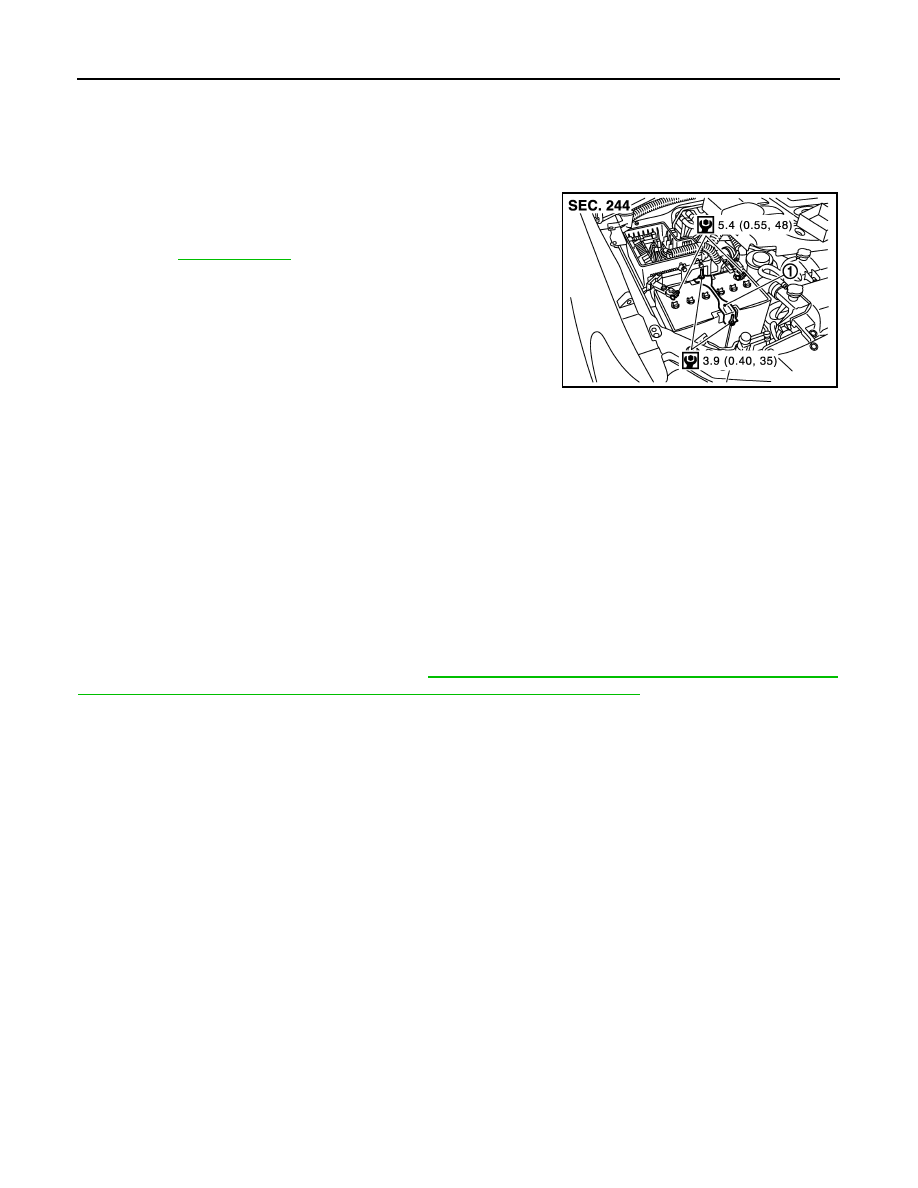

Exploded View

INFOID:0000000006275779

Removal and Installation

INFOID:0000000006275780

REMOVAL

1.

Remove cover of battery positive terminal.

2.

Loosen battery terminal nuts, and disconnect both battery cables from battery terminals.

CAUTION:

When disconnecting, disconnect the battery cable from the negative terminal first.

3.

Remove battery fix frame mounting nuts and battery fix frame.

4.

Remove battery.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

When connecting, connect the battery cable to the positive terminal first.
Reset electronic systems as necessary. Refer to

GI-65, "ADDITIONAL SERVICE WHEN REMOVING BAT-

TERY NEGATIVE TERMINAL : Required Procedure After Battery Disconnection"

.

1

: Battery fix frame

Refer to

GI-4, "Components"

 for symbols in the figure.

JSMIA0238GB

PG

BATTERY TERMINAL WITH FUSIBLE LINK

PG-165

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

BATTERY TERMINAL WITH FUSIBLE LINK

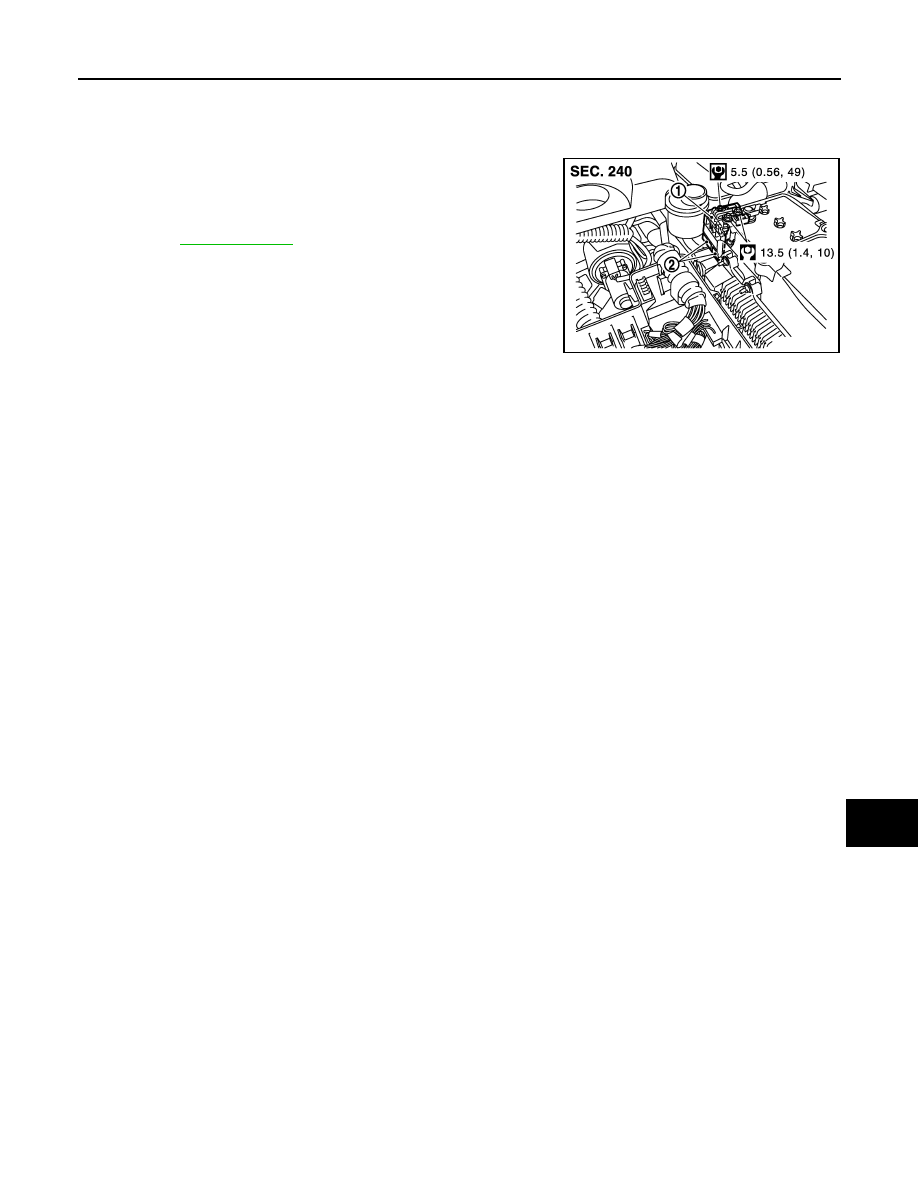

Exploded View

INFOID:0000000006275781

Removal and Installation

INFOID:0000000006275782

REMOVAL

1.

Disconnect the battery cable from the negative terminal.

2.

Remove cover of battery positive terminal.

3.

Remove harness mounting nut and battery terminal with fusible link mounting nut.

4.

Disconnect harness connector and remove battery terminal with fusible link.

INSTALLATION

Install in the reverse order of removal.

1

: Battery terminal with fusible link

2

: Harness connector

Refer to

GI-4, "Components"

 for symbols in the figure.

JSMIA0239GB
