< WIRING DIAGRAM >

HARNESS LAYOUT

Body Harness

INFOID:0000000006275760

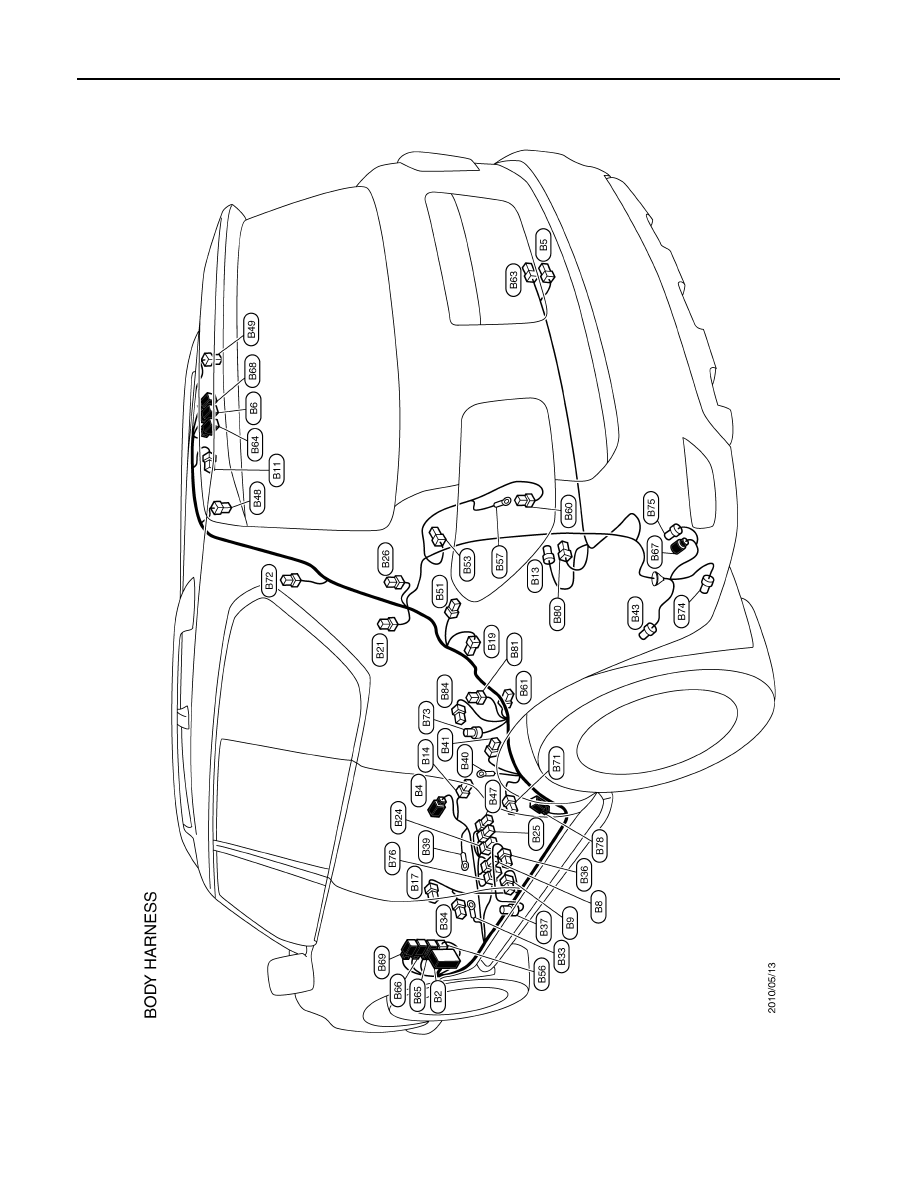

BODY HARNESS

JCMIM1414GB

PG

HARNESS LAYOUT

PG-151

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

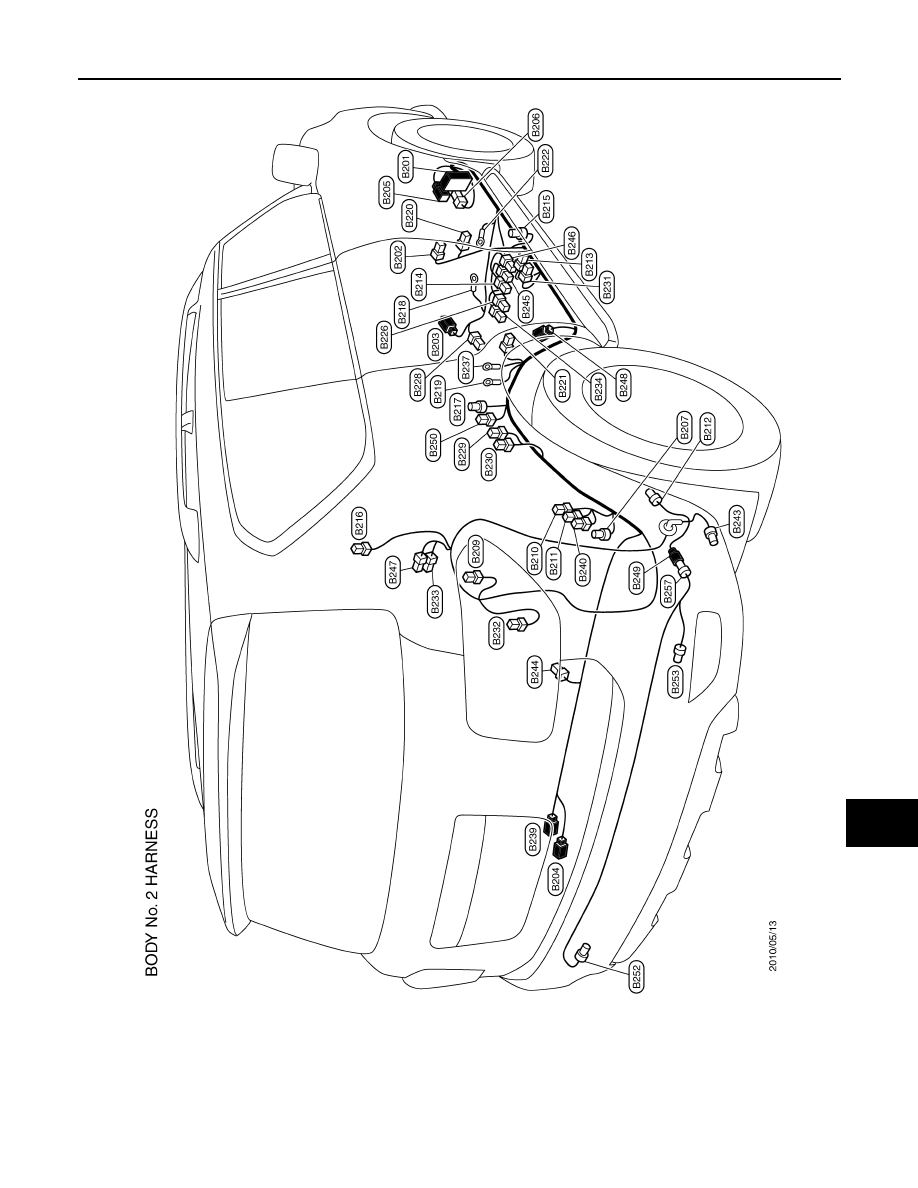

BODY No. 2 HARNESS

JCMIM1415GB

PG-152

< WIRING DIAGRAM >

HARNESS LAYOUT

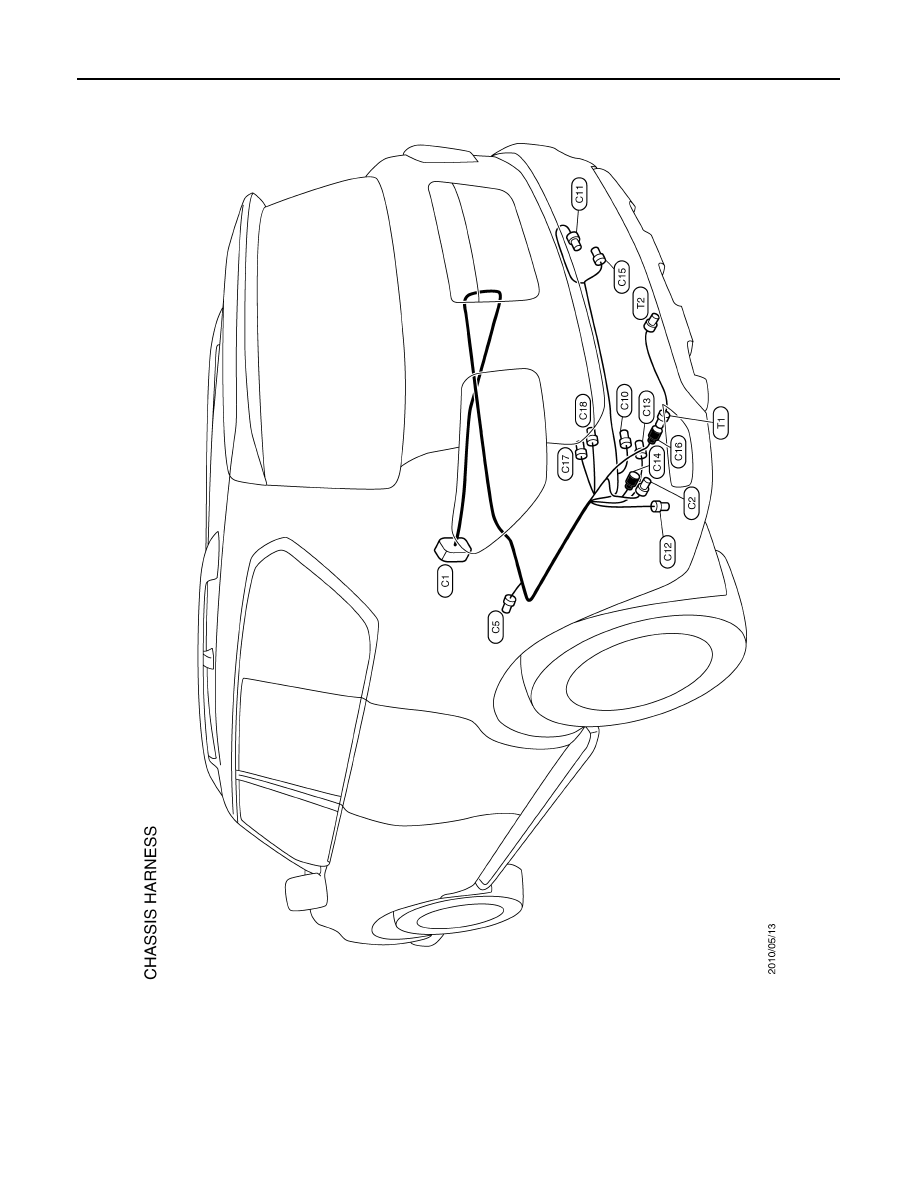

Chassis Harness

INFOID:0000000006275761

JCMIM1416GB

PG

HARNESS LAYOUT

PG-153

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Door Harness

INFOID:0000000006275762

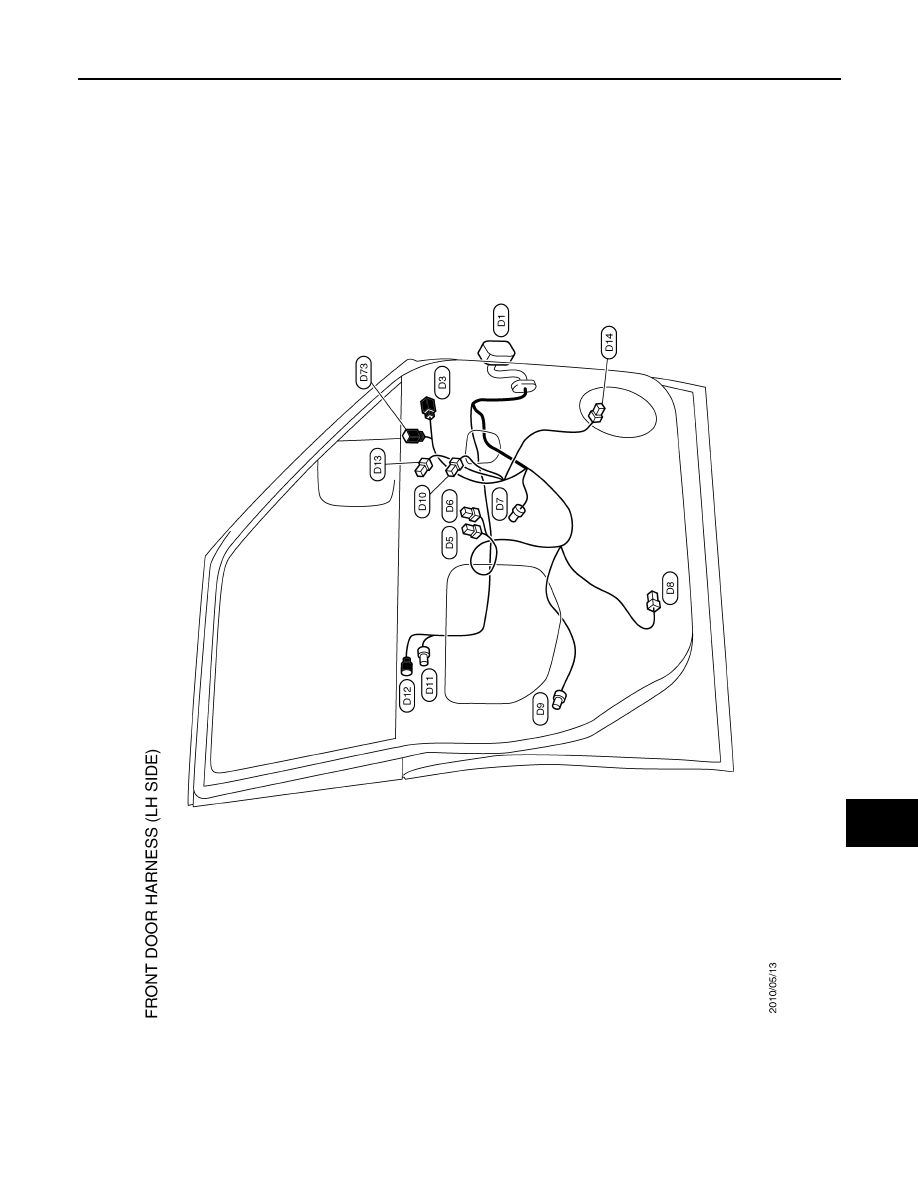

FRONT DOOR HARNESS (LH SIDE)

JCMIM1417GB
