Infiniti QX56 (Z62). Manual - part 1001

PG-82

< WIRING DIAGRAM >

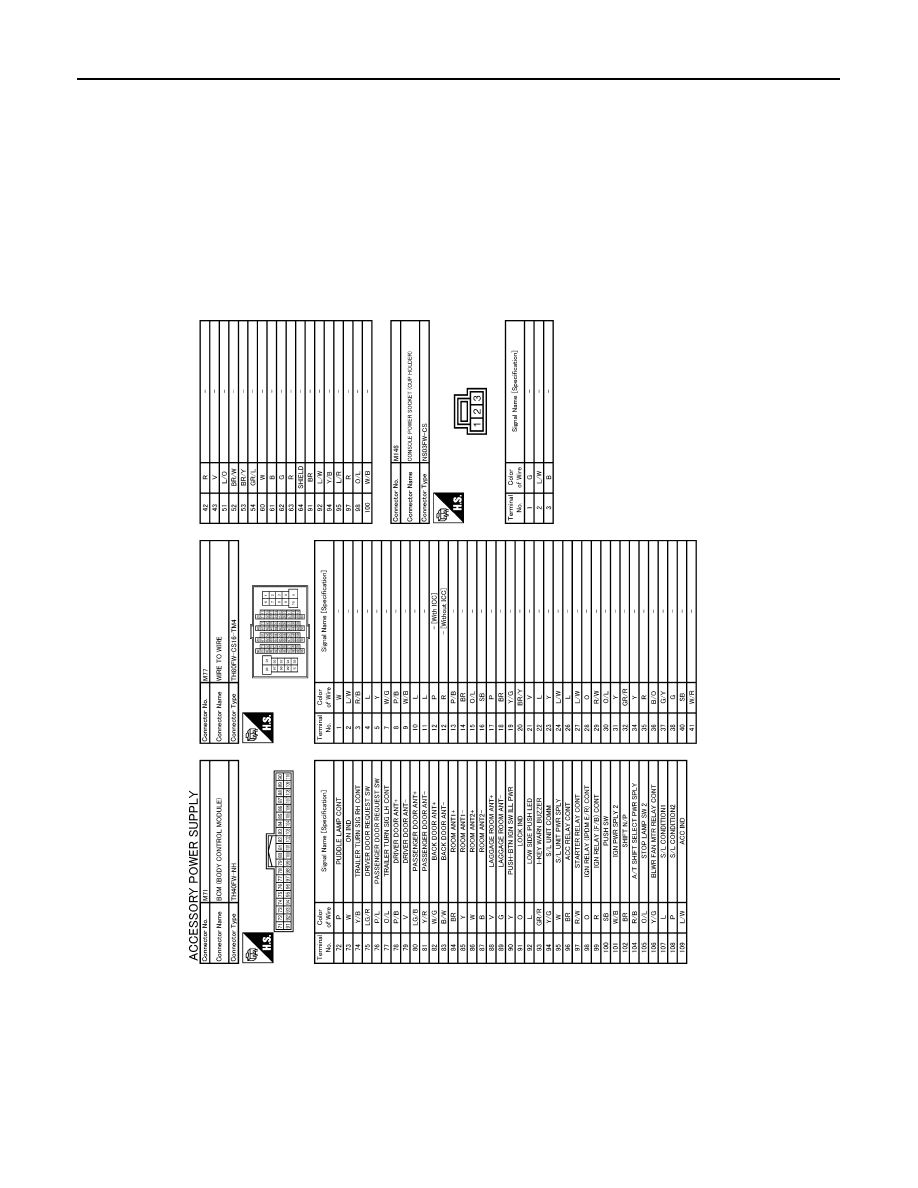

POWER SUPPLY ROUTING CIRCUIT

JCMWM8418GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-83

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

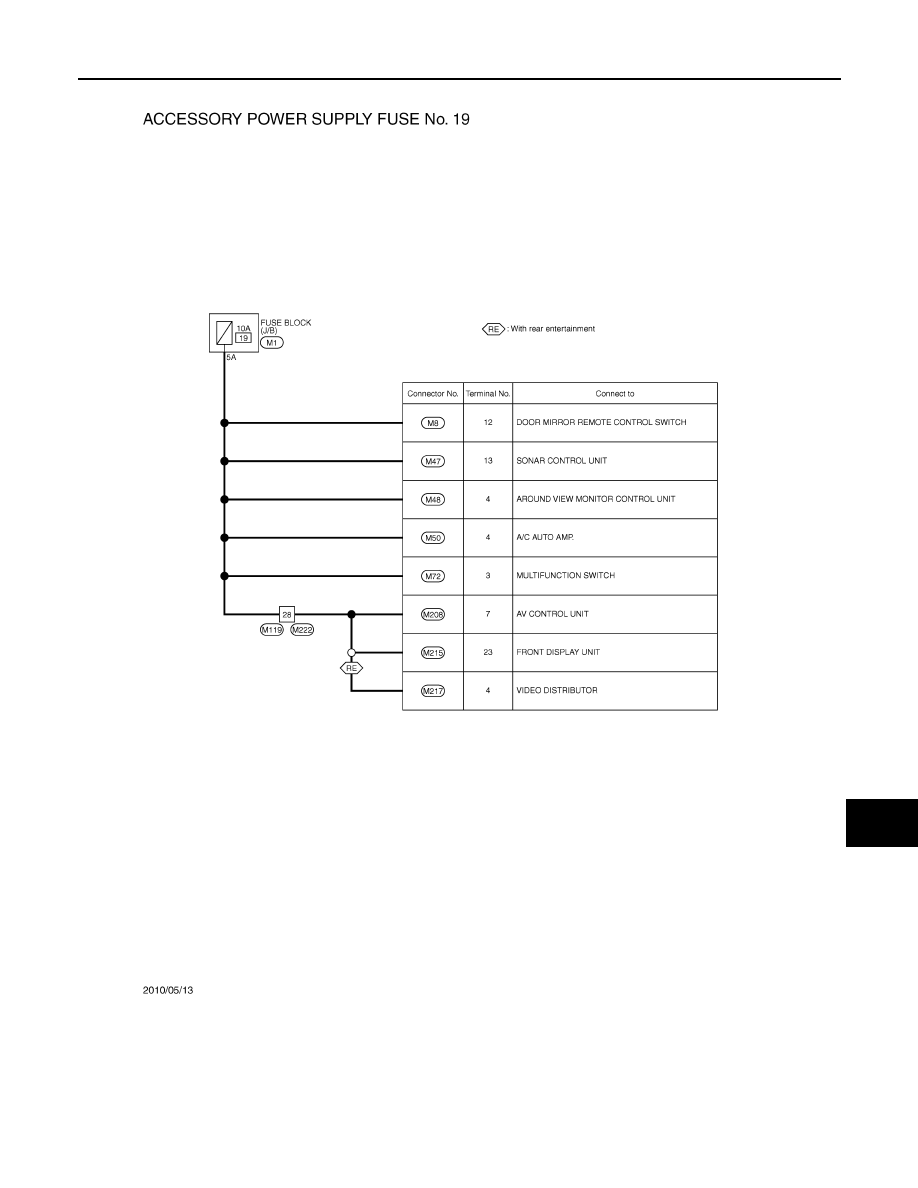

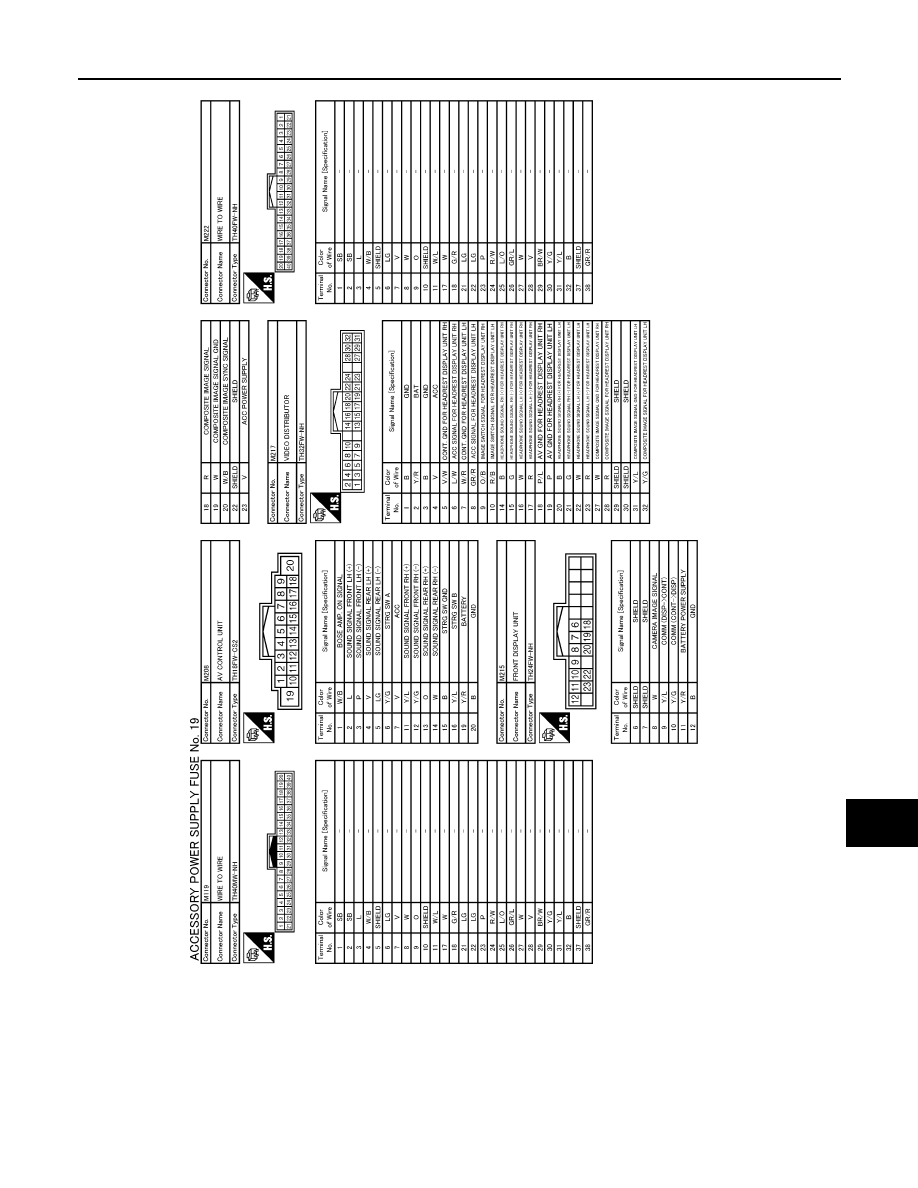

Wiring Diagram - ACCESSORY POWER SUPPLY FUSE No. 19 -

INFOID:0000000006288143

JCMWM8419GB

PG-84

< WIRING DIAGRAM >

POWER SUPPLY ROUTING CIRCUIT

JCMWM8420GB

PG

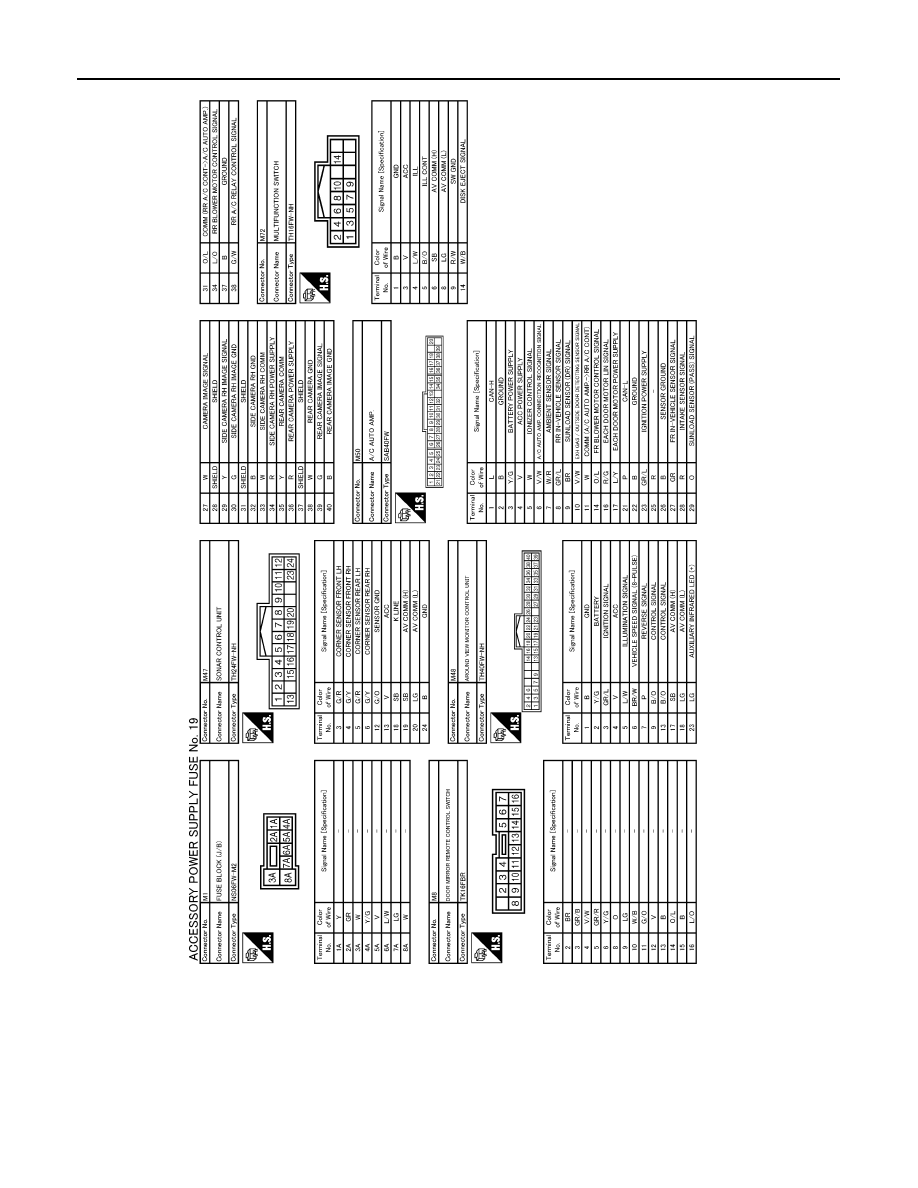

POWER SUPPLY ROUTING CIRCUIT

PG-85

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JCMWM8421GB
