Infiniti QX56 (Z62). Manual - part 95





AV-234

< REMOVAL AND INSTALLATION >

FRONT CAMERA

FRONT CAMERA

Removal and Installation

INFOID:0000000006216399

REMOVAL

1.

Remove front grille. Refer to

EXT-19, "Exploded View"

.

2.

Remove front camera mounting screws to remove front camera.

INSTALLATION

1.

Install in the reverse order of removal.

2.

Perform camera image calibration. Refer to

AV-112, "Work Procedure"

.

CAUTION:

Perform the calibration and perform the writing to the around view monitor control unit when remov-
ing and replacing each camera, removing the camera mounting parts (front grille, door mirror, etc.)
and replacing the around view monitor control unit.

AV

REAR CAMERA

AV-235

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR CAMERA

Removal and Installation

INFOID:0000000006216400

REMOVAL

1.

Remove back door finisher center upper. Refer to

EXT-44, "Exploded View"

.

2.

Remove rear camera mounting screws to remove rear camera.

INSTALLATION

1.

Install in the reverse order of removal.

2.

Perform camera image calibration. Refer to

AV-112, "Work Procedure"

.

CAUTION:

Perform the calibration and perform the writing to the around view monitor control unit when remov-
ing and replacing each camera, removing the camera mounting parts (front grille, door mirror, etc.)
and replacing the around view monitor control unit.

AV-236

< REMOVAL AND INSTALLATION >

SIDE CAMERA

SIDE CAMERA

Removal and Installation

INFOID:0000000006216401

REMOVAL

1.

Remove side camera finisher. Refer to

MIR-32, "Exploded View"

.

2.

Remove screws to remove side camera.

INSTALLATION

1.

Install in the reverse order of removal.

2.

Perform camera image calibration. Refer to

AV-112, "Work Procedure"

.

CAUTION:

Perform the calibration and perform the writing to the around view monitor control unit when remov-
ing and replacing each camera, removing the camera mounting parts (front grille, door mirror, etc.)
and replacing the around view monitor control unit.

AV

STEERING ANGLE SENSOR

AV-237

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

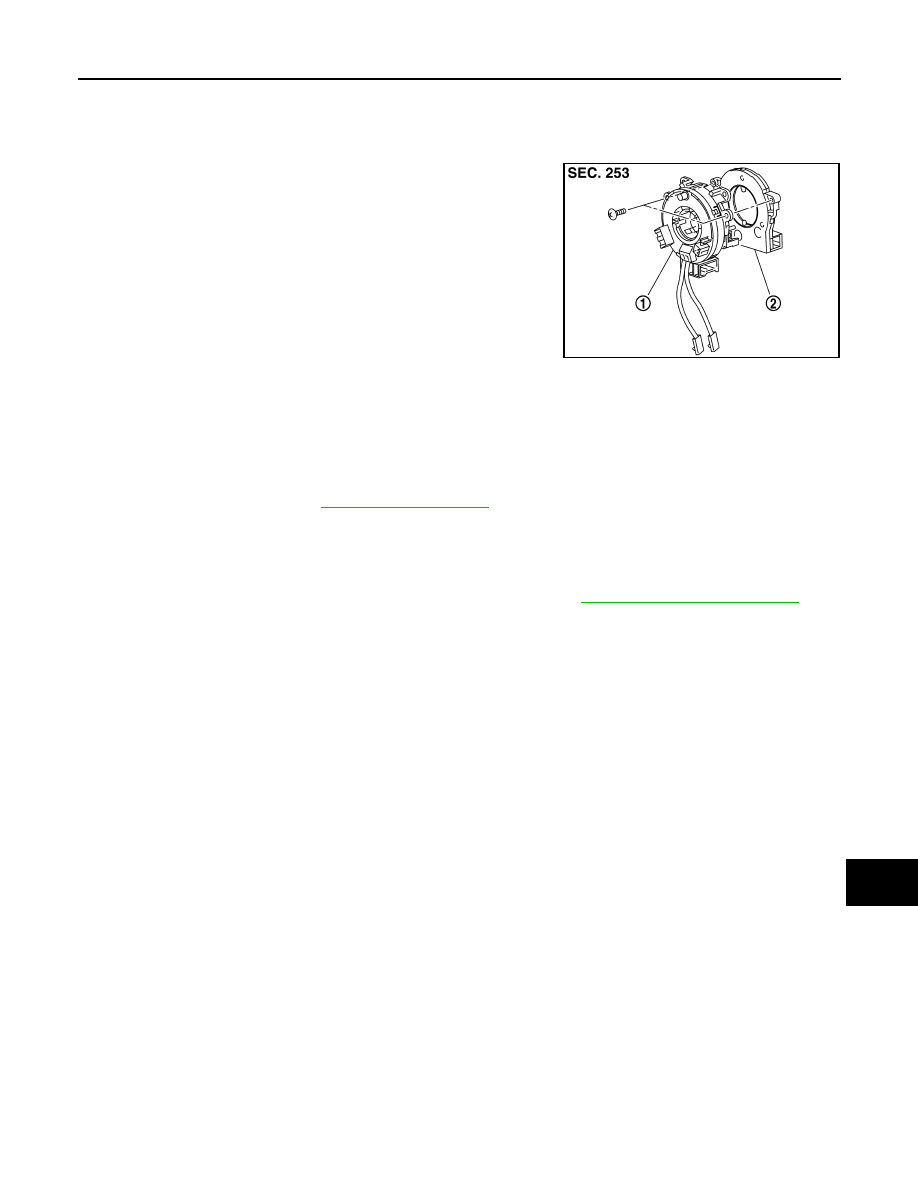

STEERING ANGLE SENSOR

Exploded View

INFOID:0000000006216402

DISASSEMBLY

Removal and Installation

INFOID:0000000006216403

REMOVAL

1.

Remove spiral cable. Refer to

SR-14, "Exploded View"

.

2.

Remove steering angle sensor from spiral cable.

INSTALLATION

1.

Install in the reverse order of removal.

2.

Perform steering angle sensor neutral position adjustment. Refer to

AV-39, "CONSULT-III Function"

.

JSNIA0135ZZ

1.

Spiral cable

2.

Steering angle sensor
