WOOFER

WOOFER

Removal and Installation

INFOID:0000000006216388

REMOVAL

1.

Remove luggage side lower finisher LH. Refer to

INT-33, "Exploded View"

.

2.

Disconnect woofer connector.

3.

Remove woofer mounting bolts to remove woofer.

INSTALLATION

Install in the reverse order of removal.

AV

BOSE AMP.

AV-223

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BOSE AMP.

Removal and Installation

INFOID:0000000006216389

REMOVAL

1.

Remove rear ventilator duct lower. Refer to

HA-46, "Exploded View"

.

2.

Remove shield bracket. Refer to

SR-24, "Exploded View"

.

3.

Remove rear drain hose clip. Obtain a service area. Refer to

RF-37, "Exploded View"

.

4.

Remove BOSE amp. mounting bolts.

5.

Disconnect BOSE amp. connector to remove BOSE amp.

INSTALLATION

Install in the reverse order of removal.

AV-224

< REMOVAL AND INSTALLATION >

ANTENNA AMP.

ANTENNA AMP.

Removal and Installation

INFOID:0000000006216390

REMOVAL

1.

Remove side curtain air bag module RH. Refer to

SR-19, "Exploded View"

.

2.

Remove antenna amp. mounting screw.

3.

Disconnect antenna amp. connector to remove antenna amp.

INSTALLATION

Install in the reverse order of removal.

AV

SATELLITE RADIO ANTENNA

AV-225

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SATELLITE RADIO ANTENNA

Exploded View

INFOID:0000000006217457

REMOVAL

DISASSEMBLY

Removal and Installation

INFOID:0000000006217458

REMOVAL

1.

Pull headlining assembly (rear). Obtain a service area. Refer to

INT-28, "Exploded View"

.

2.

Disconnect antenna feeder connector.

3.

Remove nut, and remove satellite radio antenna and the cover from the vehicle as a single unit.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

If the satellite radio antenna mounting nut is tightened looser than the specified torque, then this will
lower the sensitivity of the antenna. On the other hand, if the nut is tightened tighter than the specified
torque, then this will deform the roof panel.

Disassembly and Assembly

INFOID:0000000006362353

DISASSEMBLY

Insert cloth-covered driver into gaps between satellite radio antenna and the cover, and remove the cover from
satellite radio antenna.

ASSEMBLY

Assemble in the reverse order of disassembly.

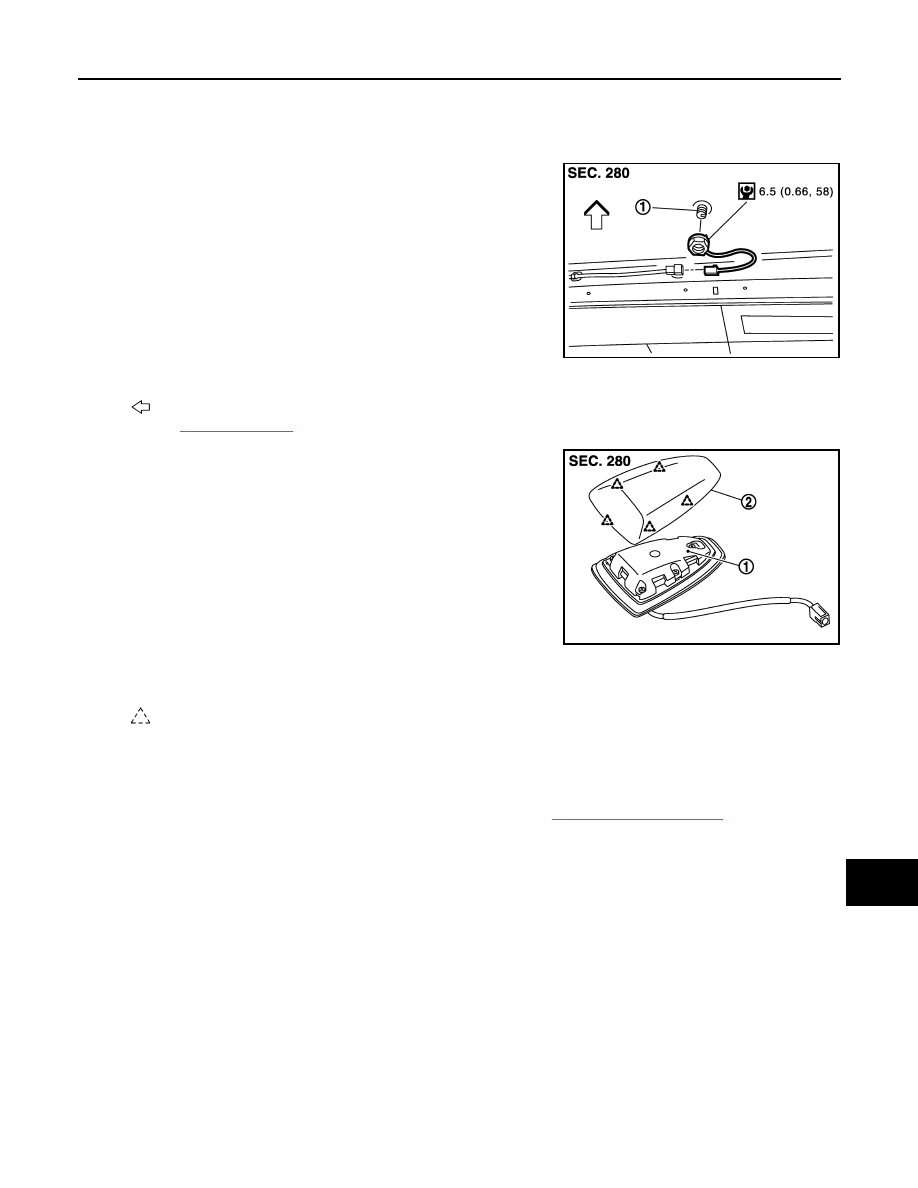

JSNIA3188ZZ

1.

Satellite radio antenna

 :

Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JSNIA3284ZZ

1.

Satellite radio antenna

2.

Cover

 :

Pawl
