Infiniti QX56 (Z62). Manual - part 82





AV-182

< DTC/CIRCUIT DIAGNOSIS >

FRONT CAMERA IMAGE SIGNAL CIRCUIT

FRONT CAMERA IMAGE SIGNAL CIRCUIT

Description

INFOID:0000000006216352

• Around view monitor control unit supplies to the front camera, rear camera and side camera. And then it

superimpose the images from each camera and outputs then to the front display unit.

• Superimpose the guiding lines, predictive course line and sonar indicator to the camera image that outputs

to the front display unit.

• Around view monitor control unit performs the reception/transmission of communication signal with each

camera.

Diagnosis Procedure

INFOID:0000000006216353

1.

CHECK CONTINUITY FRONT CAMERA POWER SUPPLY AND GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect around view monitor control unit connector and front camera connector.

3.

Check continuity between around view monitor control unit harness connector and front camera harness
connector.

4.

Check continuity between around view monitor control unit harness connector and ground.

Is inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK VOLTAGE FRONT CAMERA POWER SUPPLY

1.

Connect around view monitor control unit connector and front camera connector.

2.

Turn ignition switch ON.

3.

Check voltage between around view monitor control unit harness connector.

Is inspection result normal?

YES

>> GO TO 3.

NO

>> Replace around view monitor control unit. Refer to

AV-233, "Removal and Installation"

.

3.

CHECK CONTINUITY FRONT CAMERA IMAGE SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect around view monitor control unit connector and front camera connector.

3.

Check continuity between around view monitor control unit harness connector and front camera harness
connector.

Around view monitor control

unit

Front camera

Continuity

Connector

Terminals

Connector

Terminals

M49

44

E50

2

Existed

46

1

Around view monitor control

unit

Ground

Continuity

Connector

Terminal

M49

46

Not existed

(+)

(

−

)

Condition

Voltage

(Approx.)

Around view monitor control

unit

Connector

Terminal

M49

46

Ground

“CAMERA” switch is ON or
shift position is “R”.

6.0 V

AV

FRONT CAMERA IMAGE SIGNAL CIRCUIT

AV-183

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

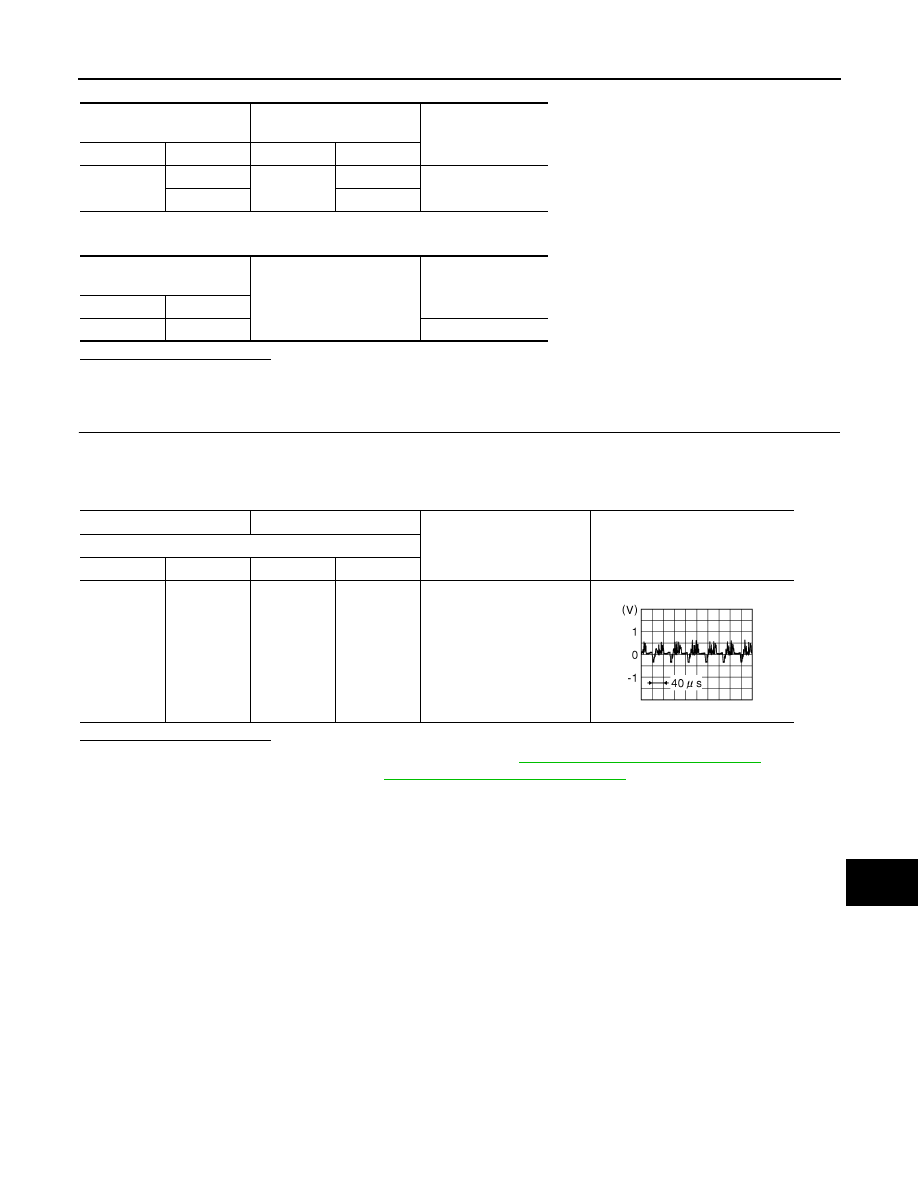

4.

Check continuity between around view monitor control unit harness connector and ground.

Is inspection result normal?

YES

>> GO TO 4.

NO

>> Repair harness or connector.

4.

CHECK FRONT CAMERA IMAGE SIGNAL

1.

Connect around view monitor control unit connector and front camera connector.

2.

Turn ignition switch ON.

3.

Check signal between around view monitor control unit harness connector.

Is inspection result normal?

YES

>> Replace around view monitor control unit. Refer to

AV-233, "Removal and Installation"

.

NO

>> Replace front camera. Refer to

AV-234, "Removal and Installation"

.

Around view monitor control

unit

Front camera

Continuity

Connector

Terminals

Connector

Terminals

M49

41

E50

3

Existed

42

4

Around view monitor control

unit

Ground

Continuity

Connector

Terminals

M49

41, 42

Not existed

(+)

(

−

)

Condition

Reference value

Around view monitor control unit

Connector

Terminal

Connector

Terminal

M49

41

M49

42

“CAMERA” switch is ON or
shift position is “R”.

JSNIA0834GB

AV-184

< DTC/CIRCUIT DIAGNOSIS >

REAR CAMERA COMMUNICATION SIGNAL CIRCUIT

REAR CAMERA COMMUNICATION SIGNAL CIRCUIT

Description

INFOID:0000000006216354

• Around view monitor control unit supplies to the front camera, rear camera and side camera. And then it

superimpose the images from each camera and outputs then to the front display unit.

• Superimpose the guiding lines, predictive course line and sonar indicator to the camera image that outputs

to the front display unit.

• Around view monitor control unit performs the reception/transmission of communication signal with each

camera.

Diagnosis Procedure

INFOID:0000000006216355

1.

CHECK CONTINUITY COMMUNICATION SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect around view monitor control unit connector and rear camera connector.

3.

Check continuity between around view monitor control unit harness connector and rear camera harness
connector.

4.

Check continuity between around view monitor control unit harness connector and ground.

Is inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK COMMUNICATION SIGNAL

1.

Connect around view monitor control unit connector and rear camera connector.

2.

Turn ignition switch ON.

3.

Check signal between around view monitor control unit harness connector and ground.

Is inspection result normal?

YES

>> Replace around view monitor control unit. Refer to

AV-233, "Removal and Installation"

.

NO

>> Replace rear camera. Refer to

AV-235, "Removal and Installation"

.

Around view monitor control

unit

Rear camera

Continuity

Connector

Terminal

Connector

Terminal

M48

35

D164

4

Existed

Around view monitor control

unit

Ground

Continuity

Connector

Terminal

M48

35

Not existed

(+)

(

−

)

Condition

Reference value

Around view monitor control

unit

Connector

Terminal

M48

35

Ground

“CAMERA” switch is ON or shift
position is “R”.

JSNIA0836GB

AV

REAR CAMERA IMAGE SIGNAL CIRCUIT

AV-185

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR CAMERA IMAGE SIGNAL CIRCUIT

Description

INFOID:0000000006216356

• Around view monitor control unit supplies to the front camera, rear camera and side camera. And then it

superimpose the images from each camera and outputs then to the front display unit.

• Superimpose the guiding lines, predictive course line and sonar indicator to the camera image that outputs

to the front display unit.

• Around view monitor control unit performs the reception/transmission of communication signal with each

camera.

Diagnosis Procedure

INFOID:0000000006216357

1.

CHECK CONTINUITY REAR CAMERA POWER SUPPLY AND GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect around view monitor control unit connector and rear camera connector.

3.

Check continuity between around view monitor control unit harness connector and rear camera harness
connector.

4.

Check continuity between around view monitor control unit harness connector and ground.

Is inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK VOLTAGE REAR CAMERA POWER SUPPLY

1.

Connect around view monitor control unit connector and rear camera connector.

2.

Turn ignition switch ON.

3.

Check voltage between around view monitor control unit harness connector and ground.

Is inspection result normal?

YES

>> GO TO 3.

NO

>> Replace around view monitor control unit. Refer to

AV-233, "Removal and Installation"

.

3.

CHECK CONTINUITY REAR CAMERA IMAGE SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect around view monitor control unit connector and rear camera connector.

3.

Check continuity between around view monitor control unit harness connector and rear camera harness
connector.

Around view monitor control

unit

Rear camera

Continuity

Connector

Terminals

Connector

Terminals

M48

36

D164

8

Existed

38

7

Around view monitor control

unit

Ground

Continuity

Connector

Terminal

M48

36

Not existed

(+)

(

−

)

Condition

Voltage

(Approx.)

Around view monitor control

unit

Connector

Terminal

M48

36

Ground

“CAMERA” switch is ON or
shift position is “R”.

6.0 V
