AV-110

< BASIC INSPECTION >

CONFIGURATION (AV CONTROL UNIT)

NOTE:
• AVM: Around view monitor
• Some manual setting items may not be displayed, depending on the vehicle specifications.

MANUAL SETTING ITEM

Items

Setting value

CAMERA SYSTEM

NONE/AVM

REAR CAMERA

AV

PREDICTIVE COURSE LINE CENTER POSITION ADJUSTMENT

AV-111

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

PREDICTIVE COURSE LINE CENTER POSITION ADJUSTMENT

Description

INFOID:0000000006216244

Adjust the center position of the predictive course line of the rear view monitor if it is shifted.

Work Procedure

INFOID:0000000006216245

1.

DRIVING

Drive the vehicle straight ahead 100 m (328.1 ft) or more at a speed of 30 km/h (18.6 MPH) or more.

>> END

AV-112

< BASIC INSPECTION >

CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR)

CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR)

Description

INFOID:0000000006216246

• Perform the calibration and perform the writing to the around view monitor control unit when removing and

replacing each camera, removing the camera mounting parts (front grille, door mirror, etc.) and replacing the
around view monitor control unit.

• Align the white lines on the road near the vehicle at the boundary of each camera image by this camera cal-

ibration. The white lines far from the vehicle may not be aligned at the boundary of each camera image. The
farther the line, the greater the difference is.

Work Procedure

INFOID:0000000006216915

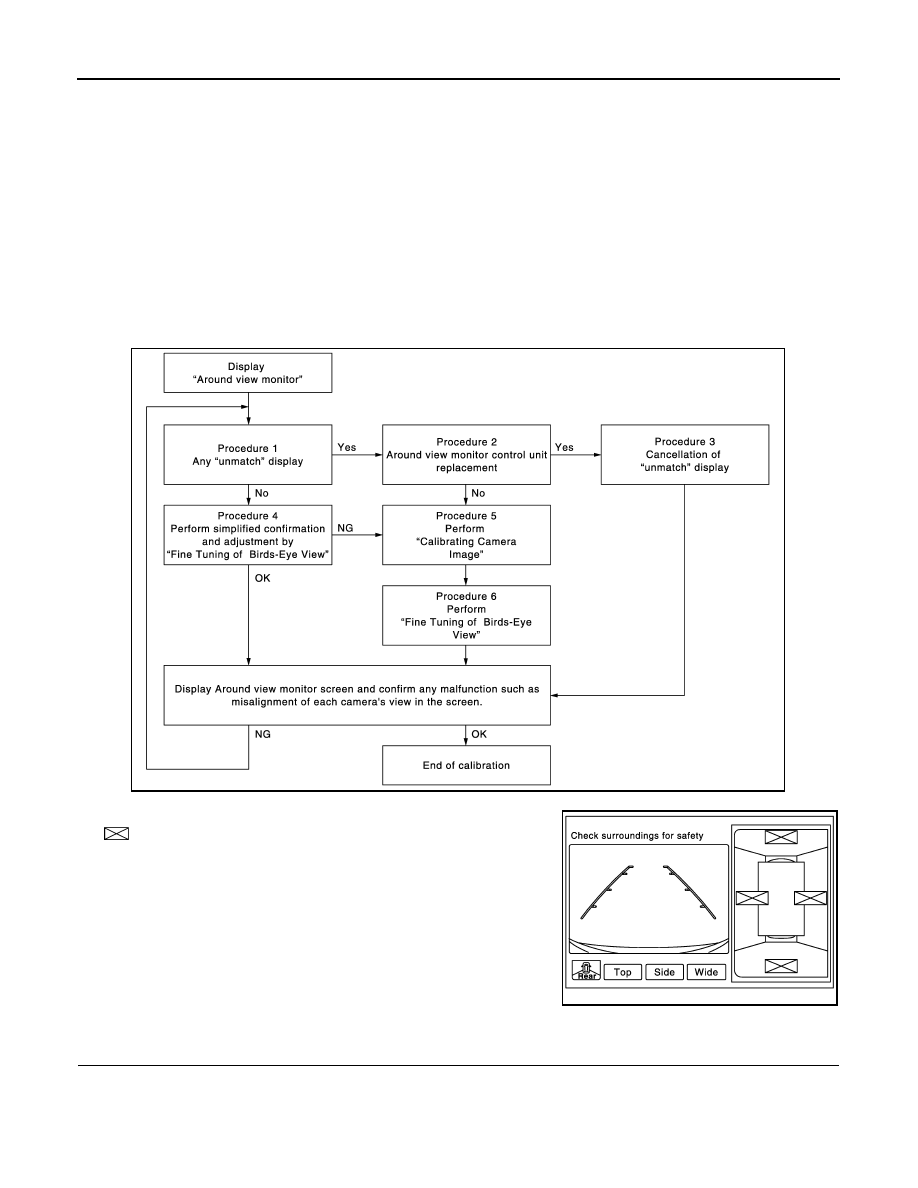

Calibration flowchart

Following the flowchart shown in the figure, perform the calibration.

NOTE:
In the un-match display, the un-match camera position is indicated
as “

” on the birds-eye view.

Calibration procedure

1.

AROUND VIEW MONITOR SCREEN CONFIRMATION

JPNIA1341GB

JSNIA2378ZZ

AV

CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR)

AV-113

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Check that there is the un-match display in any camera.

Is the un-match display visible?

YES

>> GO TO 2.

NO

>> GO TO 4.

2.

CHECK THAT AROUND VIEW MONITOR CONTROL UNIT IS REPLACED

Check that the around view monitor control unit is replaced.

Is the around view monitor control unit replaced?

YES

>> GO TO 3.

NO

>> GO TO 5.

3.

RELEASE UN-MATCH DISPLAY (PERFORM ONLY WHEN THE AROUND VIEW MONITOR CONTROL

UNIT IS REPLACED)

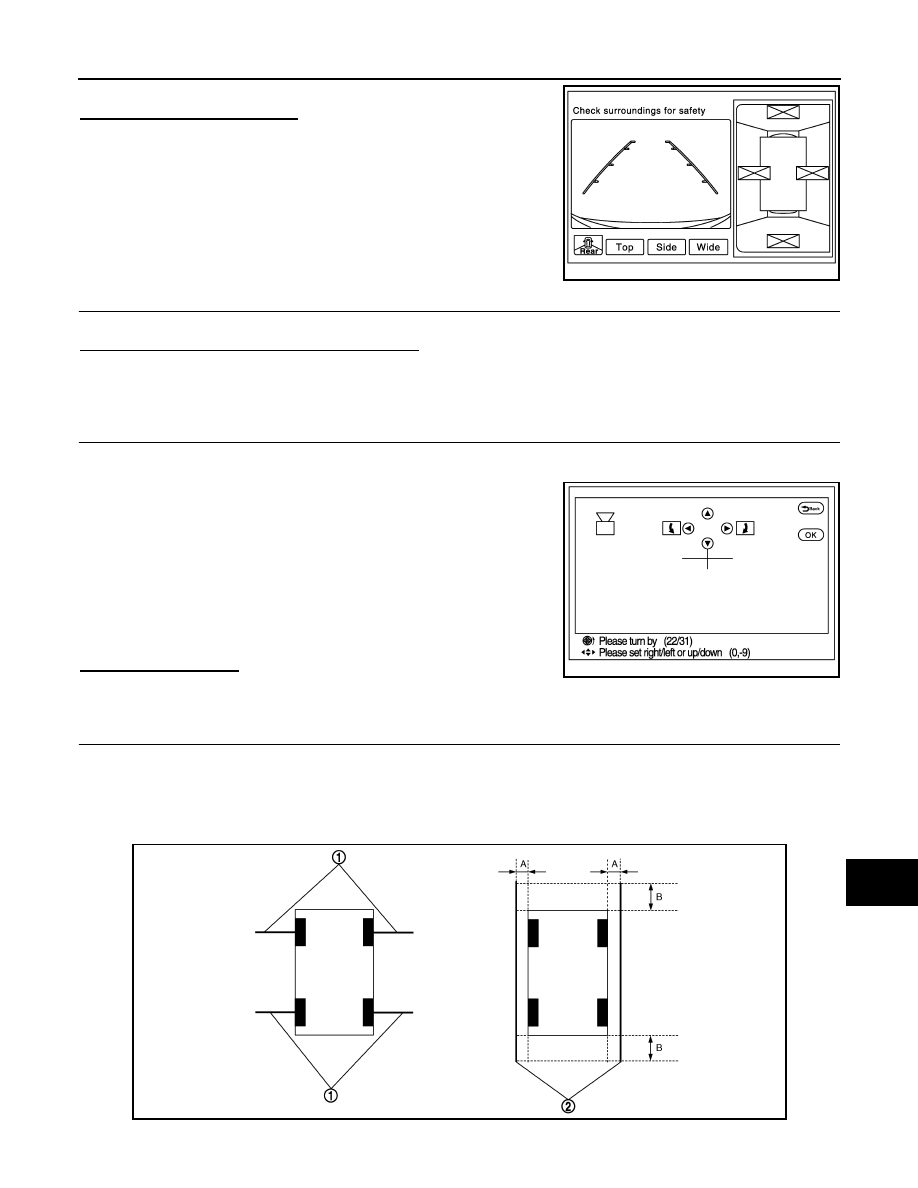

1.

Select “Camera Cont.” of Confirmation/ Adjustment mode, and then set to “Calibrating Camera Image”
mode.

2.

Press the “ENTER” switch of the multifunction switch on each
screen of “Rear Camera”, “Front Camera”, “Dr-Side Camera”,
“Pass-Side Camera”.

CAUTION:

• Do never operate the center dial and up/down/left/right

switches. Only press the “ENTER” switch.

• Never perform “Initialize Camera Image Calibration”.

3.

Display the around view monitor screen, and check that there is
no malfunction such as a difference between each camera
image.

Is there a malfunction?

YES

>> Calibration end

NO

>> GO TO 1.

4.

PERFORM SIMPLIFIED CONFIRMATION/ADJUSTMENT BY “FINE TUNING OF BIRDS-EYE VIEW”

1.

Put target line 1 on the ground beside each axle using packing tape, etc.

2.

Put target lines 2 equal to the vehicle total length + approximately 1.0 m (39.3 in) from the vehicle side
(right and left) at approximately 30 cm (11.8 in) away from the vehicle (make the line as parallel with the
vehicle as possible)

Preparation of simplified target line

JSNIA2378ZZ

JSNIA2379ZZ

JSNIA0927ZZ
