ACC-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000006289699

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this
Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIR BAG”.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s)
with a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly
causing serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

ACCELERATOR CONTROL SYSTEM

ACC-3

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

ACC

N

P

O

REMOVAL AND INSTALLATION

ACCELERATOR CONTROL SYSTEM

MODELS WITHOUT DISTANCE CONTROL ASSIST SYSTEM

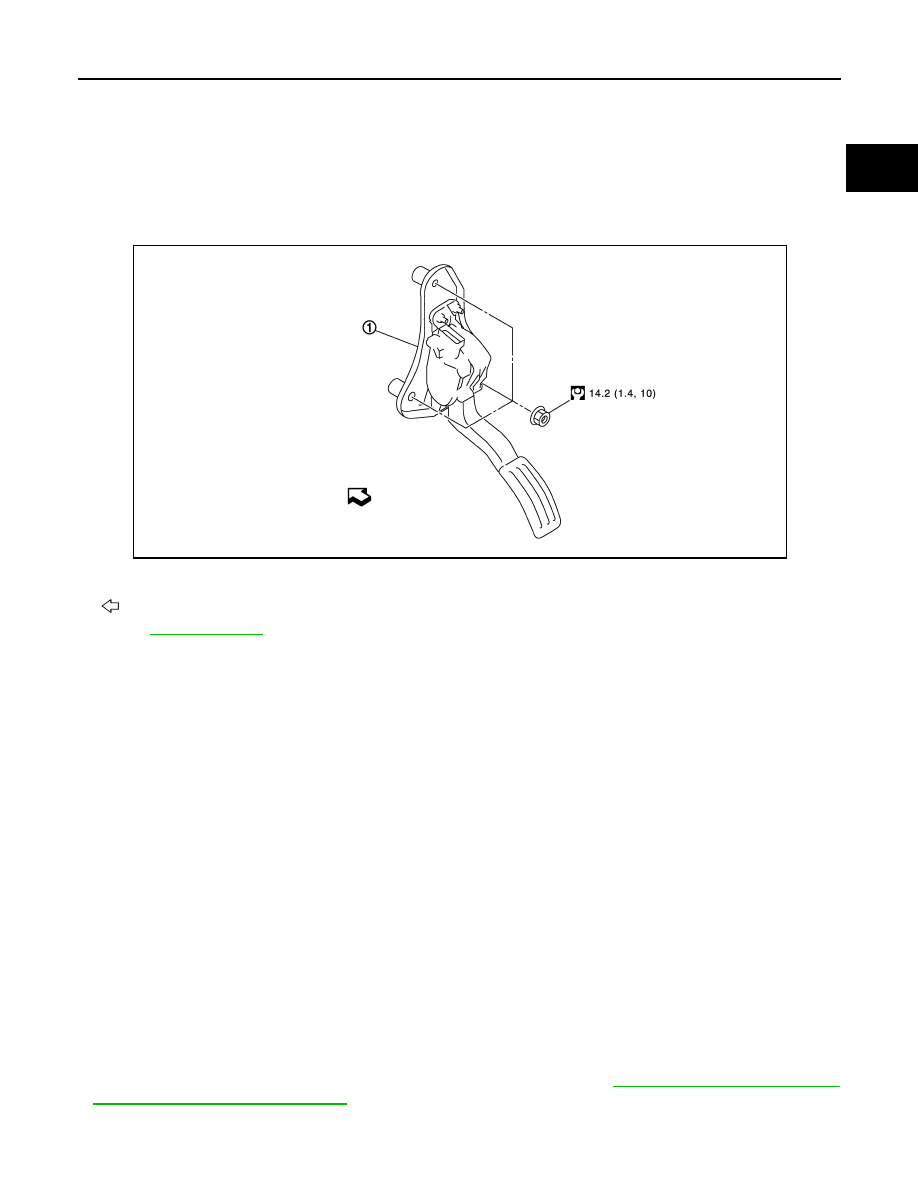

MODELS WITHOUT DISTANCE CONTROL ASSIST SYSTEM : Exploded View

INFOID:0000000006289700

MODELS WITHOUT DISTANCE CONTROL ASSIST SYSTEM : Removal and Instal-
lation

INFOID:0000000006289701

REMOVAL

1.

Remove the inside mounting nuts.

2.

Remove accelerator pedal assembly.

3.

Disconnect accelerator pedal position sensor harness connector.

CAUTION:

• Never disassemble accelerator pedal assembly.
• Never remove accelerator pedal position sensor from accelerator pedal assembly.
• Avoid impact from dropping etc. during handling.
• Be careful to keep accelerator lever away from water.

INSTALLATION

Installation is the reverse order of removal.

MODELS WITHOUT DISTANCE CONTROL ASSIST SYSTEM : Inspection

INFOID:0000000006289702

INSPECTION AFTER INSTALLATION

• Check accelerator pedal moves smoothly within the whole operation range when it is fully depressed and

released.

• Check accelerator pedal securely returns to the fully released position.
• For the electrical inspection of accelerator pedal position sensor, refer to

EC-470, "Component Inspection

(Accelerator Pedal Position Sensor)"

.

CAUTION:

1.

Accelerator pedal assembly

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JPBIA3268GB

ACC-4

< REMOVAL AND INSTALLATION >

ACCELERATOR CONTROL SYSTEM

When harness connector of accelerator pedal position sensor is disconnected, perform “Accelerator
Pedal Released Position Learning”. Refer to

EC-146, "Description"

.

MODELS WITH DISTANCE CONTROL ASSIST SYSTEM

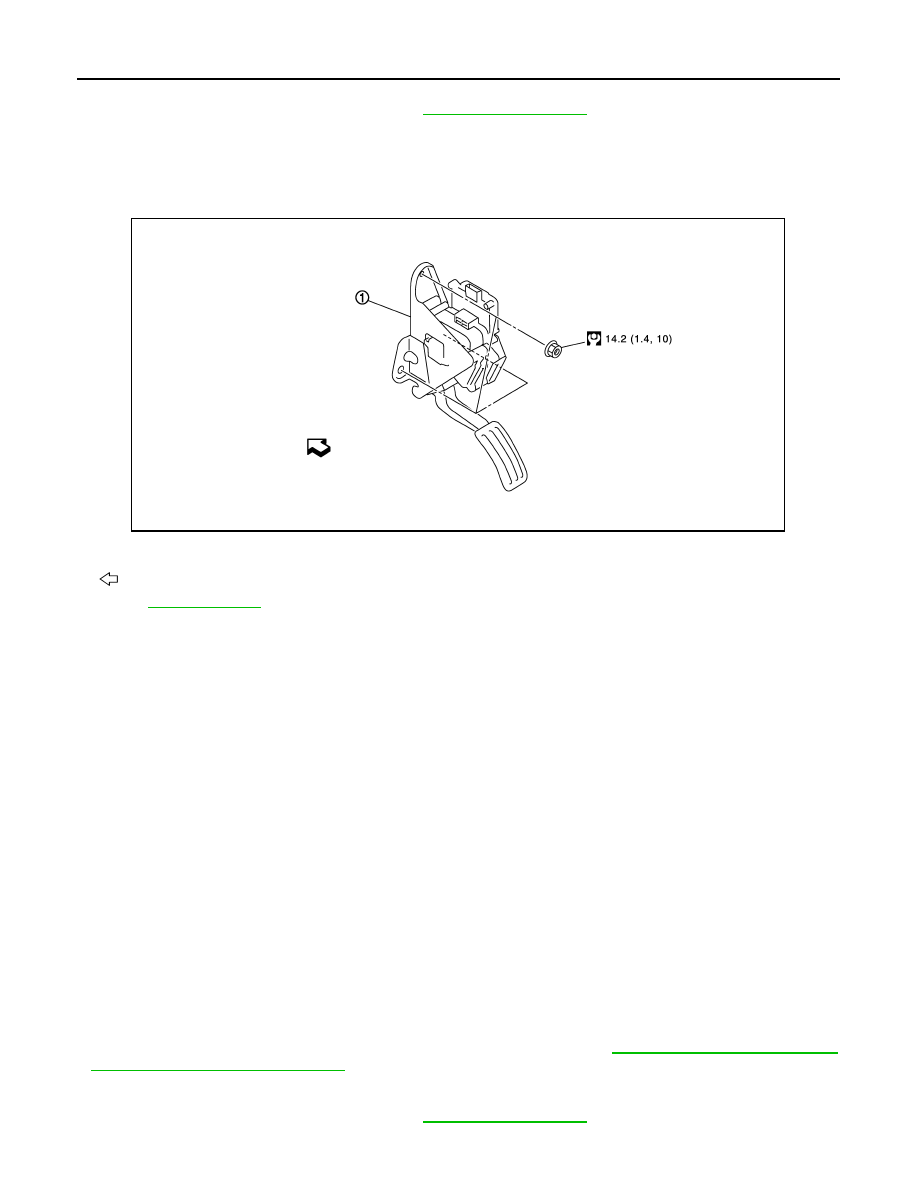

MODELS WITH DISTANCE CONTROL ASSIST SYSTEM : Exploded View

INFOID:0000000006289703

MODELS WITH DISTANCE CONTROL ASSIST SYSTEM : Removal and Installation

INFOID:0000000006289704

REMOVAL

1.

Remove the inside mounting nuts.

2.

Remove accelerator pedal assembly.

3.

Disconnect accelerator pedal actuator harness connector and accelerator pedal position sensor harness
connector.

CAUTION:

• Never disassemble accelerator pedal assembly.
• Never remove accelerator pedal position sensor from accelerator pedal assembly.
• Avoid impact from dropping etc. during handling.
• Be careful to keep accelerator pedal assembly away from water.

INSTALLATION

Installation is the reverse order of removal.

MODELS WITH DISTANCE CONTROL ASSIST SYSTEM : Inspection

INFOID:0000000006289705

INSPECTION AFTER INSTALLATION

• Check accelerator pedal moves smoothly within the whole operation range when it is fully depressed and

released.

• Check accelerator pedal securely returns to the fully released position.
• For the electrical inspection of accelerator pedal position sensor, Refer to

EC-470, "Component Inspection

(Accelerator Pedal Position Sensor)"

.

CAUTION:

When harness connector of accelerator pedal position sensor is disconnected, perform “Accelerator
Pedal Released Position Learning”. Refer to

EC-146, "Description"

.

1.

Accelerator pedal assembly

Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JPBIA3267GB
