Infiniti QX4 (R50). Manual - part 598





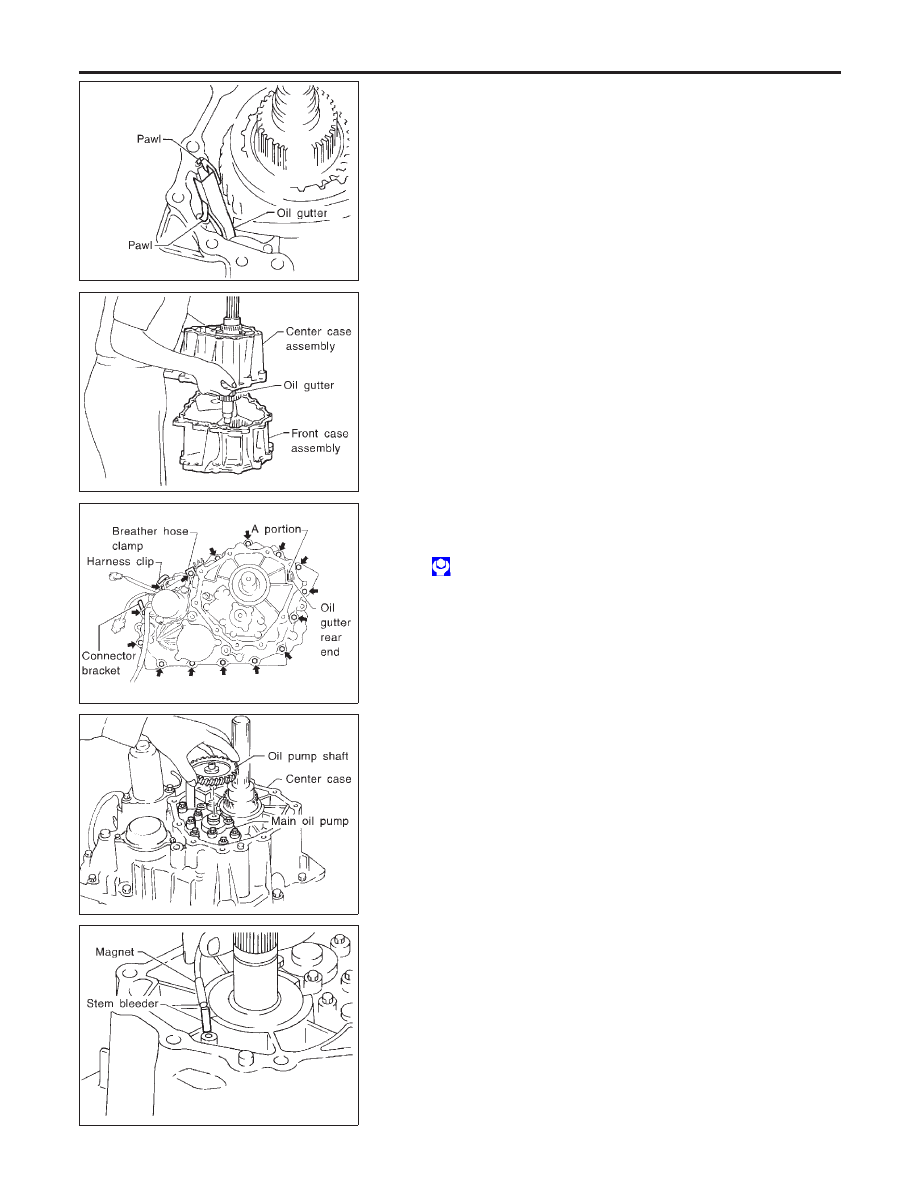

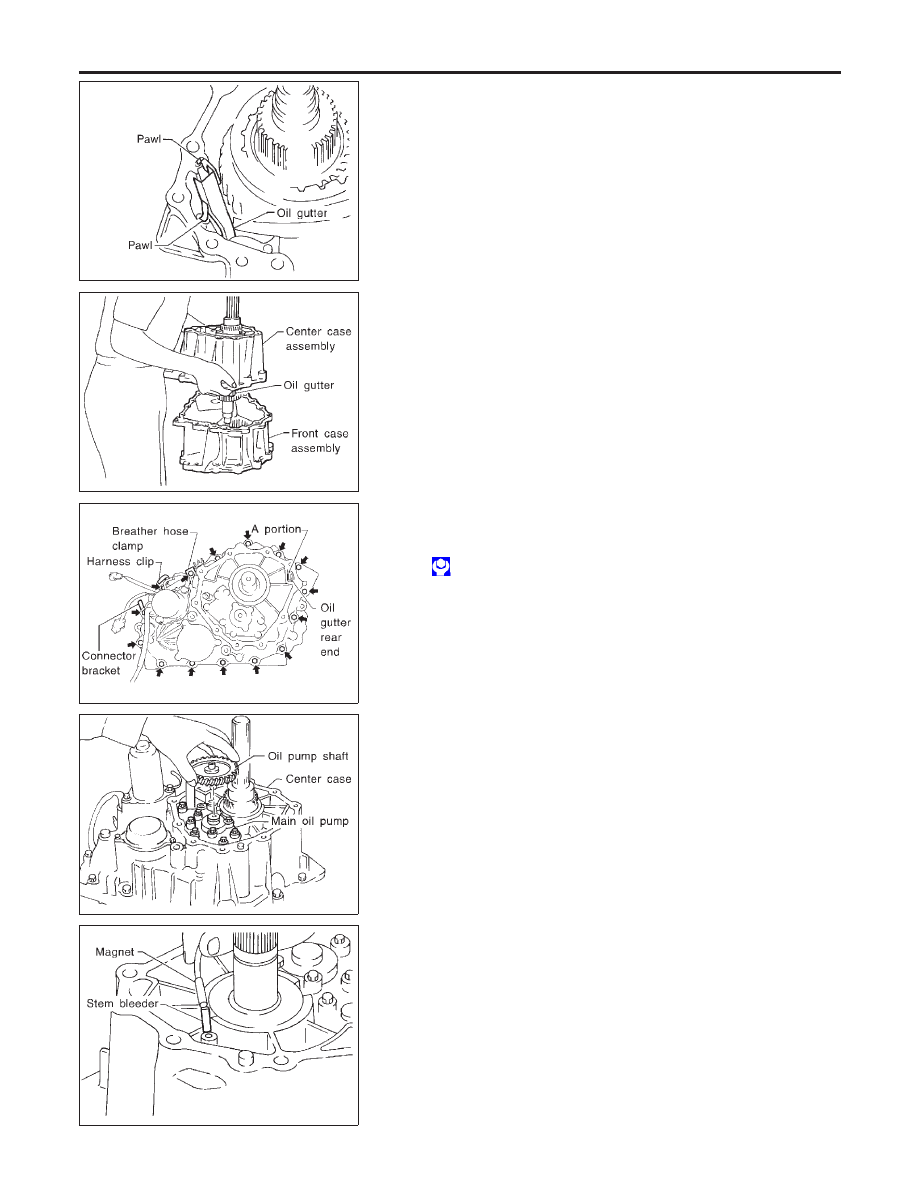

SMT894C

4.

Make sure the two claws of oil gutter are securely attached to
slots in center case.

SMT895C

5.

With the claws of oil gutter held by a finger, install center case
assembly to front case assembly.

CAUTION:

Pay careful attention so that mainshaft end does not damage
radial needle bearing in sun gear assembly.
6.

Tap center case lightly with a rubber hammer or the like and
press-fit front drive shaft bearing into front case.

SMT896C

7.

Make sure oil gutter rear end protrudes from point “A” in the
figure.

8.

Tighten bolts to specified torque.

: 41 - 48 N·m (4.2 - 4.9 kg-m, 30 - 35 ft-lb)

I

Be sure to install air breather hose clamp, connector
bracket and harness clip.

SMT883C

9.

Fit double-flat end of oil pump shaft into slot of main oil pump
and install it.

NOTE:
When oil pump shaft is rotated slightly, it drops into position where
both parts fit.

SMT884C

10. Install stem bleeder to center case.

ASSEMBLY

Final Assembly (Cont’d)

TF-154

SMT881C

11. Remove rear oil seal.

I

Do not reuse oil seal.

SMT882C

12. Apply ATF to the circumference of new rear oil seal, and tap it

using a drift as shown in the figure so that it is aligned with
case tip face.

I

Apply multi-purpose grease to oil seal lip.

SMT879C

13. Apply sealing fluid 518 (Locktite) to entire rear case mounting

surface of center case as shown in the figure.

CAUTION:

I

Remove all foreign materials such as water, oil, and
grease from center case and rear case mating surfaces.

I

Be careful not to allow sealing fluid to clog bleeder hole.

14. Install rear case to center case, and tighten bolts to specified

torque.

: 41 - 48 N·m (4.2 - 4.9 kg-m, 30 - 35 ft-lb)

I

Be sure to attach harness clips.

SMT880C

15. Remove all the gasket fluid 1215 (Three Bond) from switch

mounting area and inside rear case, with ATP switch and neu-
tral-4LO switch threaded in 1 to 2 pitches, apply gasket fluid
1215 (Three Bond) to the thread of the switches and tighten it
to specified torque.

: 15 - 20 N·m (1.5 - 2.0 kg-m, 11 - 14 ft-lb)

16. Install rear case assembly to center case assembly.

GI

MA

EM

LC

EC

FE

AT

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

ASSEMBLY

Final Assembly (Cont’d)

TF-155

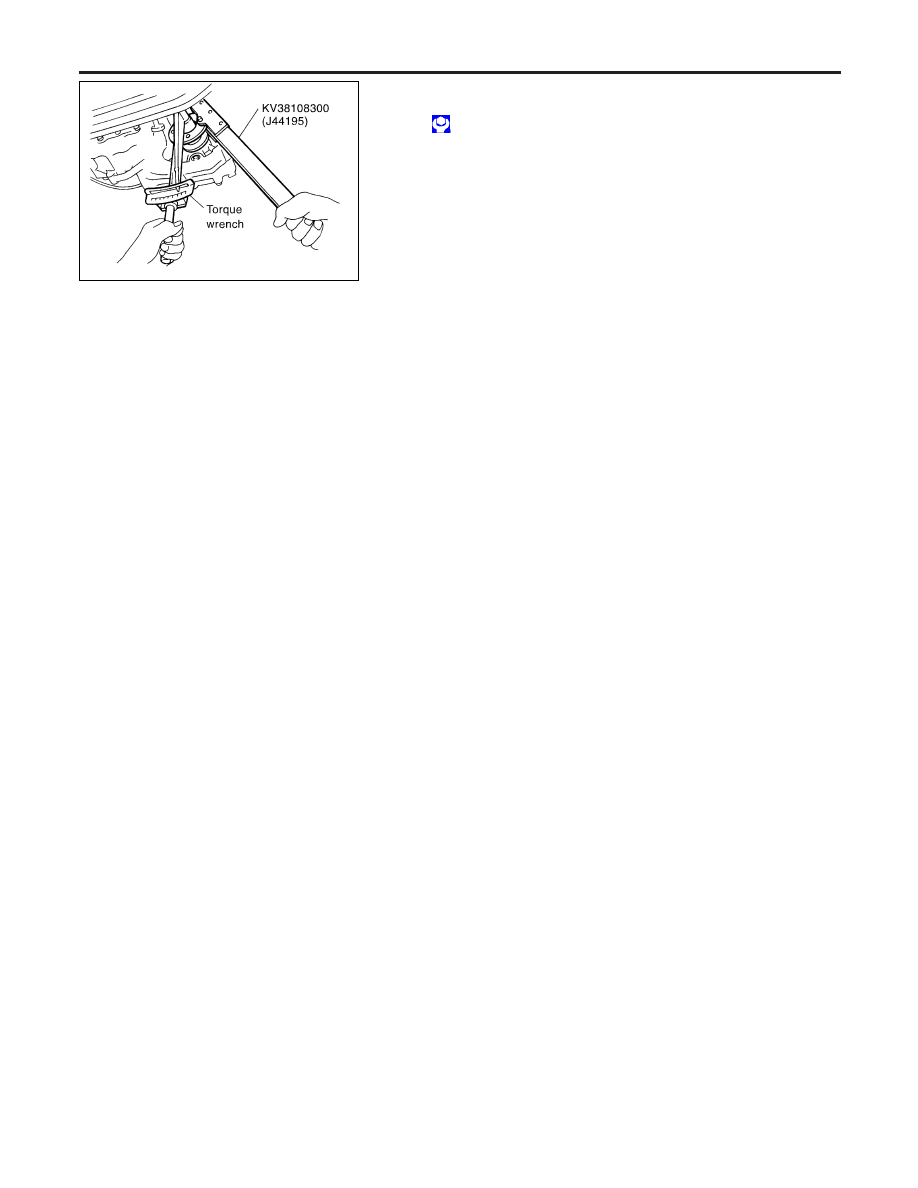

SMT845DB

17. Install companion flange to front drive shaft, and tighten

mounting nut.

: 226 - 324 N·m (23.0 - 33.0 kg-m, 166 - 239 ft-lb)

ASSEMBLY

Final Assembly (Cont’d)

TF-156

General Specifications

NBTF0085

Transfer model

ATX14A

Gear ratio

High

1.000

Low

2.596

Number of teeth

Planetary gear

Sun gear

57

Internal gear

91

Front drive sprocket

35

Front drive shaft

35

Fluid capacity



(US qt, Imp qt)*

3.0 (3-1/8, 2-5/8)

*: Refer to MA-11, “Fluids and Lubricants”.

Inner Gear and Outer Gear

NBTF0086

SUB-OIL PUMP

NBTF0086S01

Allowable clearance

0.015 - 0.035 mm (0.0006 - 0.0014 in)

Gear thickness

mm (in)

Part No.*

Inner gear

Outer gear

9.27 - 9.28 (0.3650 - 0.3654)

31346 0W462

31347 0W462

9.28 - 9.29 (0.3654 - 0.3657)

31346 0W461

31347 0W461

9.29 - 9.30 (0.3657 - 0.3661)

31346 0W460

31347 0W460

*: Always check with the Parts Department for the latest parts information.

MAIN OIL PUMP

NBTF0086S02

Allowable clearance

0.015 - 0.035 mm (0.0006 - 0.0014 in)

Gear thickness

mm (in)

Part No.*

Inner gear

Outer gear

14.67 - 14.68 (0.5776 - 0.5780)

31346 0W412

31347 0W412

14.68 - 14.69 (0.5780 - 0.5783)

31346 0W411

31347 0W411

14.69 - 14.70 (0.5783 - 0.5787)

31346 0W410

31347 0W410

*: Always check with the Parts Department for the latest parts information.

Control Valve

NBTF0087

VALVE

NBTF0087S01

Mounting position

Part name

Part No.*

Outer dia.

mm (in)

Overall length

mm (in)

L1

2-4 shift valve

31772 21X00

8.0 (0.315)

38.5 (1.516)

L2

Clutch valve

31772 80X11

10.0 (0.394)

40.0 (1.575)

L4

Pilot valve

31772 80X11

10.0 (0.394)

40.0 (1.575)

L5

Regulator valve

31741 0W410

12.0 (0.472)

68.0 (2.677)

*: Always check with the Parts Department for the latest parts information.

SPRING

NBTF0087S02

Mounting position

Part name

Part No.*

Free length

mm (in)

Outer dia.

mm (in)

Wire dia.

mm (in)

Winding direction

L1

2-4 shift valve

spring

31742 0W400

31.85 (1.2539)

7.0 (0.276)

0.6 (0.024)

Clockwise

GI

MA

EM

LC

EC

FE

AT

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specifications

TF-157
