Infiniti QX4 (R50). Manual - part 560





LINE PRESSURE SWITCH ...........................................83

Diagnostic Procedure ................................................83

ABS OPERATION SIGNAL...........................................86

Diagnostic Procedure ................................................86

DATA ERASE/DISPLAY ...............................................88

Diagnostic Procedure ................................................88

SHIFT ACTUATOR ........................................................89

Diagnostic Procedure ................................................89

SHIFT ACTUATOR POSITION SWITCH ......................92

Diagnostic Procedure ................................................92

SHIFT ACTUATOR CIRCUIT ........................................94

Diagnostic Procedure ................................................94

TROUBLE DIAGNOSES FOR SYMPTOMS .................98

Symptom 1. 4WD Shift Indicator Lamp Does Not
Turn ON
.....................................................................98
Symptom 2. 4WD Warning Lamp Does Not Turn
ON............................................................................
100
Symptom 3. 4WD Shift Indicator Lamp Does Not
Turn OFF
.................................................................102
Symptom 4. ATP Warning Lamp Does Not Turn
ON............................................................................
102
Symptom 5. 4LO Indicator Lamp Does Not Turn
ON............................................................................
104
Symptom 6. 4WD Shift Indicator Lamp Does Not
Indicate

4H

............................................................106

Symptom 7. 4WD Shift Indicator Lamp Repeats
Flickering..................................................................
107
Symptom 8. Tight Corner Braking Symptom...........108
Symptom 9. 4WD System Does Not Operate.........109

COMPONENT INSPECTION ....................................... 111

4WD Shift Switch..................................................... 111
2-4WD Shift Solenoid Valve and Transfer Fluid
Temperature Sensor
................................................ 111
4WD Solenoid Valve, Clutch Pressure Switch
and Line Pressure Switch........................................
111
Front Revolution Sensor.......................................... 112
Transfer Dropping Resistor...................................... 112
ATP Switch, Neutral-4LO Switch and Wait
Detection Switch
...................................................... 112
Transfer Motor ......................................................... 113
Transfer Motor Relay ............................................... 113
Transfer Sub-harness .............................................. 113

FRONT REVOLUTION SENSOR SUB-HARNESS
CONNECTOR

........................................................ 113

TRANSFER SWITCH ASSEMBLY SUB-HARNESS
CONNECTOR

........................................................ 114

TRANSFER TERMINAL CORD ASSEMBLY SUB-
HARNESS CONNECTOR

....................................... 114

Transfer Shift Relay (High & low)............................ 114
Actuator & Actuator Position Switch........................ 115

ACTUATOR

........................................................... 115

ACTUATOR POSITION SWITCH

............................ 115

ON-VEHICLE SERVICE .............................................. 116

Replacing Oil Seal ................................................... 116

FRONT CASE OIL SEAL

........................................ 116

SHIFT SHAFT OIL SEAL

........................................ 117

REAR OIL SEAL

.................................................... 117

Transfer Motor ......................................................... 117

REMOVAL

............................................................. 117

INSTALLATION

...................................................... 117

Transfer Oil Filter ..................................................... 118

REMOVAL

............................................................. 118

INSTALLATION

...................................................... 118

REMOVAL AND INSTALLATION ............................... 119

Removal................................................................... 119
Installation................................................................ 119

OVERHAUL .................................................................120

Transfer Gear Control..............................................120
Transfer Components ..............................................121

DISASSEMBLY............................................................123

Rear Case................................................................123

DISASSEMBLY

......................................................123

Center Case.............................................................123

DISASSEMBLY

......................................................123

Front Case ...............................................................133

DISASSEMBLY

......................................................133

REPAIR FOR COMPONENT PARTS .........................137

Front Case ...............................................................137

INSPECTION

.........................................................137

Center Case.............................................................138

INSPECTION

.........................................................138

ASSEMBLY..................................................................141

Front Case ...............................................................141

ASSEMBLY

...........................................................141

Center Case.............................................................145

ASSEMBLY

...........................................................145

Final Assembly.........................................................153

SERVICE DATA AND SPECIFICATIONS (SDS) .......157

General Specifications.............................................157
Inner Gear and Outer Gear .....................................157

SUB-OIL PUMP

.....................................................157

MAIN OIL PUMP

....................................................157

Control Valve ...........................................................157

VALVE

..................................................................157

SPRING

................................................................157

Clutch.......................................................................158

DRIVE PLATE

.......................................................158

DRIVEN PLATE

.....................................................158

RETURN SPRING

..................................................158

RETAINING PLATE

................................................158

Seal Ring (Mainshaft side) ......................................159
Bearing Race (Thrust needle bearing side) ............159
Snap Ring (Sun gear side)......................................159

CONTENTS

(Cont’d)

TF-2

Supplemental Restraint System (SRS) “AIR
BAG” and “SEAT BELT PRE-TENSIONER”

NBTF0001

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER” used along with
a seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of
collision. The SRS system composition which is available to INFINITI QX4 is as follows:

I

For a frontal collision
The Supplemental Restraint System consists of driver air bag module (located in the center of the steer-
ing wheel), front passenger air bag module (located on the instrument panel on passenger side), seat belt
pre-tensioners, a diagnosis sensor unit, warning lamp, wiring harness and spiral cable.

I

For a side collision
The Supplemental Restraint System consists of side air bag module (located in the outer side of front seat),
satellite sensor, diagnosis sensor unit (one of components of air bags for a frontal collision), wiring harness,
warning lamp (one of components of air bags for a frontal collision).

Information necessary to service the system safely is included in the RS section of this Service Manual.

WARNING:

I

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be performed
by an authorized INFINITI dealer.

I

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the RS section.

I

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. Spiral cable and wiring harnesses covered with yellow insulation tape either just
before the harness connectors or for the complete harness are related to the SRS.

SEF289H

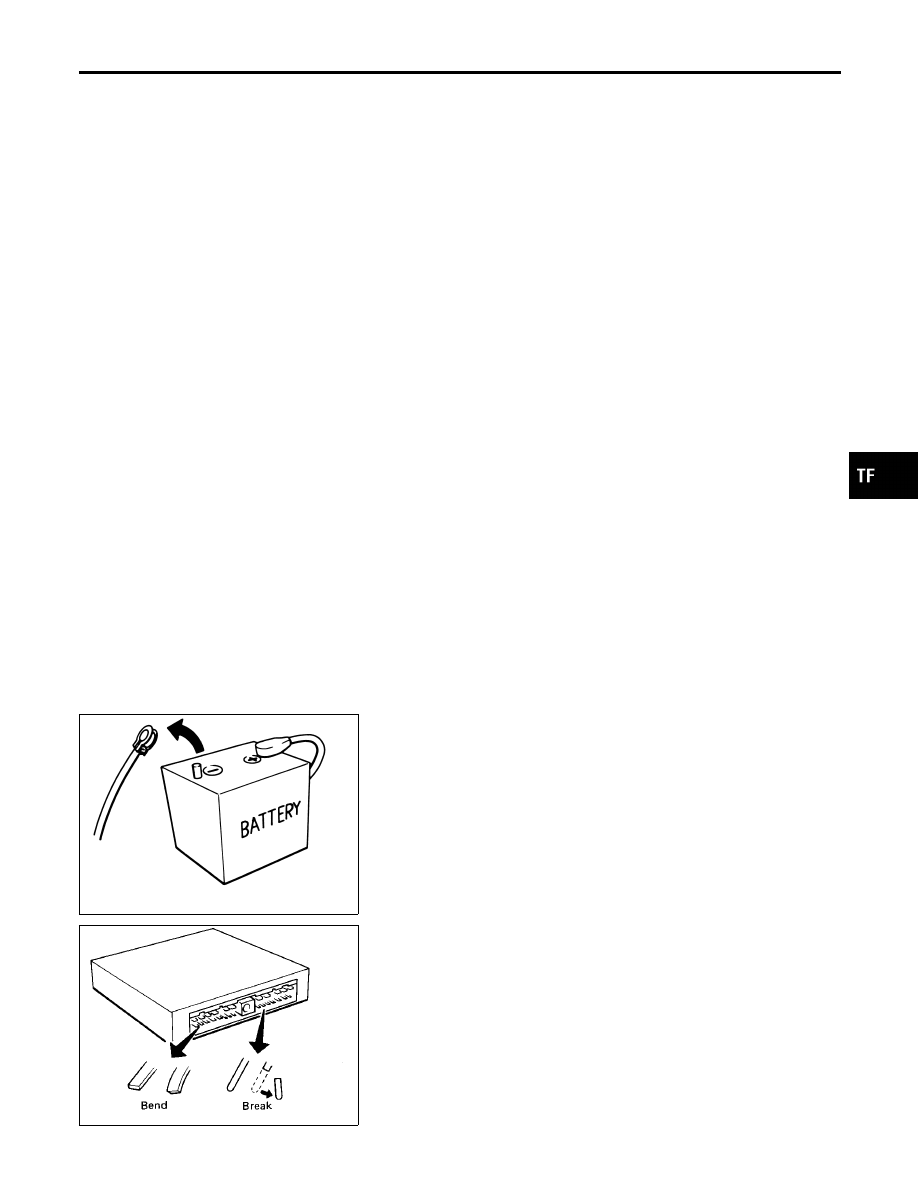

Precautions

NBTF0092

I

Before connecting or disconnecting the Transfer control
unit harness connector, turn ignition switch OFF and dis-
connect negative battery terminal. Failure to do so may
damage the Transfer control unit. Because battery voltage
is applied to Transfer control unit even if ignition switch
is turned off.

SEF291H

I

When connecting or disconnecting pin connectors into or
from Transfer control unit, take care not to damage pin
terminals (bend or break).
Make sure that there are not any bends or breaks on
Transfer control unit pin terminal, when connecting pin
connectors.

GI

MA

EM

LC

EC

FE

AT

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

PRECAUTIONS

Supplemental Restraint System (SRS) “AIR BAG” and “SEAT BELT PRE-TENSIONER”

TF-3

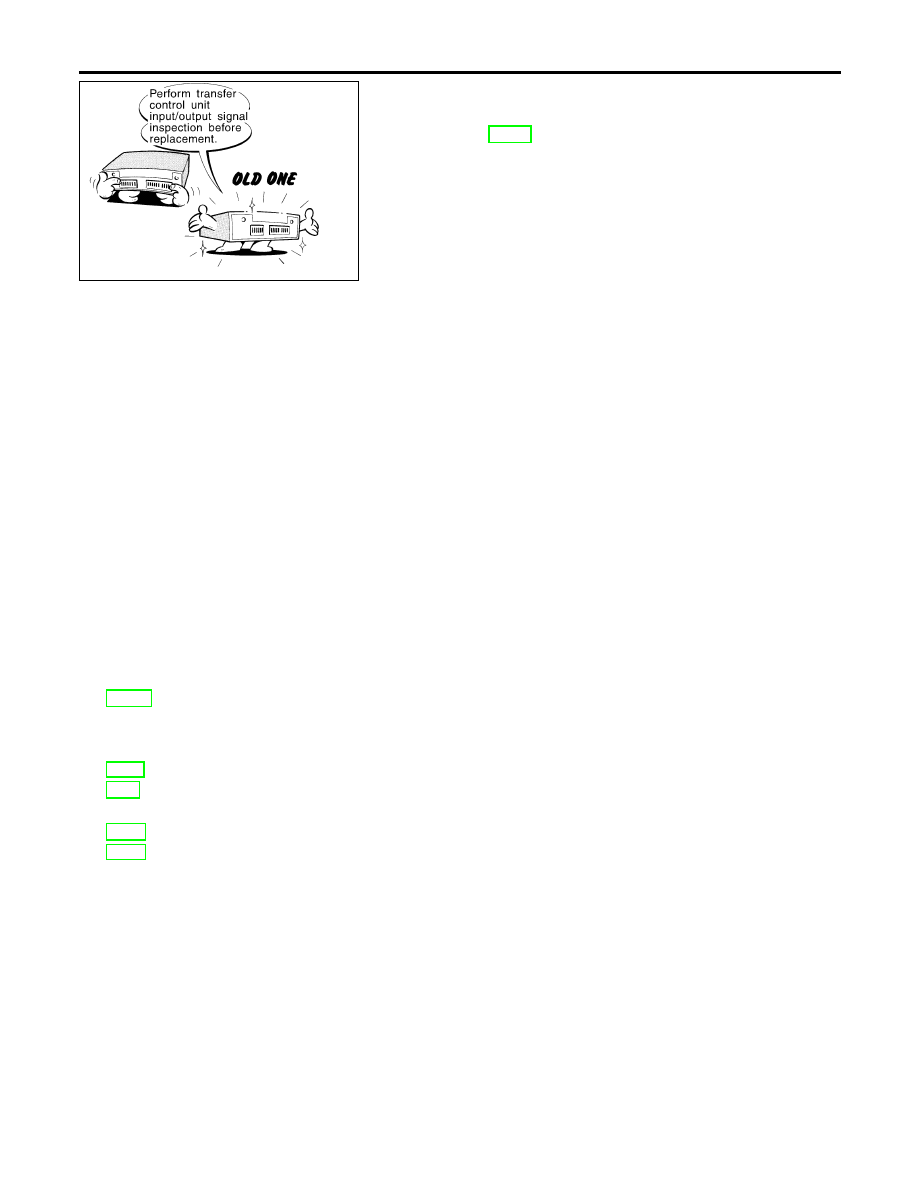

MEF040DB

I

Before replacing Transfer control unit, perform Transfer
control unit input/output signal inspection and make sure
whether Transfer control unit functions properly or not.
(See page TF-55.)

Service Notice

NBTF0002

1) Before proceeding with disassembly, thoroughly clean the outside of the all-mode 4WD transfer. It is

important to prevent the internal parts from becoming contaminated by dirt or other foreign matter.

2) Disassembly should be done in a clean work area.
3) Use lint-free cloth or towels for wiping parts clean. Common shop rags can leave fibers that could inter-

fere with the operation of the all-mode 4WD transfer.

4) Place disassembled parts in order for easier and proper assembly.
5) All parts should be carefully cleaned with a general purpose, non-flammable solvent before inspection or

reassembly.

6) Gaskets, seals and O-rings should be replaced any time the all-mode 4WD transfer is disassembled.
7) It is very important to perform functional tests whenever they are indicated.
8) The valve body contains precision parts and requires extreme care when parts are removed and serviced.

Place removed parts in a parts rack in order to replace them in correct positions and sequences. Care will
also prevent springs and small parts from becoming scattered or lost.

9) Properly installed valves, sleeves, plugs, etc. will slide along bores in valve body under their own weight.
10) Before assembly, apply a coat of recommended ATF to all parts. Apply petroleum jelly to protect O-rings

and seals, and to hold bearings and washers in place during assembly. Do not use grease.

11) Extreme care should be taken to avoid damage to O-rings, seals and gaskets when assembling.
12) After overhaul, refill the transfer with new ATF.
13) When the all-mode 4WD transfer drain plug is removed, only some of the fluid is drained. Old all-mode

4WD transfer fluid will remain in torque converter and ATF cooling system. Always follow the procedures,
MA-22, “Changing All-mode 4WD Transfer Fluid”.

Wiring Diagrams and Trouble Diagnosis

NBTF0003

When you read wiring diagrams, refer to the following:

I

GI-11, “HOW TO READ WIRING DIAGRAMS”

I

EL-9, “POWER SUPPLY ROUTING”

When you perform trouble diagnosis, refer to the following:

I

GI-35, “HOW TO FOLLOW TEST GROUPS IN TROUBLE DIAGNOSIS”

I

GI-24, “HOW TO PERFORM EFFICIENT DIAGNOSIS FOR AN ELECTRICAL INCIDENT”

PRECAUTIONS

Precautions (Cont’d)

TF-4

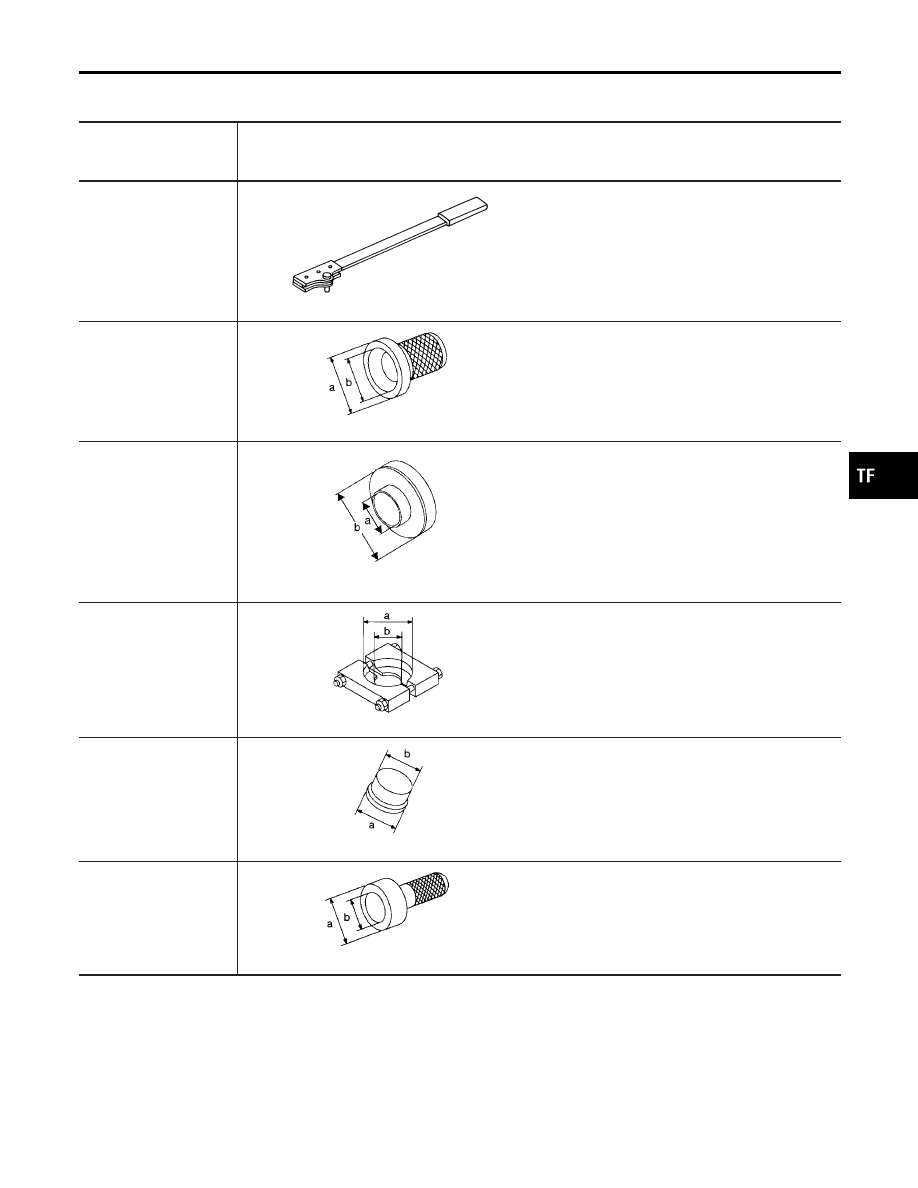

Special Service Tools

NBTF0004

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

KV38108300
(J44195)
Companion flange
wrench

NT771

Removing companion flange nut
Installing companion flange nut

KV40100621
(J26091)
Drift

NT086

Installing front drive shaft bearing
a: 76 mm (2.99 in) dia.
b: 69 mm (2.72 in) dia.

ST30032000
(

)

Base

NT660

Installing front drive shaft bearing
a: 38 mm (1.50 in) dia.
b: 80 mm (3.15 in) dia.

ST30021000
(

)

Puller

NT411

Removing front drive shaft bearing
a: 110 mm (4.33 in) dia.
b: 68 mm (2.68 in) dia.

ST33052000
(

)

Adapter

NT431

Removing front drive shaft bearing
a: 28 mm (1.10 in) dia.
b: 22 mm (0.87 in) dia.

ST35271000
(J26091)
Drift

NT115

Installing rear oil seal
Removing and installing press flange snap ring
a: 72 mm (2.83 in) dia.
b: 63 mm (2.48 in) dia.

GI

MA

EM

LC

EC

FE

AT

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

PREPARATION

Special Service Tools

TF-5















Content   ..  558  559  560  561   ..
