Infiniti QX4 (R50). Manual - part 533





SRS701

If no malfunction is detected on “SELF-DIAG [CURRENT]” even
though malfunction is detected in “SRS Operation Check”, check
the battery voltage.
If the battery voltage is less than 9V, charge the battery. Then go
to DIAGNOSTIC PROCEDURE 3, page RS-42.
If the battery voltage is OK, go to DIAGNOSTIC PROCEDURE 4,
page RS-44, to diagnose the following cases:

I

Self-diagnostic result “SELF-DIAG [PAST]” (previously stored
in the memory) might not be erased after repair.

I

The SRS system malfunctions intermittently.

8.

Touch “PRINT”.

9.

Compare diagnostic codes to “CONSULT-II Diagnostic Code
Chart”, page RS-40.

10. Touch “BACK” key of CONSULT-II until “SELECT SYSTEM”

appears in order to return to User mode from Diagnosis mode.

11. Turn ignition switch “OFF”, then turn off and disconnect

CONSULT-II, and disconnect both battery cables.

12. Repair the system as outlined by the “Repair order” in “CON-

SULT-II Diagnostic Code Chart”, that corresponds to the self-
diagnostic result. For replacement procedure of component
parts, refer to RS-15.

13. After repairing the system, go to DIAGNOSTIC PROCEDURE

3, page RS-42 for final checking.

CONSULT-II Diagnostic Code Chart (“SELF-DIAG
[CURRENT]”)

NBRS0045S0101

Diagnostic item

Explanation

Repair order

“Recheck SRS at each replace-

ment.”

NO DTC IS
DETECTED.

When malfunction is
indicated by the “AIR
BAG” warning lamp in
User mode

I

Low battery voltage (Less than 9V)

I

Go to DIAGNOSTIC PROCEDURE 3
(RS-42) after charging battery.

I

Self-diagnostic result “SELF-DIAG
[PAST]” (previously stored in the
memory) might not be erased after
repair.

I

Intermittent malfunction has been
detected in the past.

I

Go to DIAGNOSTIC PROCEDURE 4
(RS-44).

I

No malfunction is detected.

I

Go to DIAGNOSTIC PROCEDURE 3
(RS-42).

AIRBAG MODULE
[OPEN]

I

Driver’s air bag module circuit is open. (including the spiral
cable)

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. Replace driver’s air bag module.

(Before disposal of it, it must be
deployed.)

4. Replace the spiral cable.
5. Replace the diagnosis sensor unit.
6. Replace the related harness.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Trouble Diagnoses with CONSULT-II (Cont’d)

RS-40

Diagnostic item

Explanation

Repair order

“Recheck SRS at each replace-

ment.”

AIRBAG MODULE
[VB-SHORT]

I

Driver’s air bag module circuit is shorted to some power sup-
ply circuit. (including the spiral cable)

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. Replace the spiral cable.
4. Replace driver’s air bag module.

(Before disposal of it, it must be
deployed.)

5. Replace the diagnosis sensor unit.
6. Replace the related harness.

AIRBAG MODULE
[GND-SHORT]

I

Driver’s air bag module circuit is shorted to ground. (including
the spiral cable)

AIRBAG MODULE
[SHORT]

I

Driver’s air bag module circuits are shorted to each other.

ASSIST A/B MODULE
[VB-SHORT]

I

Front passenger air bag module circuit is shorted to some
power supply circuit.

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. Replace front passenger air bag

module. (Before disposal of it, it
must be deployed.)

4. Replace the diagnosis sensor unit.
5. Replace the related harness.

ASSIST A/B MODULE
[OPEN]

I

Front passenger air bag module circuit is open.

ASSIST A/B MODULE
[GND-SHORT]

I

Front passenger air bag module circuit is shorted to ground.

ASSIST A/B MODULE
[SHORT]

I

Front passenger air bag module circuits are shorted to each
other.

SIDE MODULE LH
[OPEN]

I

Side air bag module (LH) circuit is open.

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. Replace side air bag module (LH).

(Before disposal, it must be
deployed.)

4. Replace the diagnosis sensor unit.
5. Replace the related harness.

SIDE MODULE LH
[VB-SHORT]

I

Side air bag module (LH) circuit is shorted to some power
supply circuits.

SIDE MODULE LH
[GND-SHORT]

I

Side air bag module (LH) circuit is shorted to ground.

SIDE MODULE LH
[SHORT]

I

Side air bag module (LH) circuits are shorted to each other.

SIDE MODULE RH
[OPEN]

I

Side air bag module (RH) circuit is open.

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. Replace side air bag module (RH).

(Before disposal, it must be
deployed.)

4. Replace the diagnosis sensor unit.
5. Replace the related harness.

SIDE MODULE RH
[VB-SHORT]

I

Side air bag module (RH) circuit is shorted to some power
supply circuits.

SIDE MODULE RH
[GND-SHORT]

I

Side air bag module (RH) circuit is shorted to ground.

SIDE MODULE RH
[SHORT]

I

Side air bag module (RH) circuits are shorted to each other.

SATELLITE SENS LH
[UNIT FAIL]
SATELLITE SENS LH
[COMM FAIL]

I

Satellite sensor (LH)

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. Replace the satellite sensor (LH).
4. Replace the diagnosis sensor unit.
5. Replace the related harness.

SATELLITE SENS RH
[UNIT FAIL]
SATELLITE SENS RH
[COMM FAIL]

I

Satellite sensor (RH)

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. Replace the satellite sensor (RH).
4. Replace the diagnosis sensor unit.
5. Replace the related harness.

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

BT

HA

SC

EL

IDX

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Trouble Diagnoses with CONSULT-II (Cont’d)

RS-41

Diagnostic item

Explanation

Repair order

“Recheck SRS at each replace-

ment.”

PRE-TEN FRONT LH
[OPEN/VB-SHORT]

I

The circuit for front LH pre-tensioner is open or shorted to
some power supply circuit.

1. Visually check the wiring harness

connections.

2. Replace the harness if it has visible

damage.

3. Replace front LH seat belt.

(Before disposing, it must be deacti-
vated.)

4. Replace the diagnosis sensor unit.
5. Replace the related harness.

PRE-TEN FRONT LH
[GND-SHORT]

I

The circuit for front LH pre-tensioner is shorted to ground.

PRE-TEN FRONT RH
[OPEN/VB-SHORT]

I

The circuit for front RH pre-tensioner is open or shorted to
some power supply circuit.

1. Visually check the wiring harness

connections.

2. Replace the harness if it has visible

damage.

3. Replace front RH seat belt.

(Before disposing, it must be deacti-
vated.)

4. Replace the diagnosis sensor unit.
5. Replace the related harness.

PRE-TEN FRONT RH
[GND-SHORT]

I

The circuit for front RH pre-tensioner is shorted to ground.

CONTROL UNIT

I

Diagnosis sensor unit is malfunctioning.

1. Visually check the wiring harness

connection.

2. Replace the diagnosis sensor unit.

* Follow the procedures in numerical order when repairing malfunctioning parts. Confirm whether malfunction is eliminated
using the air bag warning lamp or CONSULT-II each time repair is finished. If malfunction is still observed, proceed to the next
step. When malfunction is eliminated, further repair work is not required.

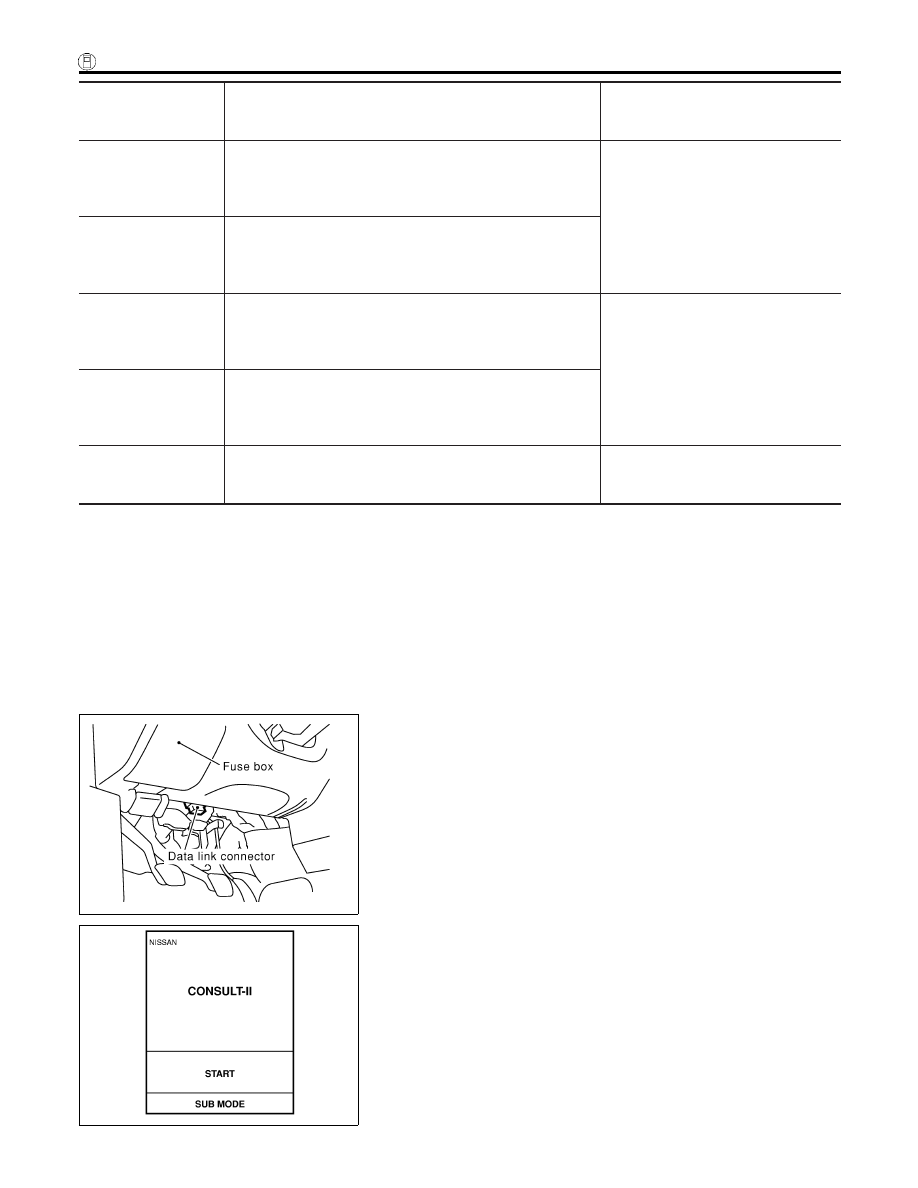

SRS844

DIAGNOSTIC PROCEDURE 3

NBRS0045S02

Final checking after repairing SRS by using CONSULT-II —
Diagnosis mode
1.

After repairing SRS, connect both battery cables.

2.

Connect CONSULT-II to Data link connector.

3.

Turn ignition switch from “OFF” to “ON”.

SRS695

4.

Touch “START”.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Trouble Diagnoses with CONSULT-II (Cont’d)

RS-42

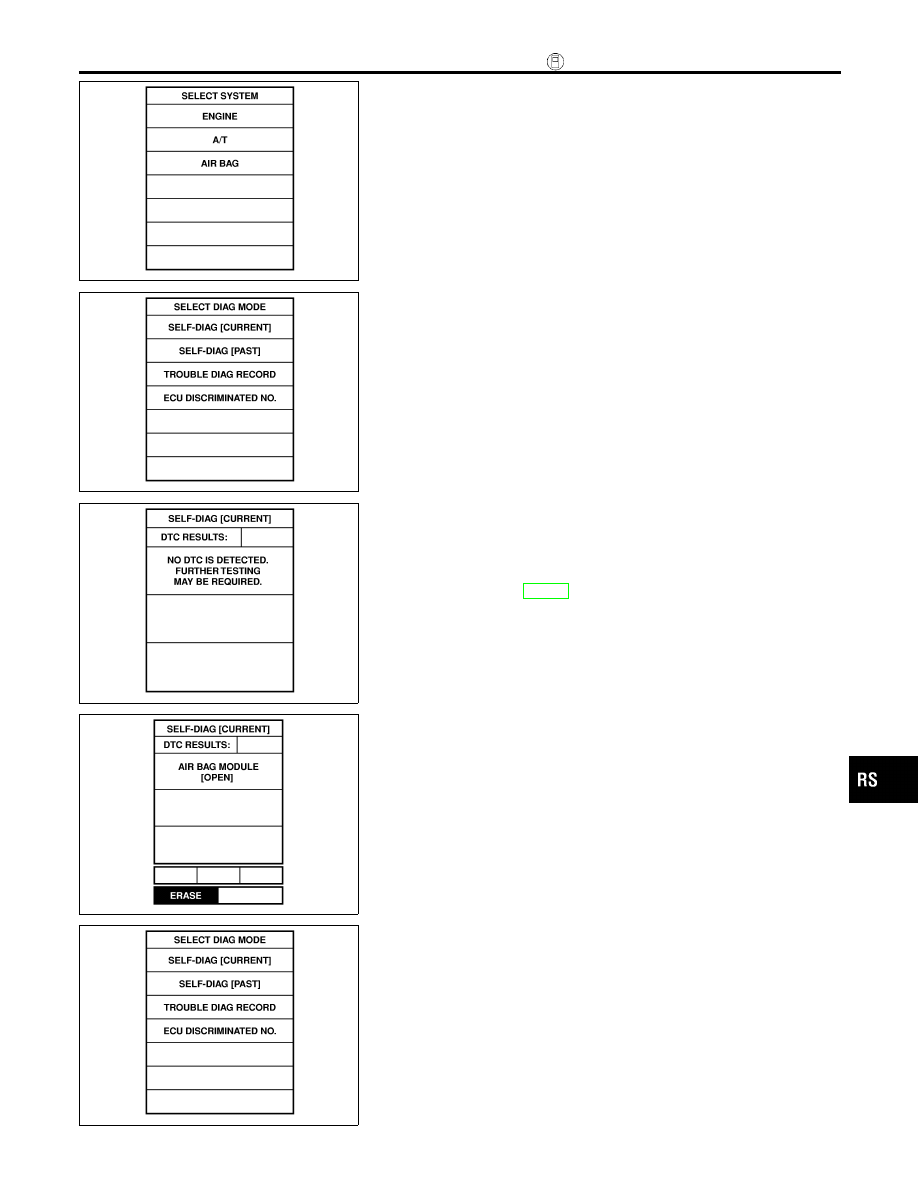

SRS771

5.

Touch “AIR BAG”.

SRS697

6.

Touch “SELF-DIAG [CURRENT]”.

SRS701

7.

If no malfunction is detected on “SELF-DIAG [CURRENT]”,
repair of SRS is completed. Go to step 8.
If any malfunction is displayed on “SELF-DIAG [CURRENT]”,
the malfunctioning part is not repaired completely or another
malfunctioning part is detected. Go to DIAGNOSTIC PROCE-
DURE 2, page RS-39, and repair malfunctioning part com-
pletely.

SRS773

8.

Touch “ERASE”.

NOTE:
Touch “ERASE” to clear the memory of the malfunction
(“SELF-DIAG [PAST]”).
If the memory of the malfunction in “SELF-DIAG [PAST]” is not
erased, the User mode shows the system malfunction by the
operation of the warning lamp even if the malfunction is repaired
completely.

SRS697

9.

Touch “BACK” key of CONSULT-II to “SELECT SYSTEM”
screen. Touch “SELF-DIAG [PAST]”.

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

BT

HA

SC

EL

IDX

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Trouble Diagnoses with CONSULT-II (Cont’d)

RS-43
