SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

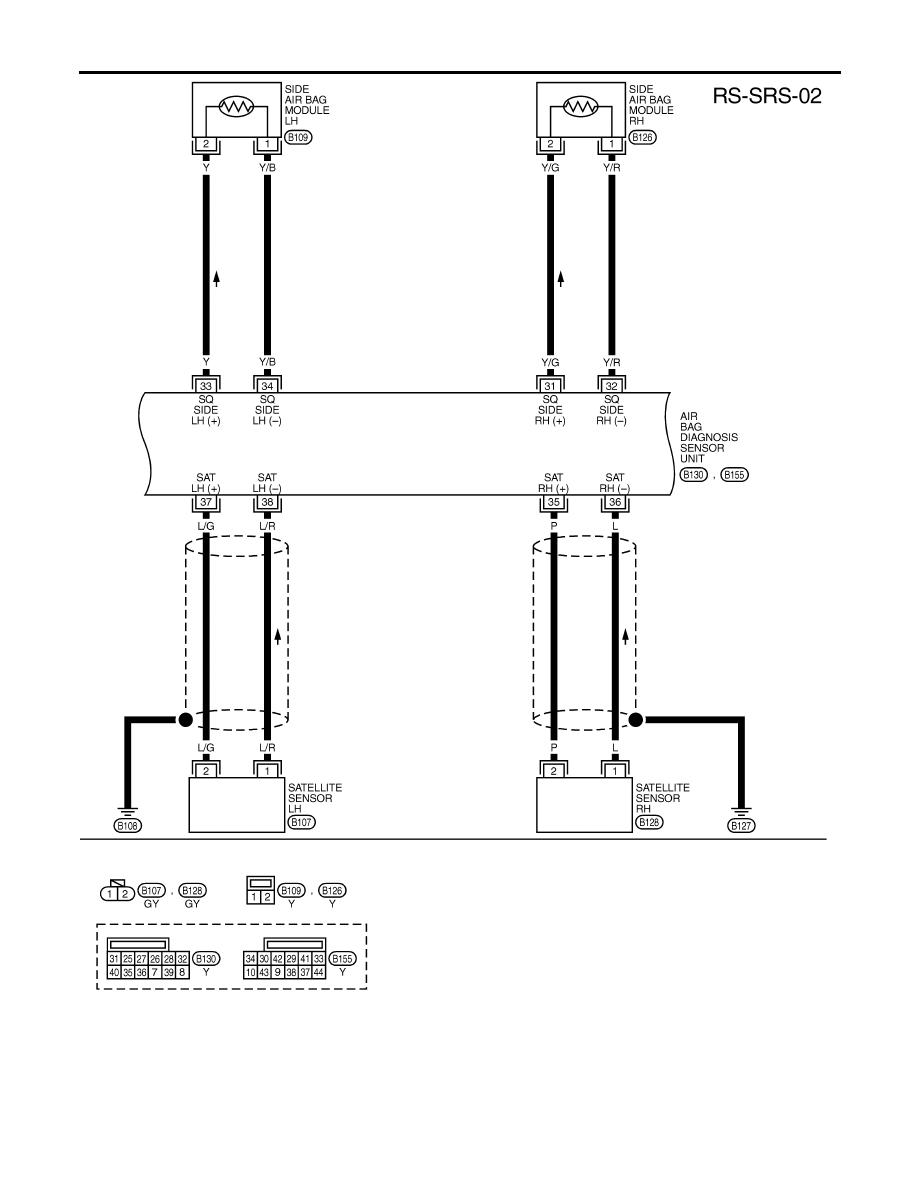

Wiring Diagram — SRS — (Cont’d)

RS-36

MRS327A

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

BT

HA

SC

EL

IDX

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

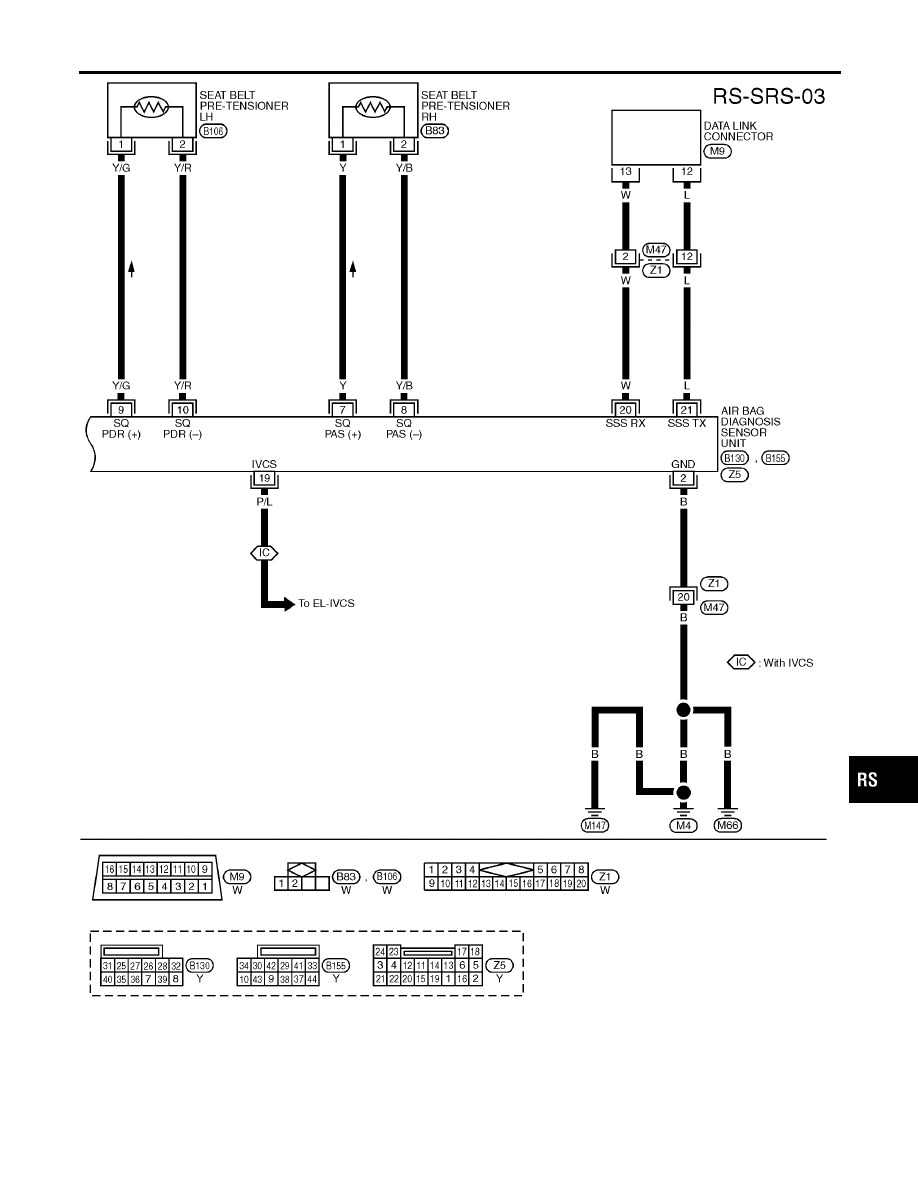

Wiring Diagram — SRS — (Cont’d)

RS-37

SRS800

SRS Operation Check

NBRS0044

DIAGNOSTIC PROCEDURE 1

NBRS0044S01

Checking Air Bag Operation by Using “AIR BAG”
Warning Lamp — User Mode

NBRS0044S0101

1.

After turning ignition switch from “OFF” to “ON”, “AIR BAG”
warning lamp operates.

2.

Compare “AIR BAG” warning lamp operation to the chart
below.

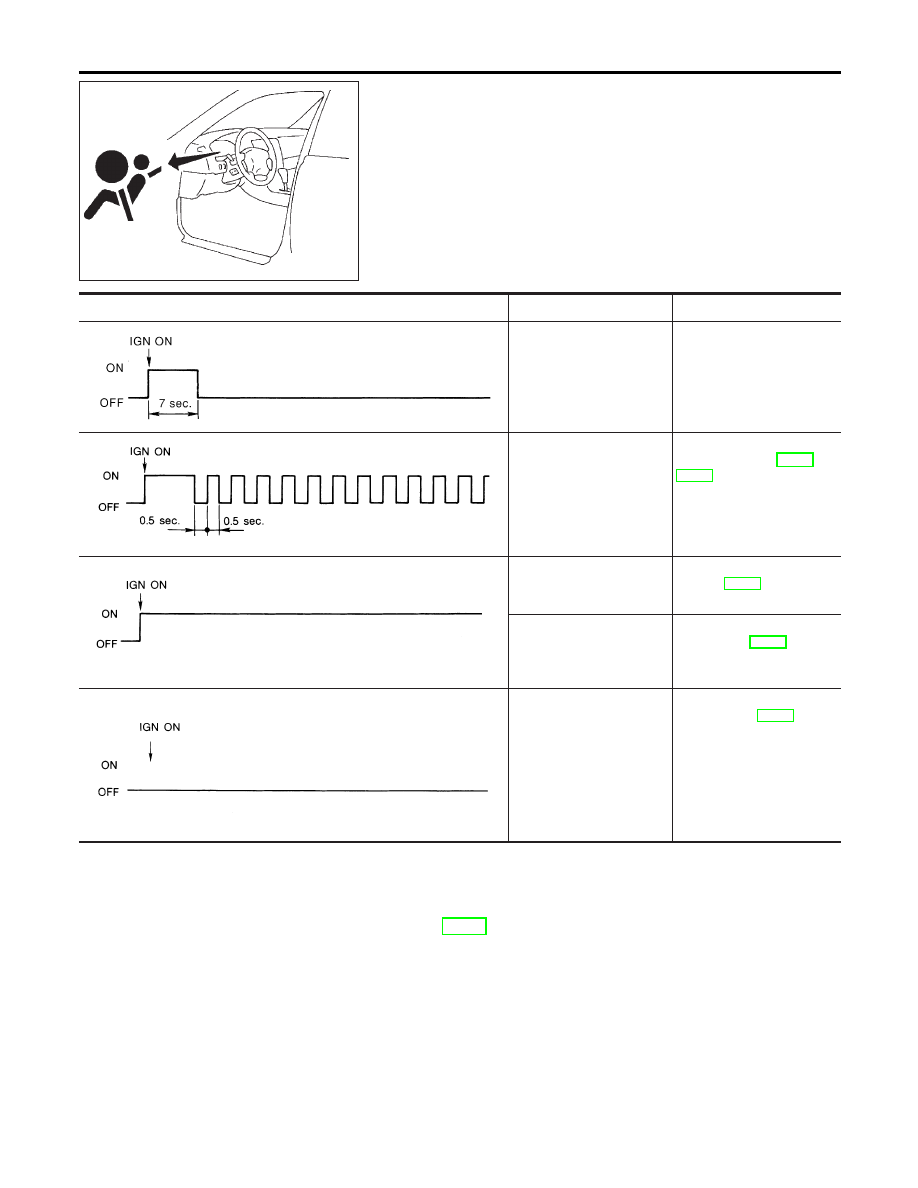

“AIR BAG” warning lamp operation — User mode —

SRS condition

Reference item

MRS095A

No malfunction is
detected. No further action
is necessary.

MRS096A

The system is malfunction-
ing and needs to be
repaired as indicated.

Go to DIAGNOSTIC PRO-
CEDURE 2 or 6 (RS-39 or
RS-48).

MRS097A

Air bag is deployed.
Seat belt pre-tensioner is
deployed.

Go to COLLISION DIAG-
NOSIS (RS-56).

Air bag fuse, diagnosis
sensor unit or harness is
malfunctioning and needs
to be repaired.

Go to DIAGNOSTIC PRO-
CEDURE 9 (RS-59).

MRS098A

One of the following has
occurred and needs to be
repaired.

I

Meter fuse is blown.

I

“AIR BAG” warning
lamp circuit has open or
short.

I

Diagnosis sensor unit is
malfunctioning.

Go to DIAGNOSTIC PRO-
CEDURE 10 (RS-58).

NOTE:
If “AIR BAG” warning lamp operates differently from the
operations shown above, refer to “AIR BAG” warning lamp
operation — Diagnosis mode —
, DIAGNOSTIC PROCEDURE 6
(step 4), RS-48.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

SRS Operation Check

RS-38

SRS844

Trouble Diagnoses with CONSULT-II

=NBRS0045

DIAGNOSTIC PROCEDURE 2

NBRS0045S01

Inspecting SRS malfunctioning parts by using CONSULT-II —
Diagnosis mode

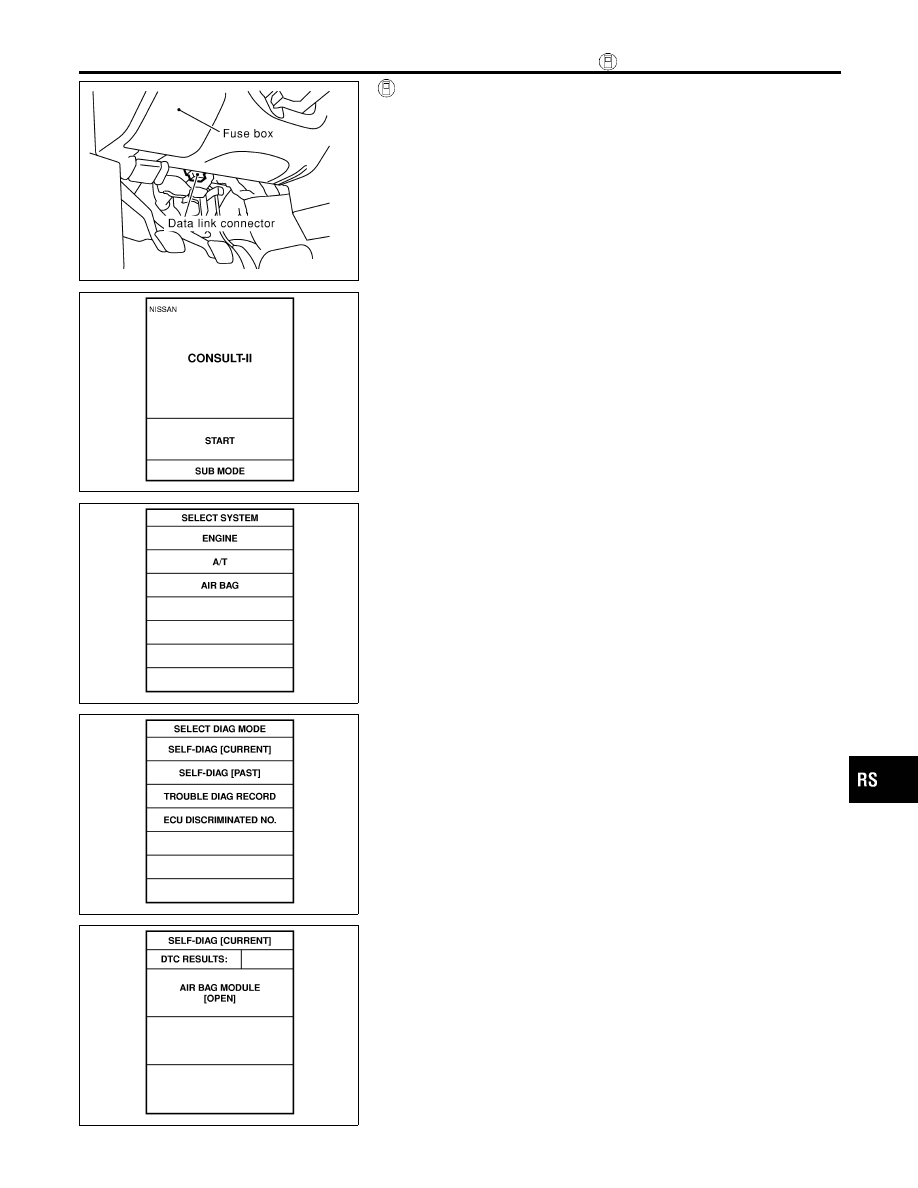

1.

Turn ignition switch “OFF”.

2.

Connect CONSULT-II to data link connector.

SRS695

3.

Turn ignition switch “ON”.

4.

Touch “START”.

SRS771

5.

Touch “AIR BAG”.

SRS697

6.

Touch “SELF-DIAG [CURRENT]”.

SRS772

7.

Diagnostic codes are displayed on “SELF-DIAG [CURRENT]”.

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

BT

HA

SC

EL

IDX

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Trouble Diagnoses with CONSULT-II

RS-39
