Infiniti QX4 (R50). Manual - part 505





2WD, 4WD model
8.5



(9 US qt, 7-1/2 Imp qt)

Drain plug:

: 29 - 39 N·m (3.0 - 4.0 kg-m, 22 - 29 ft-lb)

4.

Run engine at idle speed for five minutes.

5.

Check fluid level and condition. Refer to MA-21, “Checking A/T
Fluid”. If fluid is still dirty, repeat steps 2 through 5.

SMA439B

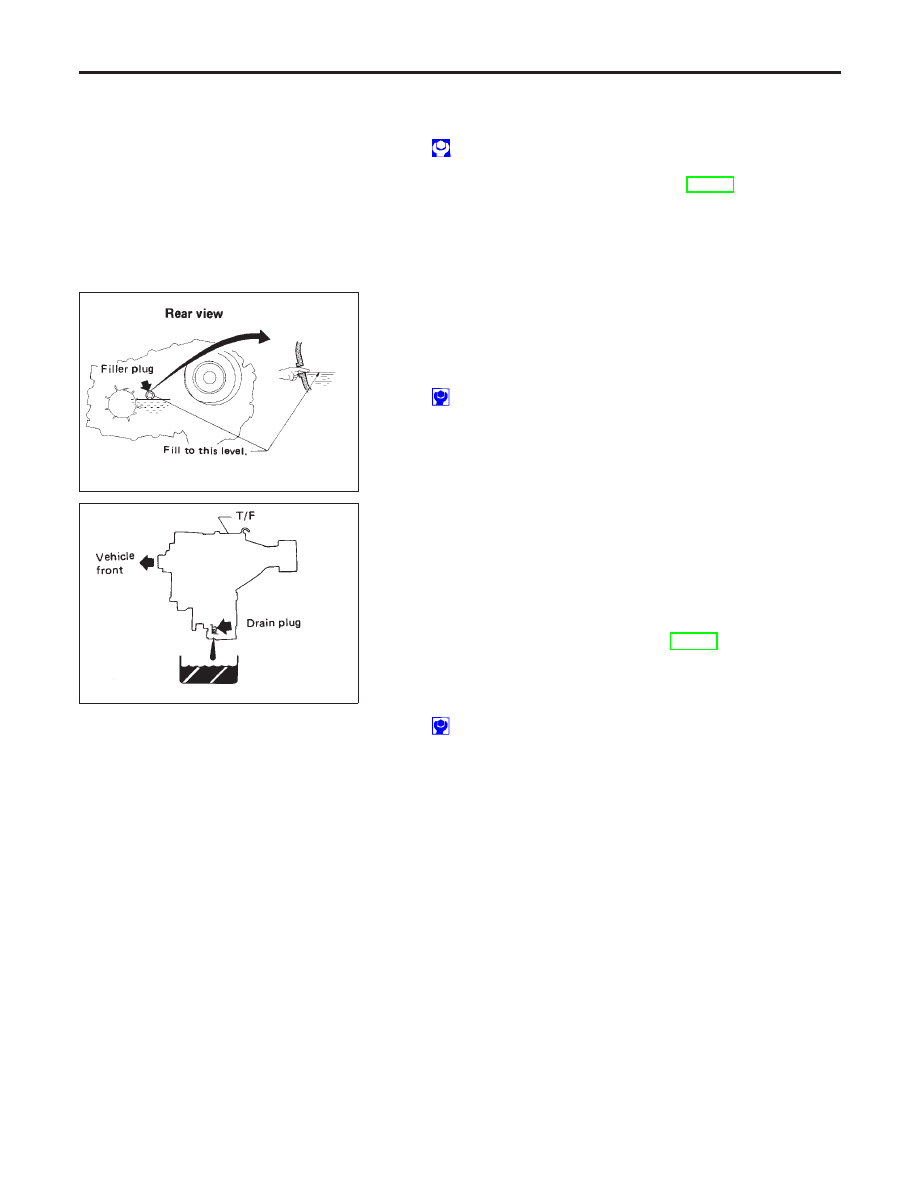

Checking All-mode 4WD Transfer Fluid

NBMA0022

Check for oil leakage and fluid level.
A/T fluid is used for the all-mode 4WD transfer in the factory.
Never start engine while checking fluid level.

Filler plug:

: 10 - 20 N·m (1.0 - 2.0 kg-m, 87 - 174 in-lb)

SMA444B

Changing All-mode 4WD Transfer Fluid

NBMA0023

When changing all-mode 4WD transfer fluid completely, A/T fluid
may be used.

Fluid grade:

Nissan Matic “D” (Continental U.S. and Alaska) or
Canada NISSAN Automatic Transmission Fluid.
Refer to “Fluids and Lubricants”, “RECOMMENDED
FLUIDS AND LUBRICANTS”, MA-11.

Fluid capacity:

3.0



(3-1/8 US qt, 2-5/8 Imp qt)

Drain plug:

: 10 - 20 N·m (1.0 - 2.0 kg-m, 87 - 174 in-lb)

CHASSIS AND BODY MAINTENANCE

Changing A/T Fluid (Cont’d)

MA-22

SMA231

SMA872C

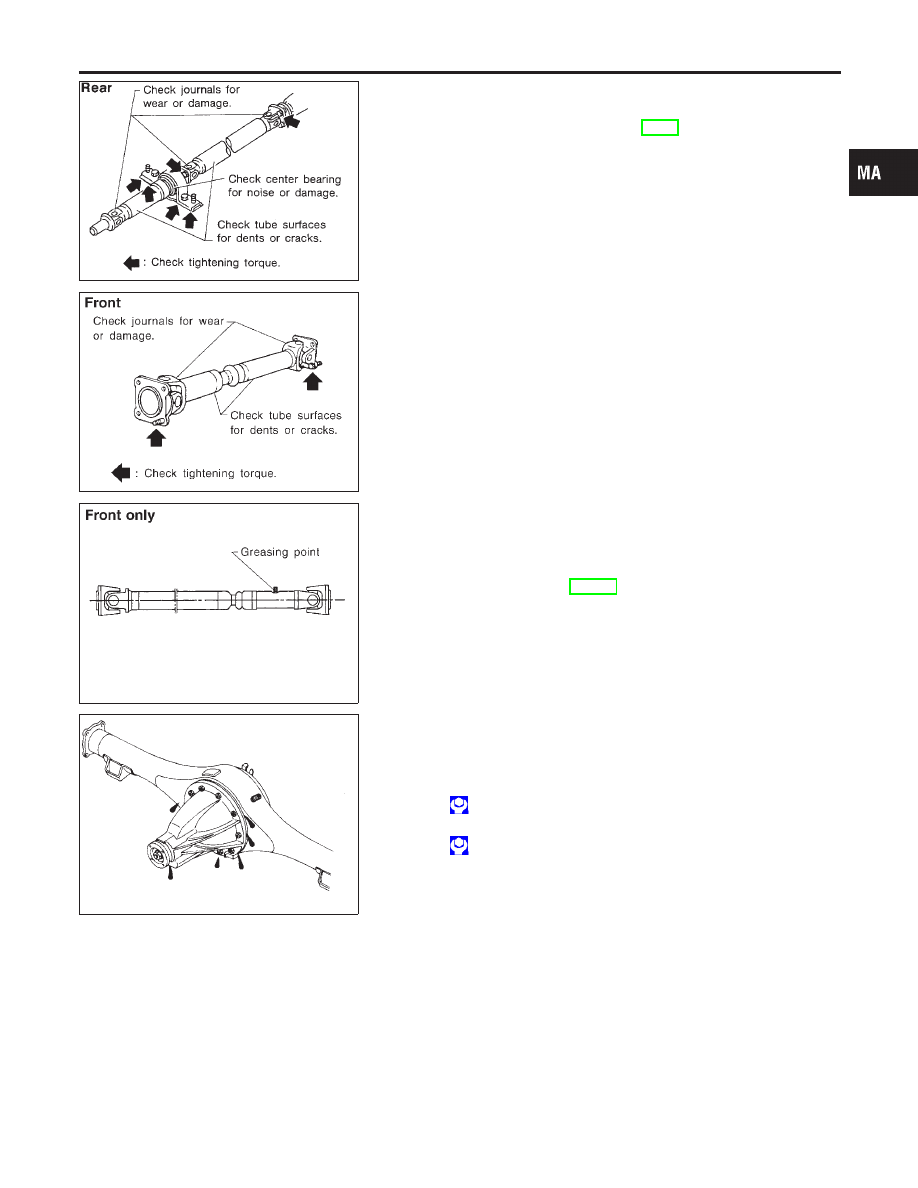

Checking Propeller Shaft

NBMA0024

Check propeller shaft for damage, looseness or grease leakage.

Tightening torque: Refer to PD-4, “Components”.

SMA873C

Greasing Propeller Shaft

NBMA0025

Apply specified grease to nipples provided on propeller shaft.

Grease grade:

Refer

to

“RECOMMENDED

FLUIDS

AND

LUBRICANTS”, MA-11.

SMA440B

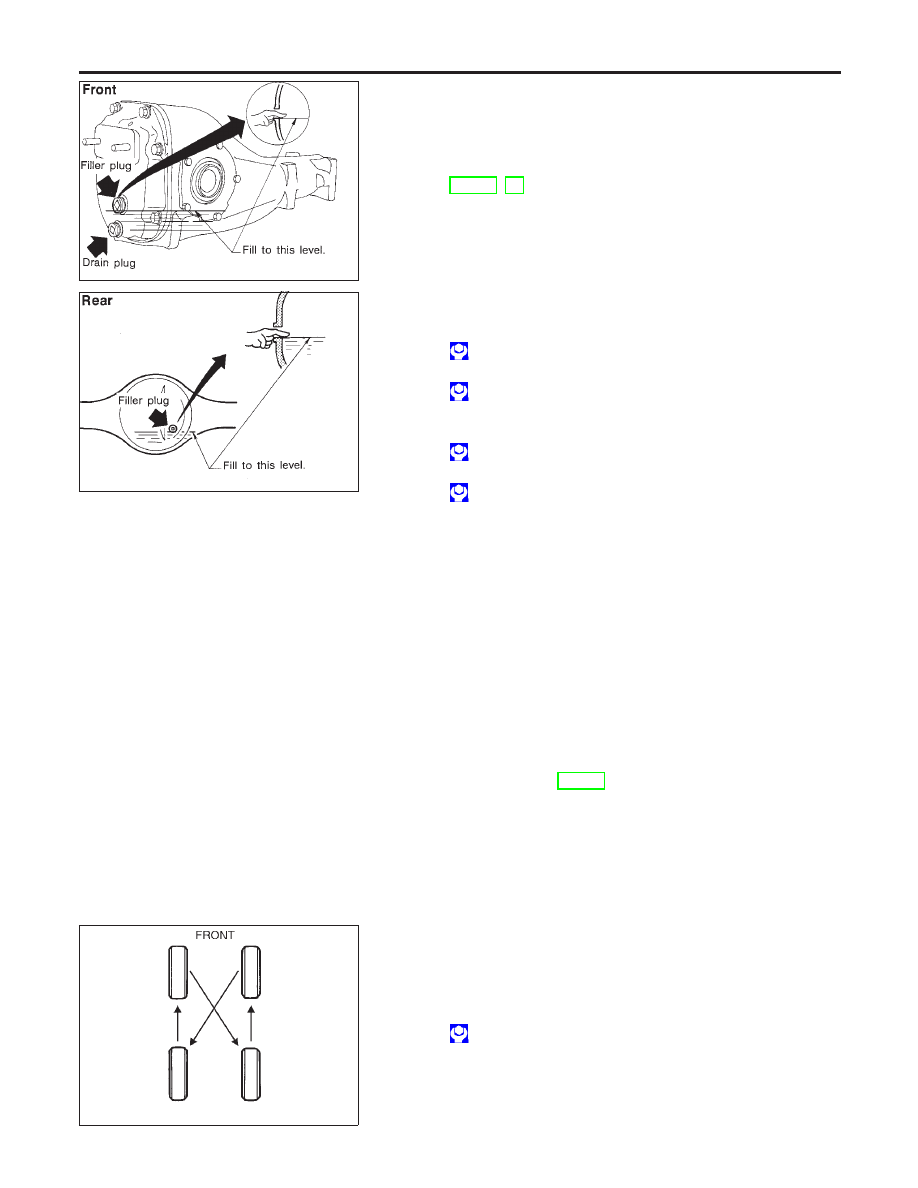

Checking Differential Gear Oil

NBMA0026

Check for oil leakage and oil level.

Filler plug:

Front

: 39 - 59 N·m (4 - 6 kg-m, 29 - 43 ft-lb)

Rear

: 59 - 118 N·m (6 - 12 kg-m, 43 - 87 ft-lb)

GI

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

CHASSIS AND BODY MAINTENANCE

Checking Propeller Shaft

MA-23

SMA632C

SMA631C

Changing Differential Gear Oil

NBMA0027

1.

Drain oil from drain plug and refill with new gear oil.

2.

Check oil level.

Oil grade and viscosity:

See “RECOMMENDED FLUIDS AND LUBRICATNS”,
MA-11,
12.

Oil capacity:

Front

1.85



(3-7/8 US pt, 3-1/4 Imp pt)

Rear

2.8



(5-7/8 US pt, 4-7/8 Imp pt)

Filler plug:

Front

: 39 - 59 N·m (4 - 6 kg-m, 29 - 43 ft-lb)

Rear

: 59 - 118 N·m (6 - 12 kg-m, 43 - 87 ft-lb)

Drain plug:

Front

: 59 - 98 N·m (6 - 10 kg-m, 43 - 72 ft-lb)

Rear

: 59 - 118 N·m (6 - 12 kg-m, 43 - 87 ft-lb)

LIMITED-SLIP DIFFERENTIAL GEAR

NBMA0027S01

I

Use only approved limited-slip differential gear oil.

I

Limited-slip differential identification.

1.

Lift both rear wheels off the ground.

2.

Turn one rear wheel by hand.

3.

If both rear wheels turn in the same direction simultaneously,
vehicle is equipped with limited-slip differential.

Balancing Wheels

NBMA0028

Adjust wheel balance using the road wheel center.

Wheel balance (Maximum allowable unbalance):

Refer to SDS, MA-29.

SGI991

Tire Rotation

NBMA0029

I

After rotating the tires, adjust the tire pressure.

I

Retighten the wheel nuts after the vehicle has been driven
for 1,000 km (600 miles). (also in cases of a flat tire, etc.)

Wheel nuts:

: 118 - 147 N·m (12 - 15 kg-m, 87 - 108 ft-lb)

CHASSIS AND BODY MAINTENANCE

Changing Differential Gear Oil

MA-24

SBR451D

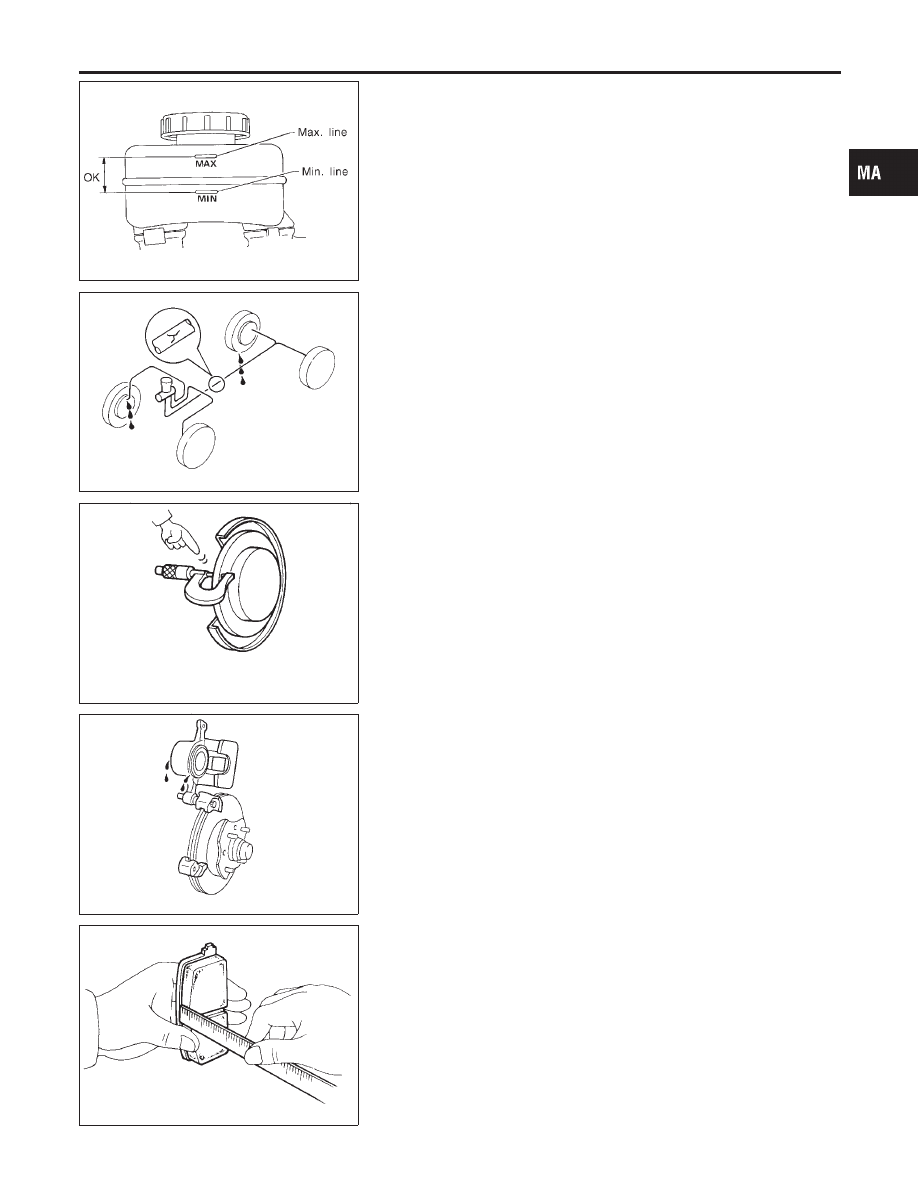

Checking Brake Fluid Level and Leaks

NBMA0030

If fluid level is extremely low, check brake system for leaks.

SBR389C

Checking Brake Lines and Cables

NBMA0031

Check brake fluid lines and parking brake cables for improper
attachment, leaks, chafing, abrasions and deterioration.

SMA260A

Checking Disc Brake

NBMA0032

ROTOR

NBMA0032S01

Check condition and thickness.

Standard thickness:

28 mm (1.10 in)

Minimum thickness:

26 mm (1.02 in)

SMA922A

CALIPER

NBMA0032S02

Check for leakage.

SMA847B

PAD

NBMA0032S03

Check wear or damage.

Standard thickness:

11 mm (0.43 in)

Minimum thickness:

2 mm (0.08 in)

GI

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

CHASSIS AND BODY MAINTENANCE

Checking Brake Fluid Level and Leaks

MA-25
