Infiniti QX4 (R50). Manual - part 487





Maintenance of Lubricant Quantity in
Compressor

NBHA0071

The lubricant in the compressor circulates through the system with
the refrigerant. Add lubricant to compressor when replacing any
component or after a large gas leakage occurred. It is important to
maintain the specified amount.
If lubricant quantity is not maintained properly, the following mal-
functions may result:

I

Lack of lubricant: May lead to a seized compressor

I

Excessive lubricant: Inadequate cooling (thermal exchange
interference)

LUBRICANT

NBHA0071S01

Name: Nissan A/C System Oil Type S
Part number: KLH00-PAGS0

CHECKING AND ADJUSTING

NBHA0071S02

Adjust the lubricant quantity according to the test group shown
below.

1

CHECK LUBRICANT RETURN OPERATION

Can lubricant return operation be performed?

I

A/C system works properly.

I

There is no evidence of a large amount of lubricant leakage.

Yes or No

Yes

©

GO TO 2.

No

©

GO TO 3.

2

PERFORM LUBRICANT RETURN OPERATION, PROCEEDING AS FOLLOWS:

1. Start engine, and set the following conditions:

I

Test condition
Engine speed: Idling to 1,200 rpm
A/C or AUTO switch: ON
Blower speed: Max. position
Temp. control: Optional [Set so that intake air temperature is 25 to 30°C (77 to 86°F).]

2. Next item is for V-5 or V-6 compressor. Connect the manifold gauge, and check that the high pressure side

pressure is 588 kPa (6 kg/cm

2

, 85 psi) or higher.

If less than the reference level, attach a cover to the front face of the condenser to raise the pressure.

3. Perform lubricant return operation for about 10 minutes.
4. Stop engine.

CAUTION:

If excessive lubricant leakage is noted, do not perform the lubricant return operation.

OK

©

GO TO 3.

3

CHECK COMPRESSOR

Should the compressor be replaced?

Yes or No

Yes

©

Go to “Lubricant Adjustment Procedure for Compressor Replacement”, (HA-148).

No

©

GO TO 4.

SERVICE PROCEDURE

Maintenance of Lubricant Quantity in Compressor

HA-146

4

CHECK ANY PART

Is there any part to be replaced? (Evaporator, condenser, liquid tank or in case there is evidence of a large amount of
lubricant leakage.)

Yes or No

Yes

©

Go to “Lubricant Adjusting Procedure for Components Replacement Except
Compressor”, (HA-148).

No

©

Carry out the A/C performance test.

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

SC

EL

IDX

SERVICE PROCEDURE

Maintenance of Lubricant Quantity in Compressor (Cont’d)

HA-147

Lubricant Adjusting Procedure for Components
Replacement Except Compressor

=NBHA0071S0201

After replacing any of the following major components, add the
correct amount of lubricant to the system.
Amount of lubricant to be added

Part replaced

Lubricant to be added to

system

Remarks

Amount of lubricant

m



(US fl oz, Imp fl oz)

Evaporator

75 (2.5, 2.6)

Condenser

75 (2.5, 2.6)

Liquid tank

5 (0.2, 0.2)

Add if compressor is not

replaced. *1

In case of refrigerant
leak

30 (1.0, 1.1)

Large leak

Small leak *2

*1:

If compressor is replaced, addition of lubricant is included in the table.

*2:

If refrigerant leak is small, no addition of lubricant is needed.

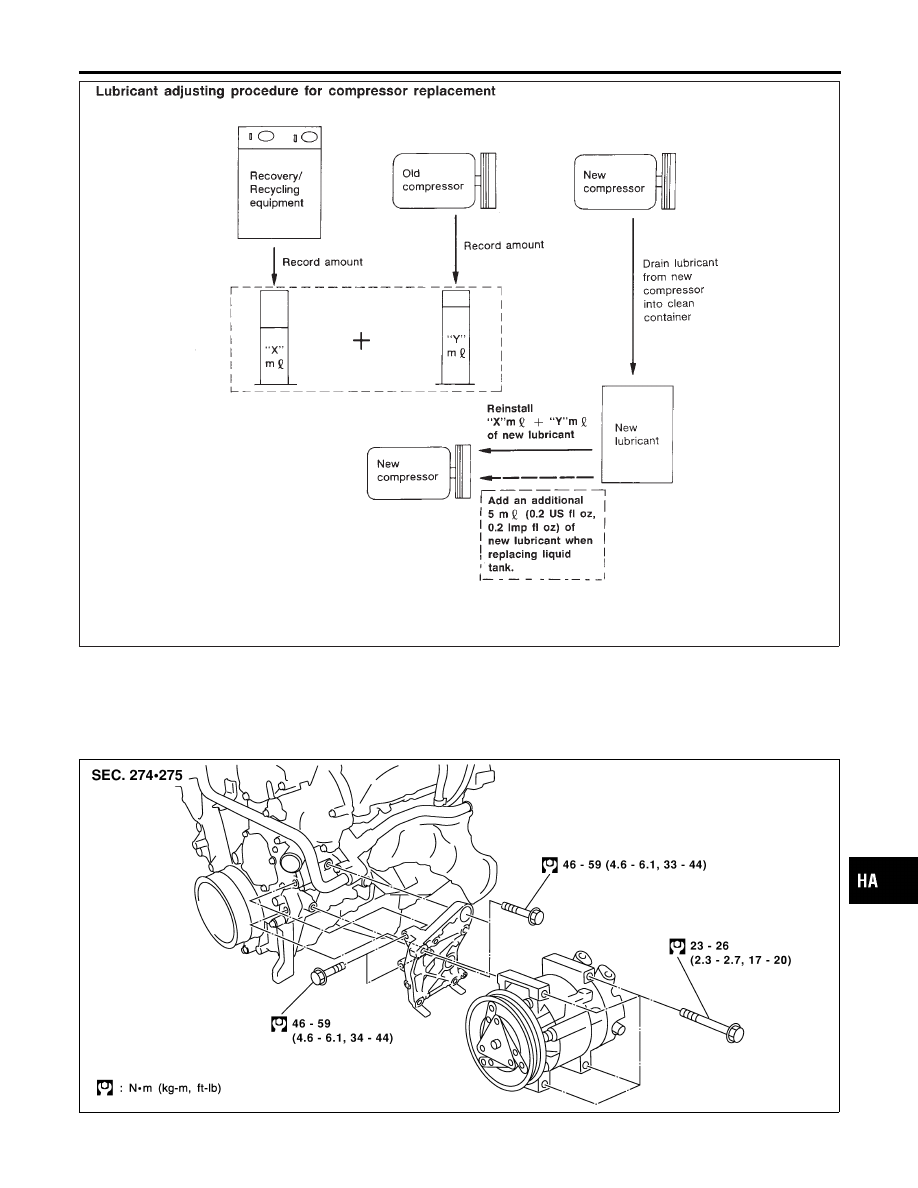

Lubricant Adjusting Procedure for Compressor
Replacement

NBHA0071S0202

1.

Before connecting ACR4 to vehicle, check ACR4 gauges. No
refrigerant pressure should be displayed. If NG, recover refrig-
erant from equipment lines.

2.

Connect ACR4 to vehicle. Confirm refrigerant purity in supply
tank using ACR4 and refrigerant identifier. If NG, refer to
“CONTAMINATED REFRIGERANT”, HA-2.

3.

Confirm refrigerant purity in vehicle A/C system using ACR4
and refrigerant identifier. If NG, refer to “CONTAMINATED
REFRIGERANT”, HA-2.

4.

Discharge refrigerant into the refrigerant recovery/recycling
equipment. Measure lubricant discharged into the recovery/
recycling equipment.

5.

Remove the drain plug of the “old” (removed) compressor.
Drain the lubricant into a graduated container and record the
amount of drained lubricant.

6.

Remove the drain plug and drain the lubricant from the “new”
compressor into a separate, clean container.

7.

Measure an amount of new lubricant installed equal to amount
drained from “old” compressor. Add this lubricant to “new” com-
pressor through the suction port opening.

8.

Measure an amount of new lubricant equal to the amount
recovered during discharging. Add this lubricant to “new” com-
pressor through the suction port opening.

9.

Torque the drain plug.

18 - 19 N·m (1.8 - 1.9 kg-m, 13 - 14 ft-lb)

10. If the liquid tank also needs to be replaced, add an additional

5 m



(0.2 US fl oz, 0.2 Imp fl oz) of lubricant at this time.

Do not add this 5 m



(0.2 US fl oz, 0.2 Imp fl oz) of lubri-

cant if only replacing the compressor.

SERVICE PROCEDURE

Maintenance of Lubricant Quantity in Compressor (Cont’d)

HA-148

RHA065DD

Compressor

REMOVAL AND INSTALLATION

NBHA0072

RHA892H

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

SC

EL

IDX

SERVICE PROCEDURE

Maintenance of Lubricant Quantity in Compressor (Cont’d)

HA-149
