4

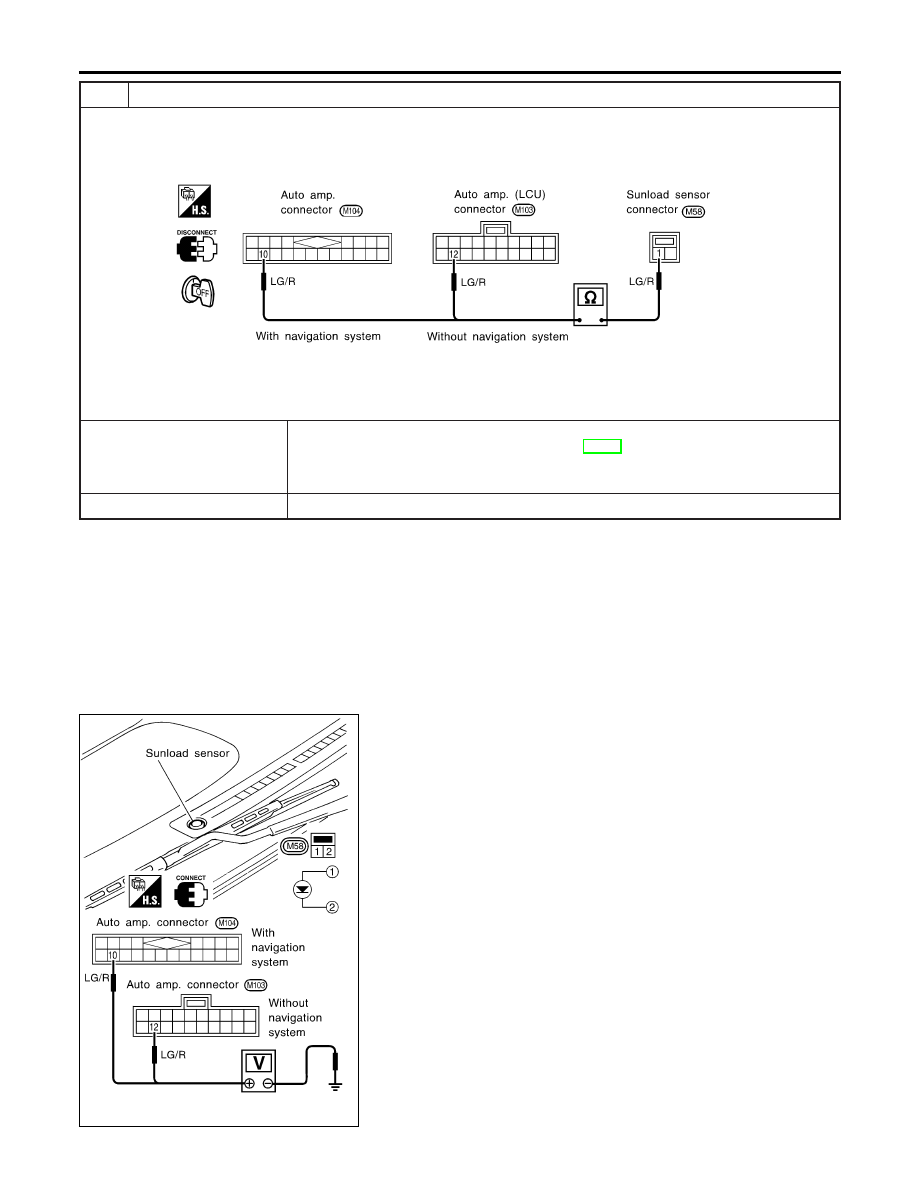

CHECK SUNLOAD SENSOR CIRCUIT BETWEEN SUNLOAD SENSOR AND AUTO AMP. (LCU)

1. Disconnect auto amp. (LCU) harness connector.
2. Check circuit continuity between sunload sensor harness terminal No. 1 and auto amp. (LCU) harness terminal No. 12

or 10.

RHA834H

Continuity should exist.

If OK, check harness for short.

OK or NG

OK

©

1. Replace auto amp.
2. Go to self-diagnosis step-by-step procedure (HA-45) and perform self-diagnosis STEP

2.
Confirm that code No. 20 is displayed.

NG

©

Repair harness or connector.

RHA835H

COMPONENT INSPECTION

NBHA0049

Sunload Sensor

NBHA0049S01

Measure voltage between auto amp. terminal 12 (10) and body
ground.
If NG, replace sunload sensor.

I

When checking sunload sensor, select a place where sun
shines directly on it.

TROUBLE DIAGNOSES

Sunload Sensor Circuit (Cont’d)

HA-138

SHA930E

RHA584E

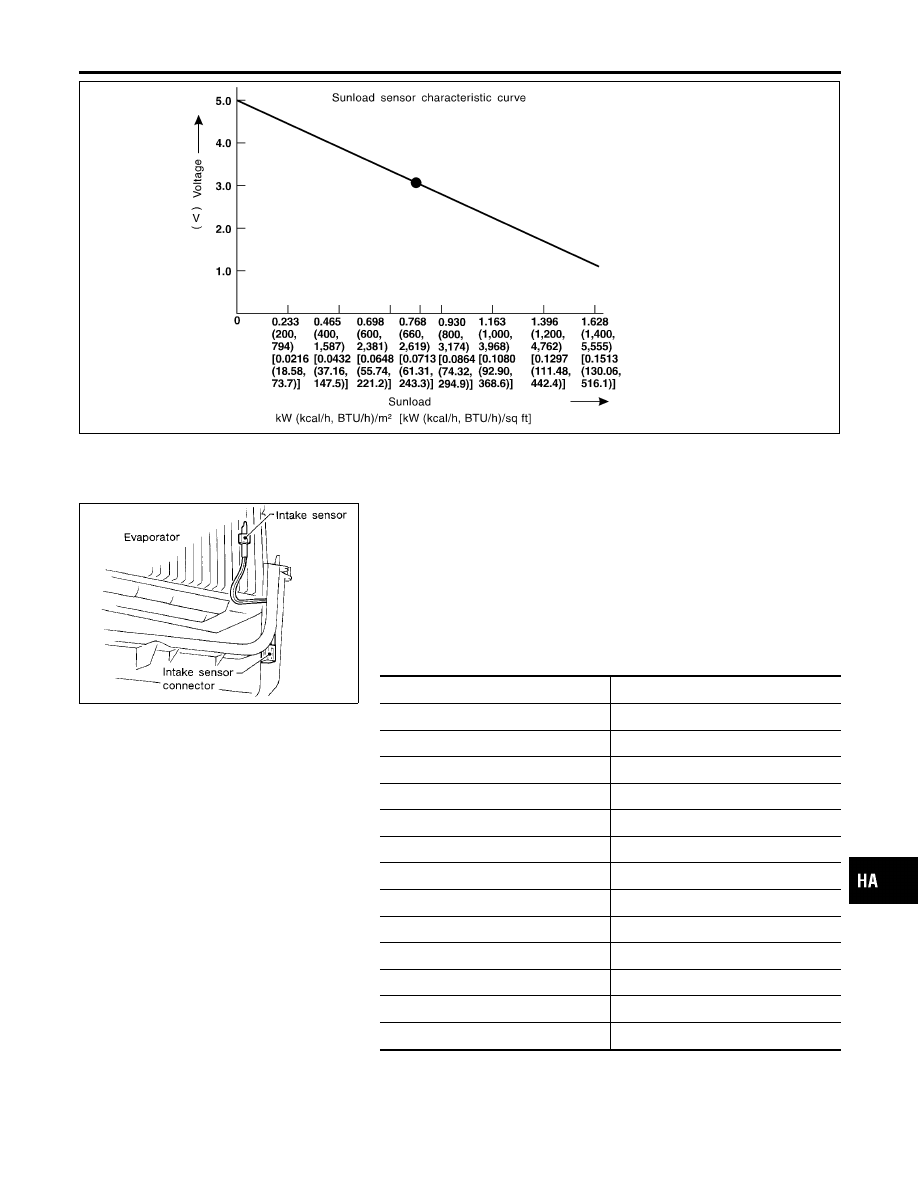

Intake Sensor Circuit

COMPONENT DESCRIPTION

NBHA0105

Intake Sensor

NBHA0105S01

The intake sensor is located on the cooling unit. It converts tem-
perature of air after it passes through the evaporator into a resis-
tance value which is then input to the auto amp.
After disconnecting intake sensor harness connector, measure
resistance between terminals 1 and 2 at sensor harness side, using
the table below.

Temperature °C (°F)

Resistance k

−15 (5)

12.73

−10 (14)

9.92

−5 (23)

7.80

0 (32)

6.19

5 (41)

4.95

10 (50)

3.99

15 (59)

3.24

20 (68)

2.65

25 (77)

2.19

30 (86)

1.81

35 (95)

1.51

40 (104)

1.27

45 (113)

1.07

If NG, replace intake sensor.

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

SC

EL

IDX

TROUBLE DIAGNOSES

Sunload Sensor Circuit (Cont’d)

HA-139

RHA056GI

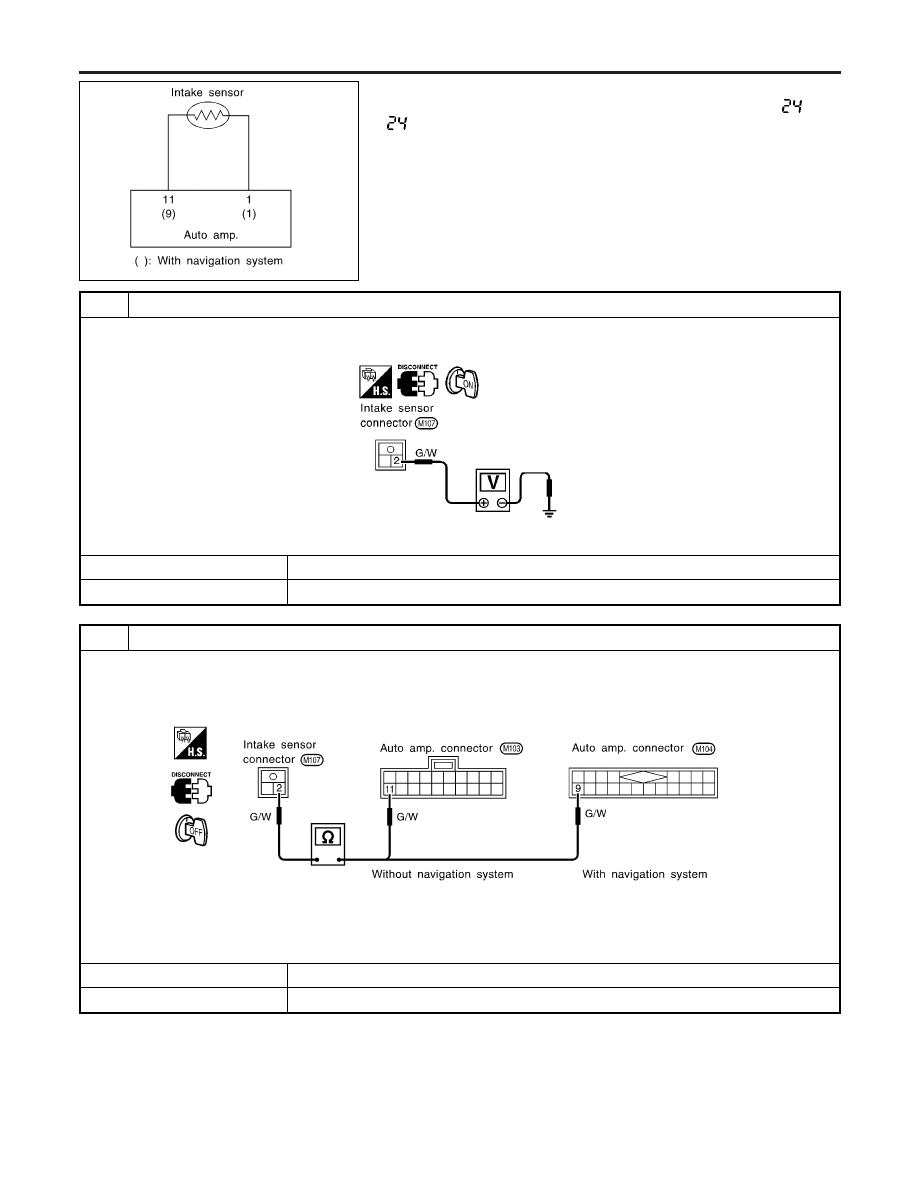

DIAGNOSTIC PROCEDURE

NBHA0106

SYMPTOM: Intake sensor circuit is open or shorted. (

or

is indicated on the display as a result of conducting

Self-diagnosis STEP 2.)

1

CHECK INTAKE SENSOR CIRCUIT BETWEEN INTAKE SENSOR AND BODY GROUND

Disconnect intake sensor harness connector.
Do approx. 5 volts exist between intake sensor harness terminal No. 2 and body ground?

RHA495G

Yes or No

Yes

©

GO TO 2.

No

©

GO TO 4.

2

CHECK INTAKE SENSOR CIRCUIT BETWEEN INTAKE SENSOR AND AUTO AMP. (LCU)

1. Disconnect auto amp. (LCU) harness connector.
2. Check circuit continuity between intake sensor harness terminal No. 2 and auto amp. (LCU) harness terminal No. 11 or

9.

RHA836H

Continuity should exist.

If OK, check harness for short.

OK or NG

OK

©

GO TO 3.

NG

©

Repair harness or connector.

TROUBLE DIAGNOSES

Intake Sensor Circuit (Cont’d)

HA-140

3

CHECK INTAKE SENSOR

Refer to HA-139.

OK or NG

OK

©

1. Replace auto amp.
2. Go to self-diagnosis step-by-step procedure (HA-45) and perform self-diagnosis STEP

2.
Confirm that code No. 20 is displayed.

NG

©

1. Replace intake sensor.
2. Go to self-diagnosis step-by-step procedure (HA-45) and perform self-diagnosis STEP

2.
Confirm that code No. 20 is displayed.

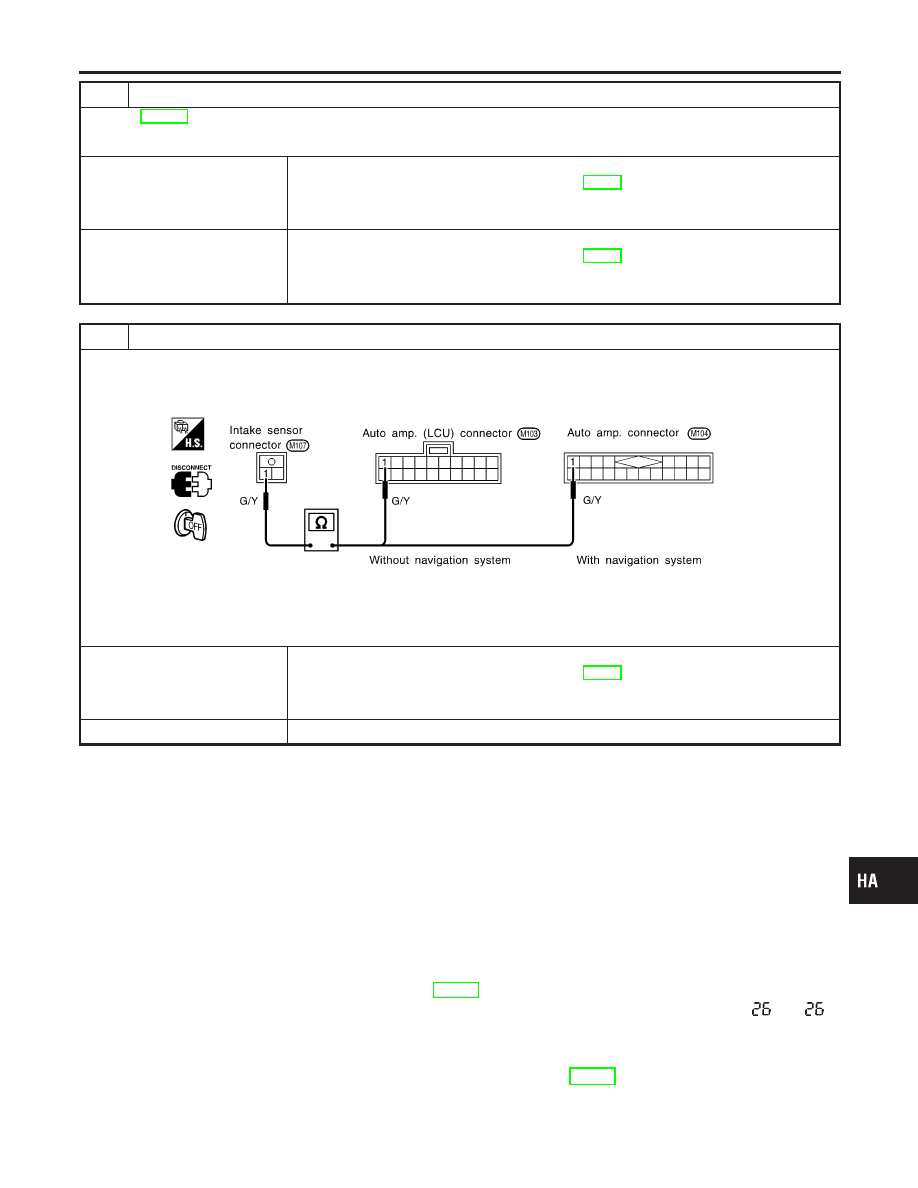

4

CHECK INTAKE SENSOR CIRCUIT BETWEEN AMBIENT SENSOR AND AUTO AMP. (LCU)

1. Disconnect auto amp. (LCU) harness connector.
2. Check circuit continuity between intake sensor harness terminal No. 1 and auto amp. (LCU) harness terminal No. 1.

RHA837H

Continuity should exist.

If OK, check harness for short.

OK or NG

OK

©

1. Replace auto amp.
2. Go to self-diagnosis step-by-step procedure (HA-45) and perform self-diagnosis STEP

2.
Confirm that code No. 20 is displayed.

NG

©

Repair harness or connector.

Air Mix Door Motor PBR Circuit

DIAGNOSTIC PROCEDURE

NBHA0050

For description of mode door motor and air mix door motor circuit,
refer to HA-84.
SYMPTOM: If PBR circuit is open or shorted. (−

or

is

indicated on the display as a result of conducting Self-diag-
nosis STEP 2.)
Perform diagnostic procedure for mode door motor and air
mix door motor. Refer to HA-78.

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

SC

EL

IDX

TROUBLE DIAGNOSES

Intake Sensor Circuit (Cont’d)

HA-141
