Infiniti QX4 (R50). Manual - part 481

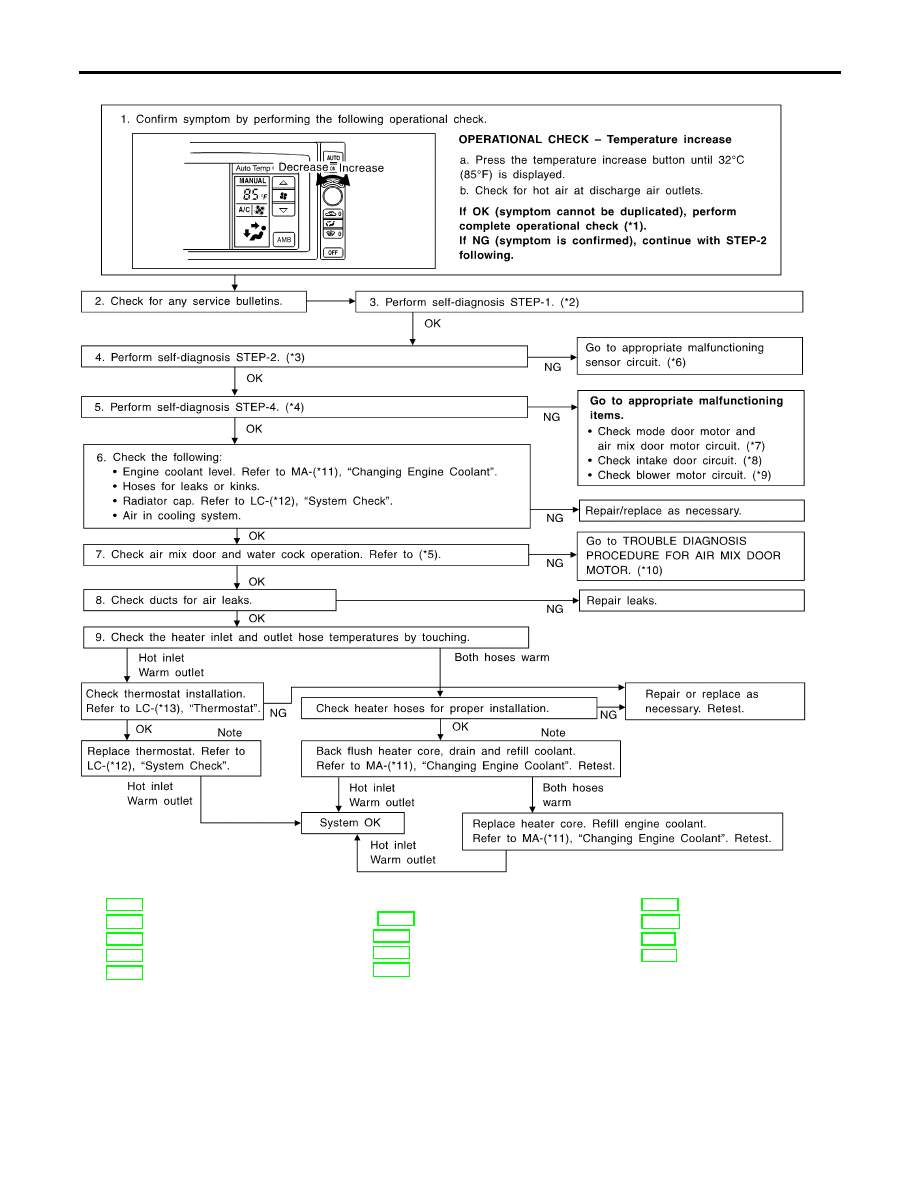

With Navigation System

NBHA0097S0102

RHA882H

*1: HA-66
*2: HA-44
*3: HA-45
*4: HA-45
*5: HA-85

*6: STEP-BY-STEP PROCEDURE

(HA-45), see No. 13.

*7: HA-78
*8: HA-90
*9: HA-98

*10: HA-82
*11: MA-14
*12: LC-11
*13: LC-16

TROUBLE DIAGNOSES

Insufficient Heating (Cont’d)

HA-122

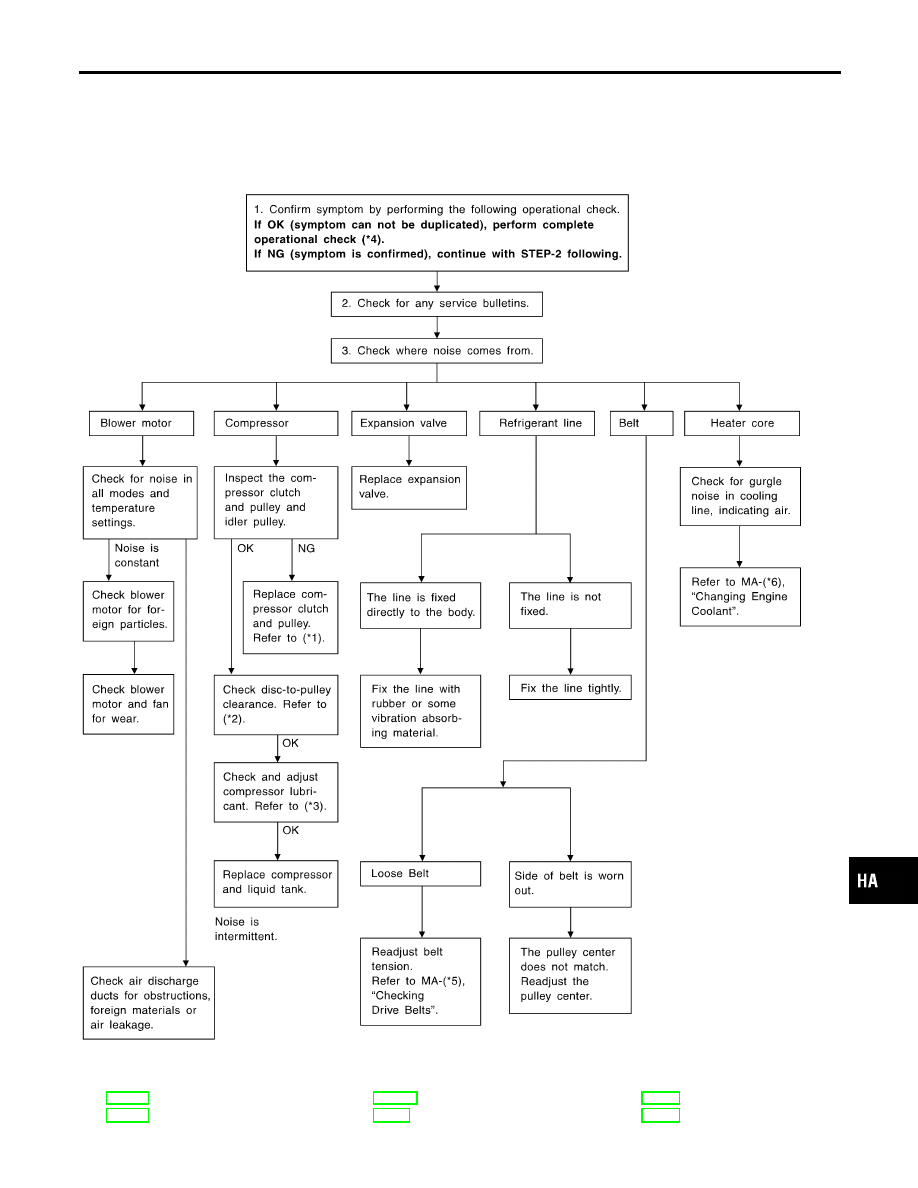

Noise

TROUBLE DIAGNOSIS PROCEDURE FOR NOISE

=NBHA0100

SYMPTOM:

I

Noise

RHA883H

*1: HA-150
*2: HA-152

*3: HA-146
*4: HA-66

*5: MA-13
*6: MA-14

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

SC

EL

IDX

TROUBLE DIAGNOSES

Noise

HA-123

Self-diagnosis

TROUBLE DIAGNOSIS PROCEDURE FOR SELF-DIAGNOSIS

=NBHA0101

SYMPTOM:

I

Self-diagnosis cannot be performed.

Inspection Flow

NBHA0101S01

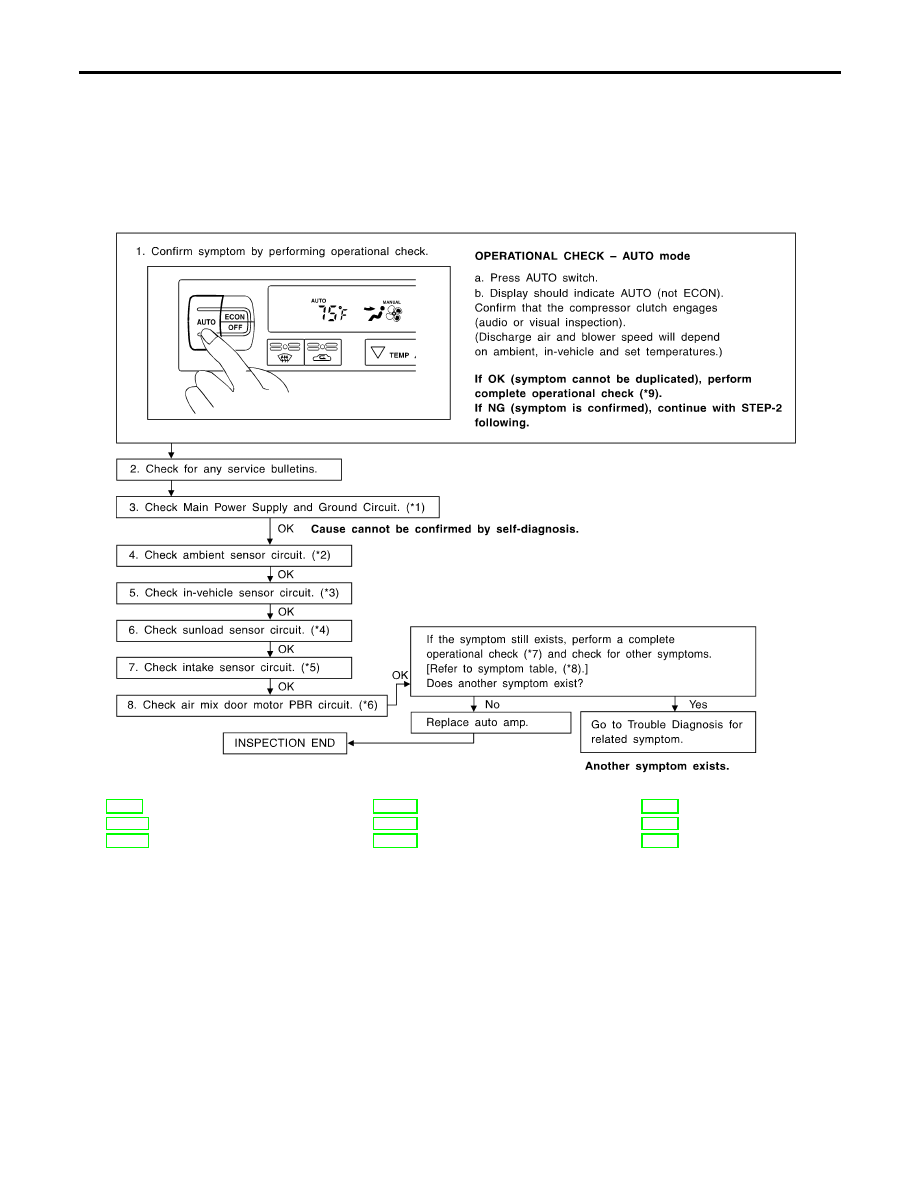

Without Navigation System

NBHA0101S0101

SHA250F

*1: HA-72
*2: HA-129
*3: HA-132

*4: HA-135
*5: HA-139
*6: HA-141

*7: HA-66
*8: HA-65
*9: HA-66

TROUBLE DIAGNOSES

Self-diagnosis

HA-124

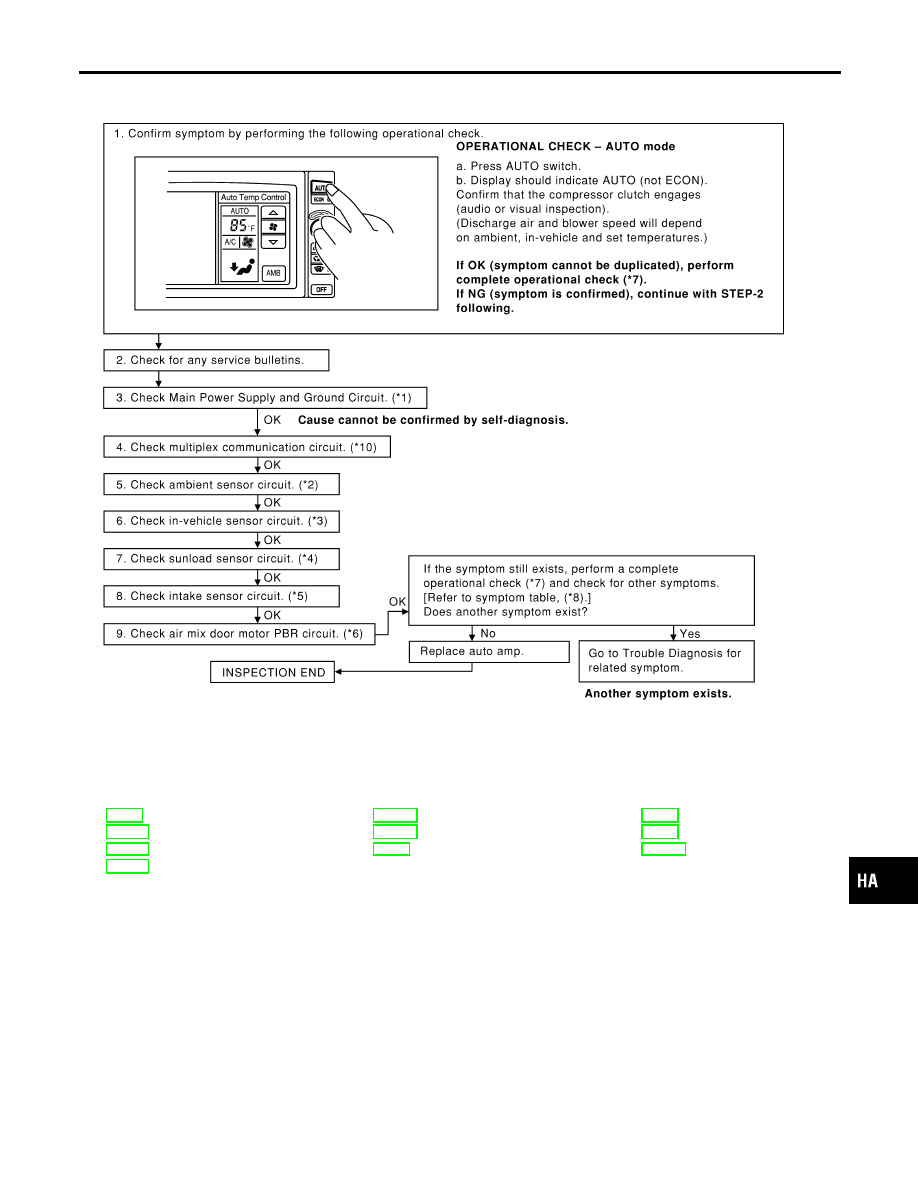

With Navigation System

NBHA0101S0102

RHA884H

*1: HA-72
*2: HA-129
*3: HA-132
*4: HA-135

*5: HA-139
*6: HA-141
*7: HA-66

*8: HA-65
*9: HA-66
*10: HA-142

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

SC

EL

IDX

TROUBLE DIAGNOSES

Self-diagnosis (Cont’d)

HA-125
