Infiniti QX4 (R50). Manual - part 448

Wheels & Tires

NBGI0007S04

Grade

Road wheel/offset mm (in)

Tire

Spare tire size

17 x 8JJ Aluminum/20 (0.79)
16 x 7JJ Aluminum/20 (0.79)*

P245/65R17 105S

P245/70R16 106S*

P245/65R17 105S

* Option for 2WD model

IDENTIFICATION INFORMATION

Wheels & Tires

GI-44

NBGI0008

WARNING:

Never get under the vehicle while it is supported only by
the jack. Always use safety stands to support the frame
when you have to get under the vehicle.

Place wheel chocks at both front and back of the wheels
on the ground.

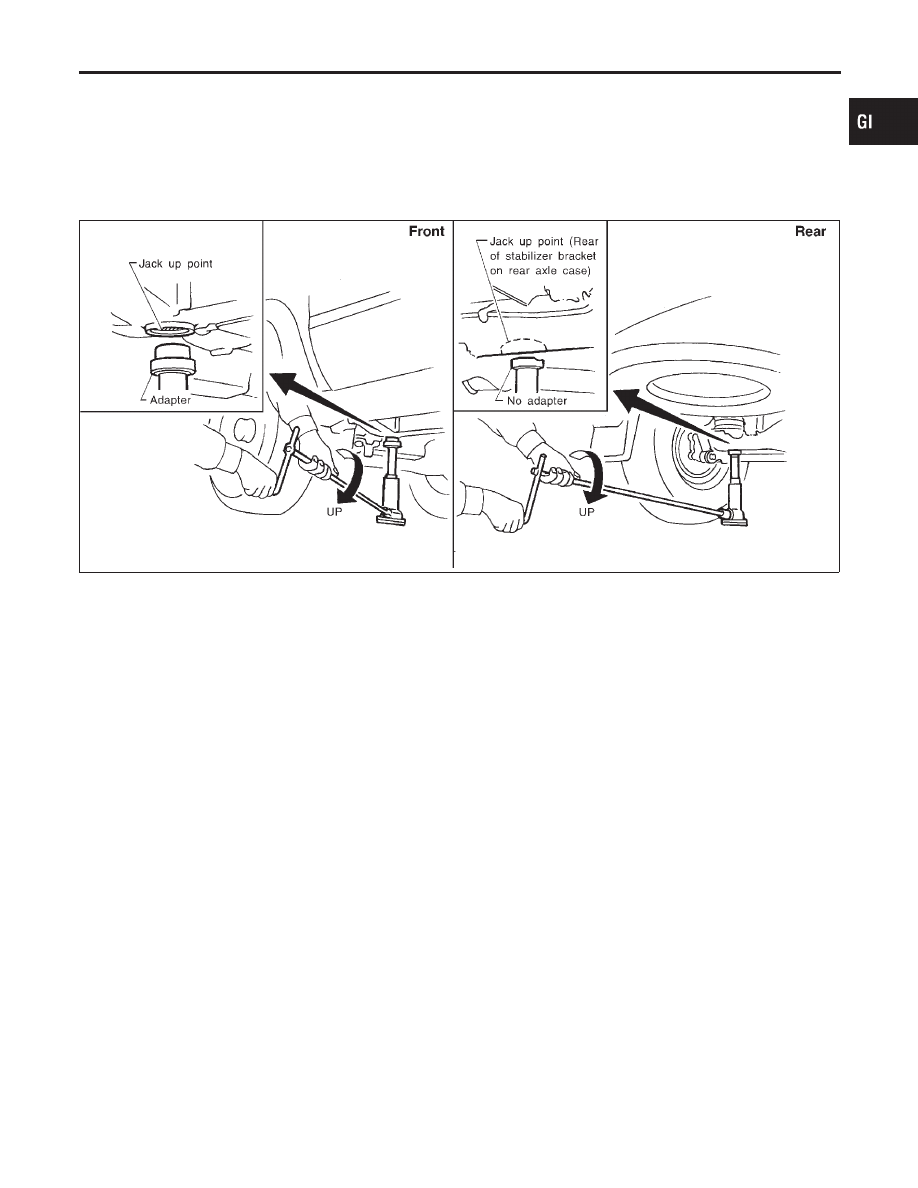

Screw Jack

NBGI0008S01

SGI927

IDX

LIFTING POINTS AND TOW TRUCK TOWING

GI-45

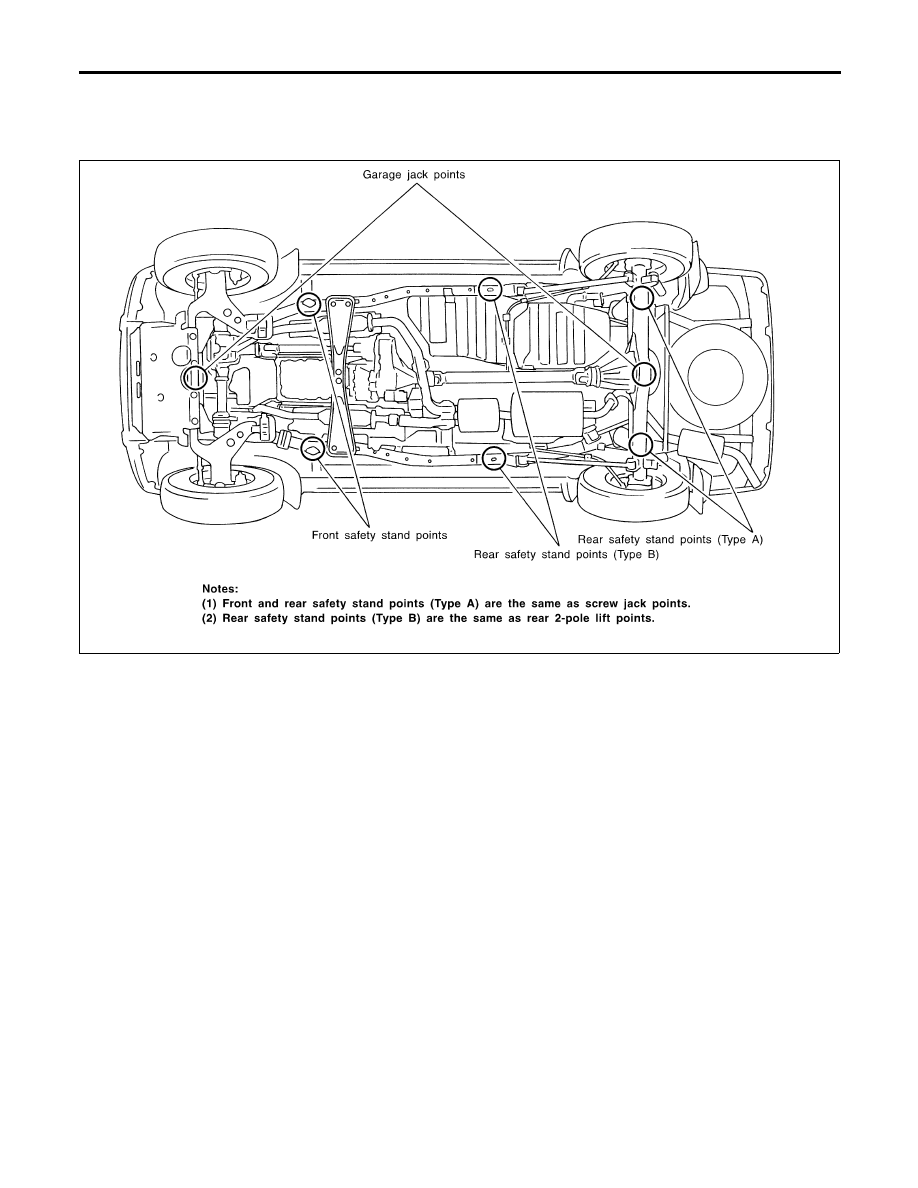

Garage Jack and Safety Stand

=NBGI0008S02

CAUTION:

Place a wooden or rubber block between safety stand and
vehicle body when the supporting body is flat.

SGI132A

LIFTING POINTS AND TOW TRUCK TOWING

Garage Jack and Safety Stand

GI-46

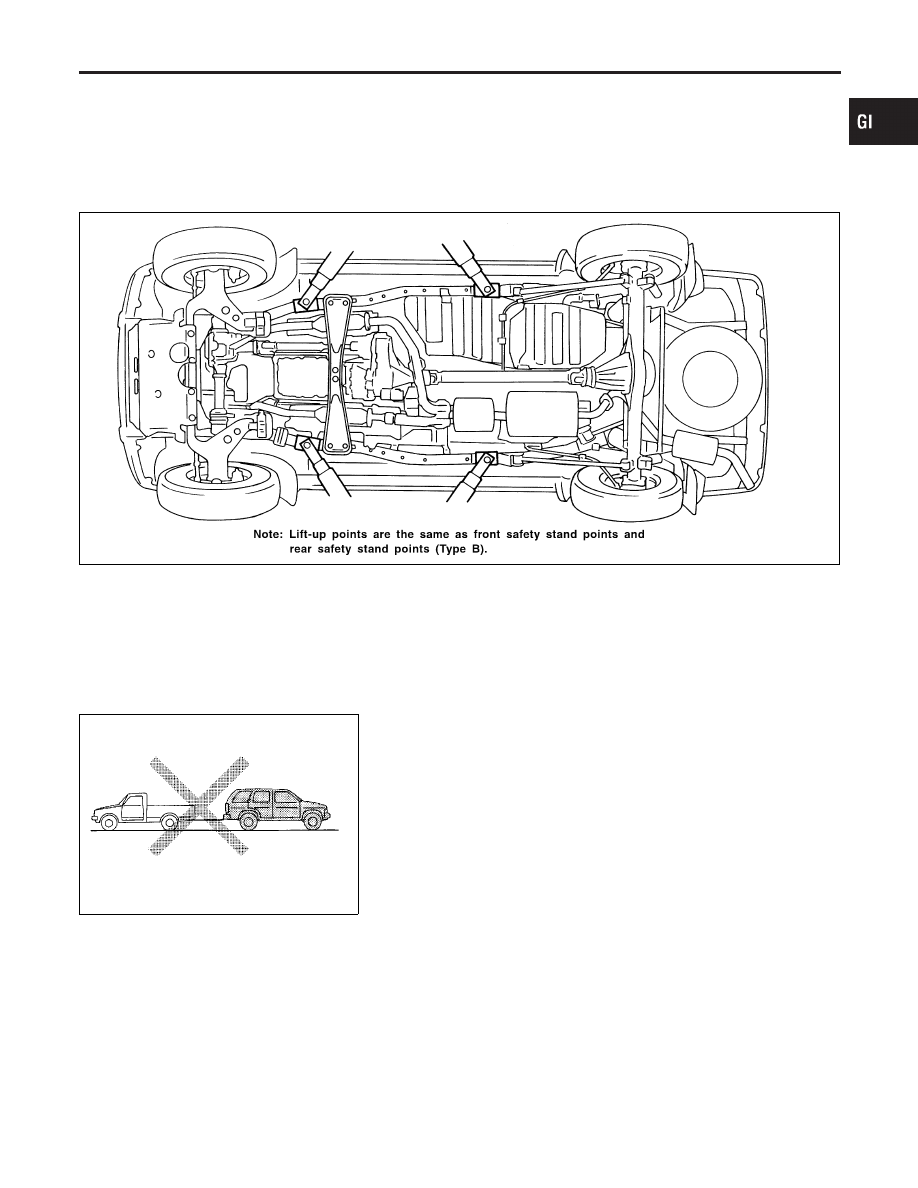

2-pole Lift

=NBGI0008S03

WARNING:

When lifting the vehicle, open the lift arms as wide as possible
and ensure that the front and rear of the vehicle are well bal-
anced.
When setting the lift arm, do not allow the arm to contact the
brake tubes, brake cable and fuel lines.

SGI133A

SGI988

Tow Truck Towing

NBGI0008S04

CAUTION:

All applicable state or Provincial (in Canada) laws and
local laws regarding the towing operation must be
obeyed.

It is necessary to use proper towing equipment to avoid
possible damage to the vehicle during towing operation.
Towing is in accordance with Towing Procedure Manual at
dealer.

Always attach safety chains before towing.

When towing, make sure that the transmission, steering
system and power train are in good order. If any unit is
damaged, dollies must be used.

Never tow an automatic transmission model from the rear
(that is backward) with four wheels on the ground as this
may cause serious and expensive damage to the trans-
mission.

IDX

LIFTING POINTS AND TOW TRUCK TOWING

2-pole Lift

GI-47
