Infiniti QX4 (R50). Manual - part 428





SEM838F

Assembly

NBEM0028

PISTON

NBEM0028S01

1.

Install new snap ring on one side of piston pin hole.

2.

Heat piston to 60 to 70°C (140 to 158°F) and assemble piston,
piston pin, connecting rod and new snap ring.

I

Align the direction of piston and connecting rod.

I

Numbers stamped on connecting rod and cap correspond
to each cylinder.

I

After assembly, make sure connecting rod swings
smoothly.

SEM453G

3.

Set piston rings as shown.

CAUTION:

I

When piston rings are not replaced, make sure that piston
rings are mounted in their original positions.

I

When replacing piston rings, these without punchmarks,
present, piston rings can be mounted with either side up.

SEM160B

I

Align piston rings so that end gaps are positioned as
shown in the figure.

SEM454G

OIL JET

NBEM0028S05

1.

Install oil jets.

I

Insert oil jet knock pin into the cylinder block knock pin hole,
and tighten the mounting bolts.

SEM175F

CRANKSHAFT

NBEM0028S02

1.

Set main bearings in their proper positions on cylinder block
and main bearing beam.

I

Confirm that correct main bearings are used. Refer to
“Inspection” of this section.

GI

MA

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

CYLINDER BLOCK

Assembly

EM-71

SEM177F

SEM456G

2.

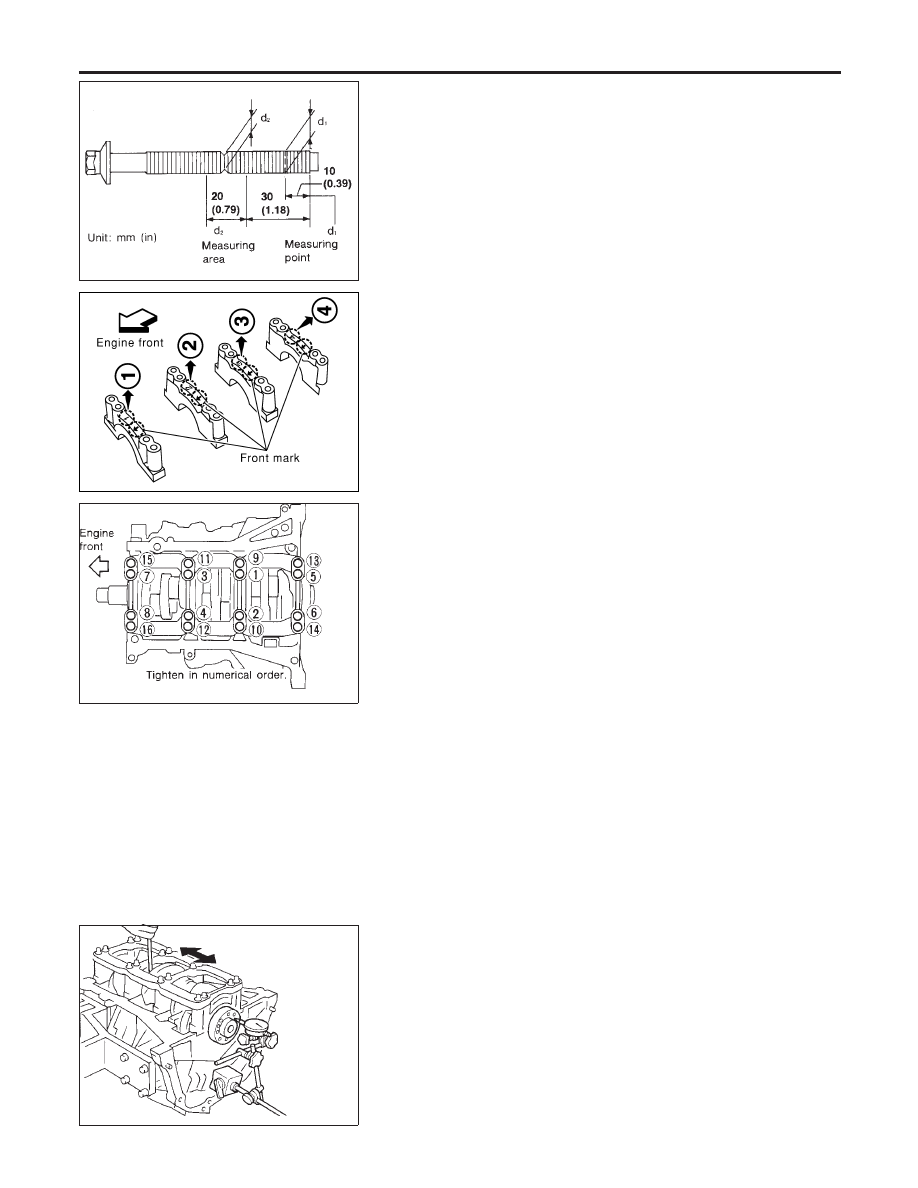

Instructions for re-use of main bearing cap bolts.

I

A plastic zone tightening method is used for tightening
main bearing cap bolts. Measure d1 and d2 as shown in
the figure.
d2: Select minimum diameter in the measuring area.
If the difference between d1 and d2 exceeds the limit,
replace the bolts with new ones.

Limit (d1 - d2): 0.11 mm (0.0043 in)

SEM851E

3.

After installing crankshaft, main bearing cap, main bearing
beam and bearing cap bolts, tighten bearing cap bolts in
numerical order as shown.

I

Make sure that the front mark on the main bearing beam
faces the front of the engine.

I

Tightening procedure

a)

Tighten all bolts to 32 to 38 N·m (3.3 to 3.9 kg-m, 24 to 28
ft-lb).

b)

Turn all bolts 90 to 95 degrees clockwise with angle
wrench.

I

Prior to tightening bearing cap bolts, place bearing beam
in its proper position by shifting crankshaft in the axial
direction.

I

After securing bearing cap bolts, make sure crankshaft
turns smoothly by hand.

I

Lubricate threads and seat surfaces of the bolts with new
engine oil.

SEM852E

4.

Measure crankshaft end play.

Crankshaft end play:

Standard

0.10 - 0.25 mm (0.0039 - 0.0098 in)

Limit

0.30 mm (0.0118 in)

If beyond the limit, replace bearing with a new one.

CYLINDER BLOCK

Assembly (Cont’d)

EM-72

SEM455G

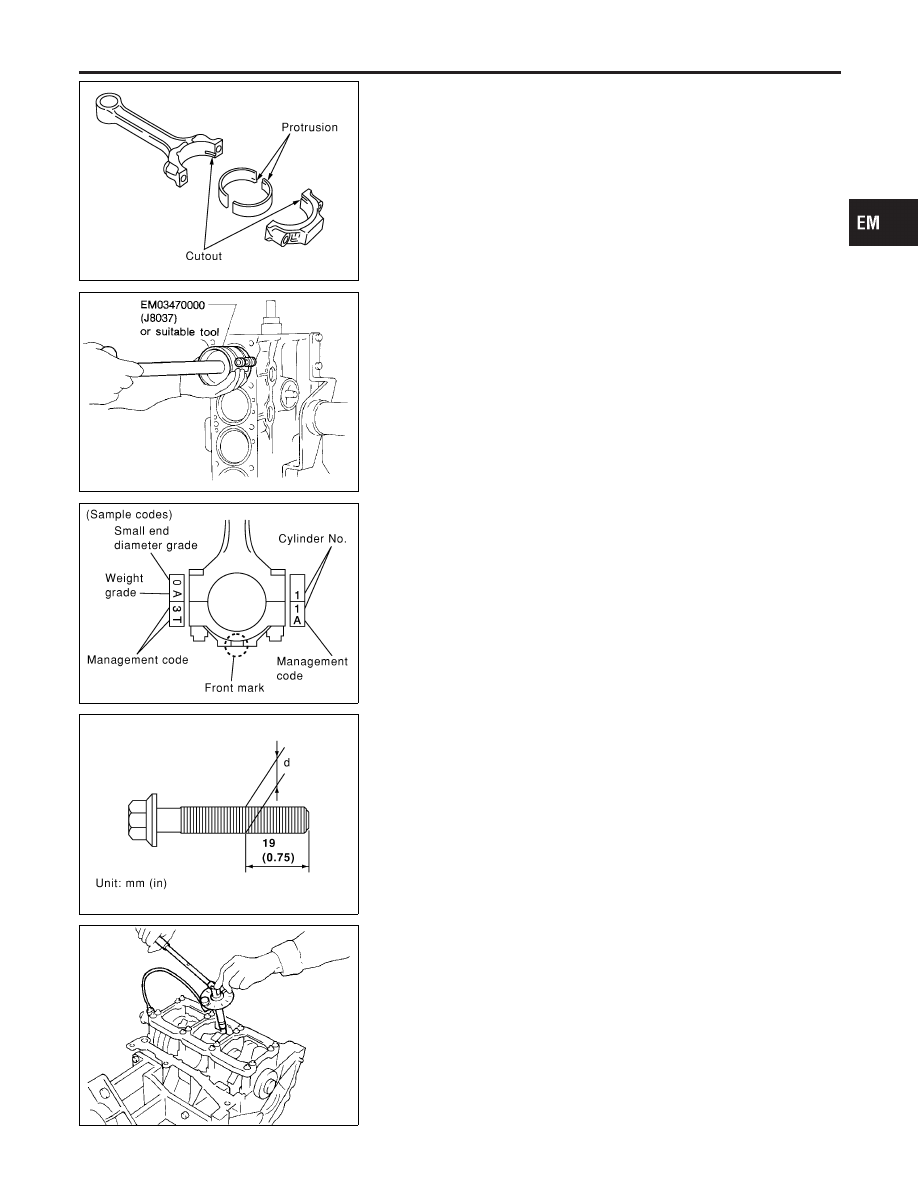

5.

Install connecting rod bearings in connecting rods and con-
necting rod caps.

I

Confirm that correct bearings are used.

SEM620

6.

Install pistons with connecting rods.

a.

Install them into corresponding cylinders with Tool.

I

Be careful not to scratch cylinder wall with the connecting
rod.

I

Arrange so that front mark on piston head faces toward
engine front.

SEM457G

b.

Install connecting rod caps.

I

Lubricate threads and seat surfaces with new engine oil.

I

Install so that the cylinder number stamped on the connecting
rod agrees with that stamped on cap side.

I

Make sure that front mark on the connecting rod cap faces the
front of the engine.

SEM538G

SEM953E

c.

Re-use connecting rod cap bolts as follows.

I

Make sure that the bolts can be smoothly screwed-in to the
end manually.

I

If not, measure the outer diameter “d” shown in the figure.

Outer diameter “d” of connecting rod cap bolt:

Standard

7.90 - 8.00 mm (0.3110 - 0.3150 in)

Limit

7.75 mm (0.3051 in)

d.

Tighten connecting rod cap bolts to the specified torque.

Connecting rod cap bolt:

(1) Tighten nuts to 19 to 21 N·m (1.9 to 2.1 kg-m, 14
to 15 ft-lb).
(2) Turn nuts 90 to 95 degrees clockwise with angle
wrench.

GI

MA

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

CYLINDER BLOCK

Assembly (Cont’d)

EM-73

SEM954E

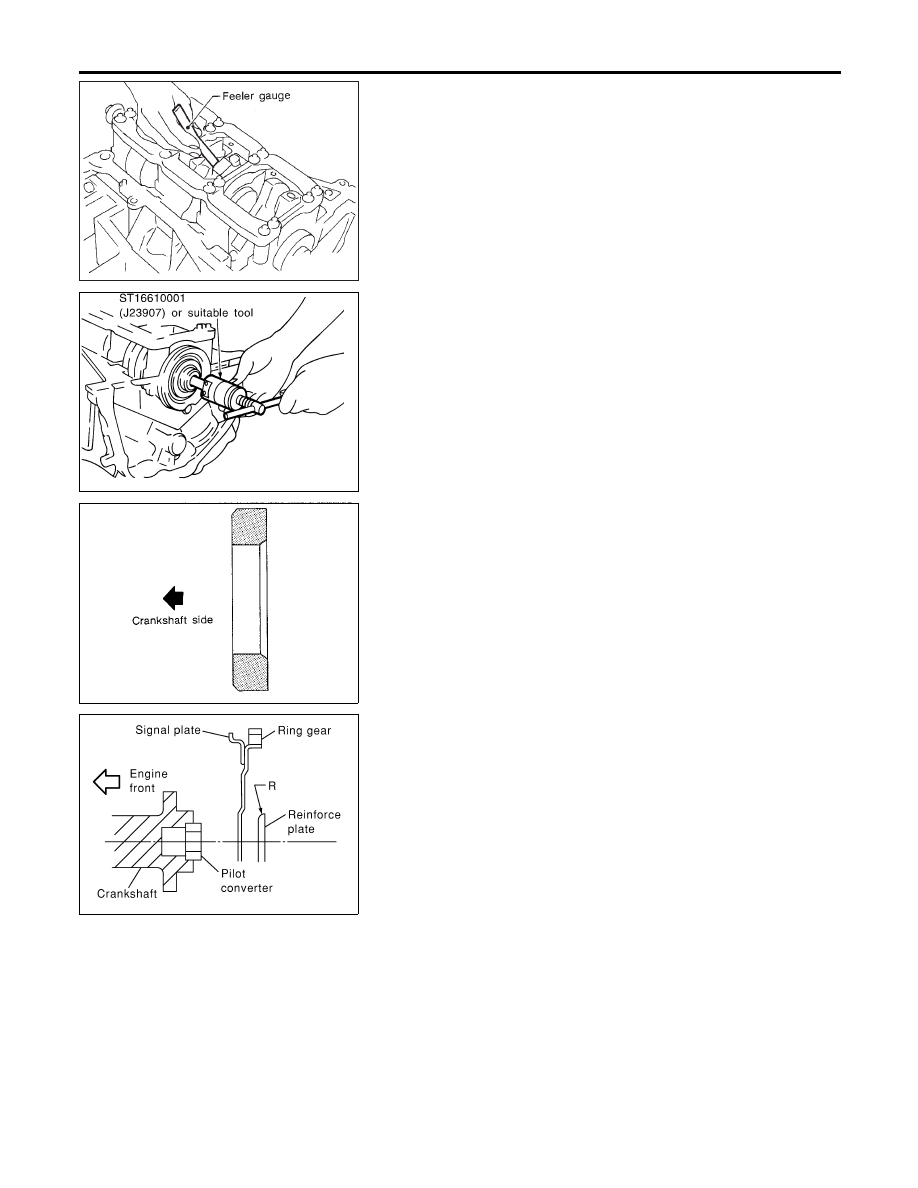

7.

Measure connecting rod side clearance.

Connecting rod side clearance:

Standard

0.20 - 0.35 mm (0.0079 - 0.0138 in)

Limit

0.40 mm (0.0157 in)

If beyond the limit, replace connecting rod and/or crankshaft.

8.

Install rear oil seal retainer.

SEM005G

REPLACEMENT OF PILOT CONVERTER

NBEM0028S04

1.

Remove pilot converter using tool or suitable tool.

SEM537E

2.

Install pilot converter as shown.

SEM539G

DRIVE PLATE

NBEM0028S06

Install drive plate.

I

Install the drive plate and reinforce plate in the direction shown
in the figure.

I

Secure the crankshaft using a ring gear stopper.

I

Tighten the installation bolts crosswise over several times.

CYLINDER BLOCK

Assembly (Cont’d)

EM-74
