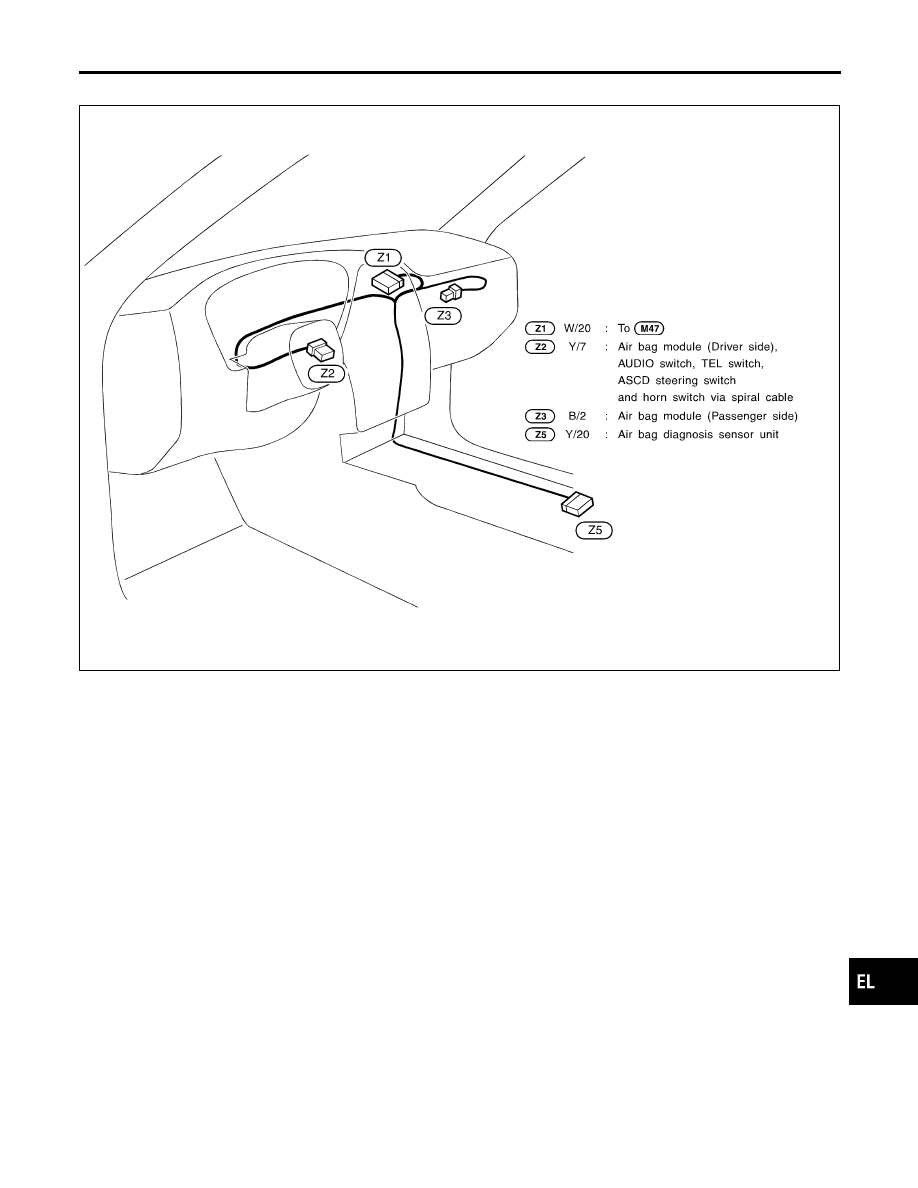

Air Bag Harness

NBEL0141

MEL084M

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

IDX

HARNESS LAYOUT

Air Bag Harness

EL-453

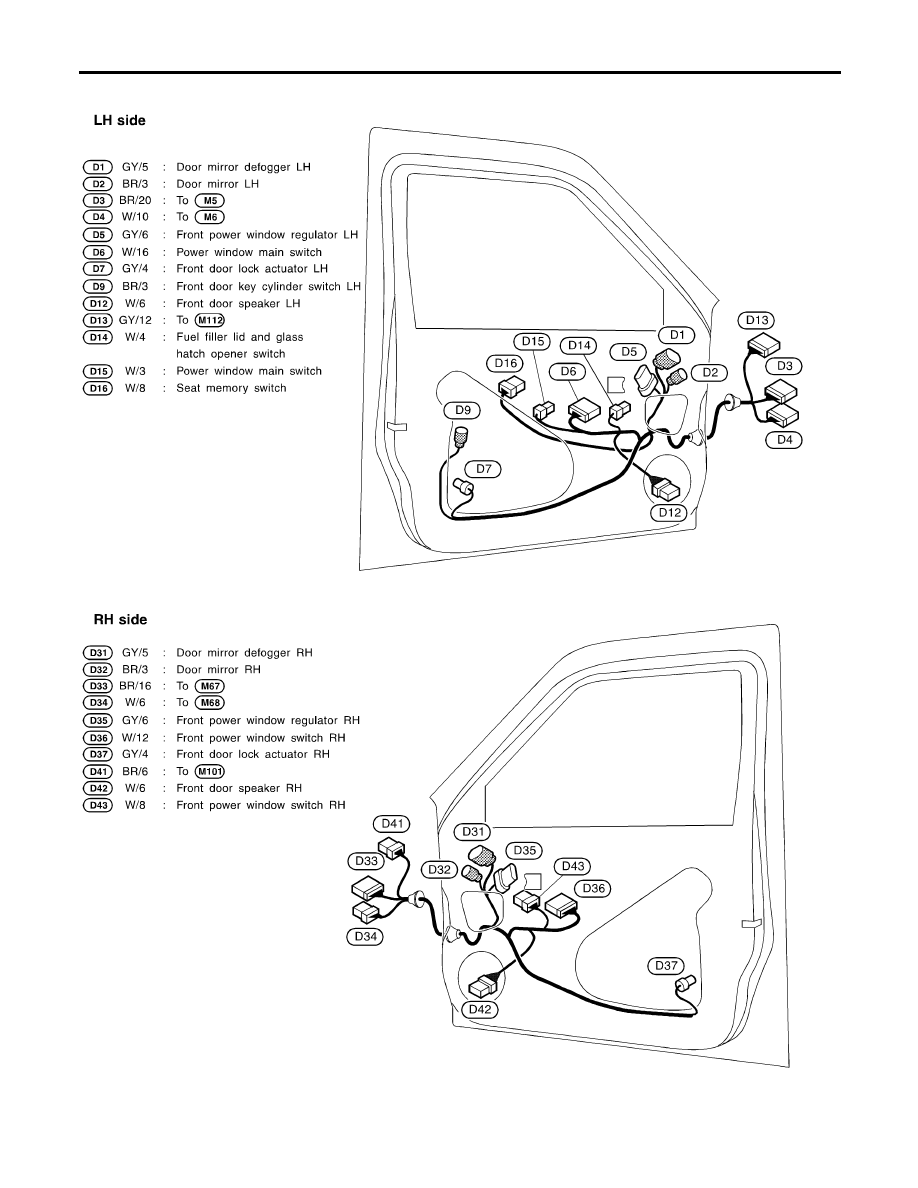

Front Door Harness

NBEL0142

MEL085M

HARNESS LAYOUT

Front Door Harness

EL-454

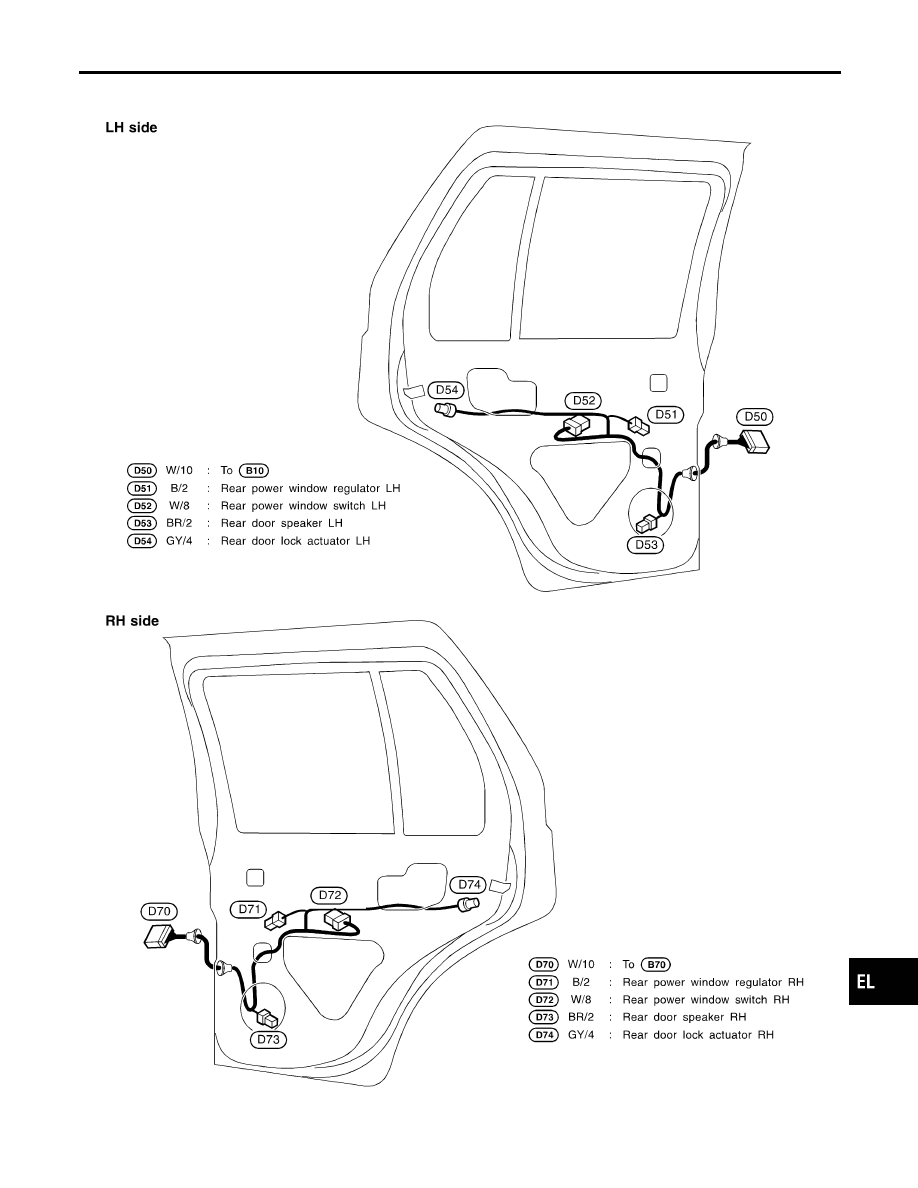

Rear Door Harness

NBEL0143

MEL261M

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

IDX

HARNESS LAYOUT

Rear Door Harness

EL-455

NBEL0144

Headlamp

NBEL0144S03

Item

Wattage W

High/Low (Semi-sealed beam)

55/35 (HB3/D2R)

Exterior Lamp

NBEL0144S01

Item

Wattage W

Front fog lamp

55

Front turn signal lamp

21

Parking lamp

5

Rear combination lamp

Turn signal lamp

27

Stop/Tail lamp

21/5

Back-up lamp

18

License plate lamp

3.8

High-mounted stop lamp

5

Interior Lamp

NBEL0144S02

Item

Wattage W

Interior lamp

10

Spot lamp

8

Luggage room lamp

10

BULB SPECIFICATIONS

Headlamp

EL-456
