Infiniti QX4 (R50). Manual - part 405





NOTE:

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

IDX

ELECTRICAL UNITS LOCATION

Engine Compartment (Cont’d)

EL-437

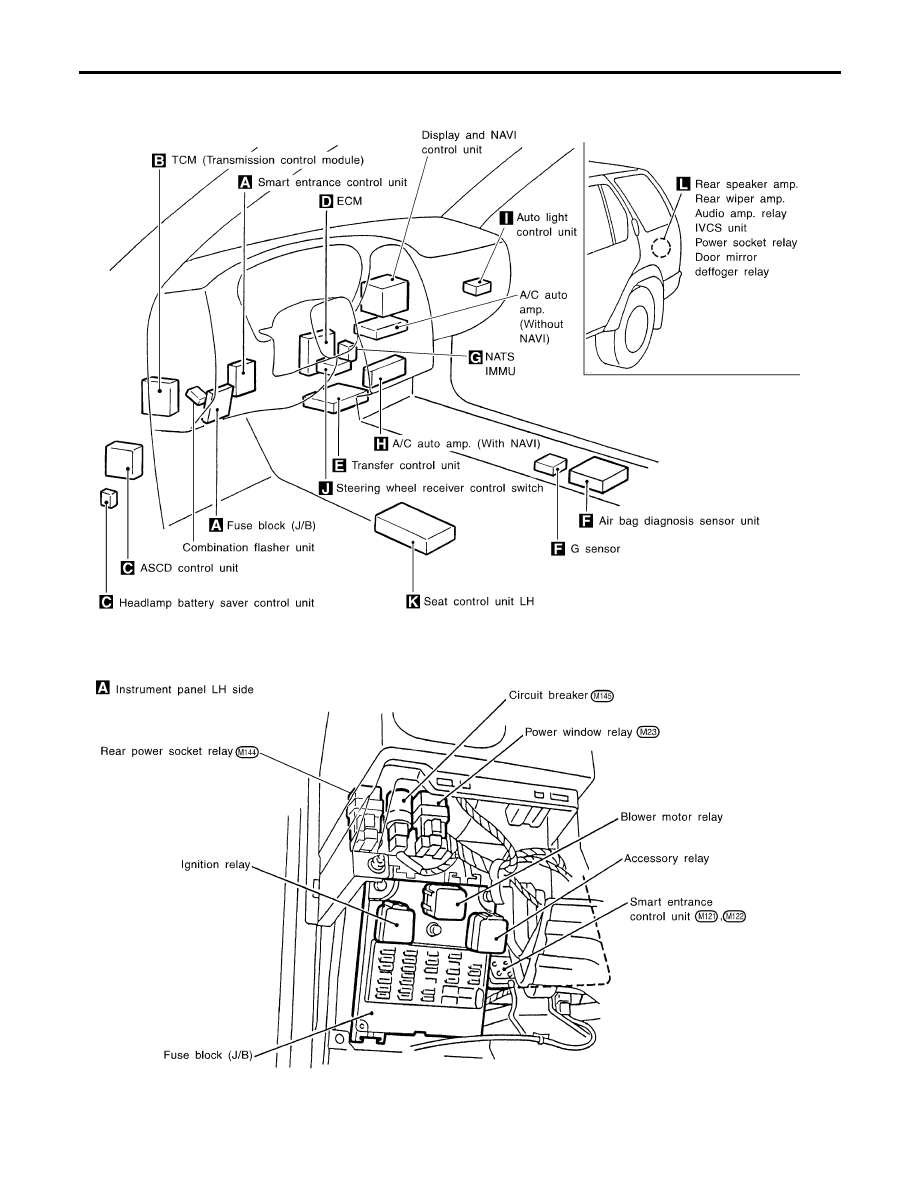

Passenger Compartment

NBEL0130

MEL135M

ELECTRICAL UNITS LOCATION

Passenger Compartment

EL-438

MEL136M

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

IDX

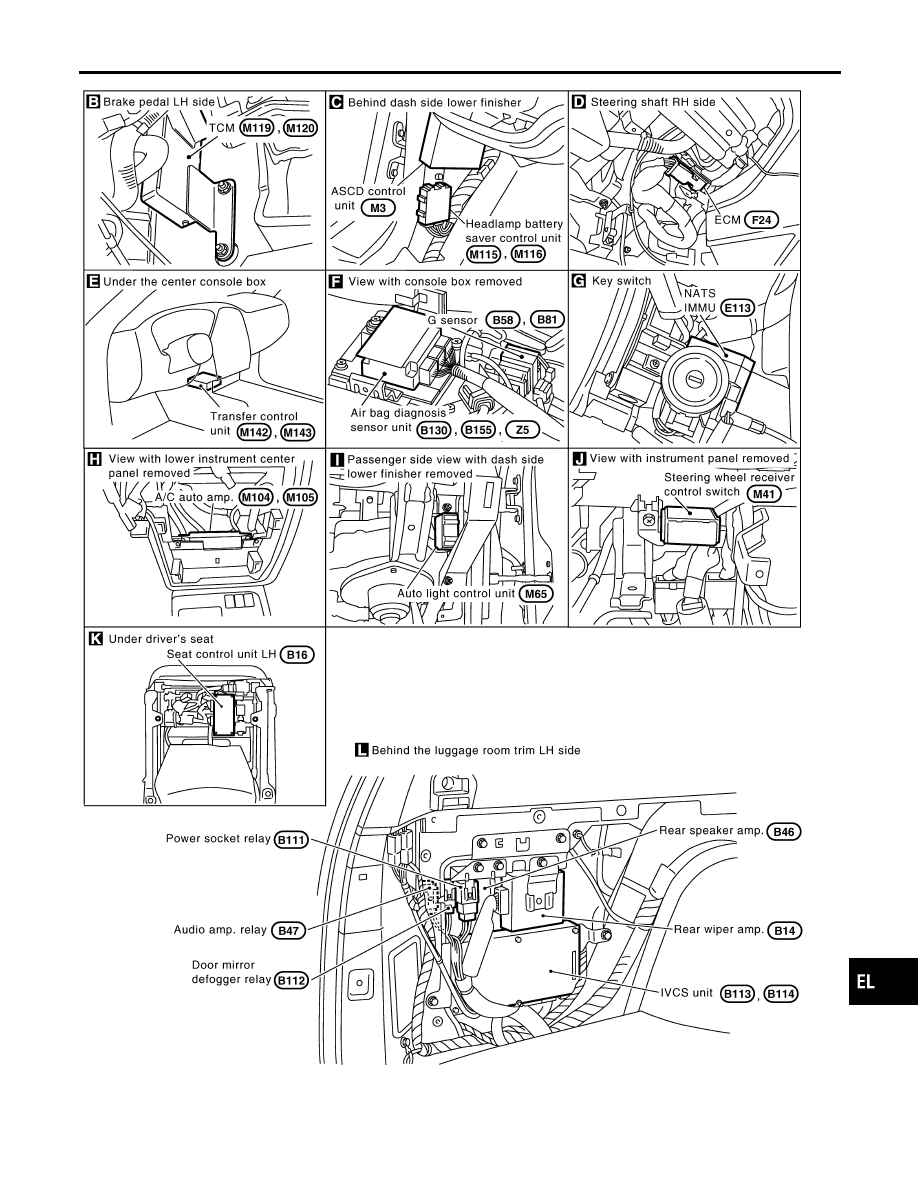

ELECTRICAL UNITS LOCATION

Passenger Compartment (Cont’d)

EL-439

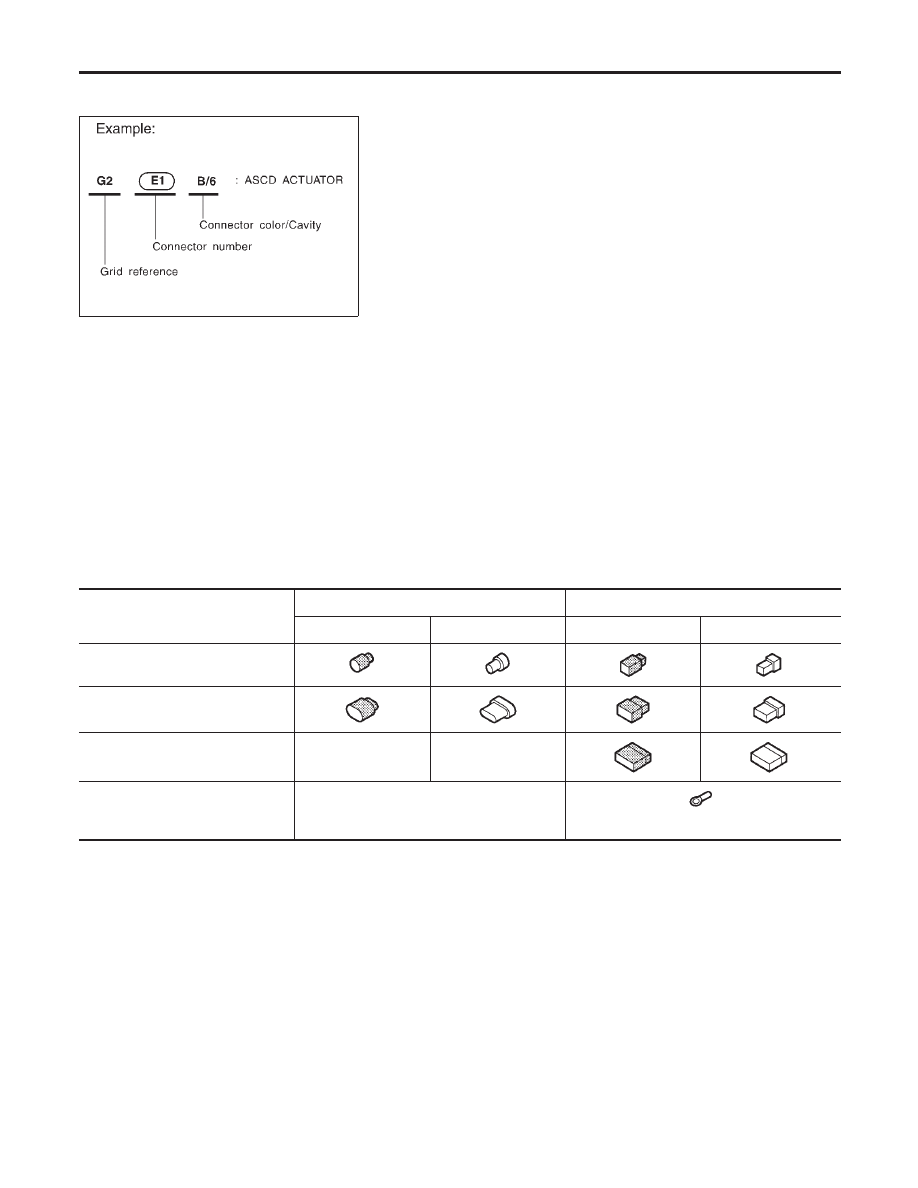

How to Read Harness Layout

NBEL0131

SEL252V

The following Harness Layouts use a map style grid to help locate connectors on the drawings:

I

Main Harness

I

Engine Room Harness (Engine Compartment)

I

Engine Control Harness

TO USE THE GRID REFERENCE

NBEL0131S01

1. Find the desired connector number on the connector list.
2. Find the grid reference.
3. On the drawing, find the crossing of the grid reference letter column and number row.
4. Find the connector number in the crossing zone.
5. Follow the line (if used) to the connector.

CONNECTOR SYMBOL

NBEL0131S02

Main symbols of connector (in Harness Layout) are indicated in the below.

Connector type

Water proof type

Standard type

Male

Female

Male

Female

I

Cavity: Less than 4

I

Relay connector

I

Cavity: From 5 to 8

I

Cavity: More than 9

I

Ground terminal etc.

HARNESS LAYOUT

How to Read Harness Layout

EL-440
