Infiniti QX4 (R50). Manual - part 402





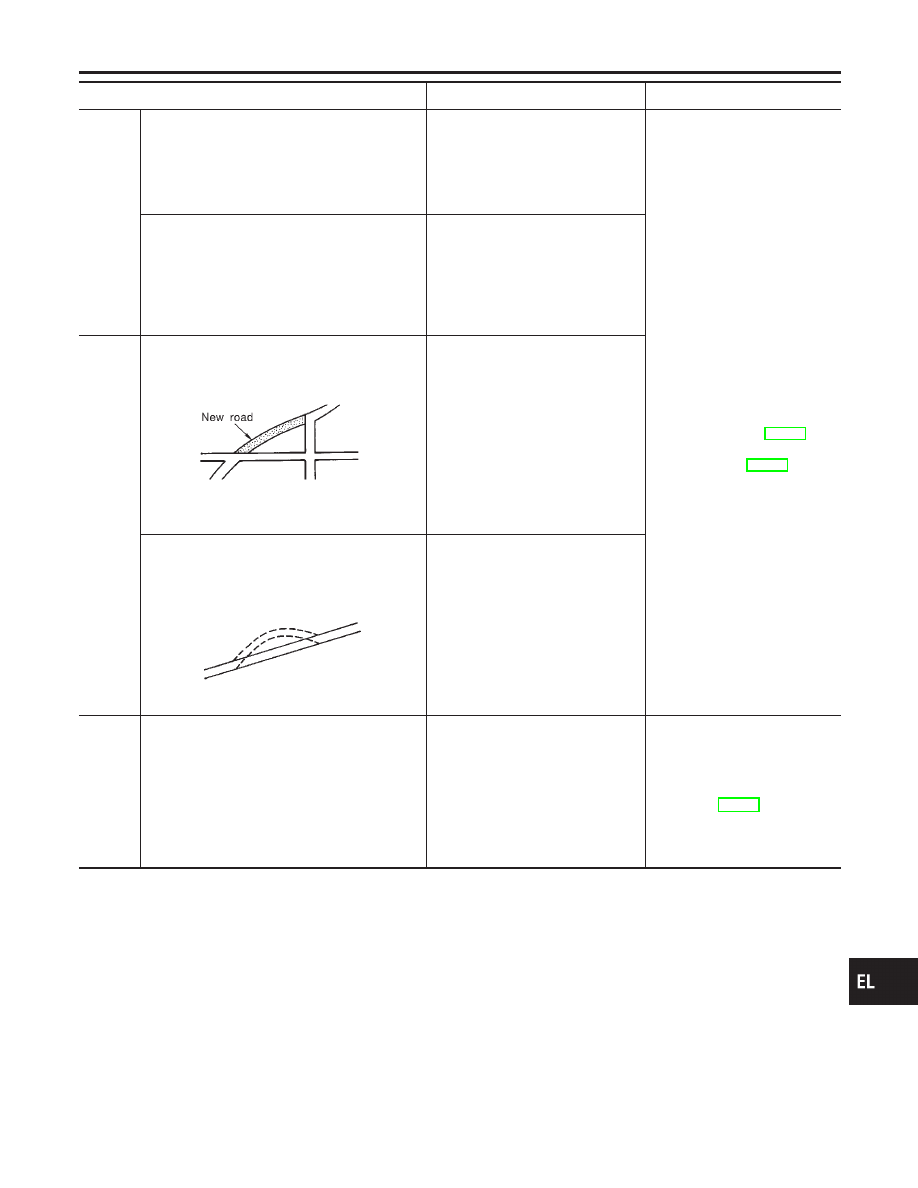

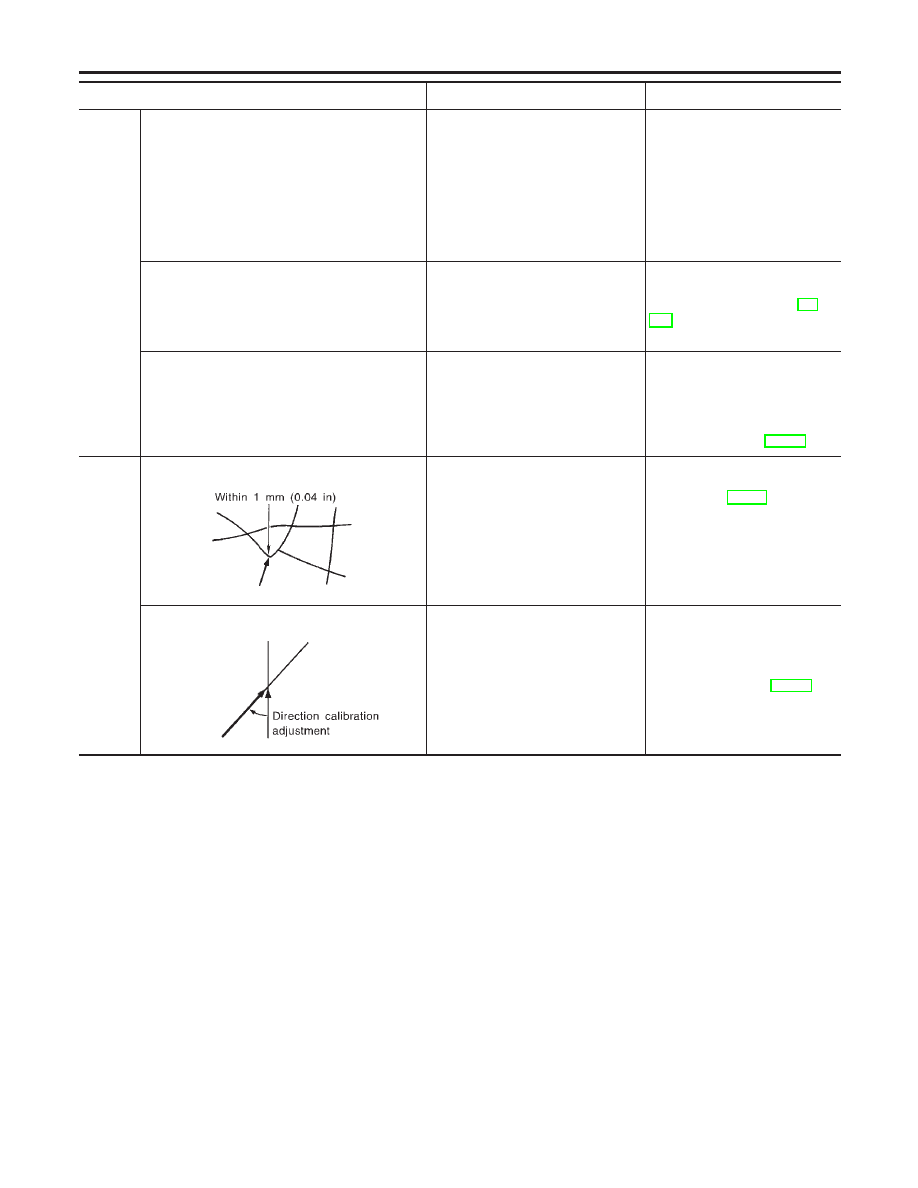

Possible cause

Drive condition

Service procedure

Area

Slippery road surface

On wet, icy, or gravel road where
frequent wheel slippage occurs, dis-
tance calculations may be errone-
ous. The position marker may show
the vehicle to be in inaccurate posi-
tion.

If the position marker does not
move to the correct position
even after the vehicle has been
driven approximately 10 km (6
miles), perform “ADJUST CUR-
RENT LOCATION” (EL-411). If
necessary, perform “SPEED
CALIBRATION” (EL-409).

Slanted area

Hilly areas where the road has
banked curves. When the vehicle
enters these banked curves, there
may be an error in steering angle
measurement. The position marker
may show the vehicle to be in inac-
curate position.

Map
data

Map display for a given road does not appear.

SEL699V

When the vehicle is driven on a
newly constructed road that does
not appear on the existing map.
Map marking and calibration are not
possible. The position marker may
indicate inaccurate position in close
proximity to the actual position.
Subsequently, when the vehicle is
driven on a road which is available
as map data, the position marker
may still indicate an inaccurate posi-
tion.

The vehicle is driven on a road whose course
has been altered (usually to improve the road or
to eliminate some hazard).

SEL700V

When the map data shown on the
display and the actual conditions are
different. Map matching will not be
possible. The position marker may
indicate inaccurate position in close
proximity to the actual position. If
the vehicle is driven on the indicated
road, further errors may occur.

Vehicle

Use of tire chains (Stormy weather)

Tire chains will affect distance sens-
ing. The position marker may indi-
cate inaccurate position.

If the position marker does not
move to the correct position
even after the vehicle has been
driven approximately 10 km (6
miles), perform “SPEED CALI-
BRATION” (EL-409). After
removing the tire chains, sens-
ing accuracy may recover by
itself.

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

IDX

NAVIGATION SYSTEM

This Condition is Not Abnormal (Cont’d)

EL-425

Possible cause

Drive condition

Service procedure

Opera-
tion

Driving immediately after starting engine.

The gyro (angular velocity sensor)
needs about 15 seconds after the
engine is started to precisely sense
the angular velocity. Directional
sensing errors will occur if the
vehicle is moved immediately after
starting the engine. The position
marker may indicate inaccurate
position.

Wait a few moments between
starting the engine and actually
driving the vehicle.

Continuous driving for long distances (non-stop)

When the vehicle is driven continu-
ously without stopping over a long
distance, errors in directional sens-
ing may occur. The position marker
may indicate inaccurate position.

Stop the vehicle. Perform
“SPEED CALIBRATION” (EL-
409).

Rough or violent driving

Wheel spinning (peeling out) or simi-
lar rough driving techniques can
adversely affect sensing accuracy.
The position marker may indicate
inaccurate position.

If the position marker does not
move to the correct position
even after the vehicle has been
driven approximately 10 km (6
miles), perform “ADJUST CUR-
RENT LOCATION” (EL-411).

Posi-
tional
calibra-
tion pro-
cedures

Positional calibration precision

SEL701V

If current vehicle location is roughly
set, the system may be unable to
locate the road that the vehicle is
traveling on. (This is especially true
in an area where there are many
roads.)

Perform “ADJUST CURRENT
LOCATION” (EL-411) within a
precision standard of 1 mm
(0.04 in) on the display.
Note: During calibration, use
the most detailed map pos-
sible.

Position calibration direction

SEL702V

When calibrating the position, check
the vehicle direction. If the vehicle
direction is not correct, subsequent
precision of current location will be
affected.

Perform “ADJUST CURRENT
LOCATION”, refer to EL-411.

NAVIGATION SYSTEM

This Condition is Not Abnormal (Cont’d)

EL-426

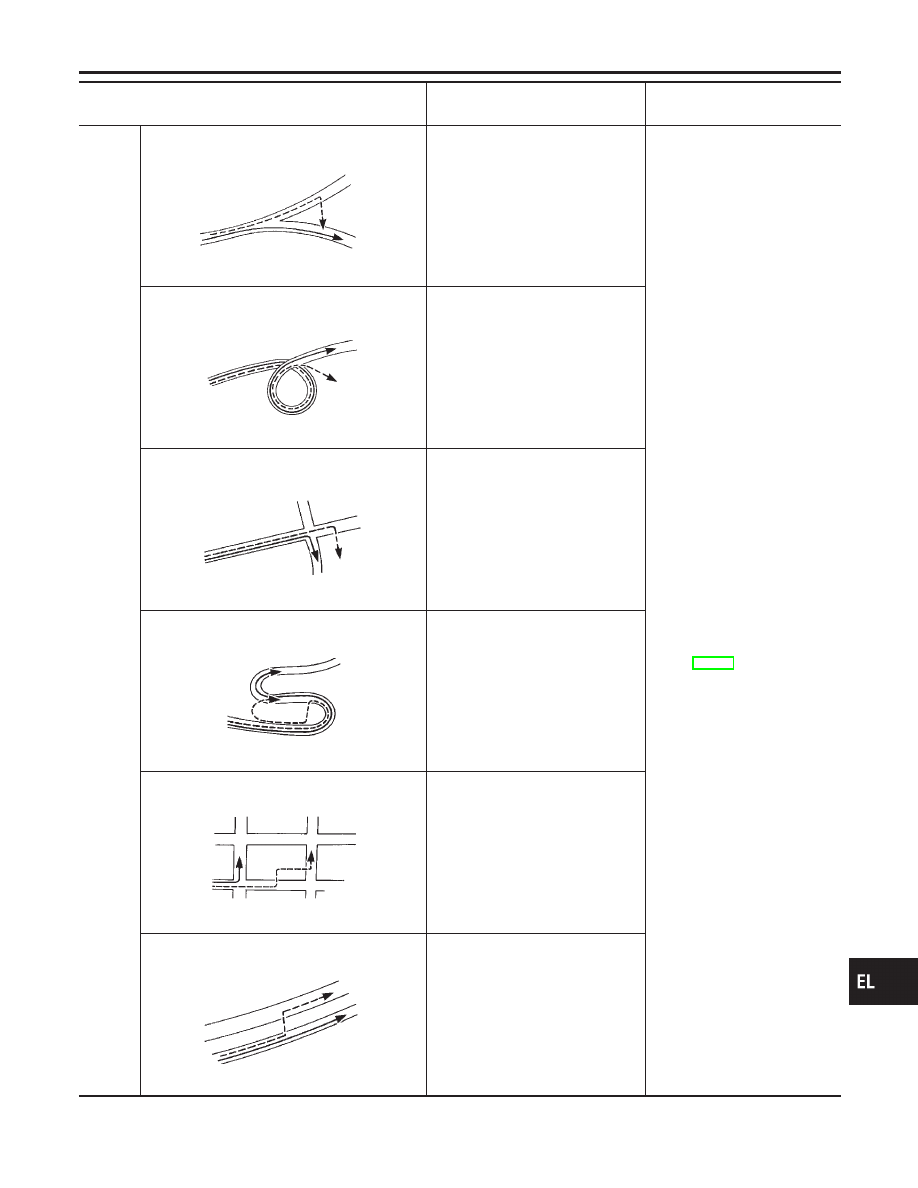

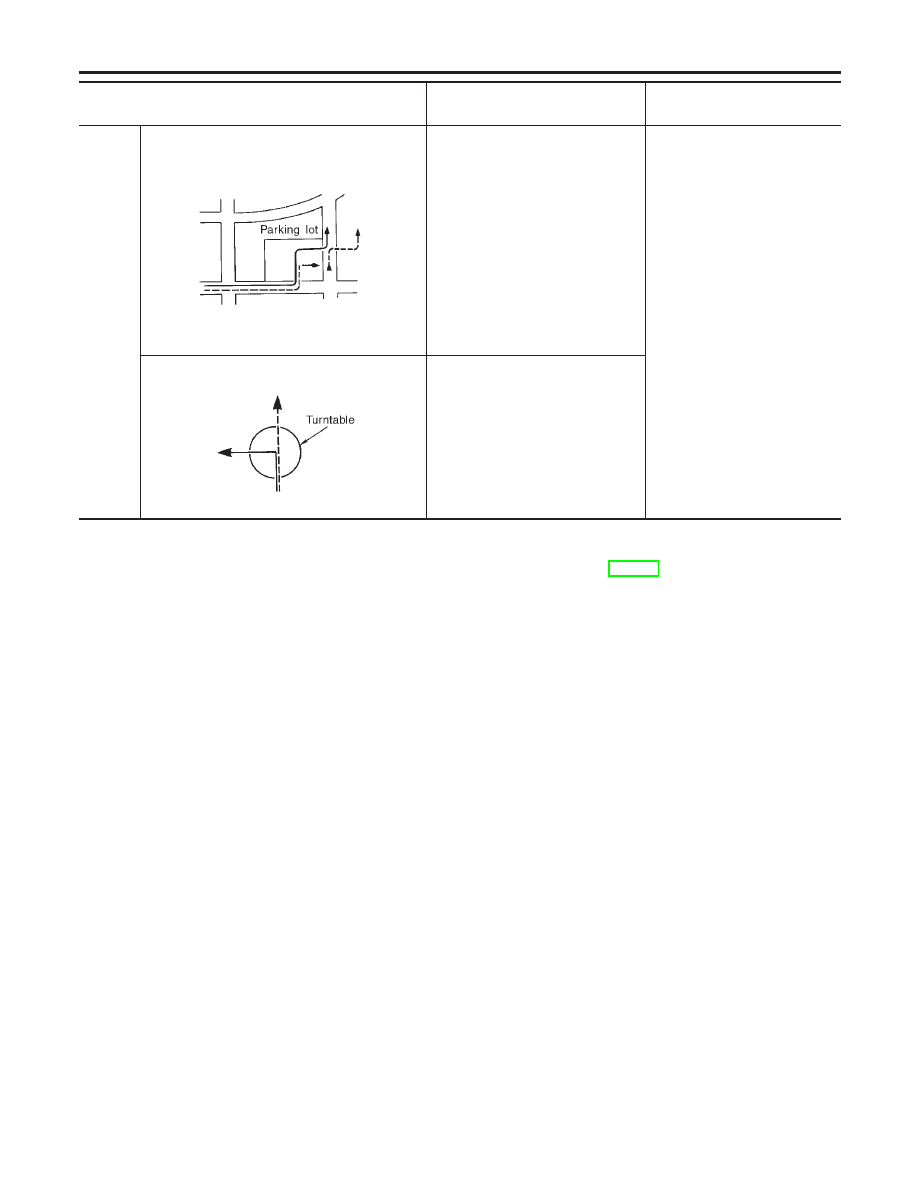

Possible cause:

—: Vehicle running

---: Indication

Drive condition

Service procedure

Road
shapes

Y-intersection

SEL703V

In Y-intersections with a very
gradual change in course, a direc-
tional sensing may be inaccurate.
This may result in the position
marker giving the wrong road indica-
tion.

If the position marker does not
move to the correct position
even after the vehicle has been
driven approximately 10 km (6
miles), perform “Store place”. If
required, also perform
“ADJUST CURRENT LOCA-
TION” (EL-411).

Spiral road

SEL704V

On loop bridges and similar struc-
tures which result in a large and
continuous turn, turning angle may
be sensed inaccurately. As a result,
the position marker may separate
from the route on the map.

Straight road

SEL705V

In long distance driving on a straight
road or road with very gradual
curves, map marking inaccuracies
may occur. In such cases, the posi-
tion marker may stray from the route
being traveled during subsequent
turns due to inaccurate distance cal-
culation.

Winding road

SEL706V

Directional sensing precision errors
may occur when traveling on wind-
ing roads. During map matching, the
position marker may stray to an
adjacent road having a similar
shape. Subsequent position marker
error may occur.

Grid-like road shape

SEL707V

Directional sensing and distance
sensing, precision errors may occur
because of many roads having a
similar shape in the immediate area.
During map matching, the position
marker may stray to an adjacent
road having a similar shape. Subse-
quent position marker error may
occur.

Parallel roads

SEL708V

When driving on a parallel road,
map matching errors may occur.
Subsequent position marker error
may also occur.

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

IDX

NAVIGATION SYSTEM

This Condition is Not Abnormal (Cont’d)

EL-427

Possible cause:

—: Vehicle running

---: Indication

Drive condition

Service procedure

Loca-
tion

Parking lot or similar area

SEL709V

When the vehicle is driven in a park-
ing lot or similar area, such as in an
area not normally marked as a road
on map, during map matching, the
system may select nearby roads.
This error may continue after the
vehicle exits the parking area and
begins to run on ordinary roads.
Vehicle operation in a parking area
may involve frequent turns and up
and/or down operation. Directional
sensing errors may occur leading to
subsequent route and position mis-
takes.

Turntable

SEL710V

When the ignition switch is OFF (the
usual situation when the vehicle is
on a turntable), the navigation sys-
tem receives no data from the gyro
(angular velocity sensor). When the
turntable rotates, no directional
change is sensed. During subse-
quent vehicle operation, directional
and route errors may occur.

Position marker displays a completely different location
In circumstances such as those described below, GPS signal reception conditions may result in an erroneous
position of the position marker. Perform “ADJUST CURRENT LOCATION” (EL-411).
NOTE:

I

When GPS satellite signal reception conditions are poor, the position of position marker may be errone-
ous. If correction is not made immediately, the position marker error will be compounded and a completely
different location will be indicated. In an area where GPS satellite signal reception conditions are good,
the system can be returned to normal operation.

I

The vehicle is driven aboard a car ferry or is towed for some distance with the ignition switch OFF. Vehicle
movement is not sensed. Current location calculations do not occur and current location data does not
appear on the display screen. Use GPS to accurately determine actual vehicle position. The system can
be returned to normal operation when the GPS satellite signal reception conditions are good.

Position marker jumps
In circumstances such as those described below, the position marker may jump as a result of automatic cur-
rent location corrections made by the system.
During map matching

I

During map matching, the position marker may jump from one spot to another. In this case, it may be cor-
rected to a wrong road or to an area where no road exist.

GPS location correcting

I

Vehicle current location is sensed using the GPS data. Positional calibration is performed. The position
marker continues to be in the wrong position. It may jump about from one area of the screen to another.
In this case, it may be corrected to a wrong road or to an area where no road exist.

Position marker indicates that the vehicle is in the middle of an ocean or large river
The navigation system does not distinguish between land and water surfaces. In some cases, a position
marker error may cause the display to show the vehicle above a water surface.
Position of position marker varies when the vehicle is repeatedly operated on the same road
Driving lane and steering wheel movement results in a variety of different positions of the position mark when
traveling on the same road based on sensing results by the GPS antenna and gyro (angular velocity sensor).
Slow locational correction using map matching

I

The map matching function requires verification of local data. To make the map matching function, some
distance needs to be driven.

I

The map matching function may not provide accurate performance in an area where there are numerous
parallel roads. Until the system judges the road characteristics, an incorrect position may be shown.

NAVIGATION SYSTEM

This Condition is Not Abnormal (Cont’d)

EL-428
