Infiniti QX4 (R50). Manual - part 401





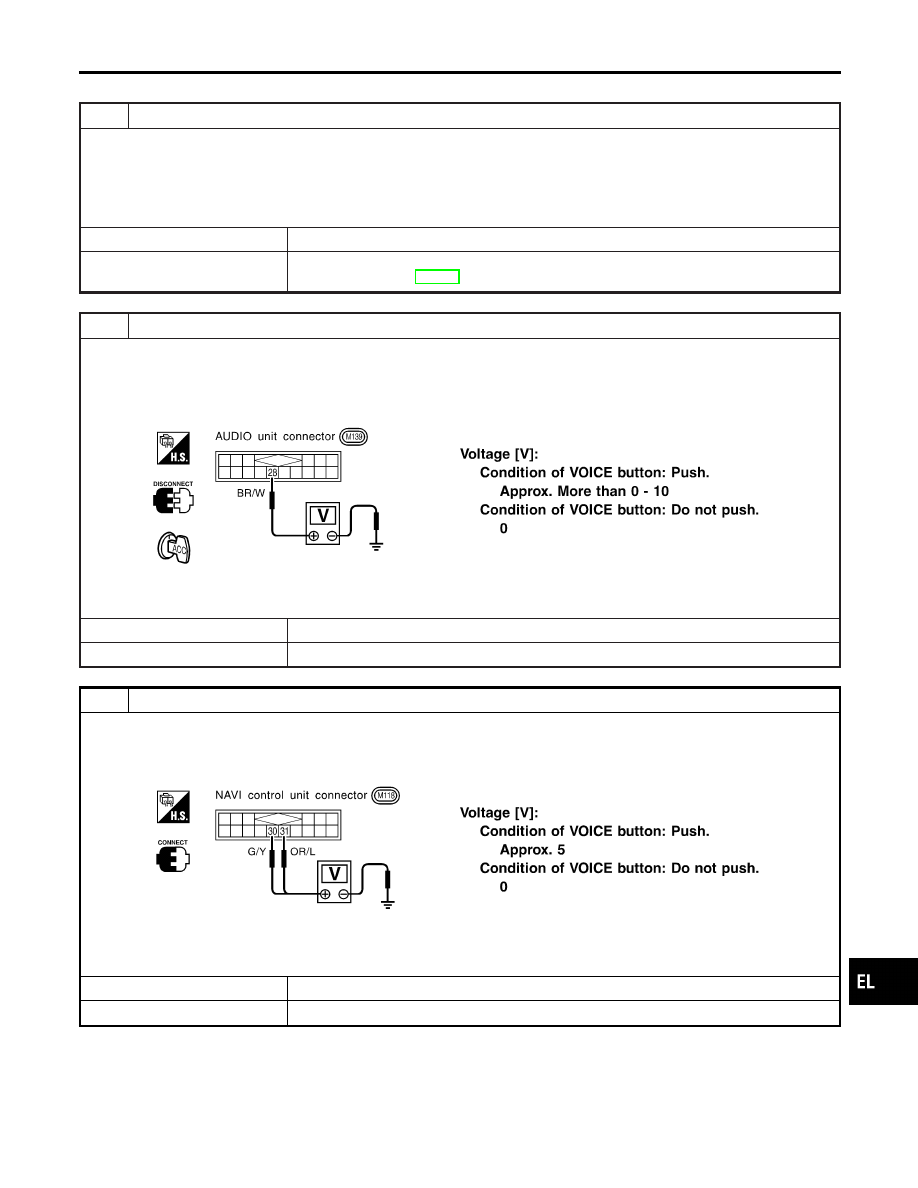

VOICE GUIDE OPERATION CHECK

=NBEL0234S05

1

PRELIMINARY CHECK

1. Turn ignition switch to ACC position.
2. Insert the music CD into the radio and CD player.
3. Try to play the music CD.

Is the sound emitted from all speakers?

Yes or No

Yes

©

GO TO 2.

No

©

Repair or replace audio system.
Refer to “AUDIO” in EL-160.

2

CHECK NAVI OPERATION ON SIGNAL

1. Disconnect audio unit connector.
2. Push “VOICE” button.
3. Check voltage between terminal 28 and ground.

SEL645XA

OK or NG

OK

©

GO TO 3.

NG

©

Repair or replace harness or NAVI control unit.

3

CHECK VOICE SIGNAL CIRCUIT

1. Push “VOICE” button.
2. Check voltage between NAVI control unit terminal 30 or 31 and ground.

SEL648X

OK or NG

OK

©

GO TO 4.

NG

©

Repair or replace NAVI control unit.

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

IDX

NAVIGATION SYSTEM

Trouble diagnoses (Cont’d)

EL-421

4

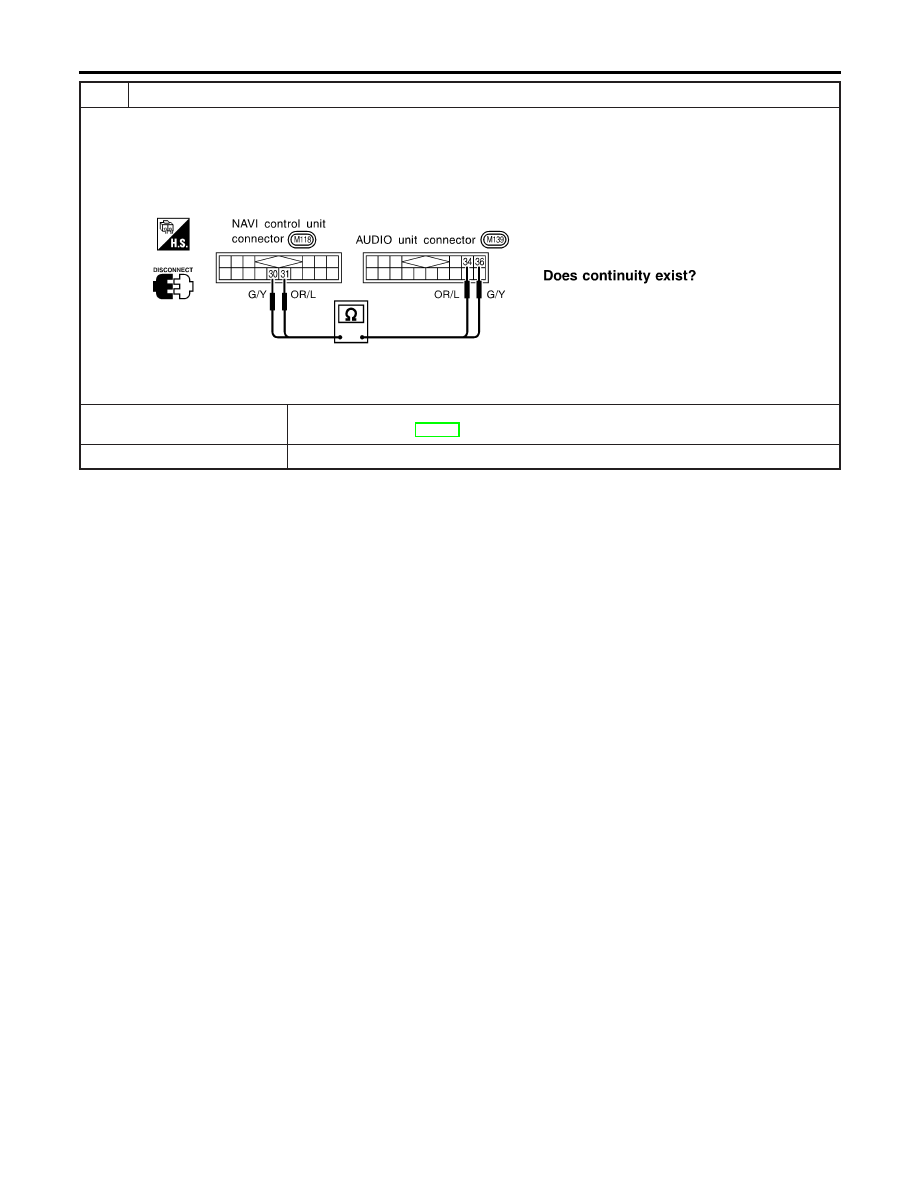

CHECK VOICE SIGNAL CIRCUIT

1. Turn ignition switch OFF.
2. Disconnect NAVI control unit connector and AUDIO unit connector.
3. Check continuity between NAVI control unit terminal 30 and AUDIO unit terminal 36.
4. Check continuity between NAVI control unit terminal 31 and AUDIO unit terminal 34.

SEL649X

Yes or No

Yes

©

Repair or replace audio system.
Refer to “AUDIO” in EL-160.

No

©

Repair or replace harness or connector.

NAVIGATION SYSTEM

Trouble diagnoses (Cont’d)

EL-422

This Condition is Not Abnormal

=NBEL0235

EXAMPLE OF BASIC OPERATIONAL ERRORS

NBEL0235S01

Symptom

Possible cause

Repair order

No image is dis-
played.

Monitor brightness control is set to full dark.

Readjust monitor brightness.

Map does not appear
on display.

Map CD is not inserted or inserted upside down.

Insert the map CD with the label facing up.

Map mode is turned OFF.

Press the “MAP” button.

No guide tone is
heard.

Voice guide adjustment OFF/Volume is set to the
lowest or highest level.

Adjust the voice guide level.

Voice guide volume
is too high or too low.

Dark display/Slow
image movement

Low vehicle interior temperature

Wait until vehicle interior temperature rises to appro-
priate level.

Small black or white
dots appear on the
screen.

Unique liquid crystal display phenomena

No problem

“Unable to read CD”
message appears
only during specified
operation.

Map CD surface is tainted/CD surface is partially
scratched.

Check map CD surface. If dirty, wipe clean with a
soft cloth.

If map CD surface is damaged, replace the CD.

Area place names are not displayed.
If area place names do not appear on the map display, these names may not be available. Use the BIRD-
VIEW

T

flat surface map display function. Display output may differ. Note the items related to BIRDVIEW

T

below.

I

Priority is given to the display of place names in the direction of vehicle travel.

I

Extended display of vehicle travel distance for both surfaces and steering angle (flat directional changes).
This phenomenon disappears after the display image has been replaced by another one.

I

The names of route and area might vary between the immediate front area and distance front area.

I

Alphanumeric display characters are limited to maintain display simplicity and clarity. Display details may
differ with time and place.

I

Identical place and road names may appear on the display at more than one location.

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

IDX

NAVIGATION SYSTEM

This Condition is Not Abnormal

EL-423

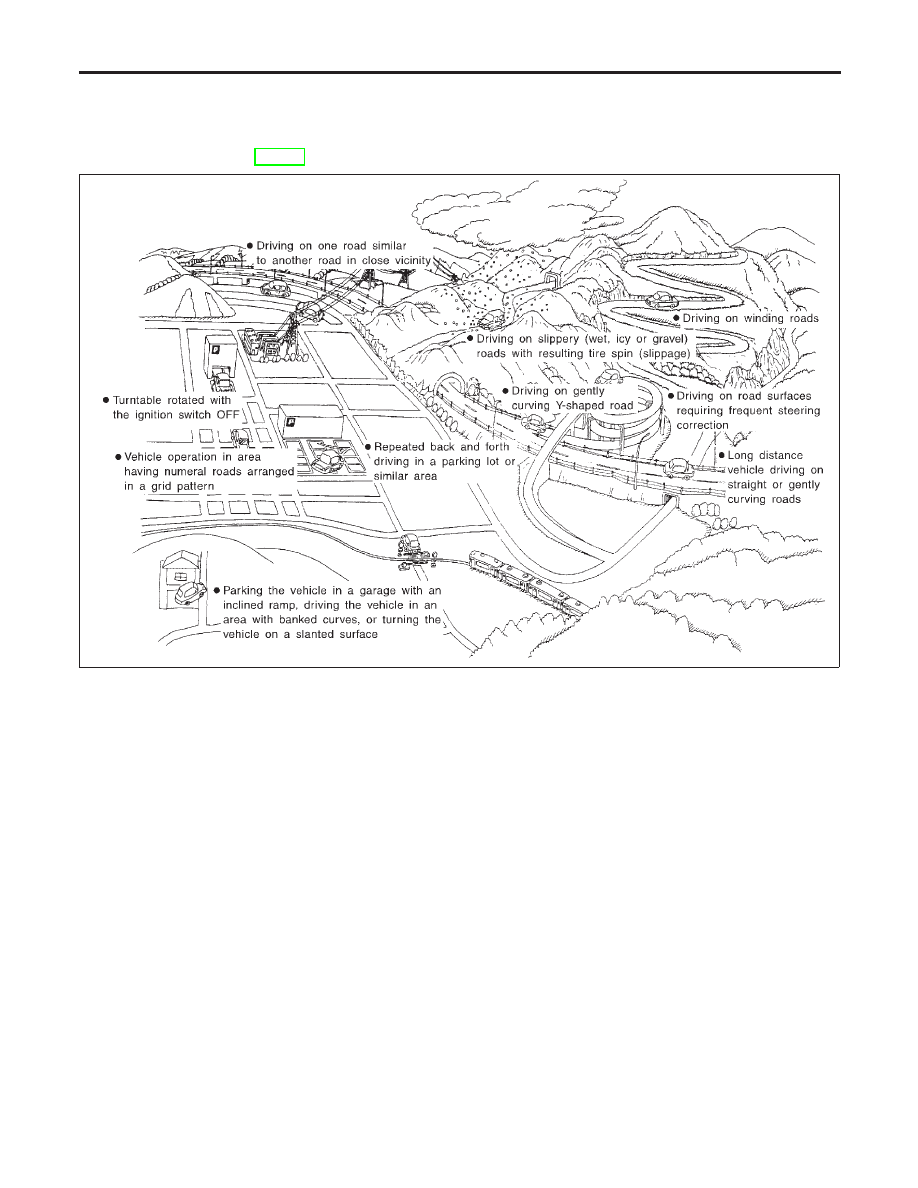

EXAMPLE OF CURRENT VEHICLE POSITION MARKER ERROR

=NBEL0235S02

The navigation system reads the vehicle distance and steering angle data. Because the vehicle is moving,
there will be an error in the current position indication. After the error appears, drive the vehicle for a short
distance. Stop the vehicle. If the position marker does not return to its original position, perform “ADJUST
CURRENT LOCATION” (EL-411).

SEL698V

NAVIGATION SYSTEM

This Condition is Not Abnormal (Cont’d)

EL-424
