Infiniti QX4 (R50). Manual - part 377

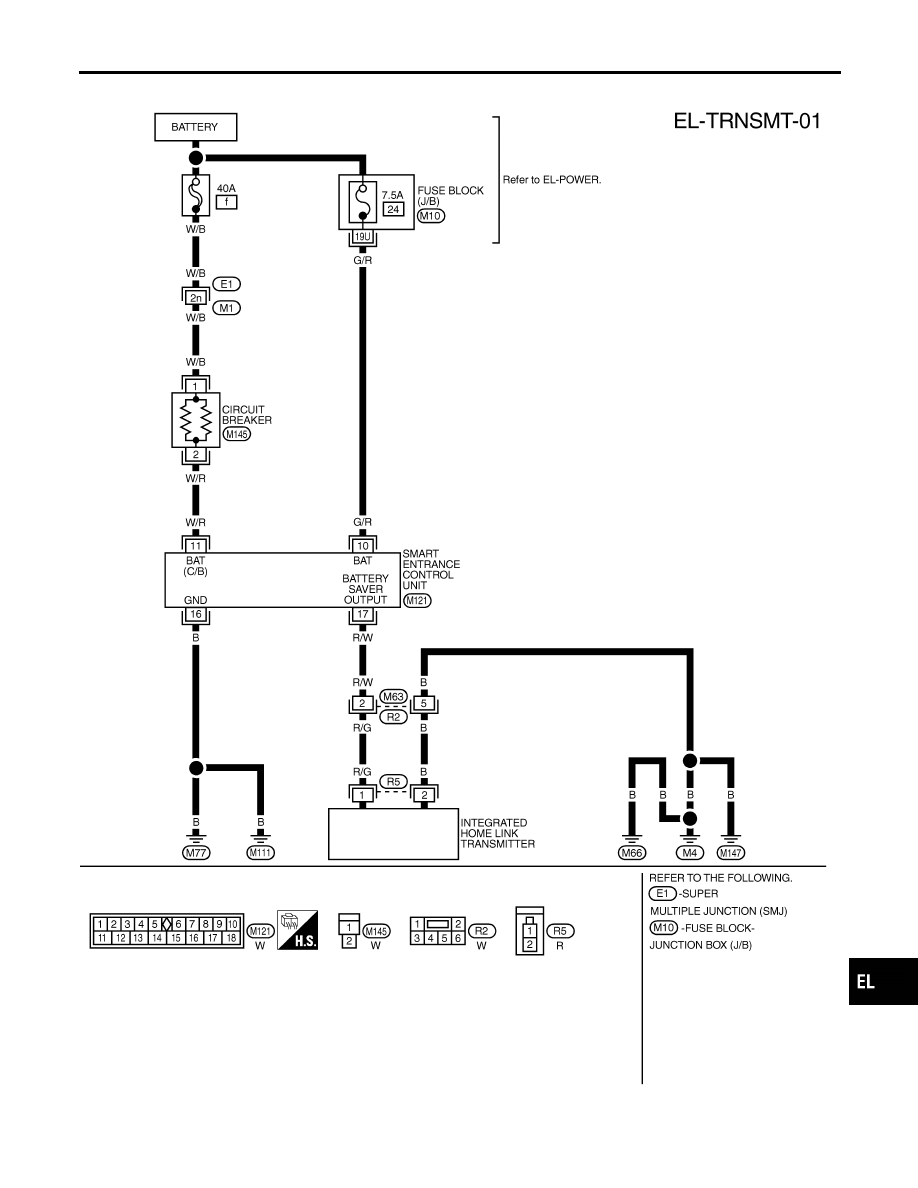

Wiring Diagram — TRNSMT —

NBEL0127

MEL866L

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

IDX

INTEGRATED HOMELINK TRANSMITTER

Wiring Diagram — TRNSMT —

EL-325

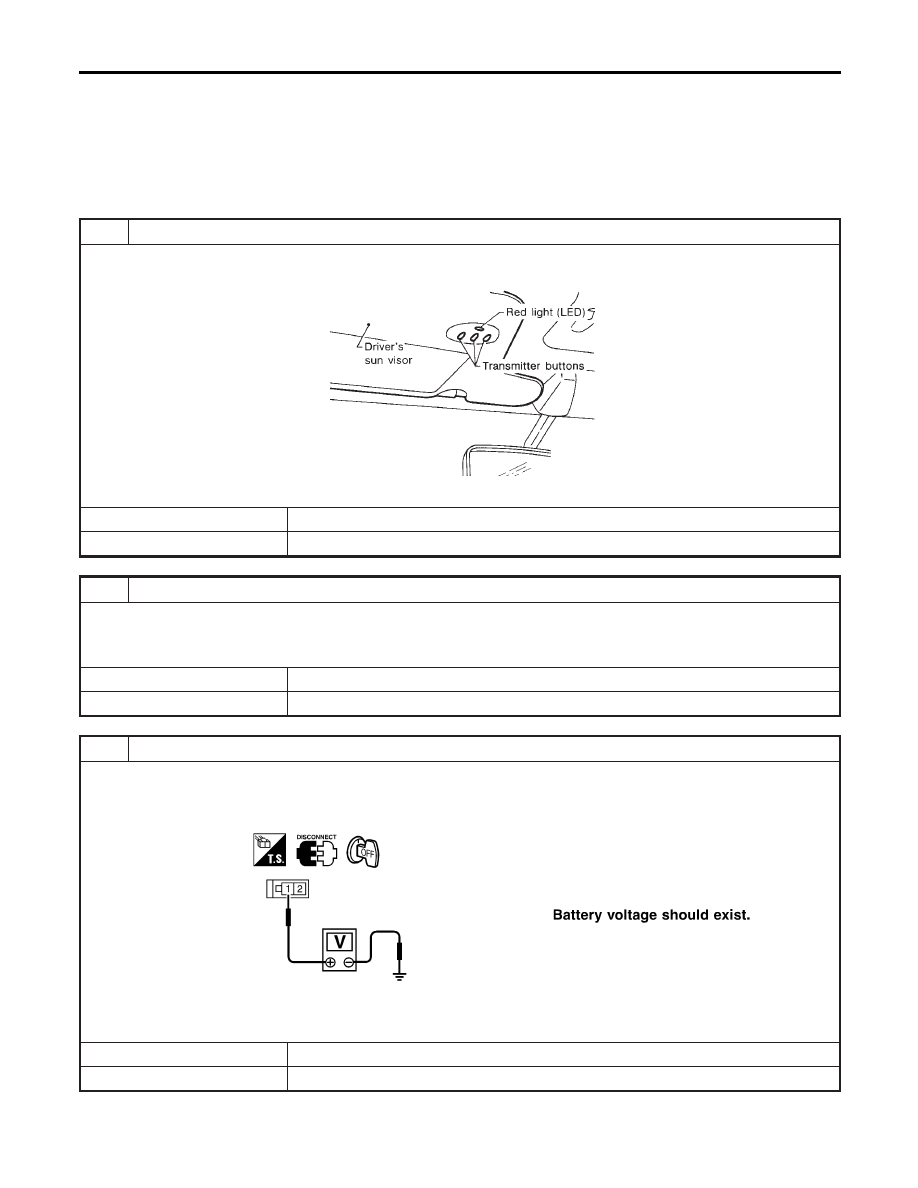

Trouble Diagnoses

NBEL0128

DIAGNOSTIC PROCEDURE

NBEL0128S01

SYMPTOM: Transmitter does not activate receiver.
Before conducting the procedure given below, make sure that sys-
tem receiver (garage door opener, etc.) operates with original,
hand-held transmitter. If NG, receiver or hand-held transmitter is at
fault, not vehicle related.

1

PRELIMINARY CHECK

1. Turn ignition switch “OFF”.
2. Does red light (LED) of transmitter illuminate when any button is pressed?

SEL442U

Yes or No

Yes

©

GO TO 2.

No

©

GO TO 3.

2

CHECK TRANSMITTER FUNCTION

Check transmitter with Tool.
For details, refer to Technical Service Bulletin.

OK or NG

OK

©

Receiver or handheld transmitter fault, not vehicle related.

NG

©

Replace transmitter with sun visor assembly.

3

CHECK POWER SUPPLY

1. Disconnect transmitter connector.
2. Turn ignition switch “OFF”.
3. Check voltage between terminal 1 and body ground.

SEL358X

OK or NG

OK

©

GO TO 4.

NG

©

GO TO 5.

INTEGRATED HOMELINK TRANSMITTER

Trouble Diagnoses

EL-326

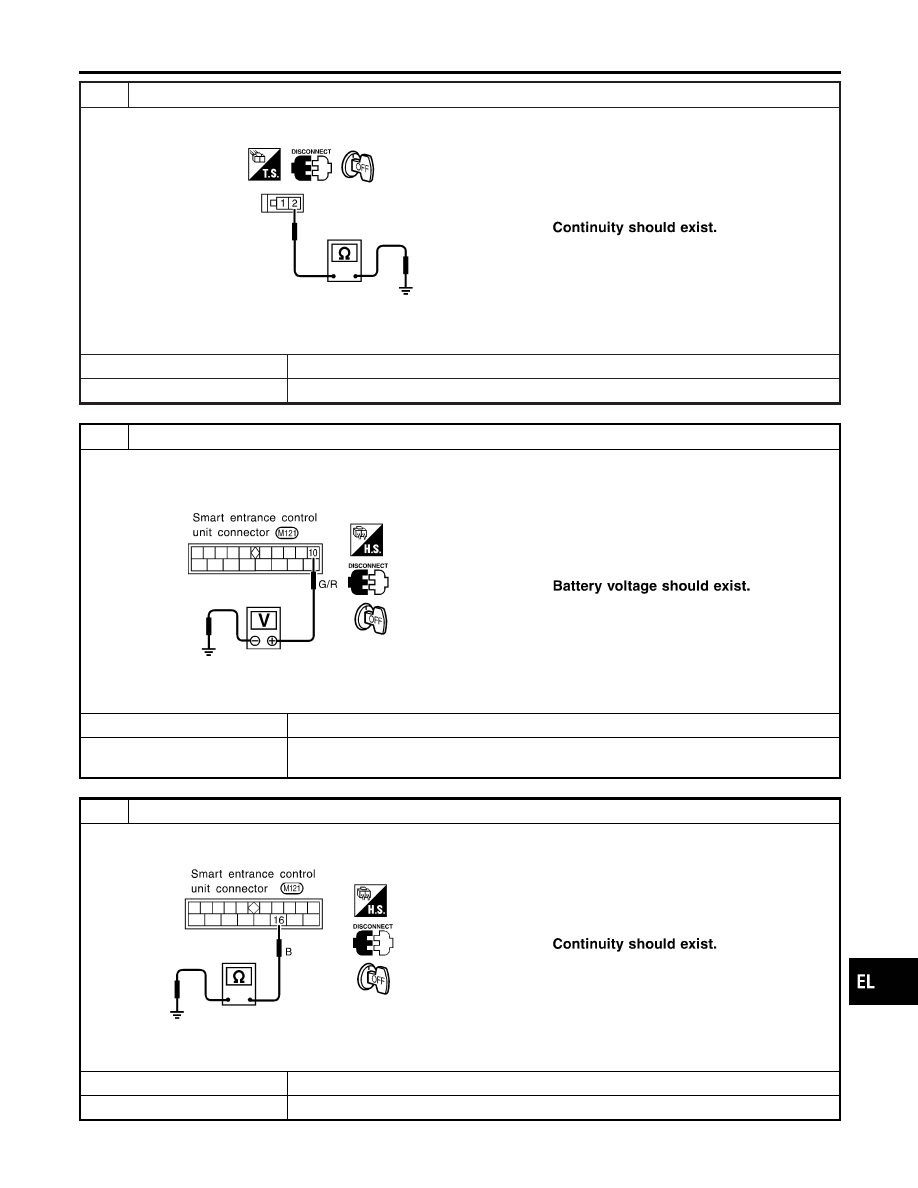

4

CHECK GROUND CIRCUIT

Check continuity between terminal 2 and ground.

SEL359X

OK or NG

OK

©

Replace transmitter with sun visor assembly.

NG

©

Repair harness.

5

CHECK MAIN POWER SUPPLY FOR SMART ENTRANCE CONTROL UNIT

1. Disconnect smart entrance control unit.
2. Check voltage between smart entrance control unit terminal 10 and ground.

SEL360X

OK or NG

OK

©

GO TO 6.

NG

©

Check the following.

I

7.5A fuse No. 24, located in fuse block (J/B)

6

CHECK GROUND CIRCUIT FOR SMART ENTRANCE CONTROL UNIT

Check continuity between terminal 16 and ground.

SEL361X

OK or NG

OK

©

Power supply and ground circuits are OK.

NG

©

Check ground harness.

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

IDX

INTEGRATED HOMELINK TRANSMITTER

Trouble Diagnoses (Cont’d)

EL-327

Component Parts and Harness Connetor
Location

NBEL0170

SEL357X

NOTE:
If customer reports a “No Start” condition, request ALL KEYS
to be brought to an INFINITI dealer in case of an IVIS (NATS)
malfunction.

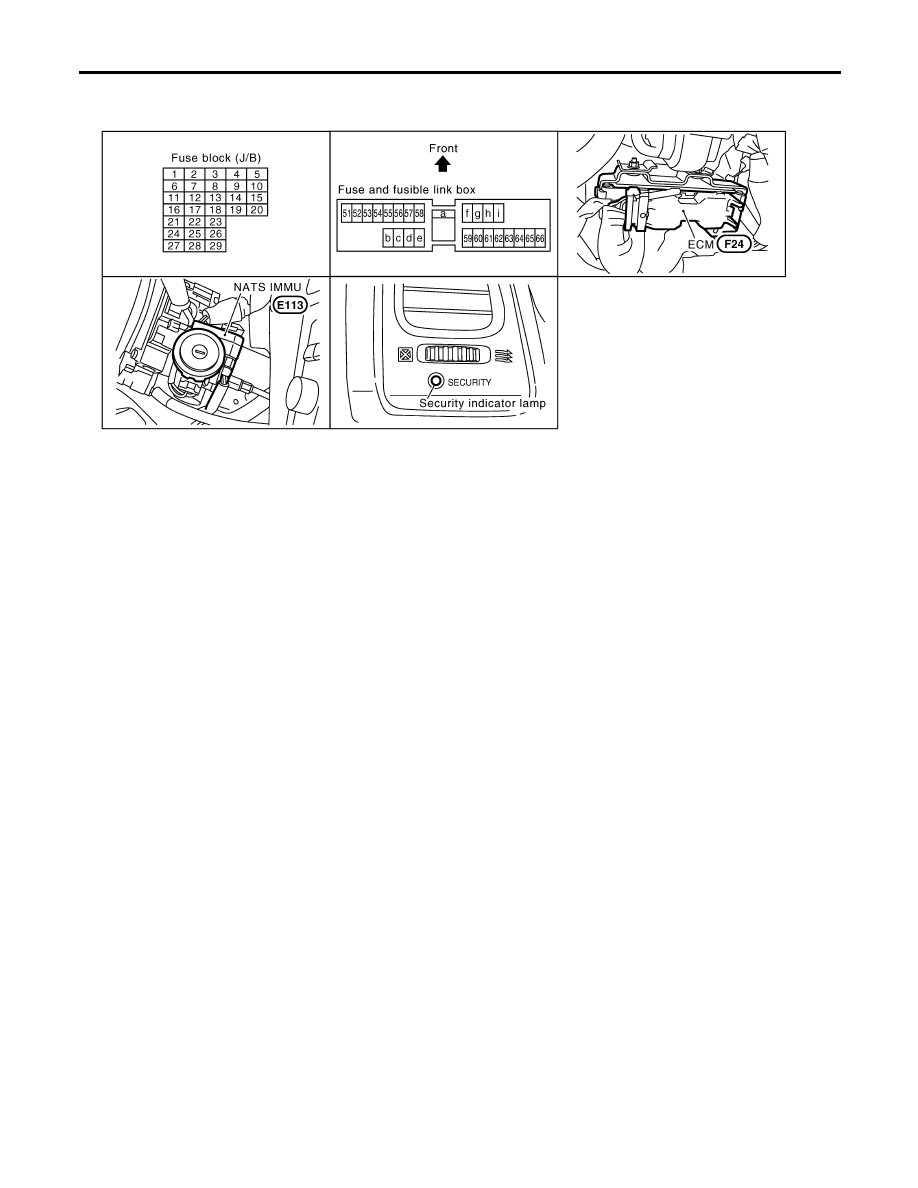

IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM — NATS)

Component Parts and Harness Connetor Location

EL-328
