DOOR LOCK/UNLOCK SWITCH CHECK

=NBEL0110S03

1

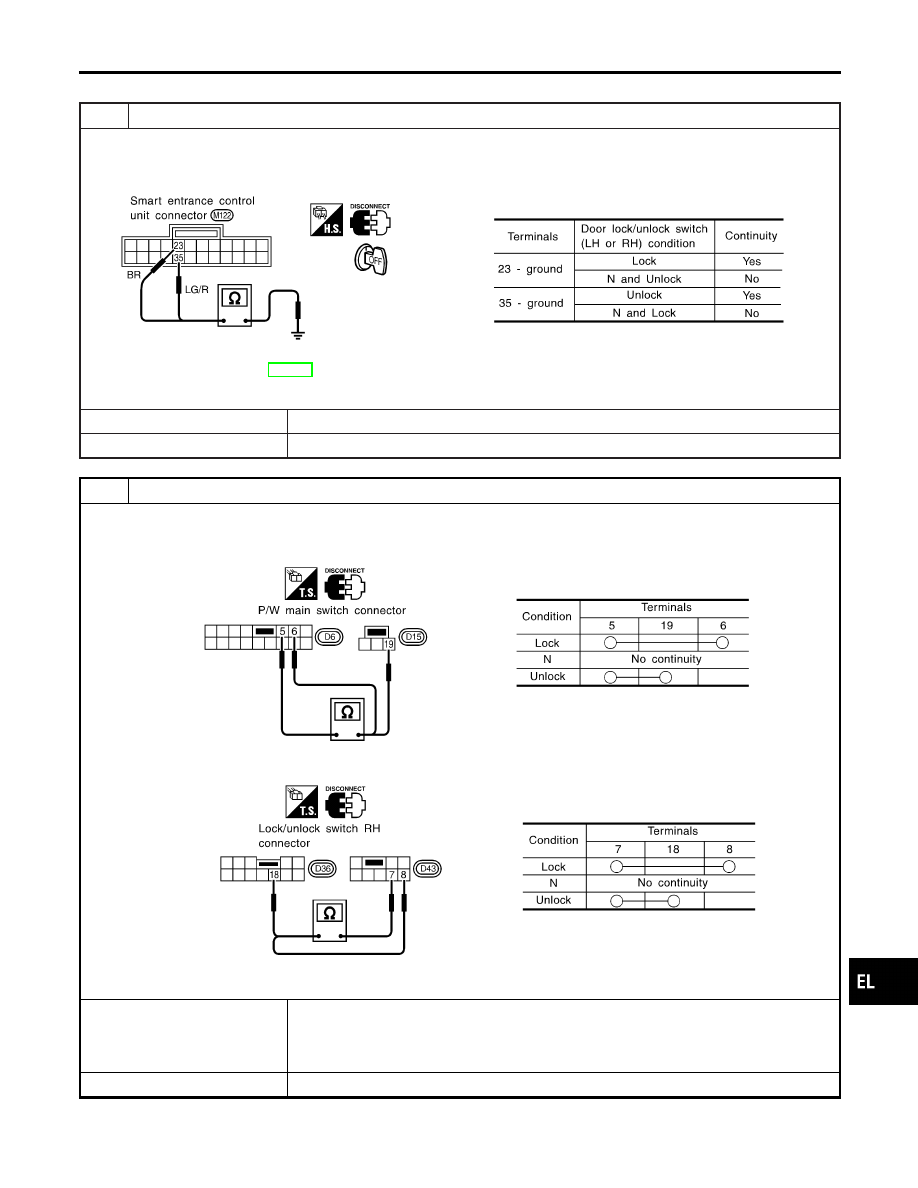

CHECK DOOR LOCK/UNLOCK SWITCH INPUT SIGNAL

1. Disconnect smart entrance control unit connector.
2. Check continuity between control unit terminal 23 or 35 and ground.

SEL309X

Refer to wiring diagram in EL-257.

OK or NG

OK

©

Door lock/unlock switch is OK.

NG

©

GO TO 2.

2

CHECK DOOR LOCK/UNLOCK SWITCH

1. Disconnect door lock/unlock switch connector.
2. Check continuity between each door lock/unlock switch terminals.

I

Power window main switch (Door lock/unlock switch LH)

SEL310X

I

Door lock/unlock switch RH

SEL311X

OK or NG

OK

©

Check the following.

I

Ground circuit for door lock/unlock switch

I

Harness for open or short between door lock/unlock switch and smart entrance control
unit connector

NG

©

Replace door lock/unlock switch.

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

IDX

POWER DOOR LOCK

Trouble Diagnoses (Cont’d)

EL-265

FRONT DOOR KEY CYLINDER SWITCH CHECK

=NBEL0110S07

1

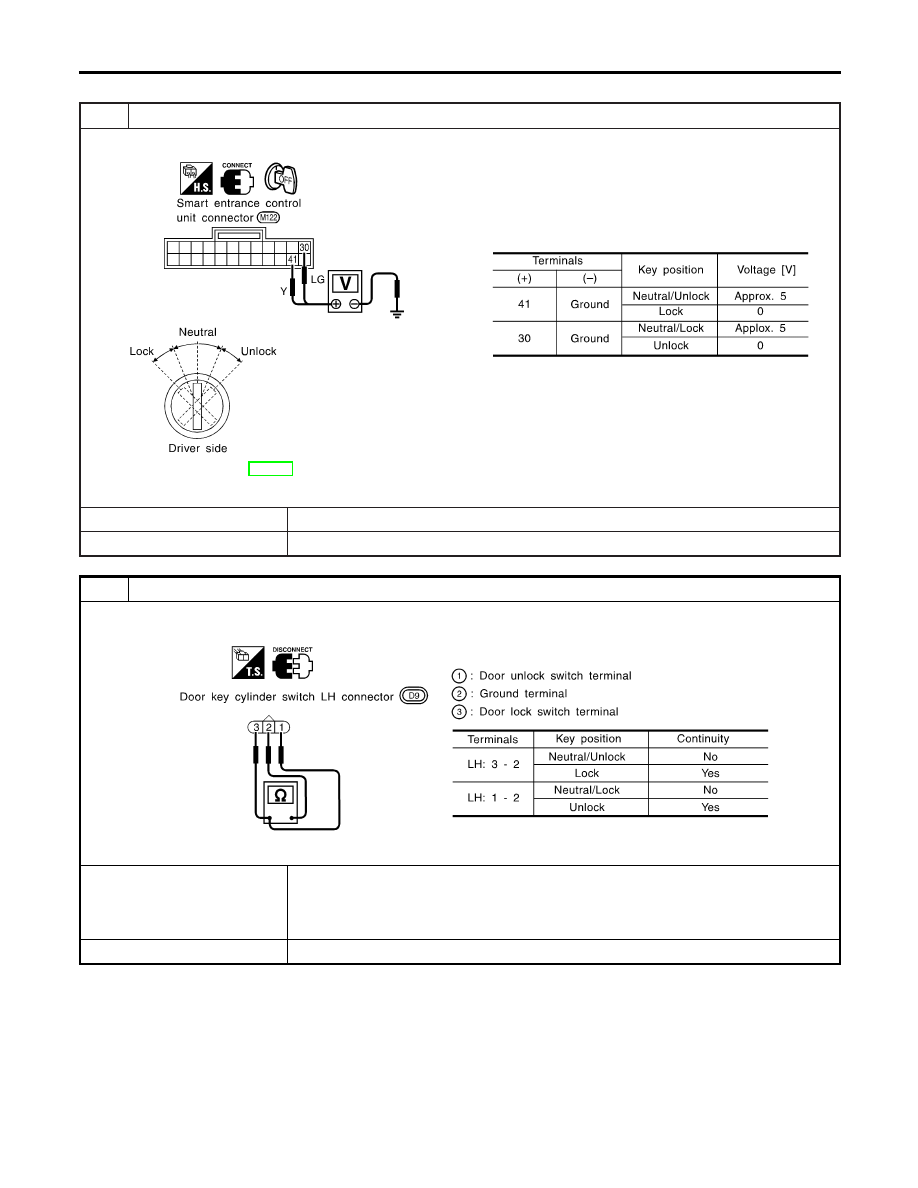

CHECK DOOR KEY CYLINDER SWITCH INPUT SIGNAL (LOCK/UNLOCK SIGNAL)

Check voltage between smart entrance control unit terminals 30 or 41 and ground.

SEL312X

Refer to wiring diagram in EL-258.

OK or NG

OK

©

Door key cylinder switch LH is OK.

NG

©

GO TO 2.

2

CHECK DOOR KEY CYLINDER SWITCH

1. Disconnect door key cylinder switch connector.
2. Check continuity between door key cylinder switch terminals.

SEL313X

OK or NG

OK

©

Check the following.

I

Door key cylinder switch LH ground circuit

I

Harness for open or short between smart entrance control unit and door key cylinder
switch LH

NG

©

Replace door key cylinder switch LH.

POWER DOOR LOCK

Trouble Diagnoses (Cont’d)

EL-266

BACK DOOR KEY CYLINDER SWITCH CHECK

=NBEL0110S08

1

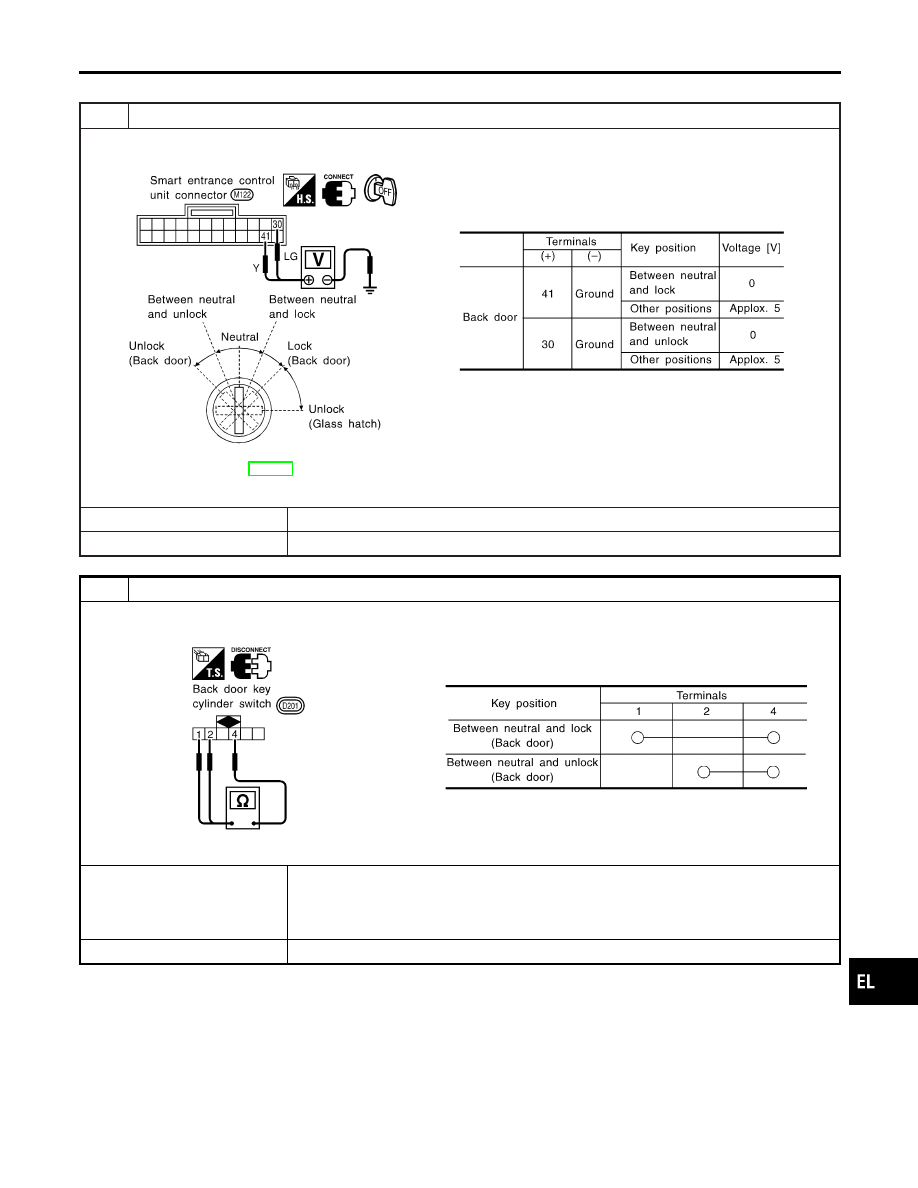

CHECK BACK DOOR KEY CYLINDER SWITCH INPUT SIGNAL (LOCK/UNLOCK SIGNAL)

Check voltage between smart entrance control unit terminals 30 or 41 and ground.

SEL314X

Refer to wiring diagram in EL-258.

OK or NG

OK

©

Back door key cylinder switch is OK.

NG

©

GO TO 2.

2

CHECK BACK DOOR KEY CYLINDER SWITCH

1. Disconnect back door key cylinder switch connector.
2. Check continuity between back door key cylinder switch terminals.

SEL315X

OK or NG

OK

©

Check the following.

I

Back door key cylinder switch ground circuit

I

Harness for open or short between smart entrance control unit and back door key cyl-
inder switch

NG

©

Replace back door key cylinder switch.

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

IDX

POWER DOOR LOCK

Trouble Diagnoses (Cont’d)

EL-267

DOOR LOCK ACTUATOR CHECK

=NBEL0110S04

1

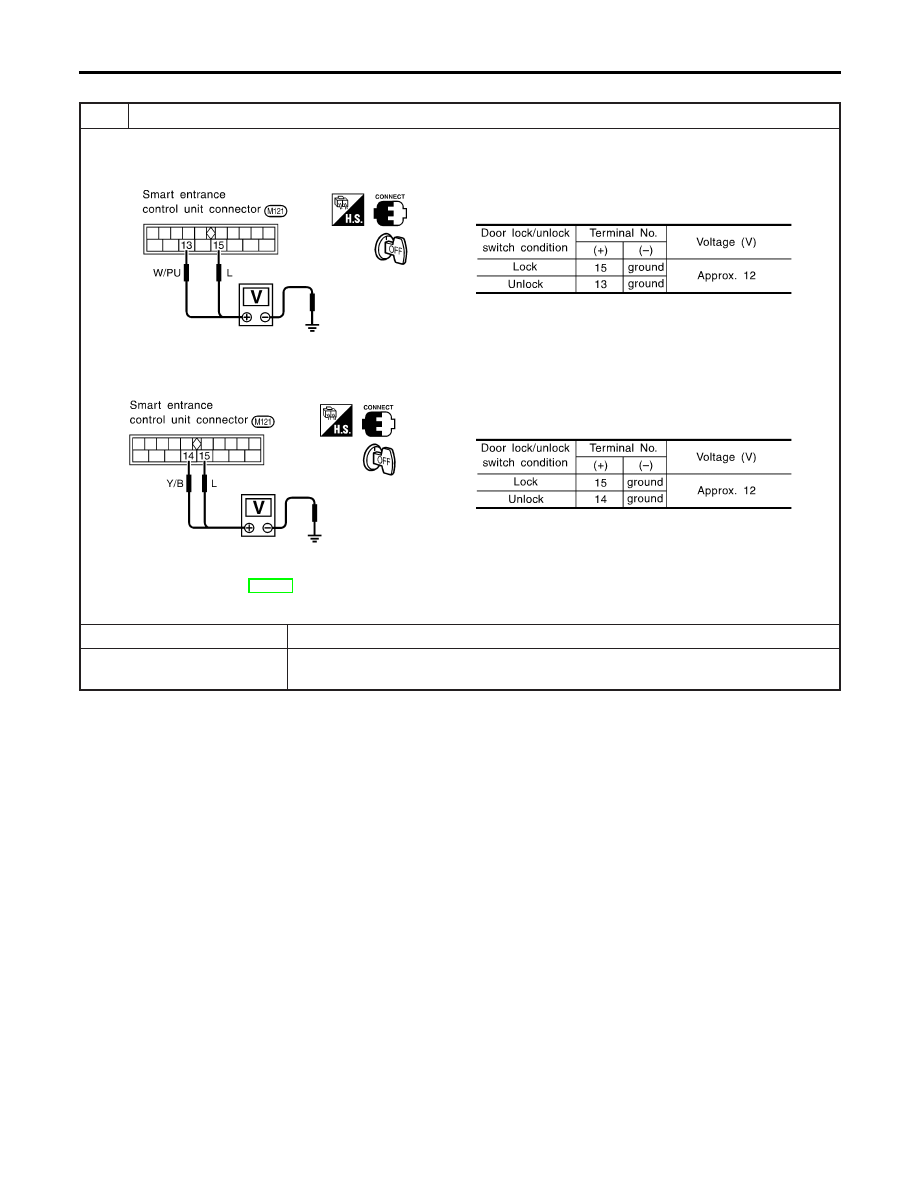

CHECK DOOR LOCK ACTUATOR CIRCUIT

Check voltage for door lock actuator.

I

Door lock actuator front LH

SEL316X

I

Door lock actuator front RH, rear and back

SEL317X

Refer to wiring diagram in EL-259.

OK or NG

OK

©

GO TO 2.

NG

©

Replace smart entrance control unit. (Before replacing smart entrance control unit, per-
form “DOOR LOCK/UNLOCK SWITCH CHECK”.)

POWER DOOR LOCK

Trouble Diagnoses (Cont’d)

EL-268
