System Description

NBEL0102

Power is supplied at all times

I

from 40A fusible link (letter f, located in the fuse and fusible link box)

I

to circuit breaker terminal 1

I

through circuit breaker terminal 2

I

to power window relay terminal 3,

I

to front power window main switch terminal 4, and

I

to front power window switch RH terminal 6.

With ignition switch in ON or START position, power is supplied

I

through 7.5A fuse [No. 11, located in the fuse block (J/B)]

I

to power window relay terminal 2, and

I

to smart entrance control unit terminal 33.

Ground is supplied to power window relay terminal 1

I

through body grounds M4, M66 and M147.

The power window relay is energized and power is supplied

I

through power window relay terminal 5

I

to front power window main switch terminal 11,

I

to front power window switch RH terminal 13,

I

to rear power window switch LH and RH terminals 5.

MANUAL OPERATION

NBEL0102S01

Front Door LH

NBEL0102S0101

Ground is supplied

I

to front power window main switch terminal 5

I

through body grounds M77 and M111.

WINDOW UP
When the front LH switch in the front power window main switch is pressed in the up position, power is sup-
plied

I

to front power window regulator LH terminal 1

I

through front power window main switch terminal 2.

Ground is supplied

I

to front power window regulator LH terminal 3

I

through front power window main switch terminal 3.

Then, the motor raises the window until the switch is released.
WINDOW DOWN
When the LH switch in the front power window main switch is pressed in the down position, power is supplied

I

to front power window regulator LH terminal 3

I

through front power window main switch terminal 3.

Ground is supplied

I

to front power window regulator LH terminal 1

I

through front power window main switch terminal 2.

Then, the motor lowers the window until the switch is released.

Front Door RH

NBEL0102S0102

Ground is supplied

I

to front power window main switch terminal 5

I

through body grounds M77 and M111.

NOTE:
Numbers in parentheses are terminal numbers, when power window switch is pressed in the UP and DOWN
positions respectively.
FRONT POWER WINDOW MAIN SWITCH OPERATION
When front RH switch in the front power window main switch is pressed UP or DOWN, a signal is supplied

I

through front power window main switch terminal 8

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

IDX

POWER WINDOW

System Description

EL-241

I

to front power window switch RH terminal 11.

The subsequent operation is the same as the front power window switch RH operation.
FRONT POWER WINDOW SWITCH RH OPERATION
Power is supplied

I

through front power window switch RH (5, 4)

I

to front power window regulator RH (1, 3).

Ground is supplied

I

to front power window regulator RH (3, 1)

I

through front power window switch RH (4, 5)

I

to front power window switch RH terminal 12

I

through front power window main switch terminal 1.

Then, the motor raises or lowers the window until the switch is released.

Rear Door LH

NBEL0102S0104

Ground is supplied

I

to front power window main switch terminal 5

I

through body grounds the M77 and M111.

NOTE:
Numbers in parentheses are terminal numbers, when the power window switch is pressed in the UP and
DOWN positions.
FRONT POWER WINDOW MAIN SWITCH OPERATION
Power is supplied

I

through front power window main switch terminal (13, 12)

I

to rear power window switch LH terminal (3, 4)

The subsequent operation is the same as the rear power window switch LH operation.
REAR POWER WINDOW SWITCH LH
Power is supplied

I

through rear power window switch LH (1, 2)

I

to rear power window regulator LH (1, 2)

Ground is supplied

I

to rear power window regulator LH (2, 1)

I

through rear power window switch LH (2, 1)

I

to rear power window switch LH terminal (4, 3)

I

through front power window main switch terminal (12, 13)

Then, the motor raises or lowers the window until the switch is released.

Rear Door RH

NBEL0102S0105

Rear door RH windows will rise and lower in the same manner as the rear door LH window.

AUTO OPERATION

NBEL0102S02

The power window AUTO feature enables the driver or front passenger to open or close the driver’s and front
passenger’s window without holding the window switch in the up or down position.
The AUTO feature only operates on the driver’s and front passenger’s window upward and downward move-
ment.

POWER WINDOW LOCK

NBEL0102S03

The power window lock is designed to lock operation of all windows except for driver’s door window.
When the lock switch is pressed to lock position, the ground of the front and rear power window switches, in
the power window main switch, is disconnected. This prevents the power window motors from operating.

RETAINED POWER OPERATION

NBEL0102S04

When the ignition switch is turned to OFF position from ON or START position, power is supplied for 45 sec-
onds

I

to power window relay terminal 2

I

from smart entrance control unit terminal 5.

Ground is always supplied

POWER WINDOW

System Description (Cont’d)

EL-242

I

to power window relay terminal 1

I

through body grounds.

When power and ground are supplied, the power window relay continues to be energized, and the power win-
dow can be operated.
The retained power operation is canceled when the driver or passenger side door is opened.

INTERRUPTION DETECTION FUNCTION

NBEL0102S05

Front power window main switch and front power window switch RH monitor the power window regulator motor
operation and the power window position (full closed or other) for driver’s and passenger’s power window by
the signals from encoder and limit switch in front power window regulator LH or RH.
When front power window main switch or front power window switch RH detects interruption during the fol-
lowing close operation in the driver’s or front passenger’s side door,

I

automatic close operation when ignition switch is in the “ON” position

I

automatic close operation during retained power operation

front power window main switch or front power window switch RH controls driver’s or front passenger’s power
window regulator motor for open and the power window will be lowered about 150 mm (5.91 in).

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

IDX

POWER WINDOW

System Description (Cont’d)

EL-243

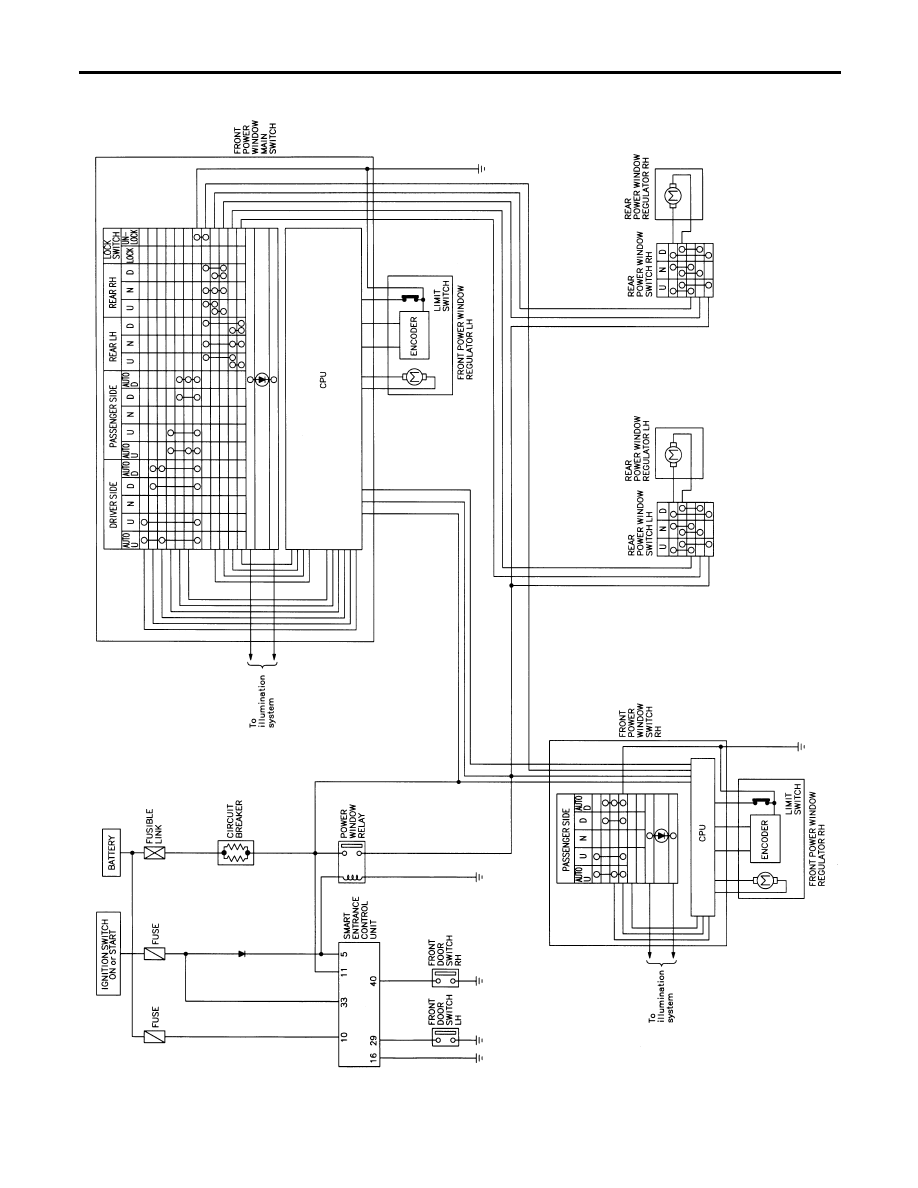

Schematic

NBEL0103

MEL842L

POWER WINDOW

Schematic

EL-244
