ASCD ACTUATOR/PUMP CHECK

=NBEL0218S08

1

CHECK VACUUM HOSE

Check vacuum hose (between ASCD actuator and ASCD pump) for breakage, cracks or fracture.

MEL402G

OK or NG

OK

©

GO TO 2.

NG

©

Repair or replace hose.

2

CHECK ASCD WIRE

Check wire for improper installation, rust formation or breaks.

OK or NG

OK

©

GO TO 3.

NG

©

Repair or replace wire. Refer to “ASCD Wire Adjustment” (EL-240).

3

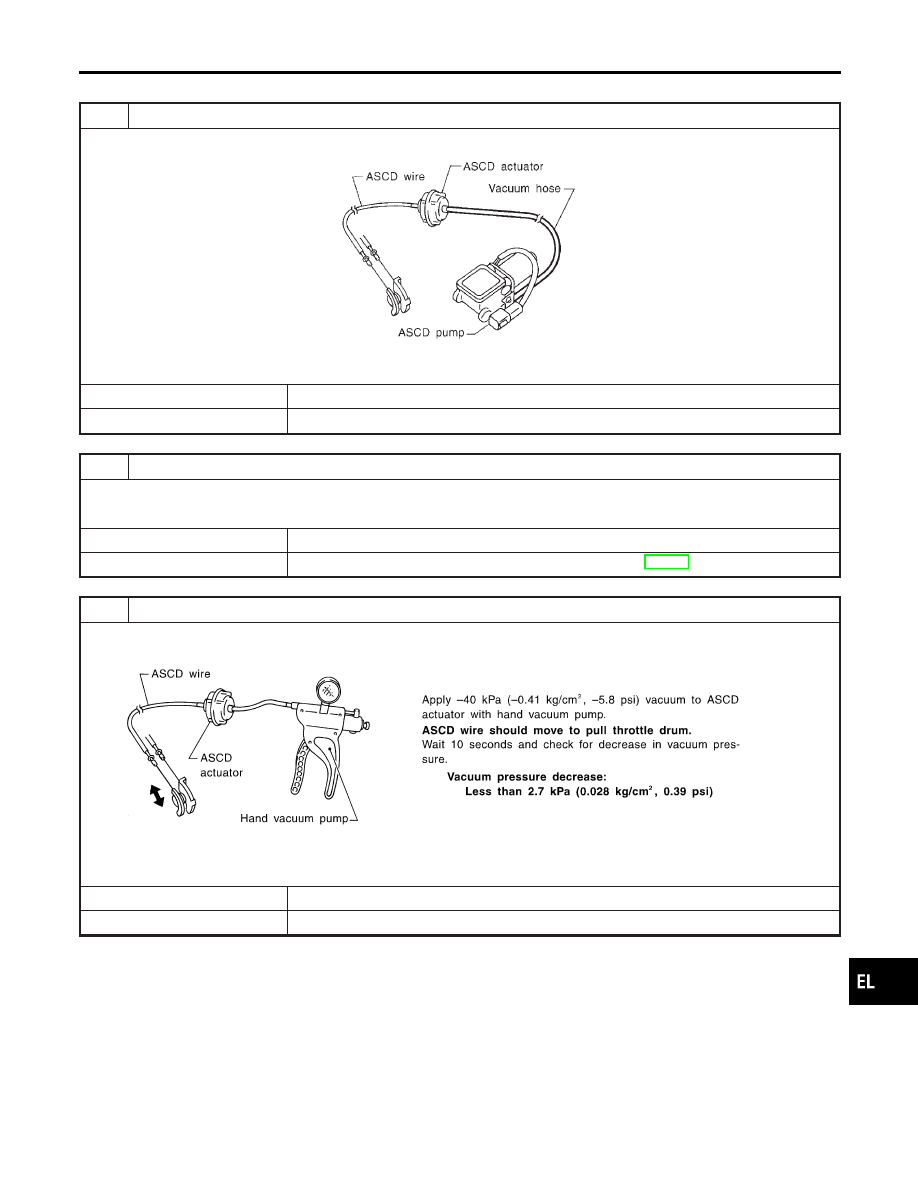

CHECK ASCD ACTUATOR

1. Disconnect vacuum hose from ASCD actuator.
2. Connect the hose of hand vacuum pump to ASCD actuator.

SEL264W

OK or NG

OK

©

GO TO 4.

NG

©

Replace ASCD actuator.

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

IDX

AUTOMATIC SPEED CONTROL DEVICE (ASCD)

Trouble Diagnoses (Cont’d)

EL-237

4

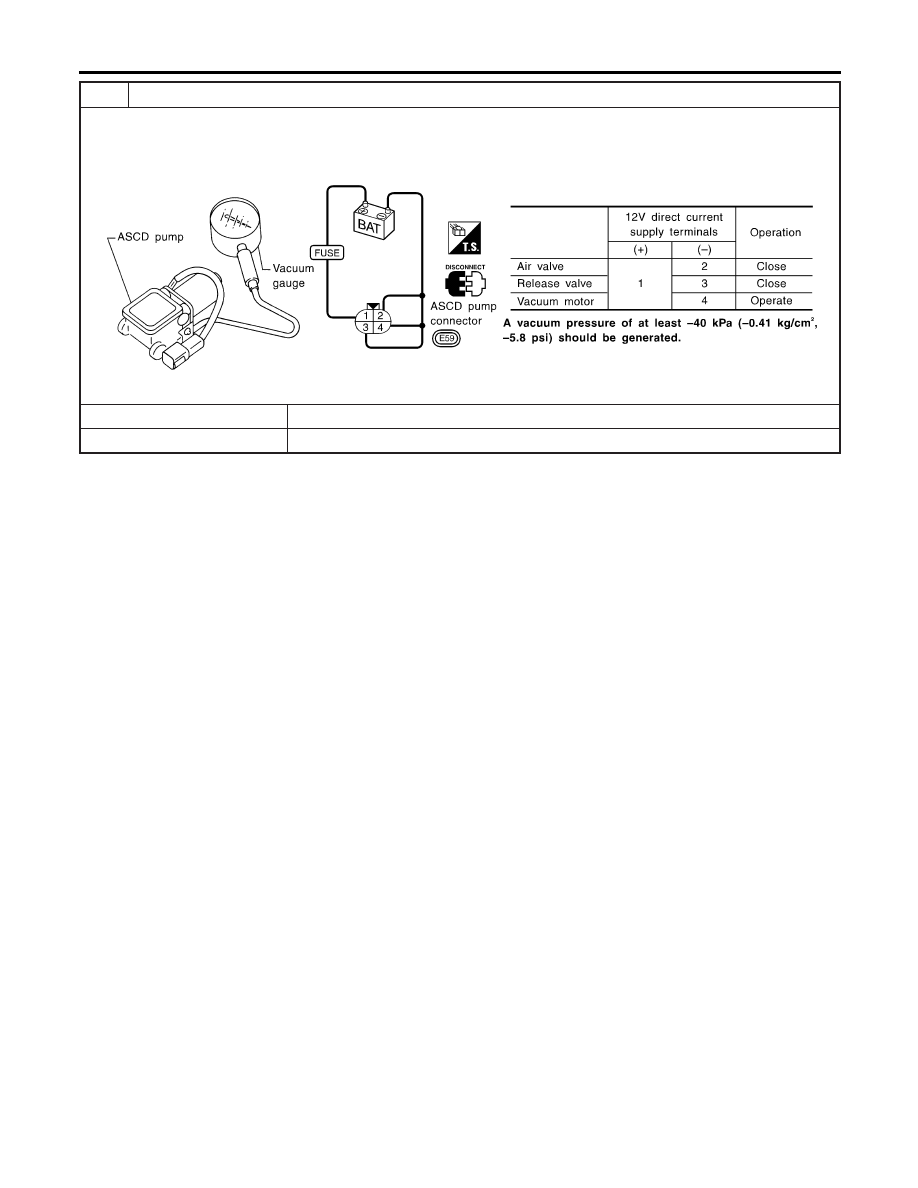

CHECK ASCD PUMP

1. Disconnect vacuum hose from ASCD pump and ASCD pump connector.
2. If necessary remove ASCD pump.
3. Connect vacuum gauge to ASCD pump.
4. Apply 12V direct current to ASCD pump and check operation.

SEL265WB

OK or NG

OK

©

INSPECTION END

NG

©

Replace ASCD pump.

AUTOMATIC SPEED CONTROL DEVICE (ASCD)

Trouble Diagnoses (Cont’d)

EL-238

SEL302X

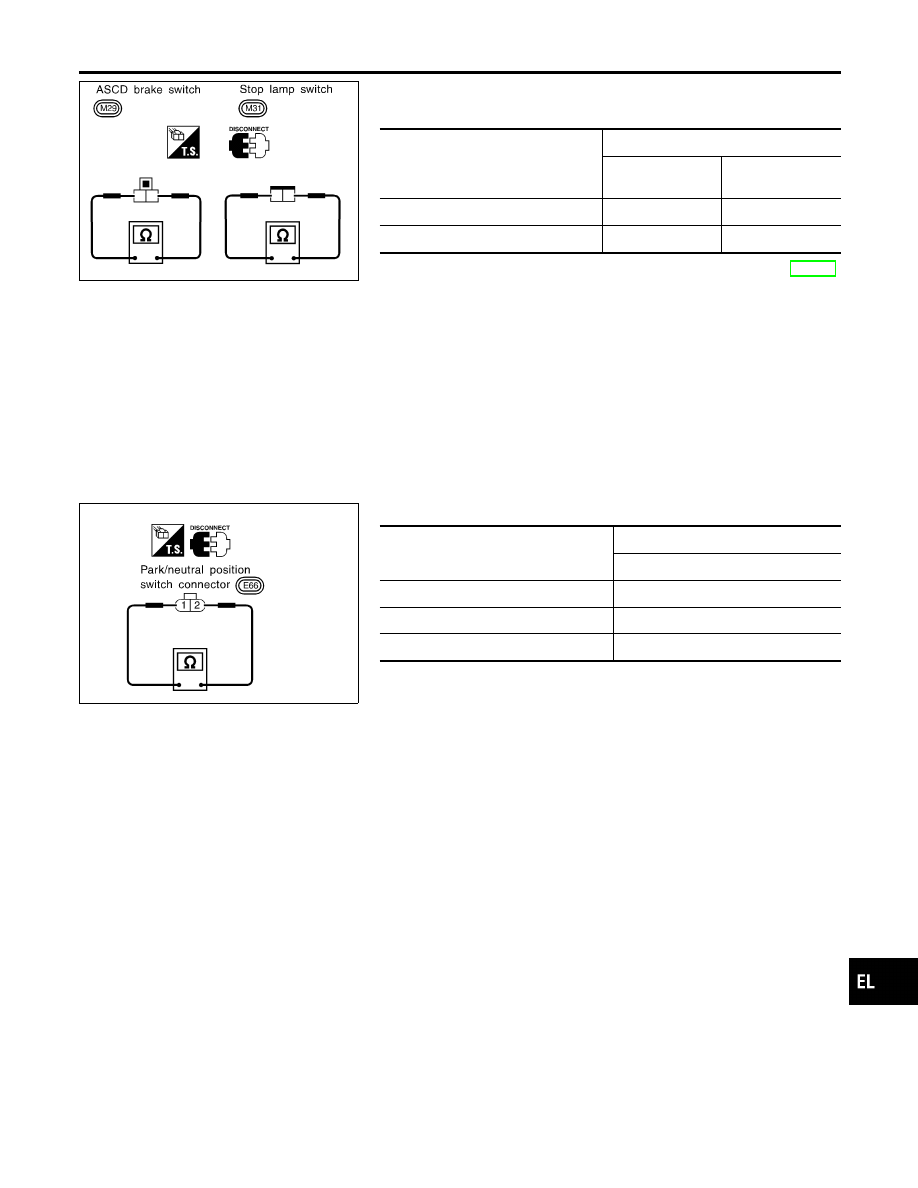

Electrical Component Inspection

=NBEL0219

ASCD BRAKE SWITCH AND STOP LAMP SWITCH

NBEL0219S02

Condition

Continuity

ASCD brake

switch

Stop lamp switch

When brake pedal is depressed

No

Yes

When brake pedal is released

Yes

No

Check each switch after adjusting brake pedal — refer to BR-14,
“BRAKE PEDAL AND BRACKET”.

SEL303X

PARK/NEUTRAL POSITION SWITCH

NBEL0219S03

A/T selector lever position

Continuity

Between terminals 1 and 2

“P”

Yes

“N”

Yes

Except “P” and “N”

No

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

IDX

AUTOMATIC SPEED CONTROL DEVICE (ASCD)

Electrical Component Inspection

EL-239

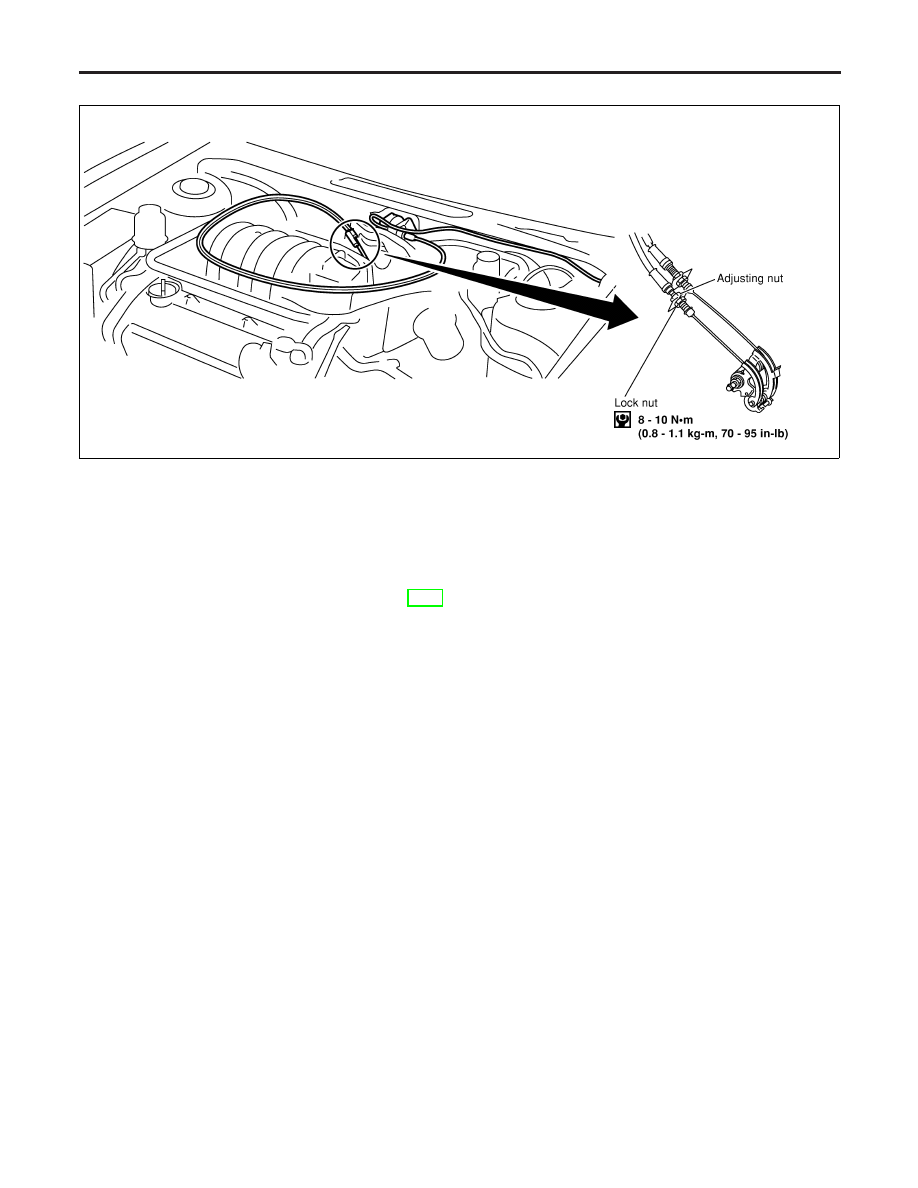

ASCD Wire Adjustment

=NBEL0220

MEL383K

CAUTION:

I

Be careful not to twist ASCD wire when removing it.

I

Do not tense ASCD wire excessively during adjustment.

Adjust the tension of ASCD wire in the following manner.
1.

Loosen lock nut and adjusting nut.

2.

Make sure that accelerator wire is properly adjusted. Refer to
FE-3, “ACCELERATOR CONTROL SYSTEM”.

3.

Tighten adjusting nut just until throttle drum starts to move.

4.

Loosen adjusting nut again 1/2 to 1 turn.

5.

Tighten lock nut.

AUTOMATIC SPEED CONTROL DEVICE (ASCD)

ASCD Wire Adjustment

EL-240
