MALFUNCTION CODE TABLE

=NBEL0213S02

In this mode, a malfunction code is indicated by the number of flashes from the automatic drive positioner
indicator lamps (indicator lamp 1, indicator lamp 2) as shown below.

SEL597W

Code

No.

Detected

items

Diagnostic procedure

Refer-

ence
page

Code

No.

Detected

items

Diagnostic procedure

Refer-

ence
page

1

Seat

sliding

PROCEDURE 2

(Sliding encoder check)

PROCEDURE 6

(Sliding motor check)

EL-203

EL-211

4

Seat

lifting

rear

PROCEDURE 5

[Lifting encoder (rear) check]

PROCEDURE 9

[Lifting motor (rear) check]

EL-209
EL-214

2

Seat

reclining

PROCEDURE 3

(Reclining encoder check)

PROCEDURE 7

(Reclining motor check)

EL-205
EL-212

9

Vehicle

speed

sensor

PROCEDURE 12

(Vehicle speed sensor check)

EL-217

3

Seat

lifting

front

PROCEDURE 4

[Lifting encoder (front) check]

PROCEDURE 8

[Lifting motor (front) check]

EL-207
EL-213

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

IDX

AUTOMATIC DRIVE POSITIONER

On Board Diagnosis (Cont’d)

EL-197

Trouble Diagnoses

NBEL0214

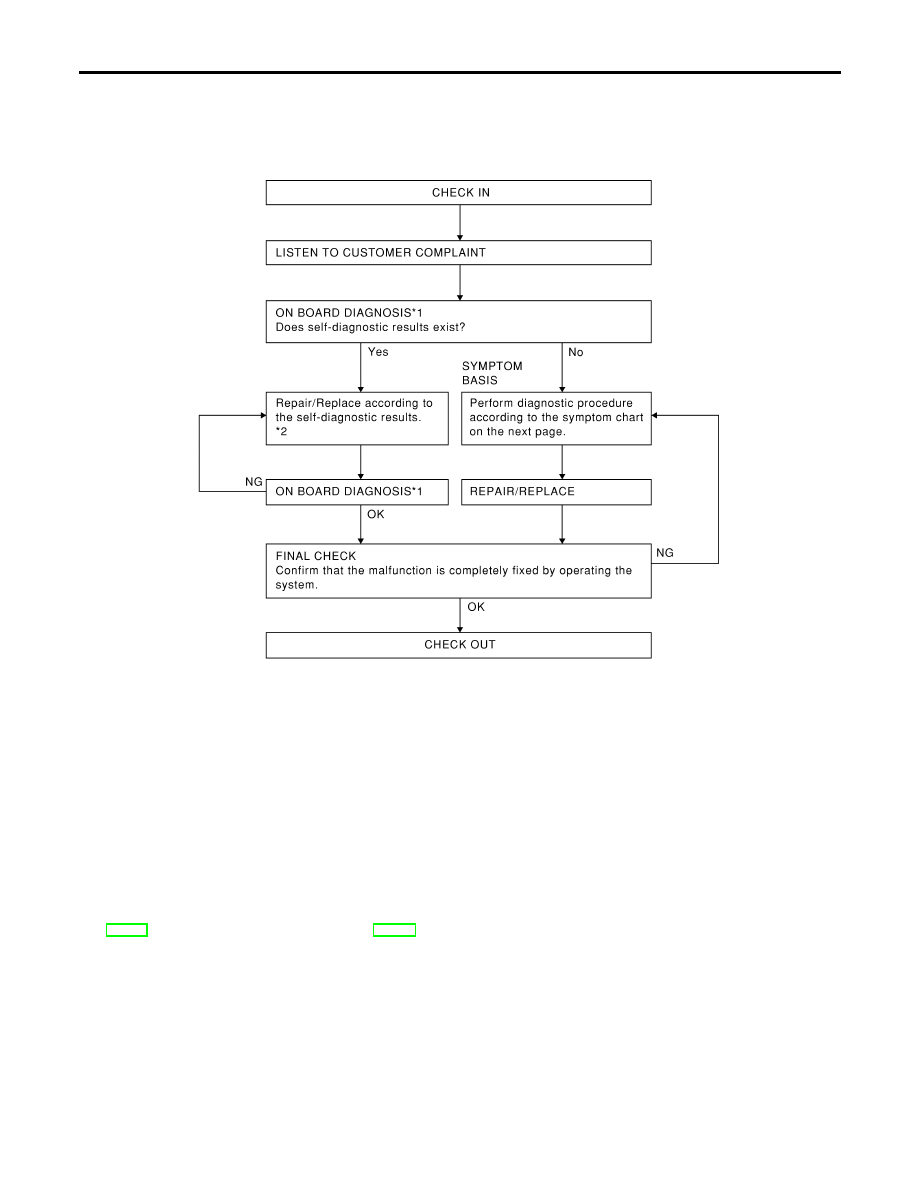

WORK FLOW

NBEL0214S01

SEL599W

*1

EL-196

*2

EL-197

AUTOMATIC DRIVE POSITIONER

Trouble Diagnoses

EL-198

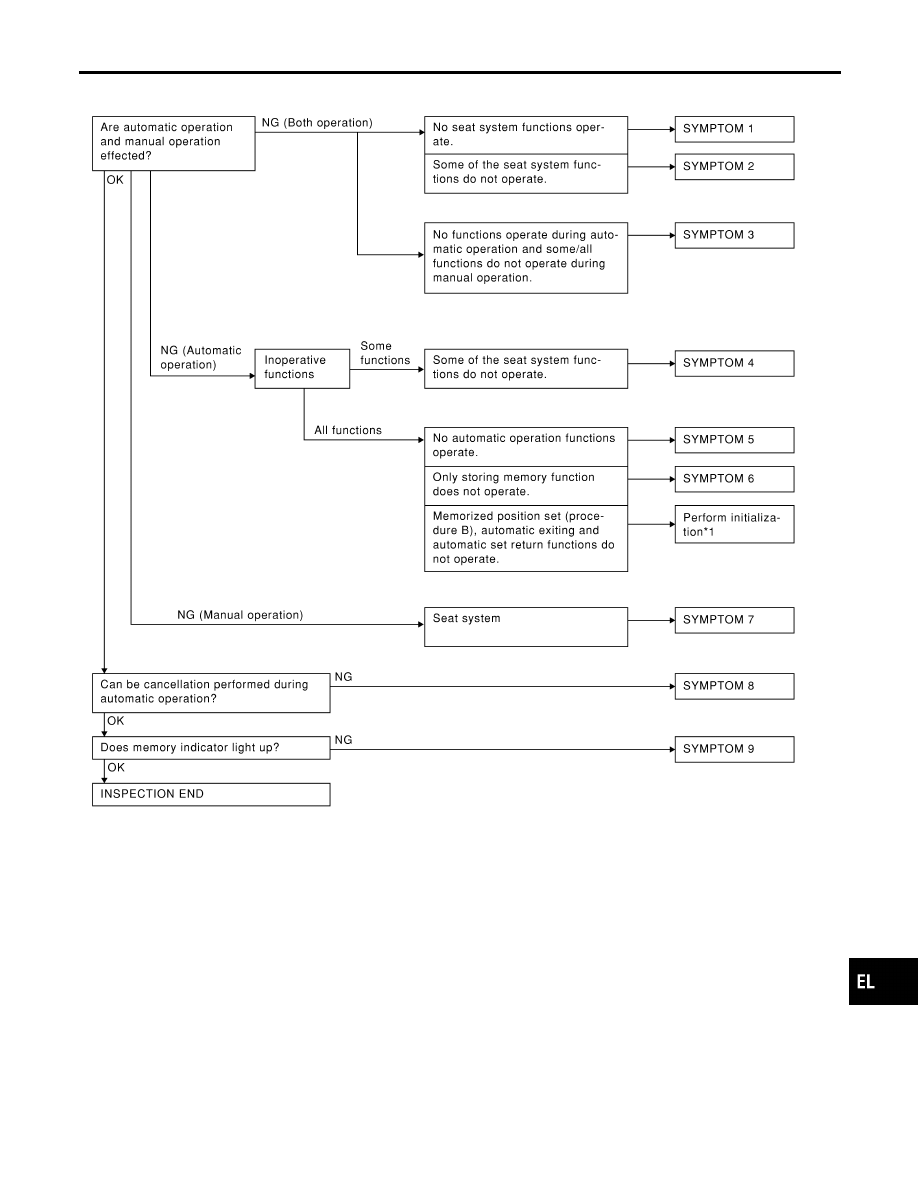

PRELIMINARY CHECK

NBEL0214S02

SEL600W

*1: After reconnecting battery cable, perform initialization proce-
dure A or B.
If initialization has not been performed, automatic drive positioner
will not operate.
PROCEDURE A
1)

Insert key in the ignition key cylinder. (Ignition switch is in
“OFF” position.)

2)

Open

,

close

,

open driver side door. (Do not perform with

the door switch operation.)

3)

End

PROCEDURE B
1)

Drive the vehicle at more than 30 km/h (19 MPH).

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

IDX

AUTOMATIC DRIVE POSITIONER

Trouble Diagnoses (Cont’d)

EL-199

2)

End

After performing preliminary check, go to symptom chart
below.

Before starting trouble diagnoses below, perform preliminary
check, EL-199. Symptom numbers in the symptom chart cor-
respond with those of preliminary check.

SYMPTOM CHART

NBEL0214S03

PROCEDURE

Diagnostic procedure

REFERENCE PAGE (EL-

)

202

203

205

207

209

211

212

SYMPTOM

DIAGNOSTIC

PROCEDURE

1

(Power

supply

and

ground

circuit

for

Driver

’s

seat

control

unit)

DIAGNOSTIC

PROCEDURE

2

(Sliding

encoder

check)

DIAGNOSTIC

PROCEDURE

3

(Reclining

encoder

check)

DIAGNOSTIC

PROCEDURE

4

[Lifting

encoder

(front)

check]

DIAGNOSTIC

PROCEDURE

5

[Lifting

encoder

(rear)

check]

DIAGNOSTIC

PROCEDURE

6

(Sliding

motor

check)

DIAGNOSTIC

PROCEDURE

7

(Reclining

motor

check)

1

No seat system functions operate.

X

2

Some of the seat
system functions
do not operate
during automatic/
manual operation.

Sliding

X

Reclining

X

Lifting (Front)

Lifting (Rear)

3

No functions operate during auto-
matic operation, and some/all func-
tions do not during manual opera-
tion.

4

Some of the seat
system functions
do not operate
during automatic
operation.

Sliding

X

Reclining

X

Lifting (Front)

X

Lifting (Rear)

X

5

No automatic operation functions
operate.

6

Drive position cannot be retained in
the memory.

7

Does not operate
during manual
operation. (Oper-
ates during auto-
matic operation.)

Sliding

Reclining

Lifting (Front)

Lifting (Rear)

8

Automatic operation cannot be can-
celed.

9

Memory indicator does not light up.

X : Applicable
