NOTE:
1) Do not keep cancel switch pressed as it will not operate.
2) Automatic exiting setting will be performed.
3) The driver’s seat position (see the following Table) operates in the order of priority.

The order of priority

Operated portion

1

Seat sliding

2

Seat reclining

3

Seat front lifting

4

Seat rear lifting

AUTOMATIC EXITING SETTING

NBEL0210S06

“Exiting” positions:

Driver’s seat ... Slides about 40 mm (1.57 in) rear from normal sitting position.

SEL594W

AUTOMATIC SET RETURN

NBEL0210S07

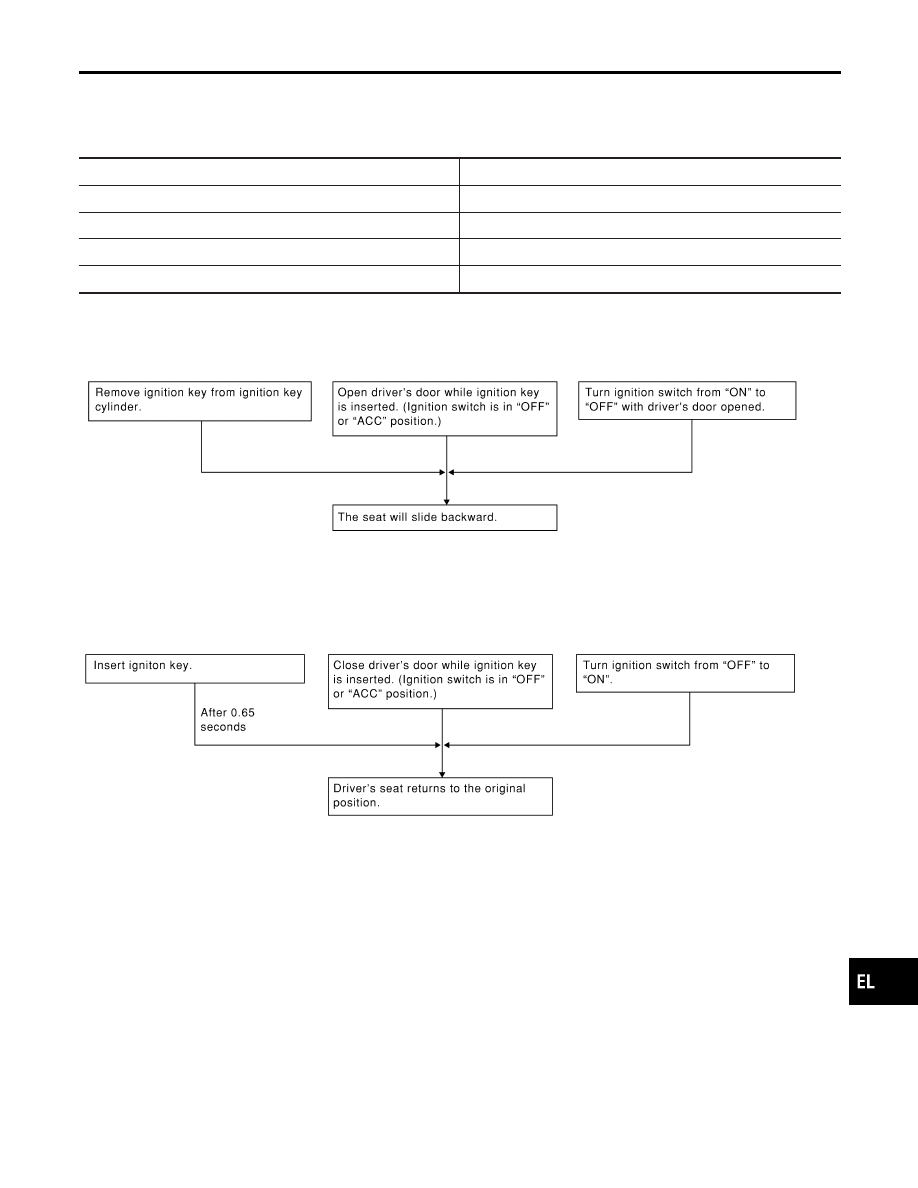

With driver’s seat set to the “exiting” position, operating one of the following procedures moves it to the posi-
tion previously retained in memory.

SEL595W

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

IDX

AUTOMATIC DRIVE POSITIONER

System Description (Cont’d)

EL-189

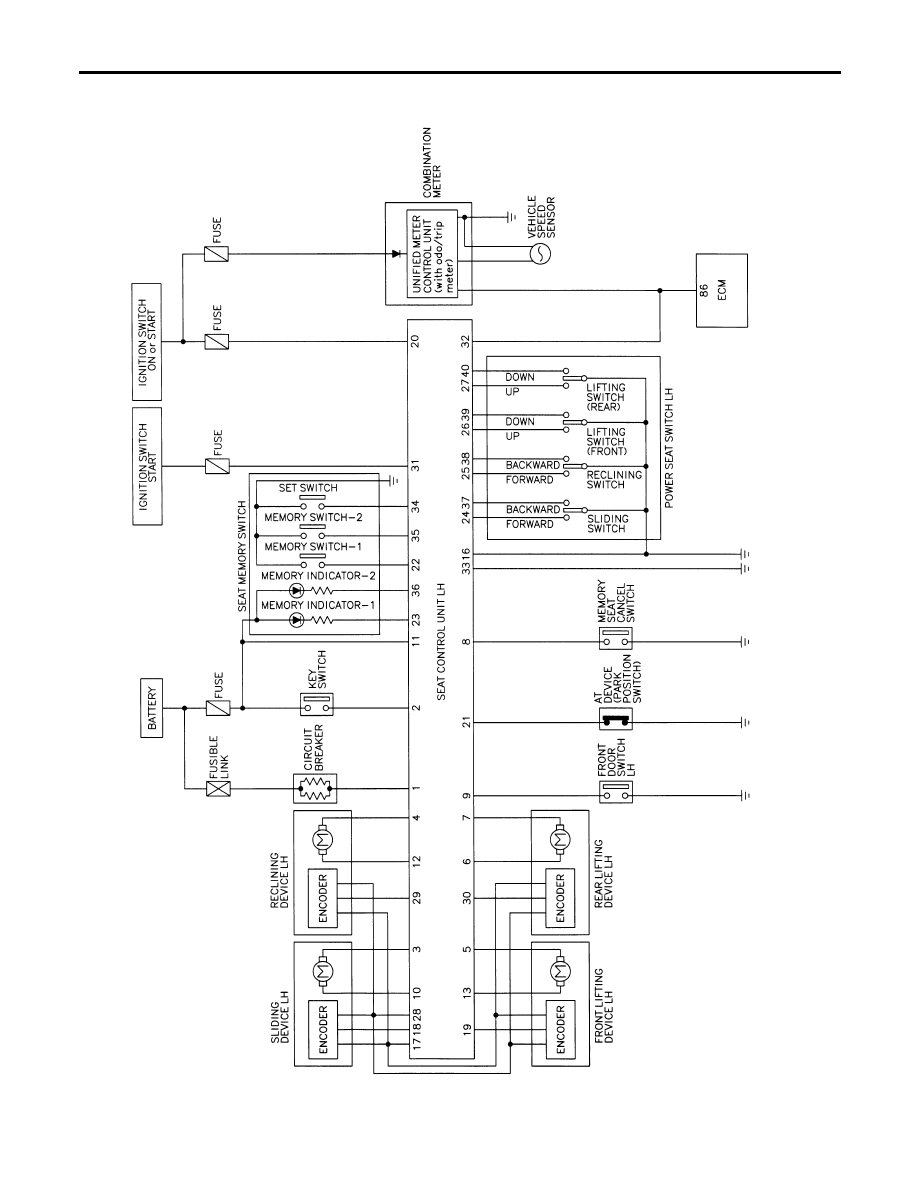

Schematic

NBEL0211

MEL833L

AUTOMATIC DRIVE POSITIONER

Schematic

EL-190

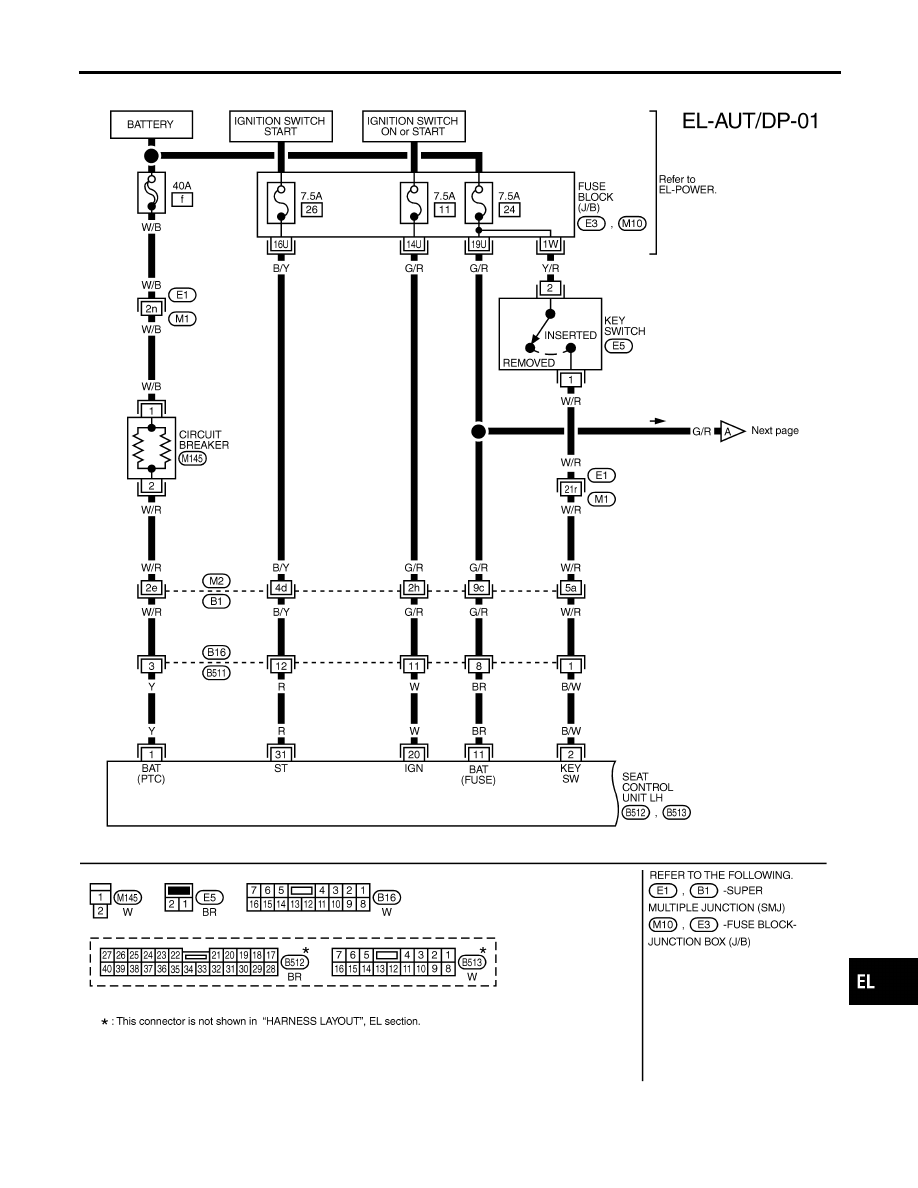

Wiring Diagram — AUT/DP —

NBEL0212

MEL834L

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

IDX

AUTOMATIC DRIVE POSITIONER

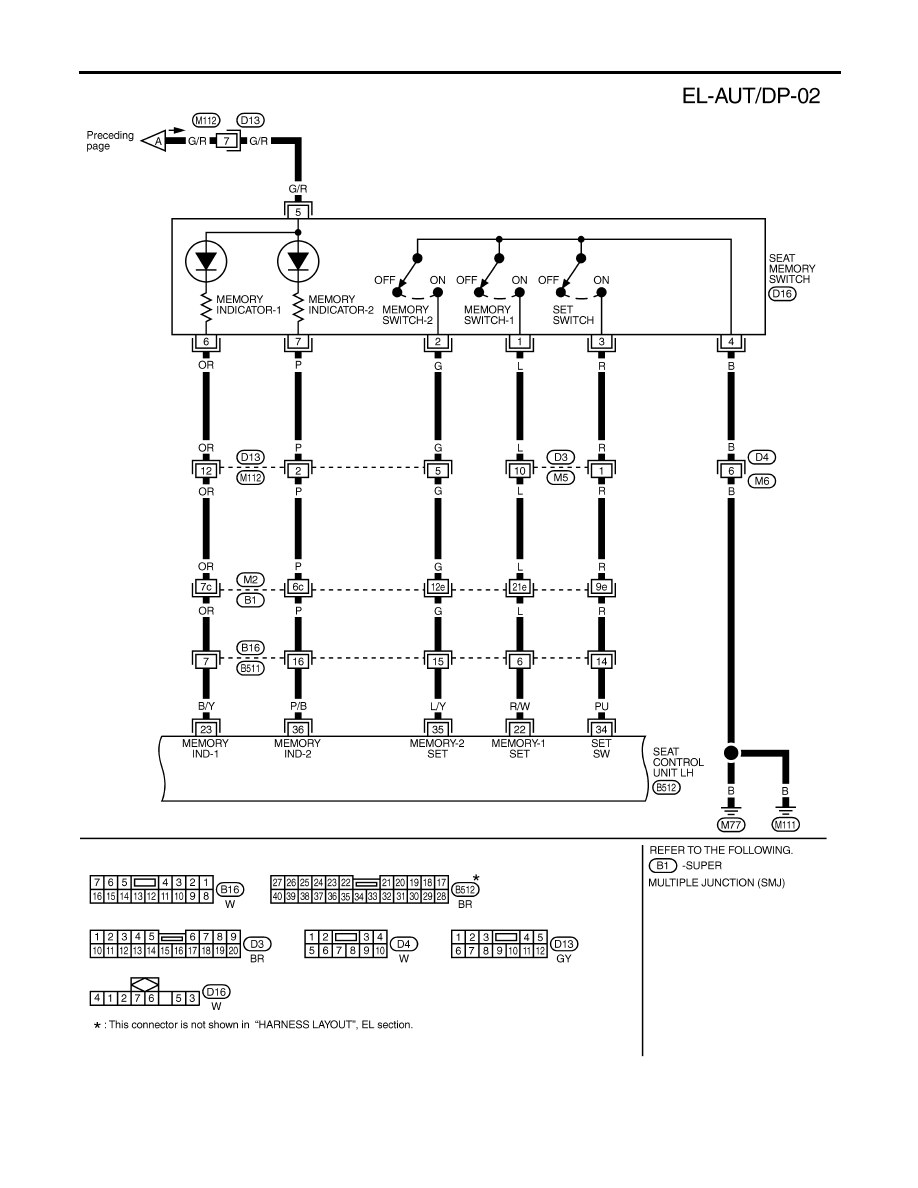

Wiring Diagram — AUT/DP —
