Infiniti QX4 (R50). Manual - part 337





MEL821L

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

IDX

AUDIO

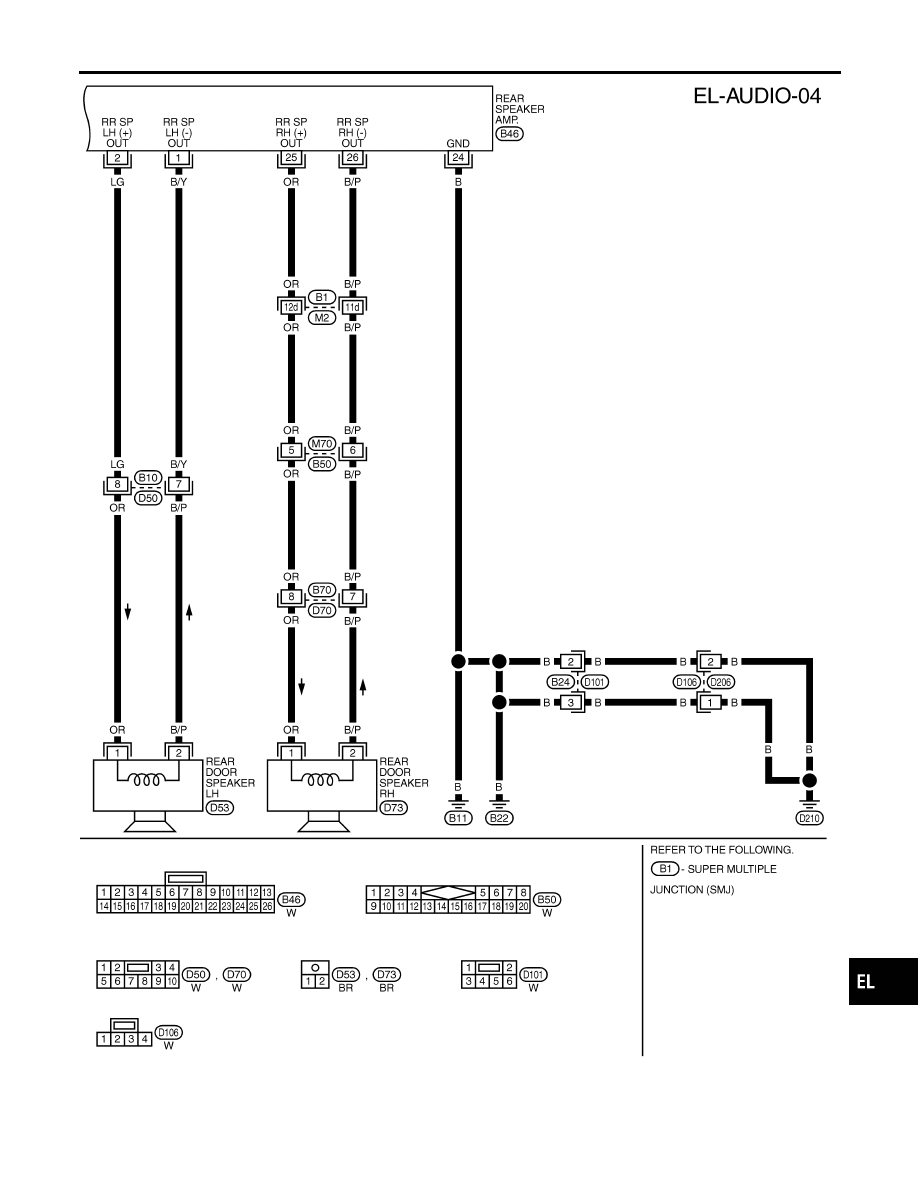

Wiring Diagram — AUDIO — (Cont’d)

EL-165

Trouble Diagnoses

NBEL0082

AUDIO UNIT

NBEL0082S01

Symptom

Possible causes

Repair order

Audio unit inoperative (no
digital display and no
sound from speakers).

1. 10A fuse
2. Poor audio unit case ground
3. Audio unit

1. Check 10A fuse [No. 10, located in fuse block (J/B)].

Turn ignition switch ON and verify that battery posi-
tive voltage is present at terminal 10 of audio unit.

2. Check audio unit case ground.
3. Remove audio unit for repair.

Audio unit presets are lost
when ignition switch is
turned OFF.

1. 15A fuse
2. Audio unit

1. Check 15A fuse [No. 4, located in fuse block (J/B)]

and verify that battery positive voltage is present at
terminal 6 of audio unit.

2. Remove audio unit for repair.

AM stations are weak or
noisy (FM stations OK).

1. Antenna
2. Poor audio unit ground
3. Audio unit

1. Check antenna.
2. Check audio unit ground.
3. Remove audio unit for repair.

FM stations are weak or
noisy (AM stations OK).

1. Window antenna
2. Audio unit

1. Check window antenna.
2. Remove audio unit for repair.

Audio unit generates noise
in AM and FM modes with
engine running.

1. Poor audio unit ground
2. Loose or missing ground bonding

straps

3. Ignition condenser or rear window

defogger noise suppressor condenser

4. Alternator
5. Ignition coil or secondary wiring
6. Audio unit

1. Check audio unit ground.
2. Check ground bonding straps.
3. Replace ignition condenser or rear window defogger

noise suppressor condenser.

4. Check alternator.
5. Check ignition coil and secondary wiring.
6. Remove audio unit for repair.

Audio unit generates noise
in AM and FM modes with
accessories on (switch
pops and motor noise).

1. Poor audio unit ground
2. Antenna
3. Accessory ground
4. Faulty accessory

1. Check audio unit ground.
2. Check antenna.
3. Check accessory ground.
4. Replace accessory.

Audio unit controls are
operational, but no sound
is heard from any speaker.

1. 15A fuse
2. Audio unit output
3. Audio unit

1. Check 15A fuse [No. 4, located in fuse block (J/B)].

Verify battery positive voltage is present at terminal 3
of audio amp. relay.

2. Check audio unit output voltage (Terminal 12).
3. Remove audio unit for repair.

All front speakers are inop-
erative.

1. Audio amp. relay
2. Audio amp. relay ground
3. Amp. ON signal

1. Check audio amp. relay.
2. Check audio amp. relay ground (Terminal 2).
3. Turn ignition switch ACC and audio unit ON. Verify

battery positive voltage is present at terminal 1 of
audio amp. relay.

Individual front speaker is
noisy or inoperative.

1. Speaker ground
2. Power supply
3. Audio unit output
4. Speaker

1. Check speaker ground (Terminal 5).
2. Check power supply for speaker (Terminal 4).
3. Check audio unit output voltage for speaker.
4. Replace speaker.

Both rear speakers are
inoperative.

1. Poor rear speaker amp. ground
2. Power supply
3. Amp. ON signal
4. Rear speaker amp.

1. Check rear speaker amp. ground circuit.
2. Check power supply for rear speaker amp. (Terminal

11).

3. Turn ignition switch ACC and audio unit ON. Verify

battery positive voltage is present at terminal 9 of
rear speaker amp.

4. Remove rear speaker amp. for repair.

Individual rear speaker is
noisy or inoperative.

1. Speaker
2. Audio unit/amp. output
3. Speaker circuit
4. Audio unit

1. Check speaker.
2. Check audio unit/amp. output.
3. Check wires for open or short between audio unit/

amp. and speakers.

4. Remove audio unit for repair.

AUDIO

Trouble Diagnoses

EL-166

Inspection

NBEL0083

AUDIO UNIT AND AMP.

NBEL0083S01

All voltage inspections are made with:

I

Ignition switch ON or ACC

I

Audio unit ON

I

Audio unit and amps. connected (If audio unit or amp. is removed for inspection, supply a ground to the
case using a jumper wire.)

ANTENNA

NBEL0083S02

1. Using a jumper wire, clip an auxiliary ground between antenna and body.

I

If reception improves, check antenna ground (at body surface).

I

If reception does not improve, check main feeder cable for short circuit or open circuit.

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

IDX

AUDIO

Inspection

EL-167

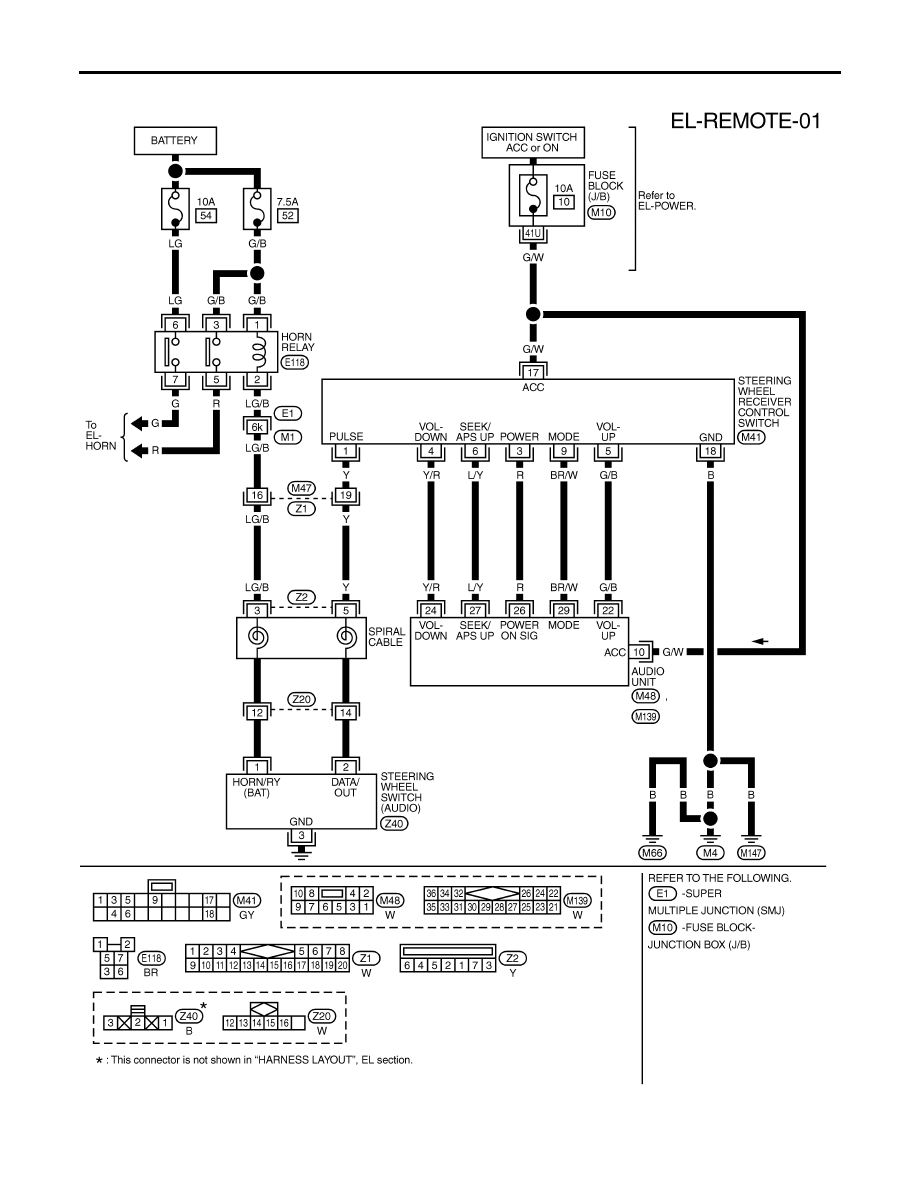

Wiring Diagram — REMOTE —

NBEL0205

MEL822L

AUDIO

Wiring Diagram — REMOTE —

EL-168
