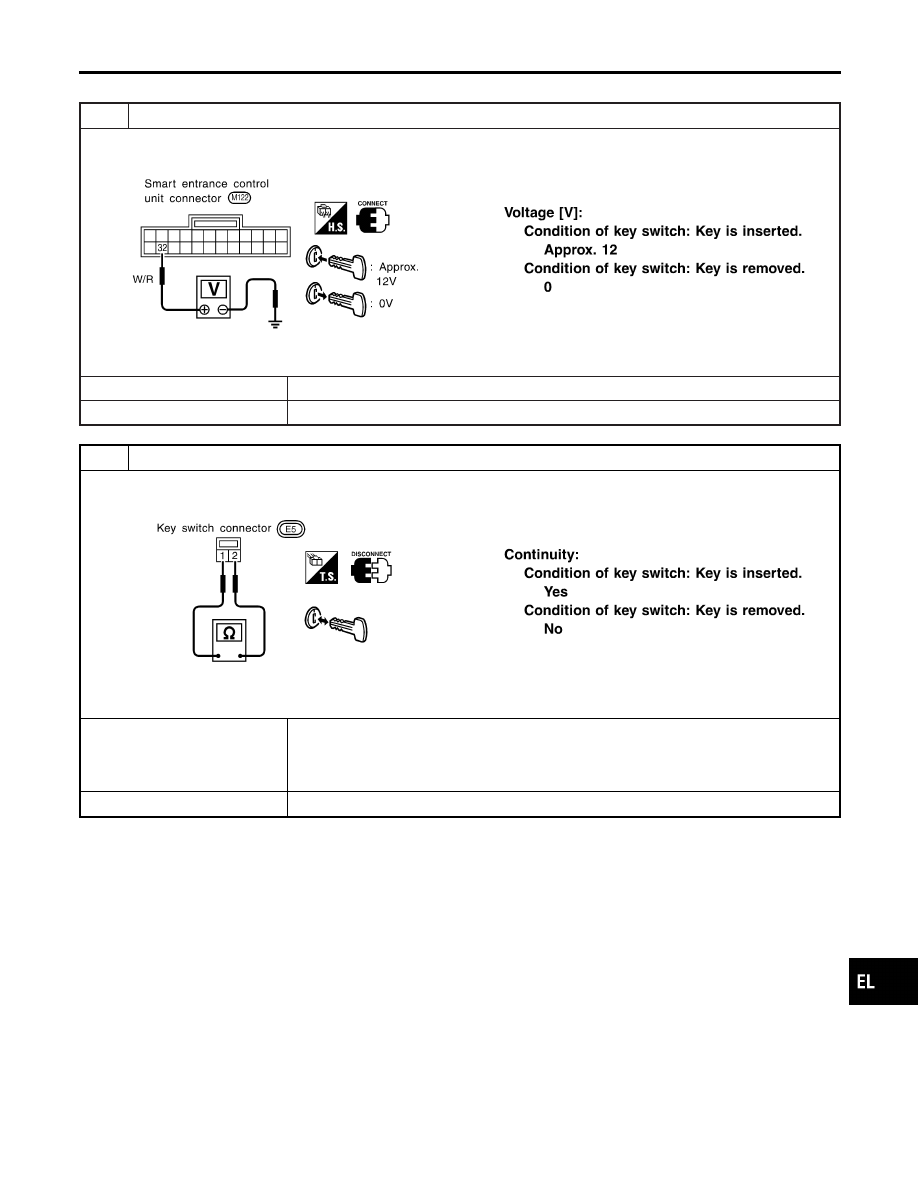

KEY SWITCH (INSERT) CHECK

=NBEL0055S04

1

CHECK KEY SWITCH INPUT SIGNAL

Check voltage between smart entrance control unit terminal 32 and ground.

SEL307X

OK or NG

OK

©

Key switch is OK.

NG

©

GO TO 2.

2

CHECK KEY SWITCH (INSERT)

Check continuity between terminals 1 and 2.

SEL308X

OK or NG

OK

©

Check the following.

I

7.5A fuse [No. 24, located in fuse block (J/B)]

I

Harness for open or short between key switch and fuse

I

Harness for open or short between smart entrance control unit and key switch

NG

©

Replace key switch.

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

IDX

WARNING CHIME

Trouble Diagnoses (Cont’d)

EL-133

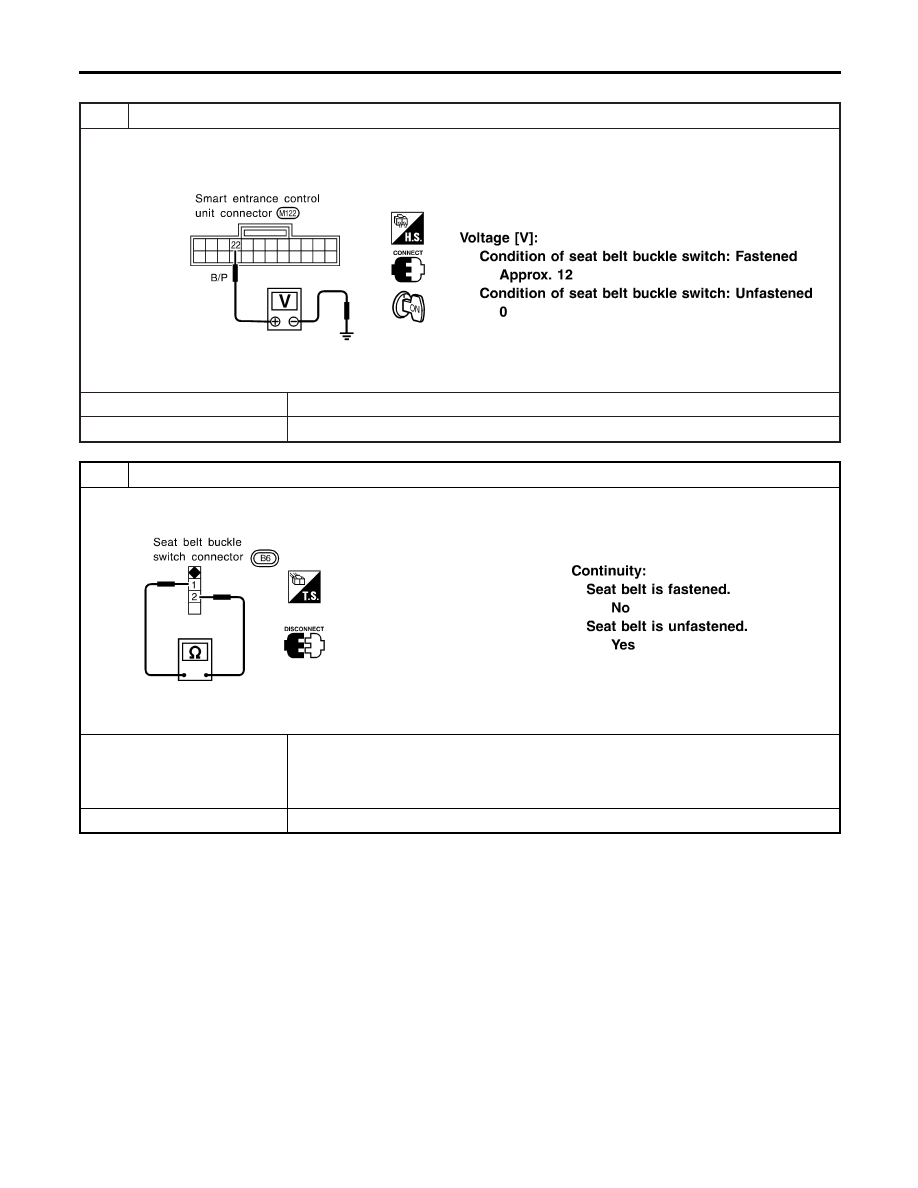

SEAT BELT BUCKLE SWITCH CHECK

=NBEL0055S05

1

CHECK SEAT BELT BUCKLE SWITCH INPUT SIGNAL

1. Turn ignition switch “ON”.
2. Check voltage between smart entrance control unit terminal 22 and ground.

SEL380X

OK or NG

OK

©

Seat belt buckle switch is OK.

NG

©

GO TO 2.

2

CHECK SEAT BELT BUCKLE SWITCH

Check continuity between terminals 1 and 2 when seat belt is fastened and unfastened.

SEL381X

OK or NG

OK

©

Check the following.

I

Seat belt buckle switch ground circuit

I

Harness for open or short between smart entrance control unit and seat belt buckle
switch

NG

©

Replace seat belt buckle switch.

WARNING CHIME

Trouble Diagnoses (Cont’d)

EL-134

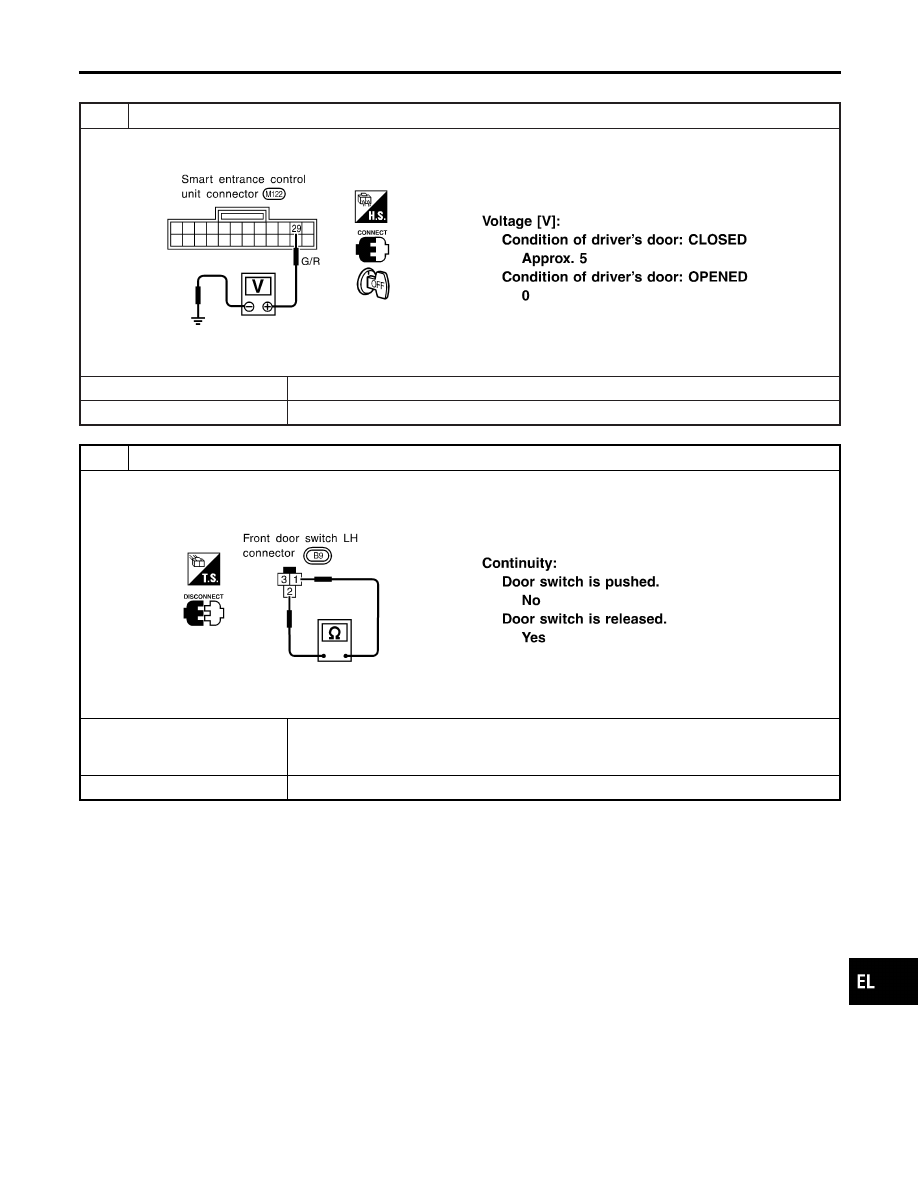

DRIVER SIDE DOOR SWITCH CHECK

NBEL0055S06

1

CHECK DOOR SWITCH INPUT SIGNAL

Check voltage between smart entrance control unit terminal 29 and ground.

SEL382X

OK or NG

OK

©

Front door switch LH is OK.

NG

©

GO TO 2.

2

CHECK DRIVER SIDE DOOR SWITCH

Check continuity between terminals 1 and 2.

SEL383X

OK or NG

OK

©

Check the following.

I

Door switch ground circuit

I

Harness for open or short between smart entrance control unit and door switch

NG

©

Replace front door switch LH.

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

IDX

WARNING CHIME

Trouble Diagnoses (Cont’d)

EL-135

System Description

NBEL0057

WIPER OPERATION

NBEL0057S01

The front wiper switch is controlled by a lever built into the combination switch.
There are three wiper switch positions:

I

LO speed

I

HI speed

I

INT (Intermittent)

With the ignition switch in the ACC or ON position, power is supplied

I

through 20A fuse [No. 19, located in the fuse block (J/B)]

I

to front wiper motor terminal 4, and

I

to front wiper switch terminal 15.

Low and High Speed Wiper Operation

NBEL0057S0101

Ground is supplied to front wiper switch terminal 17 through body grounds E13 and E41.
When the wiper switch is placed in the LO position, ground is supplied

I

through terminal 14 of the front wiper switch

I

to front wiper motor terminal 3.

With power and ground supplied, the front wiper motor operates at low speed.
When the front wiper switch is placed in the HI position, ground is supplied

I

through terminal 16 of the front wiper switch

I

to front wiper motor terminal 1.

With power and ground supplied, the front wiper motor operates at high speed.

Auto Stop Operation

NBEL0057S0102

With front wiper switch turned OFF, front wiper motor will continue to operate until wiper arms reach windshield
base.
When wiper arms are not located at base of windshield with front wiper switch OFF, ground is provided

I

from terminal 14 of the front wiper switch

I

to front wiper motor terminal 3, in order to continue front wiper motor operation at low speed.

Ground is also supplied

I

to terminal 13 of the front wiper switch

I

through front wiper motor terminal 2

I

through terminal 6 of the front wiper motor, and

I

through body grounds M77 and M111.

When wiper arms reach base of windshield, front wiper motor terminals 2 and 4 are connected instead of ter-
minals 2 and 6. Wiper motor will then stop wiper arms at the PARK position.

Intermittent Operation

NBEL0057S0103

The front wiper motor operates the wiper arms one time at low speed at a set interval of approximately 2 to
13 seconds. This feature is controlled by the wiper amplifier built in the front wiper switch.
When the front wiper switch is placed in the INT position, ground is supplied

I

to wiper amplifier (INT SW)

I

from wiper switch terminal 17

I

through body grounds E13 and E41, and

I

to wiper motor terminal 3

I

through the wiper switch terminal 14

I

through wiper amplifier (OUTPUT)

WASHER OPERATION

NBEL0057S02

With the ignition switch in the ACC or ON position, power is supplied

I

through 20A fuse [No. 19, located in the fuse block (J/B)]

I

to washer motor terminal 1.

When the lever is pulled to the WASH position, ground is supplied

I

to washer motor terminal 2

I

through terminal 18 of the wiper switch

FRONT WIPER AND WASHER

System Description

EL-136
