Infiniti QX4 (R50). Manual - part 316





Component

Connector No.

Power terminal

Ground terminal

IVCS switch

R10

2

12

Display & NAVI control unit

M117, M118

8

24

A/C auto amp.

M102

24

25

Clock

M39

3

4

Globe box lamp

M30

1

2

The ground for all of the components except for compass, glove box lamp and ashtray are controlled through
terminals 2 and 3 of the illumination control switch and body grounds M77 and M111.

BATTERY SAVER CONTROL

NBEL0035S02

When the ignition switch is turned from ON (or START) to OFF (or ACC) positions while illumination lamps
are illuminated, the RAP signal is supplied to terminal 10 of the headlamp battery saver control unit from smart
entrance control unit terminal 5.
After counting 45 seconds by the RAP signal from the smart entrance control unit to headlamp battery saver
control unit, the ground supply to terminal 1 of the tail lamp relay from headlamp battery saver control unit
teminals 6 and 14 is terminated.
Then illumination lamps are turned off.
Illumination lamps are turned off when driver or passenger side door is opened even if 45 seconds have not
passed after the ignition switch is turned from ON (or START) to OFF (or ACC) positions while illumination
lamps are illuminated.
When the lighting switch is turned from OFF to 1ST (or 2ND) after illumination lamps are turned off by the
battery saver control, ground is supplied

I

to headlamp battery saver control unit terminals 5 and 13 from lighting switch terminal 11, and

I

to tail lamp relay terminal 1 from headlamp battery saver control unit terminals 6 and 14.

Then illumination lamps illuminate again.
NOTE:
For Trouble Diagnoses for battery saver control, refer to “PARKING, LICENSE AND TAIL LAMPS”
(EL-66).

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

IDX

ILLUMINATION

System Description (Cont’d)

EL-81

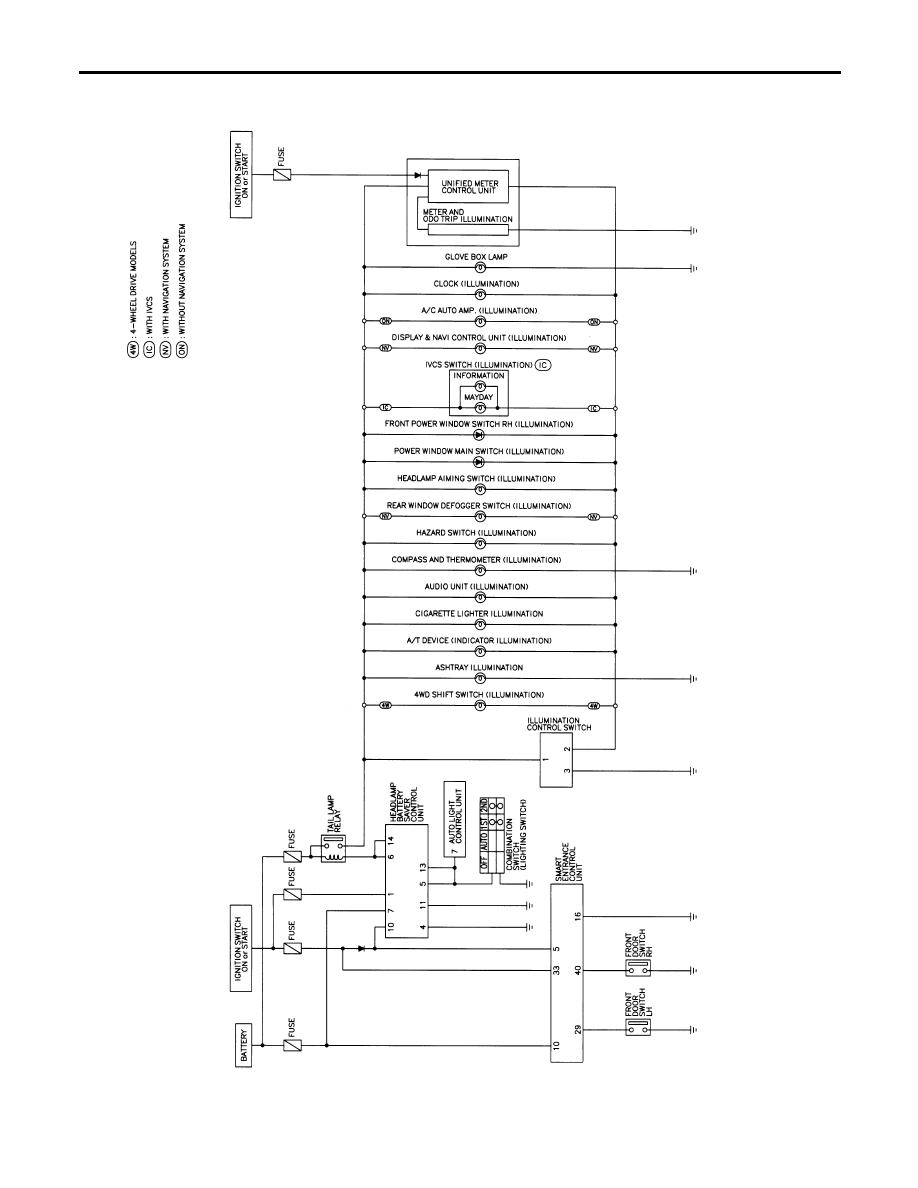

Schematic

NBEL0036

MEL783L

ILLUMINATION

Schematic

EL-82

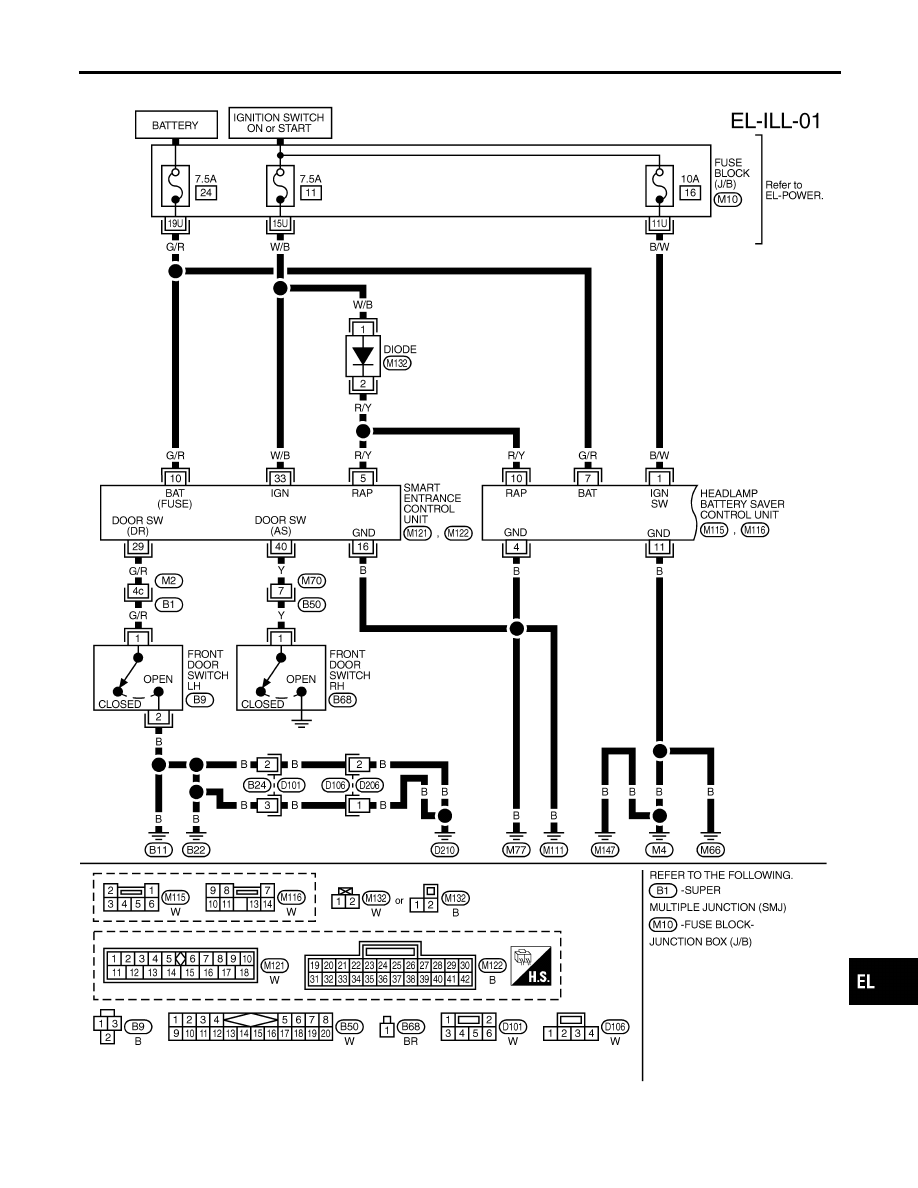

Wiring Diagram — ILL —

NBEL0037

MEL005O

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

IDX

ILLUMINATION

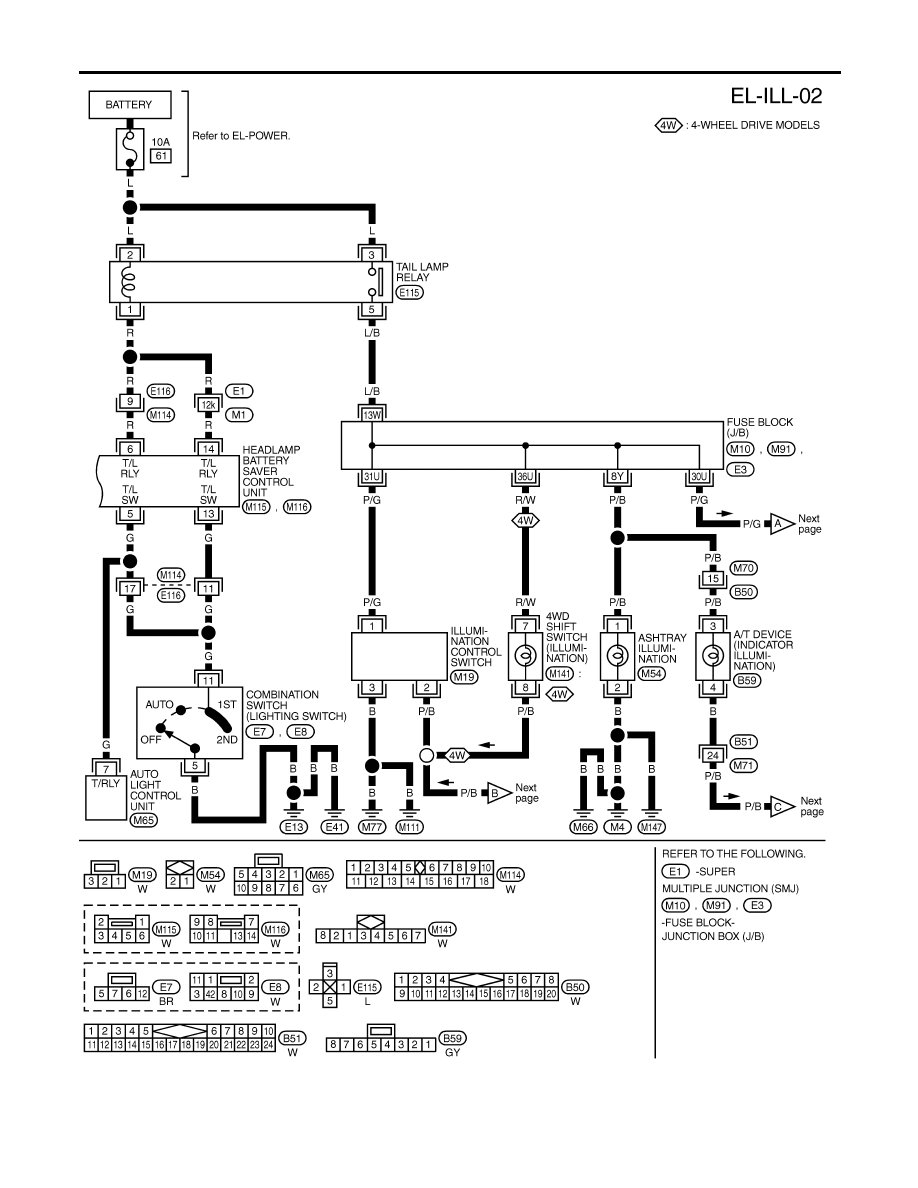

Wiring Diagram — ILL —

EL-83

MEL785L

ILLUMINATION

Wiring Diagram — ILL — (Cont’d)

EL-84
