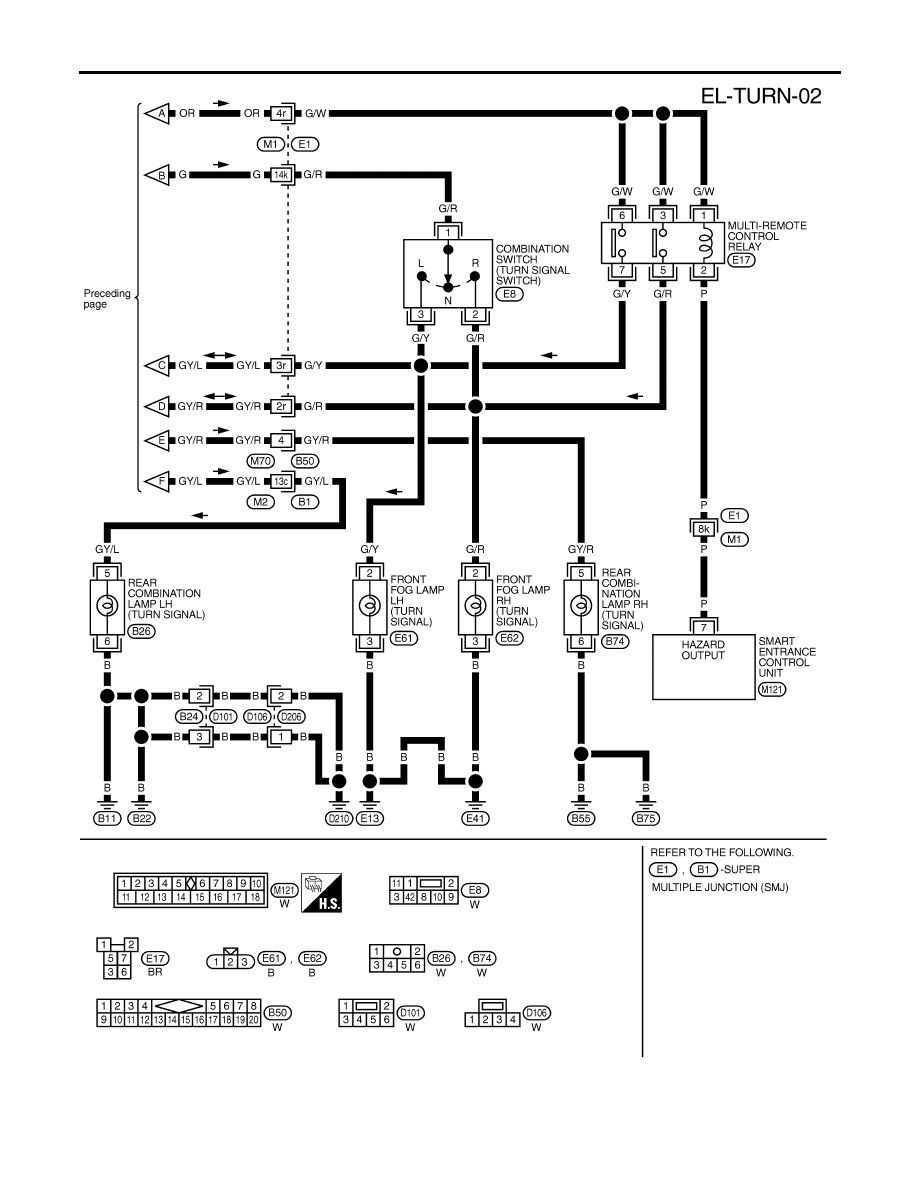

TURN SIGNAL AND HAZARD WARNING LAMPS

Wiring Diagram — TURN —

EL-77

MEL782L

TURN SIGNAL AND HAZARD WARNING LAMPS

Wiring Diagram — TURN — (Cont’d)

EL-78

Trouble Diagnoses

NBEL0033

Symptom

Possible cause

Repair order

Turn signal and hazard warning
lamps do not operate.

1. Hazard switch
2. Combination flasher unit
3. Open in combination flasher

unit circuit

1. Check hazard switch.
2. Refer to combination flasher unit check.
3. Check wiring to combination flasher unit for open

circuit.

Turn signal lamps do not operate
but hazard warning lamps operate.

1. 7.5A fuse
2. Hazard switch
3. Combination switch (turn signal)
4. Open in combination switch

(turn signal) circuit

1. Check 7.5A fuse [No. 12, located in fuse block

(J/B)]. Turn ignition switch ON and verify battery
positive voltage is present at terminal 2 of hazard
switch.

2. Check hazard switch.
3. Check combination switch (turn signal).
4. Check the wire between combination flasher unit

terminal 3 and combination switch (turn signal) ter-
minal 1 for open circuit.

Hazard warning lamps do not oper-
ate but fog lamps (turn signal)
operate.

1. 15A fuse
2. Hazard switch
3. Open in hazard switch circuit

1. Check 15A fuse [No. 20, located in fuse block (J/B)].

Verify battery positive voltage is present at terminal
3 of hazard switch.

2. Check hazard switch.
3. Check the wire between combination flasher unit

terminal 3 and hazard switch terminal 4 for open cir-
cuit.

Front fog lamp (turn signal) LH or
RH does not operate.

1. Bulb
2. Grounds E13 and E41
3. Open in front fog lamp (turn sig-

nal) circuit

1. Check bulb.
2. Check grounds E13 and E41.
3. Check harness between front fog lamp (turn signal)

and combination switch.

Rear combination lamp LH does
not operate.

1. Bulb
2. Grounds B11, B22 and D210
3. Open in rear combination lamp

LH circuit

1. Check bulb.
2. Check grounds B11, B22 and D210.
3. Check harness between rear combination lamp LH

and hazard switch.

Rear combination lamp RH does
not operate.

1. Bulb
2. Grounds B55 and B75
3. Open in rear combination lamp

RH circuit

1. Check bulb.
2. Check grounds B55 and B75.
3. Check harness between rear combination lamp RH

and hazard switch.

LH and RH turn indicators do not
operate.

1. Ground

1. Check grounds M4, M66 and M147.

LH or RH turn indicator does not
operate.

1. Bulb
2. Open in turn indicator circuit

1. Check bulb in combination meter.
2. Check harness between combination meter and haz-

ard switch.

SEL122E

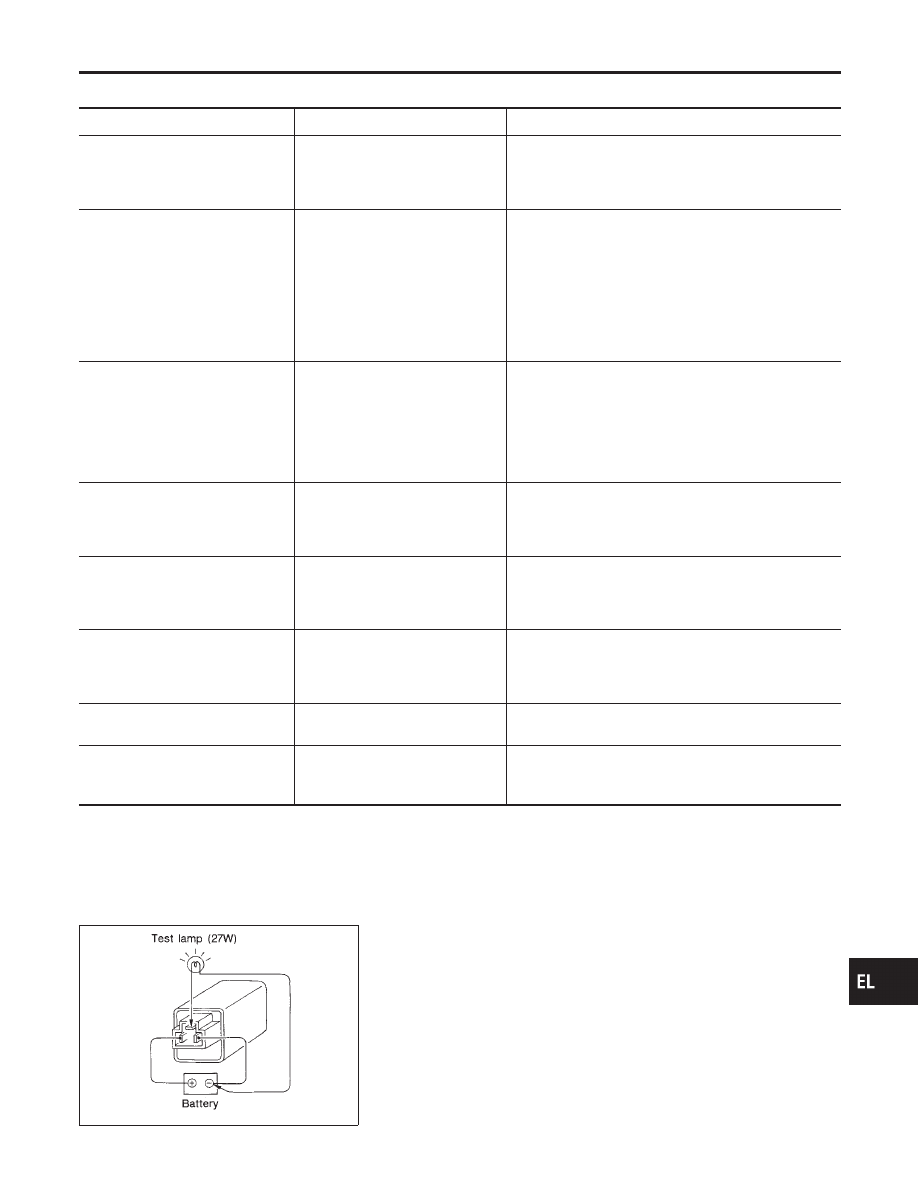

Electrical Components Inspection

NBEL0034

COMBINATION FLASHER UNIT CHECK

NBEL0034S01

I

Before checking, ensure that bulbs meet specifications.

I

Connect a battery and test lamp to the combination flasher
unit, as shown. Combination flasher unit is properly function-
ing if it blinks when power is supplied to the circuit.

GI

MA

EM

LC

EC

FE

AT

TF

PD

AX

SU

BR

ST

RS

BT

HA

SC

IDX

TURN SIGNAL AND HAZARD WARNING LAMPS

Trouble Diagnoses

EL-79

System Description

NBEL0035

The illumination lamp operation is controlled by the lighting switch which is built into the combination switch
and headlamp battery saver control unit. The battery saver system is controlled by the headlamp battery saver
control unit and smart entrance control unit.
Power is supplied at all times

I

to tail lamp relay terminals 2 and 3

I

through 10A fuse (No. 61, located in the fuse and fusible link box), and

I

to headlamp battery saver control unit terminal 7, and

I

to smart entrance control unit terminal 10

I

through 7.5A fuse [No. 24, located in the fuse block (J/B)].

When ignition switch is in ON or START position, power is supplied

I

to headlamp battery saver control unit terminal 1

I

through 10A fuse [No. 16, located in the fuse block (J/B)], and

I

to headlamp battery saver control unit terminal 10, and

I

to smart entrance control unit terminal 33

I

through 7.5A fuse [No. 11, located in the fuse block (J/B)].

Ground is supplied to headlamp battery saver control unit terminals 4 and 11.

LIGHTING OPERATION BY LIGHTING SWITCH

NBEL0035S01

When lighting switch is 1ST (or 2ND) position, ground is supplied

I

to tail lamp relay terminal 1 from headlamp battery saver control unit terminals 6 and 14

I

through headlamp battery saver control unit terminals 5 and 13, and

I

through body grounds E13 and E41.

Tail lamp relay is then energized and illumination lamps illuminate.
The lighting switch must be in the 1ST or 2ND position for illumination.

LIGHTING OPERATION BY AUTO LIGHT CONTROL SYSTEM

NBEL0035S03

When auto light operation is operated, ground is supplied

I

to tail lamp relay terminal 1 from headlamp battery saver control unit terminals 6 and 14

I

through headlamp battery saver control unit terminals 5 and 13, and

I

through auto light control unit terminal 7.

Tail lamp relay is then energized and the illumination lamps illuminate.
The illumination control switch that controls the amount of current to the illumination system. As the amount
of current increases, the illumination becomes brighter.
The following chart shows the power and ground connector terminals for the components included in the illu-
mination system.

Component

Connector No.

Power terminal

Ground terminal

Illumination control switch

M19

1

3

4WD shift switch

M141

7

8

Ashtray

M54

1

2

A/T indicator

B59

3

4

Cigarette lighter

M57

3

4

Audio unit

M48

8

7

Compass and thermometer

R4

5

2

Hazard switch

M35

7

8

Rear window defogger switch

M36

5

6

Headlamp aiming switch

M16

3

4

Power window main switch

D6

16

18

Front power window switch RH

D36

10

17
